Xtend® Connect Prime
Xtend® Connect Prime
Quick Links
| Part # | Description |
|---|
Product information

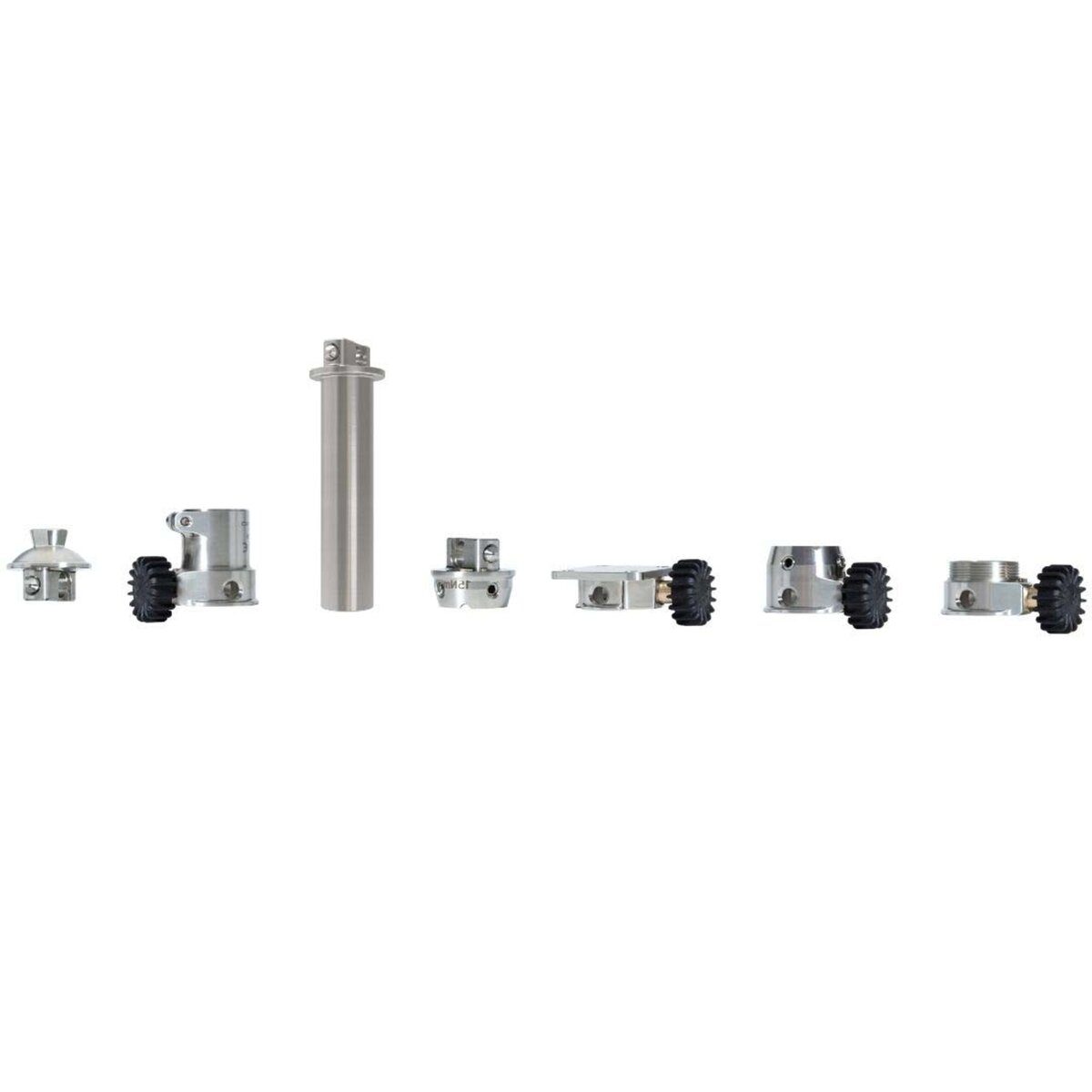

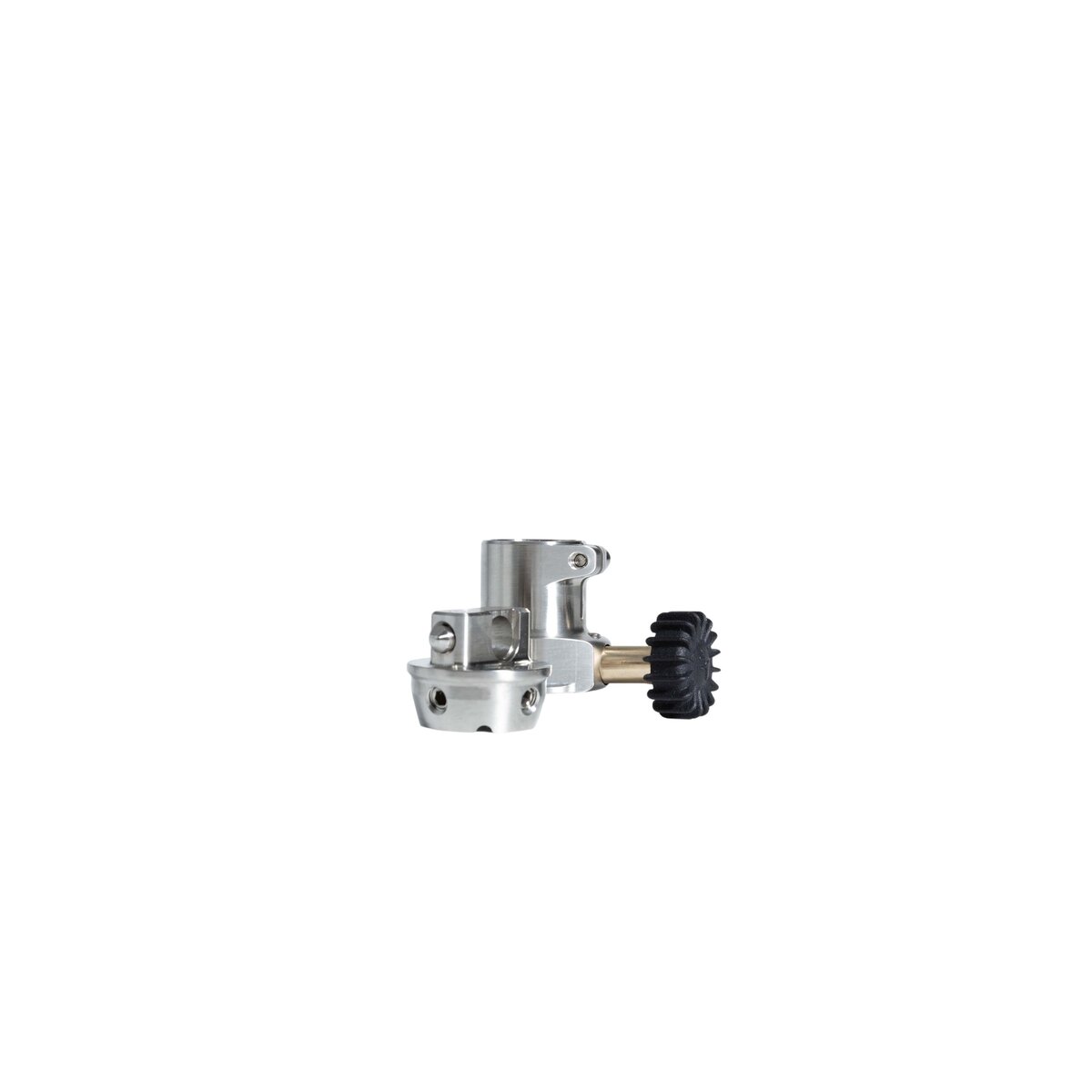

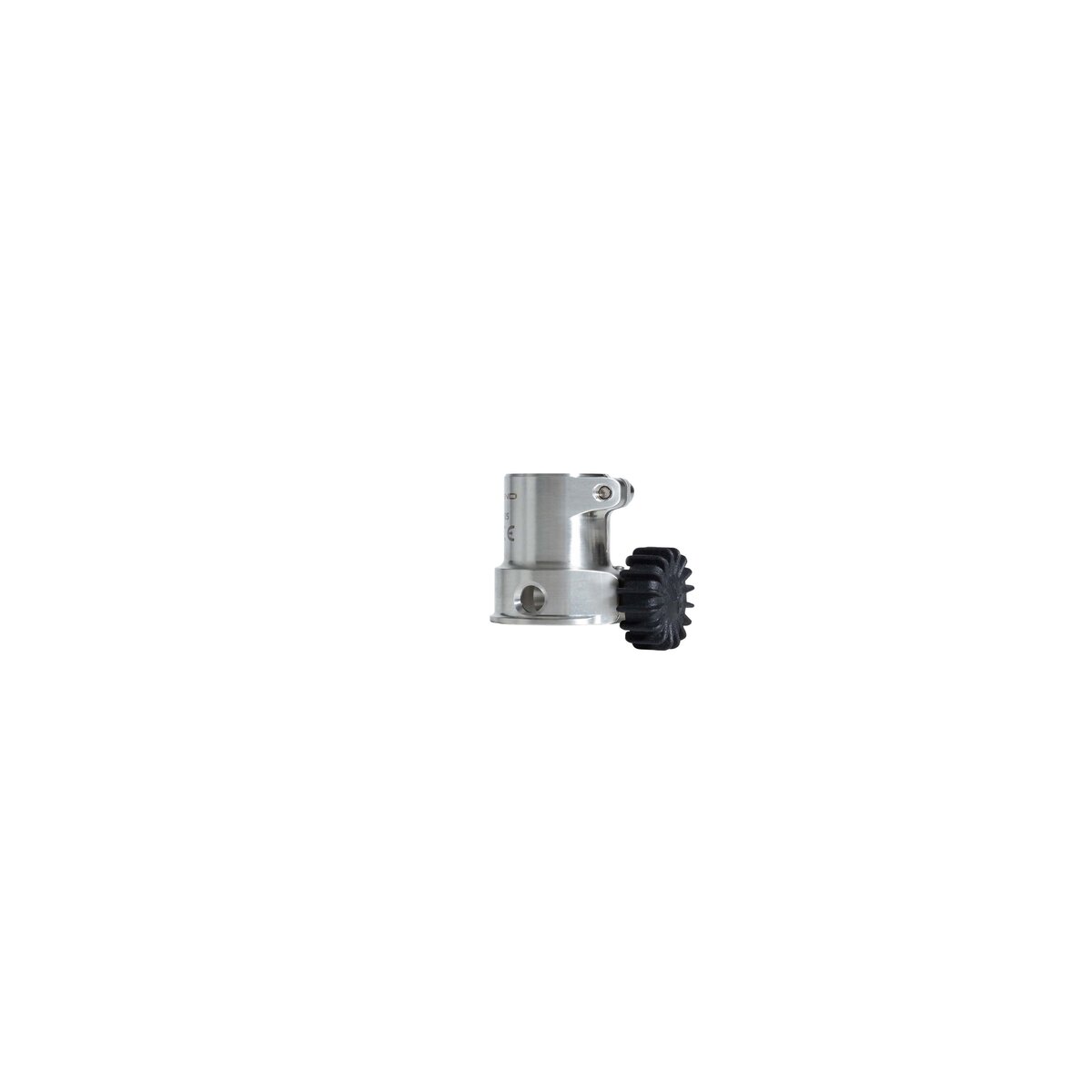

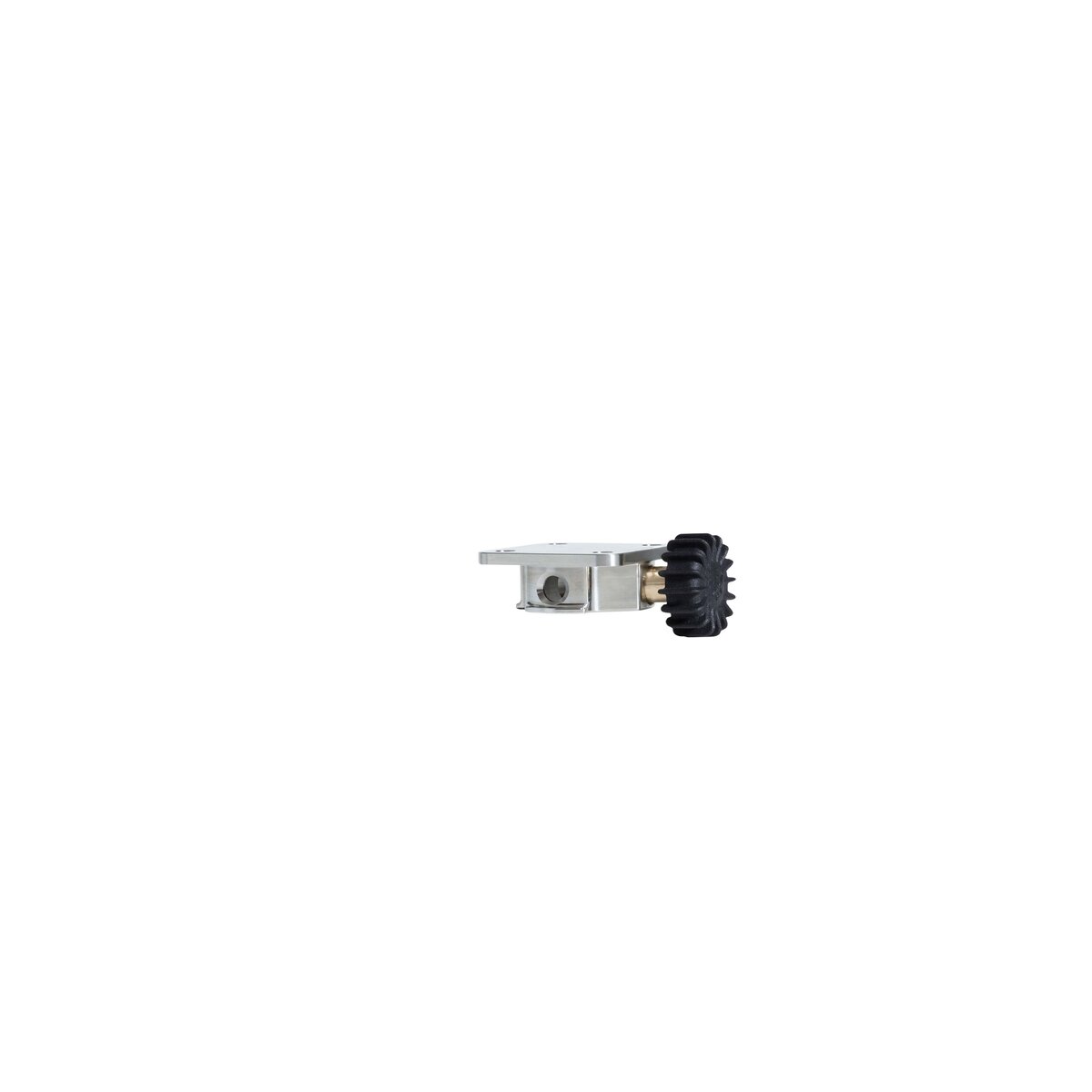

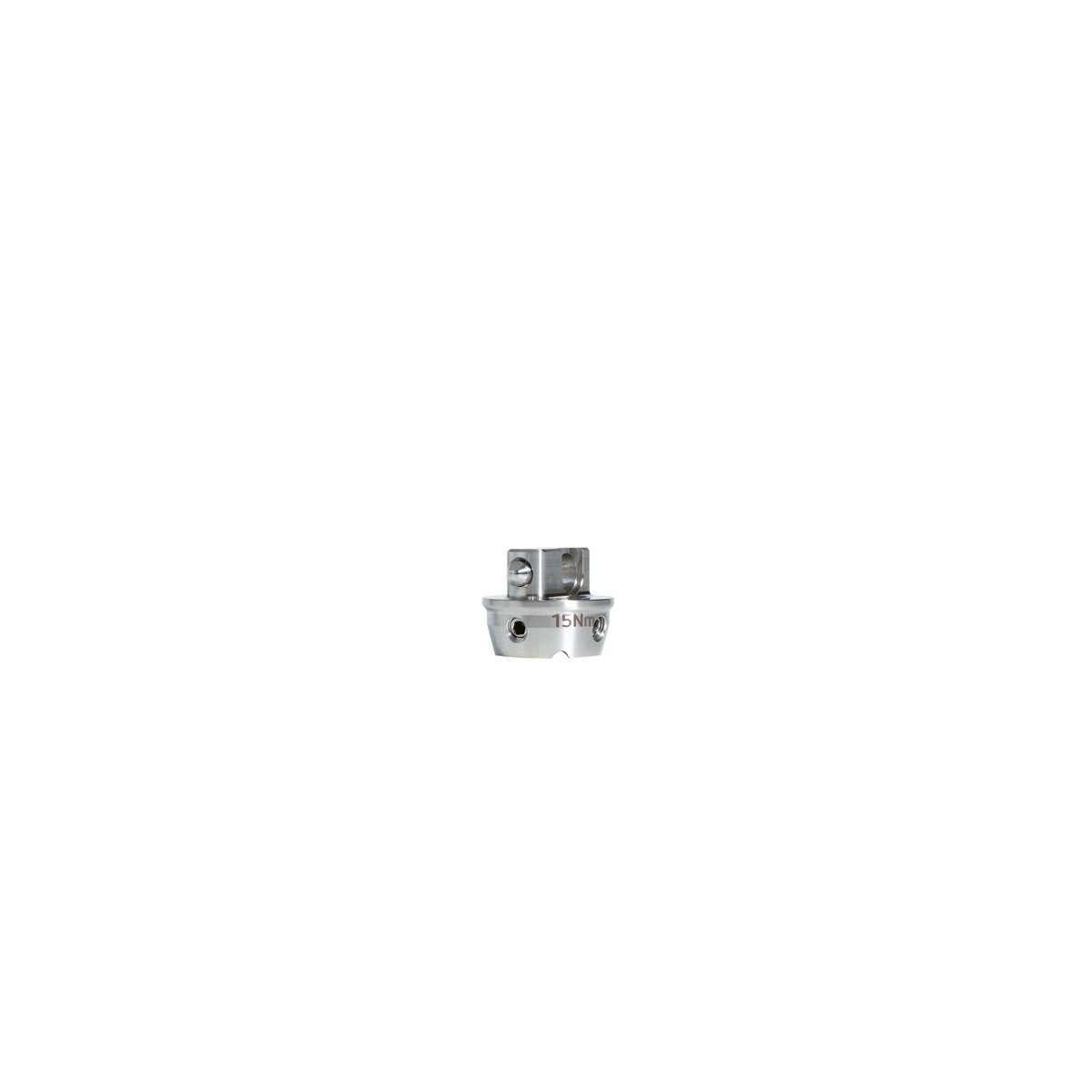

The Xtend® Connect Prime multi-functional adapter consist of two main components, a Quick Fit Unit and Base Unit, that allows for quick and easy changes from complete prosthetics for various activities. It fits all types of users, both uni and bilaterial, above and below knee, and to most prosthetic systems used today.
- Quick Fit Unit and Base Unit are both required
- Quick Fit Unit that can be opened and closed with the aid of a locking wheel and a safety push-button
- Minimal extra “build height”
- All connection solutions can also be freely combined
- All components can be rotated in any direction
- Waterproof- including salt and pool
- B30: Adaptable effective height and weight as the tube can be cut off with up to 100 mm.
Specifications
- Material: Stainless Steel
- Weight Limit: 330 lbs (150 kg)
- Build Height (mm): 39-179
- Assembly Weight (g): 274-519*
- Torque (Nm): 15 (Set Screw), 7 (Clamp Screw)
- Warranty: 12 months from patient fit date, 60 days trial period
| HCPCS: | L5617 |
|---|---|
| Endoskeletal Type: | Quick Change Adapters |
| User: | Adult |
| Key Features: | Exclusive Distributor, High Weight Limit, Waterproof |
| Weight Limit: | 150 kg (330 lbs) |
| Material: | Stainless Steel |
Frequently Bought Together

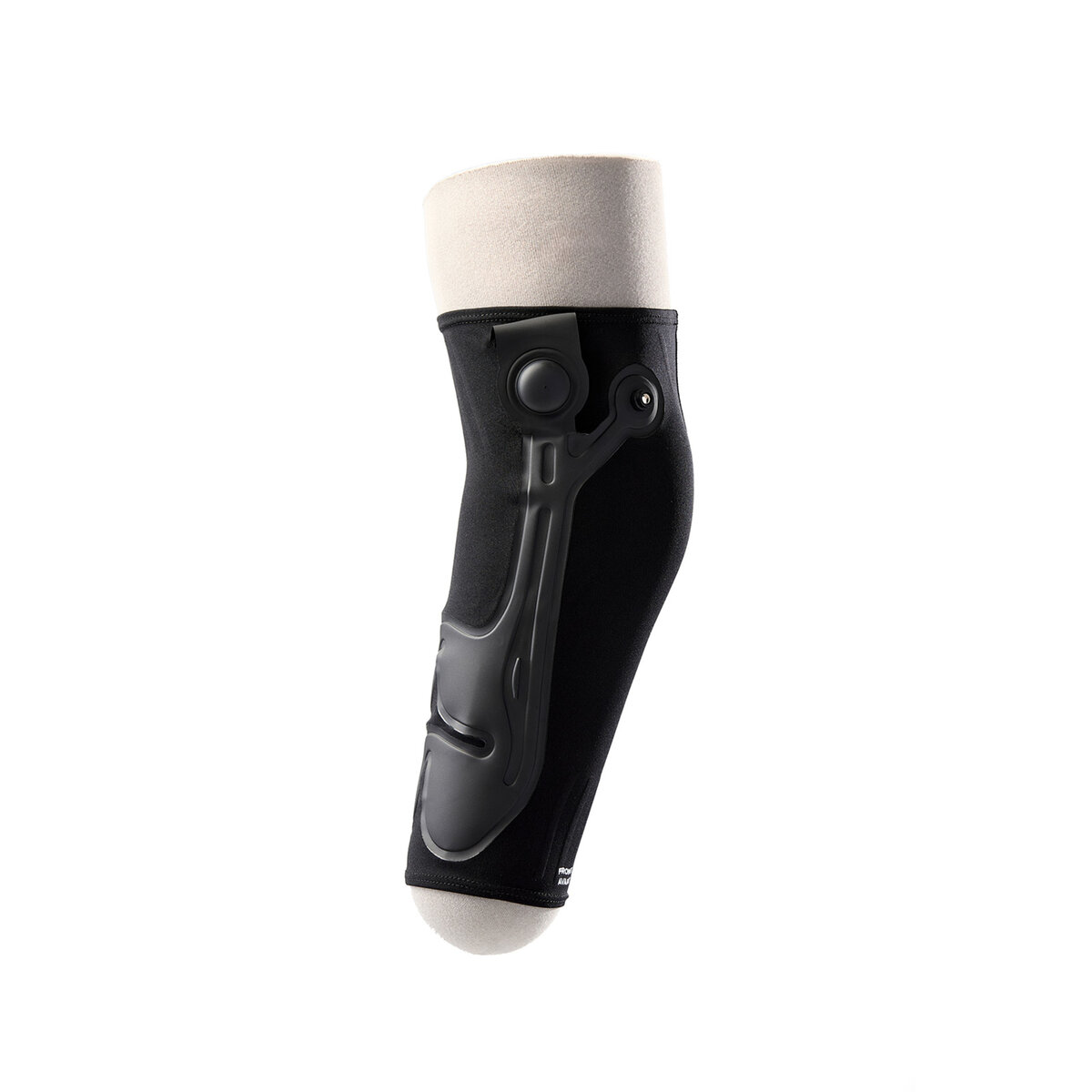

Overlay TT™
The Overlay TT™ is a breathable fabric sleeve with an integrated air expansion system that users can adjust to compensate for residual limb volume variation. The use of air enhances comfort and creates a personalized fit for each user.Adjustable cushioning volume from 2-ply to 15-plyCan easily be adjusted through clothing without removing the prosthesisImproves comfort and socket fitCan be used with the majority of existing liners and sockets.Compatible with distal fixation (locks), suspension sleeves, and passive and active vacuum systemsCompatible with most K1-K4 activity level patientsHow to use the product Online Assistance Tool Online Sizing Tool
