Total Knee® Junior
Quick Links
| Part # | Description |
|---|
Product information

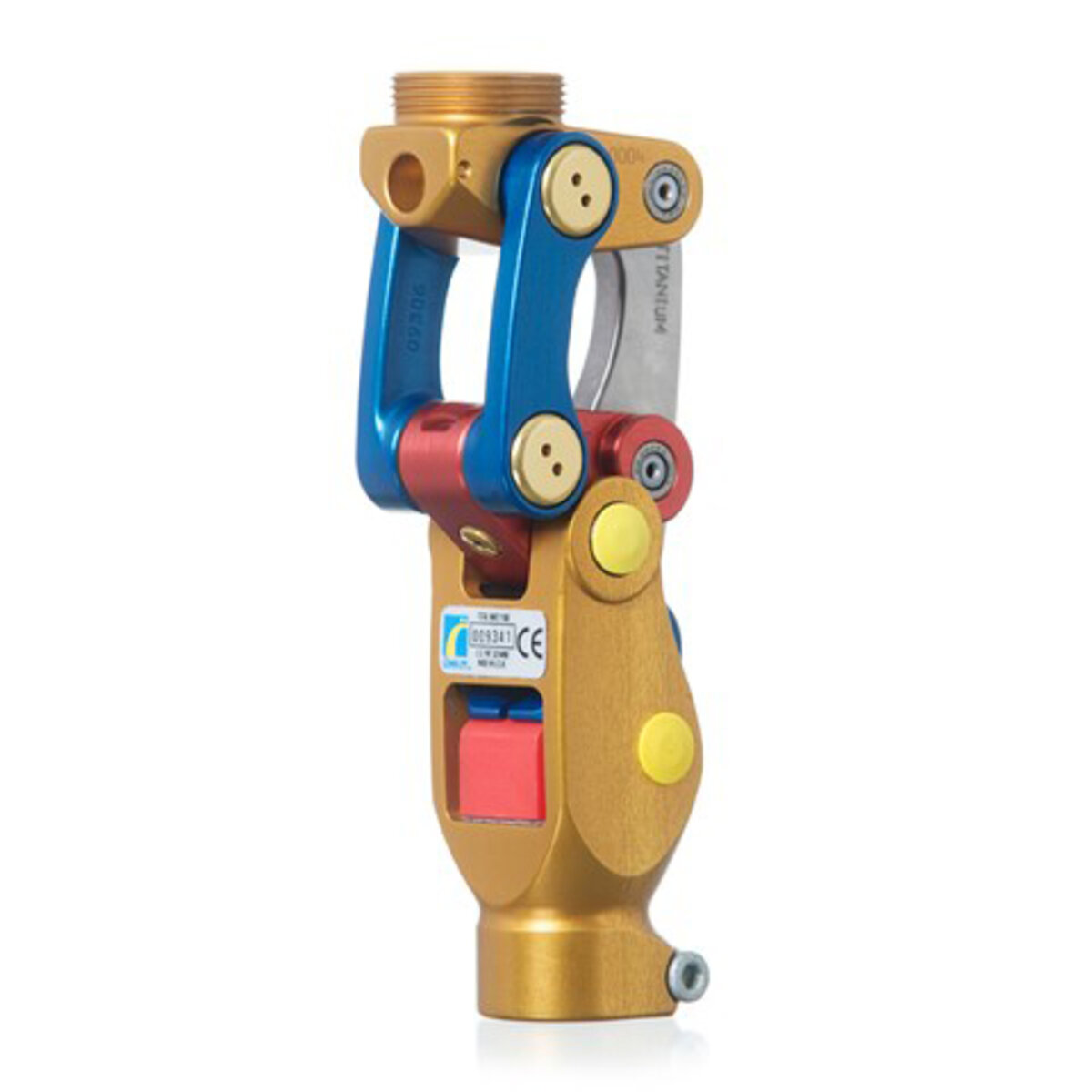

The Total Knee® junior is a small version of the adult Total Knee® which offers security, natural motion, walking ease, and easy to cosmetically cover. 160 degrees of knee flexion makes the Total Knee Junior extremely versatile and natural for children who have a broad range of very high-level activities including walking, running, sitting, squatting, and kneeling.
- Supports transfemoral or knee disarticulation amputations
- Polycentric knee with geometric locking system
- Adjustable stance flexion
- Adjustable extension promoter
- Low build height and slender profile
Specifications
- Activity Level: K3, K4
- Knee Design Type: 4-Bar Linkage, Friction Swing Phase Control
- Axis: Polycentric
- Swing Phase: Friction
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 395
- Maximum User Weight: 100lbs (45kg)
- Maximum Knee Flexion Angle: 160 Degrees
- Proximal Connection: Threaded Adapter
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from ship date
If packaging is opened, product is not eligible for return.
Demo units are available upon request. Please contact your Account Manager to coordinate.
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
| HCPCS: | L5611, L5845, L5850 |
|---|---|
| User: | Pediatric |
| Amputation Level: | Transfemoral (TF/AK), Knee Disarticulation |
| Activity Level: | K2 (Moderate), K3 (High), K4 (Very High) |
| Swing Phase: | Friction |
| Stance Phase: | Friction |
| Axis Type: | Polycentric |
| Proximal Connection: | Threaded Adapter |
| Distal Connection: | Tube Clamp |
| Weight Limit: | 45 kg (100 lbs) |
| Material: | Aluminum |
