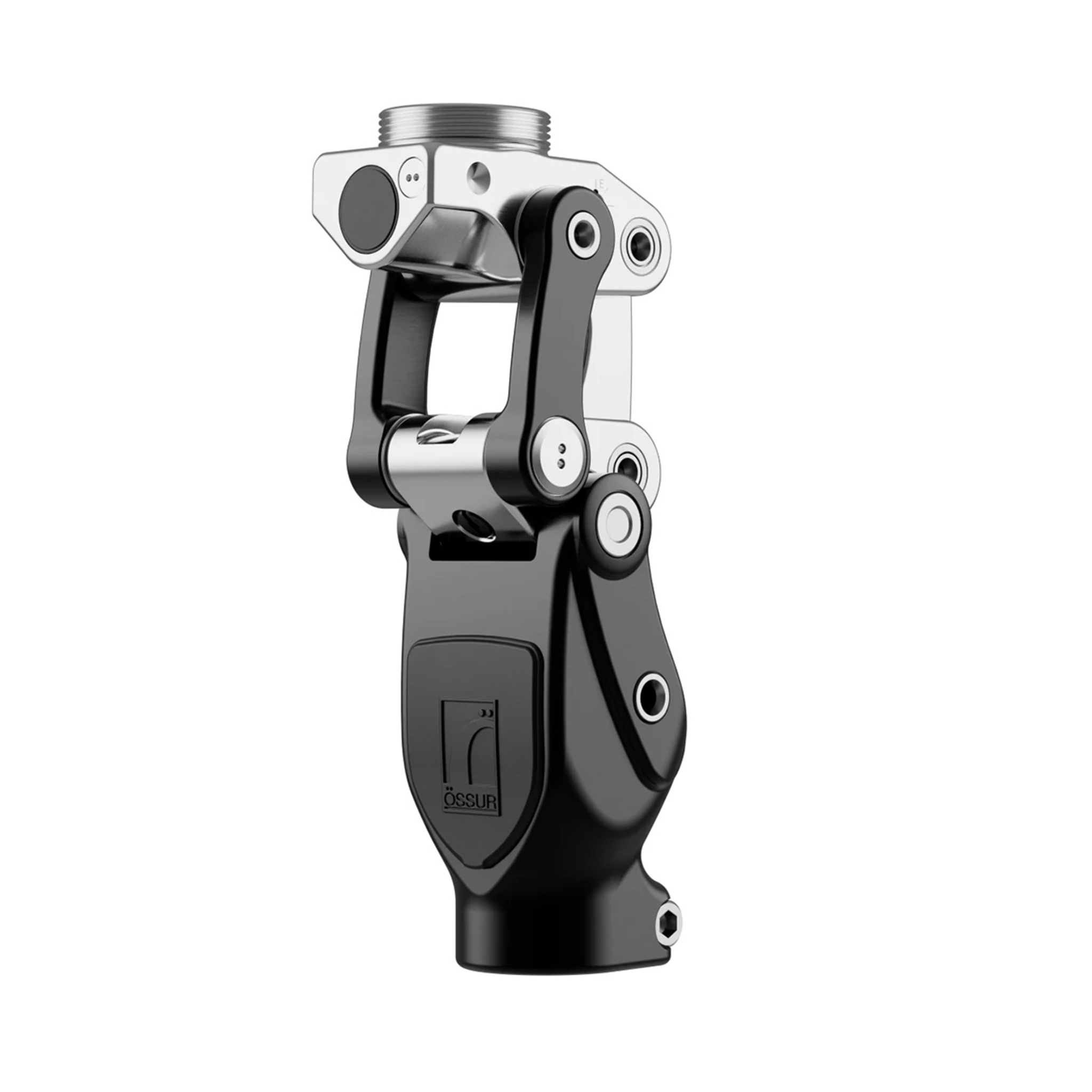

The Total Knee® 2000 with Stainless Steel Back Link features improved shock absorption, increased comfort and a more natural gait. With the added durability of a stainless steel high load back link, the Knee’s mid-swing shortening offers increased toe clearance during swing to prevent hip-hiking. The 3-phase hydraulic swing control caters to changes in walking speed. For reduced shock and stress on the residual limb, the Knee’s adjustable stance flexion mimics the knee flexion that occurs during early stance.

• Low build height great for knee disarticulation or long trans-femoral limbs
• Designed for multi-speed ambulators
• Polycentric knee with geometric locking system
• Swing control adjustments through 3-phase (3-valve) hydraulic system
• Adjustable stance flexion
• Adjustable extension promoter
• Up to 150-degree high knee flexion angle
• 30mm (13/16”) pylon adaptability

Specifications

• Activity Level: K2, K3
• Knee Design Type: Polycentric, Hydraulic Swing, Mechanical Stance Phase Lock
• Axis: Polycentric
• Swing Phase: Hydraulic
• Stance Phase: Friction, Mechanical Lock
• Control Frame Material: Aluminum
• Product Weight (g): 690
• Maximum User Weight: 220lbs (100kg)
• Maximum Knee Flexion Angle: 150 Degrees
• Proximal Connection: Threaded Adapter
• Distal Connection: 30mm Tube Clamp
• Trial Period: N/A
• Warranty: 24 months from ship date

If packaging is opened, product is not eligible or return.

Demo units are available upon request. Please contact your Account Manager to coordinate.

All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
