Suction Socket Electrode
Quick Links
| Part # | Description |
|---|
Product information
Electrode cable connection with IDC termination, with 13E206 Electrode Accessories, without electrode cable. Creates an airtight seal between the inner socket and outer socket when embedded into a mounting suspension of elastic material. The Suction Socket Electrode also prevents sweat from penetrating between the outer and inner socket, preventing damage to the electrical and mechanical components caused by corrosion.
The Suction Socket Electrode can not only be used for standard fittings, but is also suitable for application in suction sockets. Combining the suction socket electrode with a 12V10 Tube Valve for a suction socket creates a vacuum effect in the socket, ensuring optimal linkage between the residual limb and the socket.
Shielding and filtering technologies largely protect the 13E202 Suction Socket Electrode against high frequency interference caused by cell phones, walkie-talkies, computers or anti-theft systems in shopping centers so that the correct function of the myoelectrically controlled prosthesis is not affected. The electrode contacts are made from pure titanium and are suitable for people with allergies.
Includes:
- (1) 13E200 electrode
- (1) 13E80 adjustment tool
- (1) 13E191 casting template for inner socket
- (1) 13E192 lamination template
- (2) 507S15 lamination plate with bore
- (1) 13E201 electrode accessories for vacuum-formed inner sockets
- (2) 503F3 socket screw with Allen head
The following products are also required:
- 13E129=* electrode cable
| HCPCS: | L7510 |
|---|
Frequently Bought Together
Electrode Cable with Straight Plug and Connector
Used to connect the electrodes in myoelectric systems to a:9E169 Coaxial Plug13E205 MyoRotronic9E369/9E370 4-in -1 LS Controller or 9E420 7-in-1 Controller13E190 Distributor or 10S7 Electric Wrist Rotator

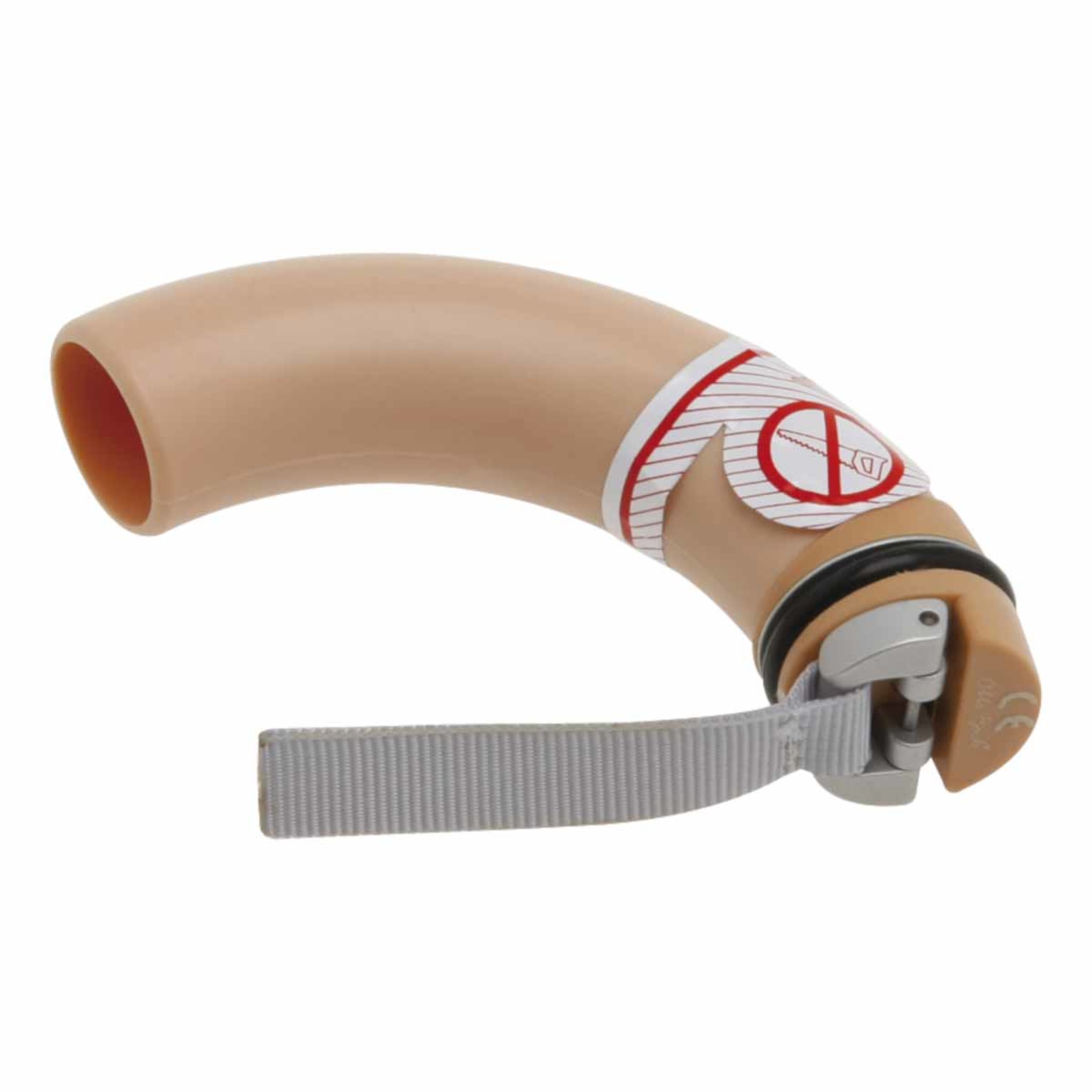

Tube Valve for Suction Socket
