Socket Adapter 4 Arm Stainless Steel Female
Quick Links
| Part # | Description |
|---|
Product Information

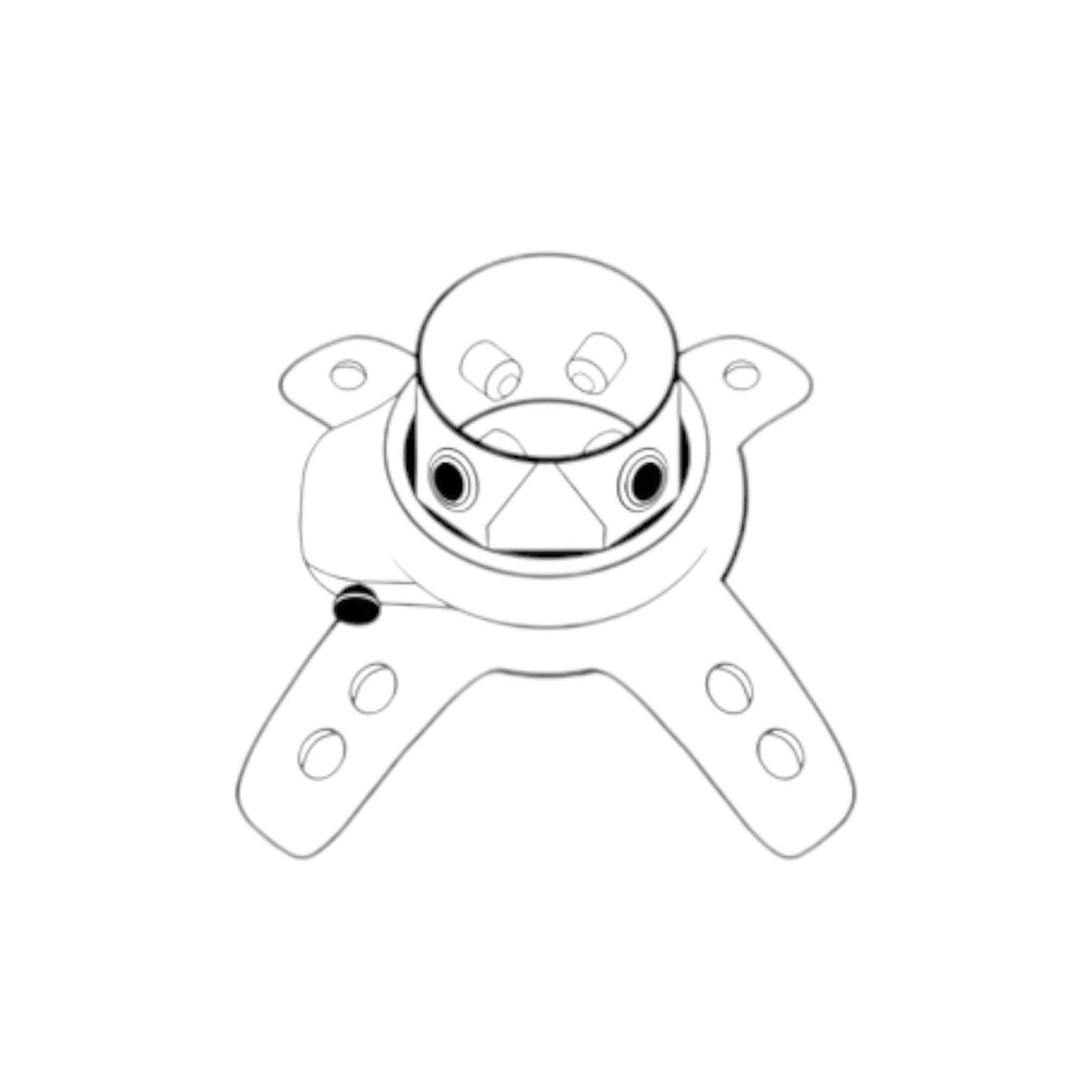

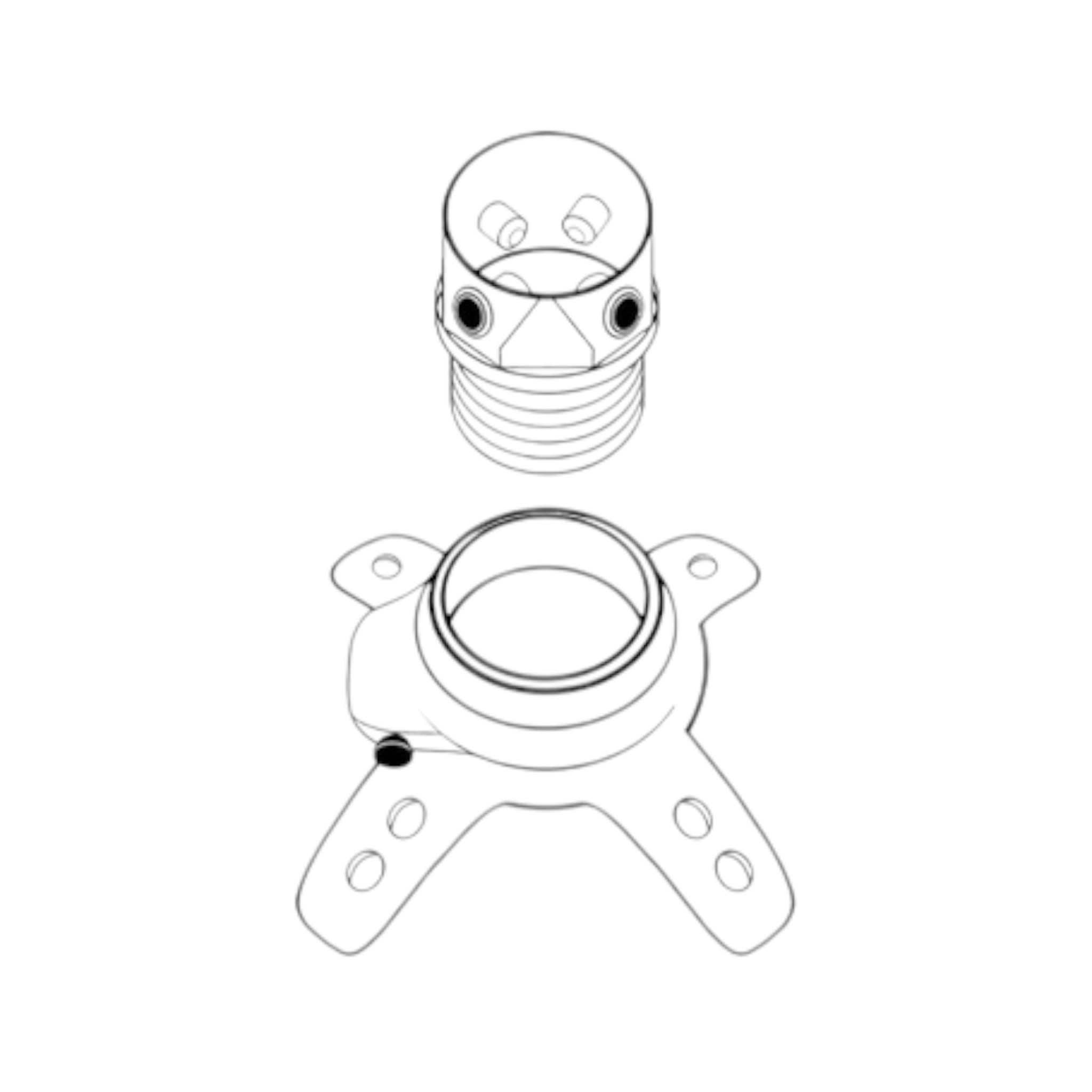

This 3-arm socket adapter is made from high-resistance stainless steel and is specifically designed for manufacturing lower extremity prostheses. It integrates seamlessly with any pyramid receiving adapter for modular leg prostheses, allowing for precise adjustments in angle, translation along the sagittal and frontal planes, and regulation of internal and external rotation.
Specifications
- Material: Stainless Steel
- Weight Limit: 275lbs (125kg)
- Build Height (mm): N/A
- Assembly Weight (g): 151
- Torque (Nm): 10 (M5 x 19 mm screw), 15 (M8 x 14 mm oppressors)
- Warranty: 1 year
Sold each.
| Endoskeletal Type: | Socket Adapters |
|---|---|
| User: | Adult |
| Weight Limit: | 45 kg (100 lbs), 100 kg (220 lbs), 125 kg (275 lbs) |
| Material: | Stainless Steel |
