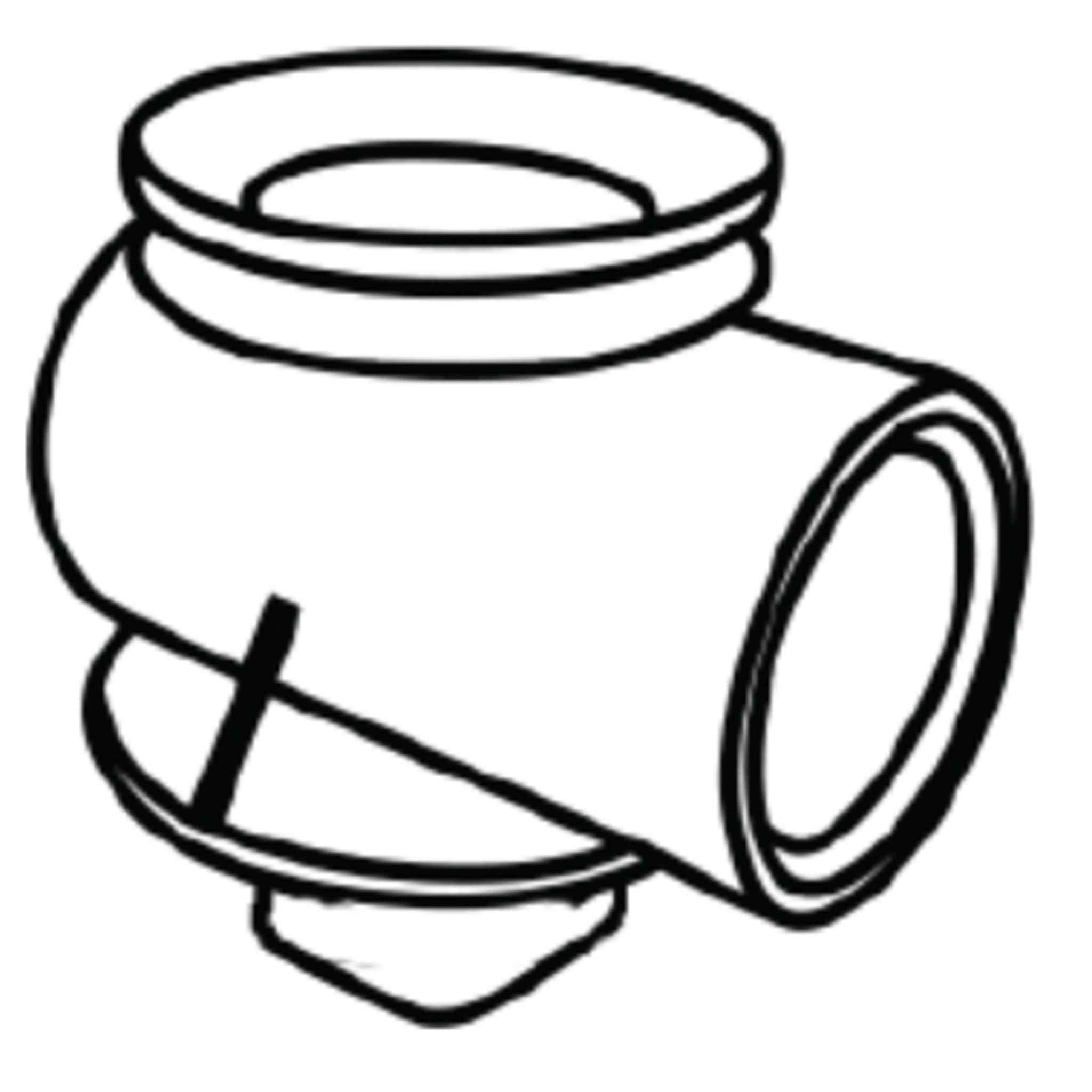

Small Air-Lock
Quick Links
| Part # | Description |
|---|
Product information
The Air-Lock is a lightweight dual suspension pin system designed to combine suction suspension comfort with pin suspension safety and security. The airtight seal of the Air-Lock prevents air from coming into the bottom of the socket, creating a negative pressure inside the socket (suction), which reduces pistoning even without a sleeve.
- Reduces pistoning and traction on the end of the limb
- Improves suspension and comfort
- Decreases distal pressure
- Single-stage lamination
- Offset alignment capability
- Water-resistant
Specifications
- Lock Type: Shuttle with Valve
- Fabrication Technique: Lamination, Thermoplastic
- Housing Material: N/A
- Amputation Level: Transfemoral, Transhumeral, Transradial, Transtibial
- Activity Level: K1, K2, K3, K4
- Weight Limit: 265lbs (120kg)
- Product Weight (g): 35
- Build Height (mm): 41
- Distal Attachment: N/A
- Warranty: 24 months from purchase date
Locks are no longer sold with pins. Pins are sold separately in a 2-pack.
| HCPCS: | L5671 |
|---|---|
| User: | Adult, Pediatric |
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK), Transhumeral (TH/AE), Transradial (TR/BE) |
| Suspension Type: | Locks |
| Fabrication Technique: | Lamination, Thermoplastic |
| Key Features: | Exclusive Distributor, High Weight Limit, Water Resistant |
| Weight Limit: | 100 kg (220 lbs) |
