Single Axis Foot
Quick Links
| Part # | Description |
|---|
Product information

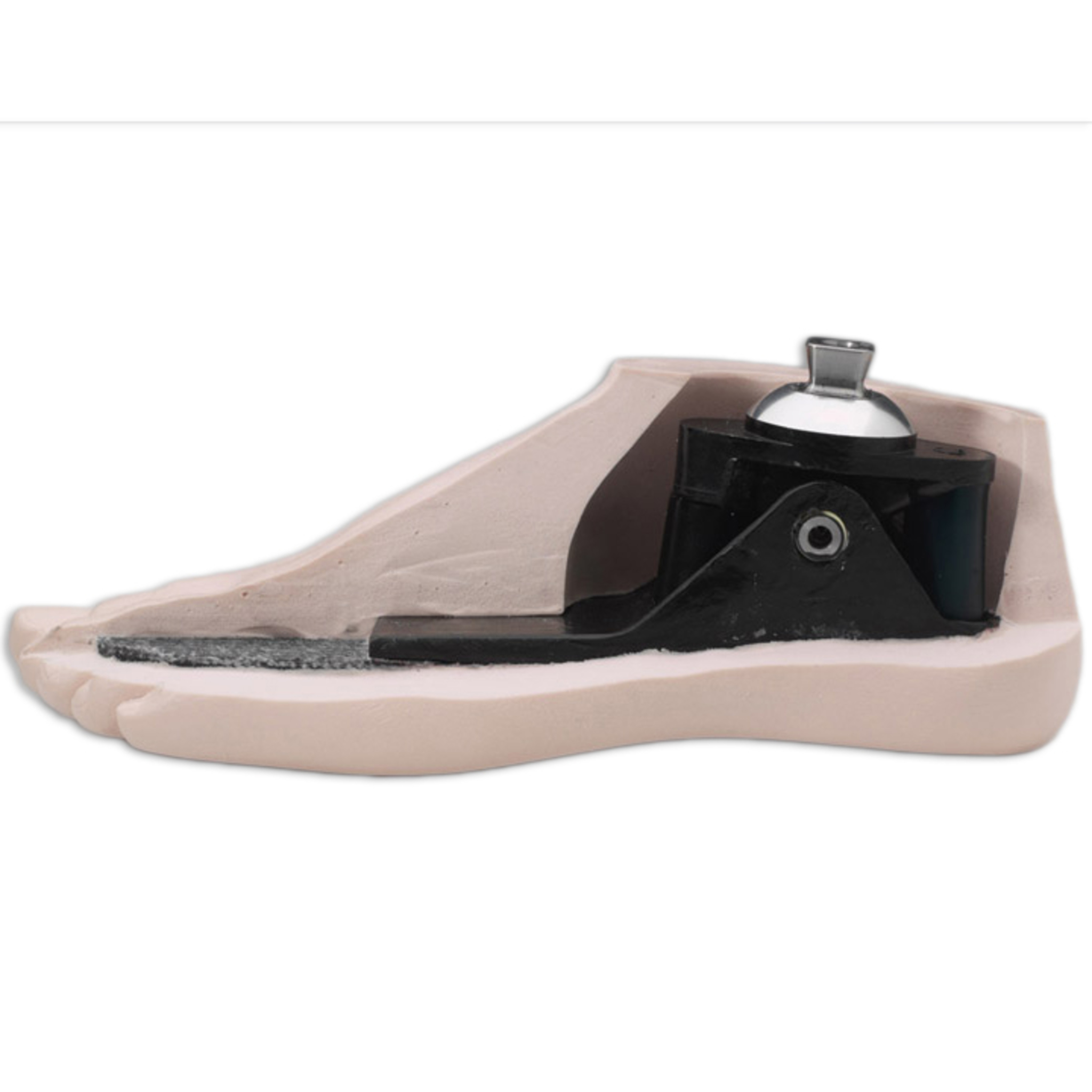

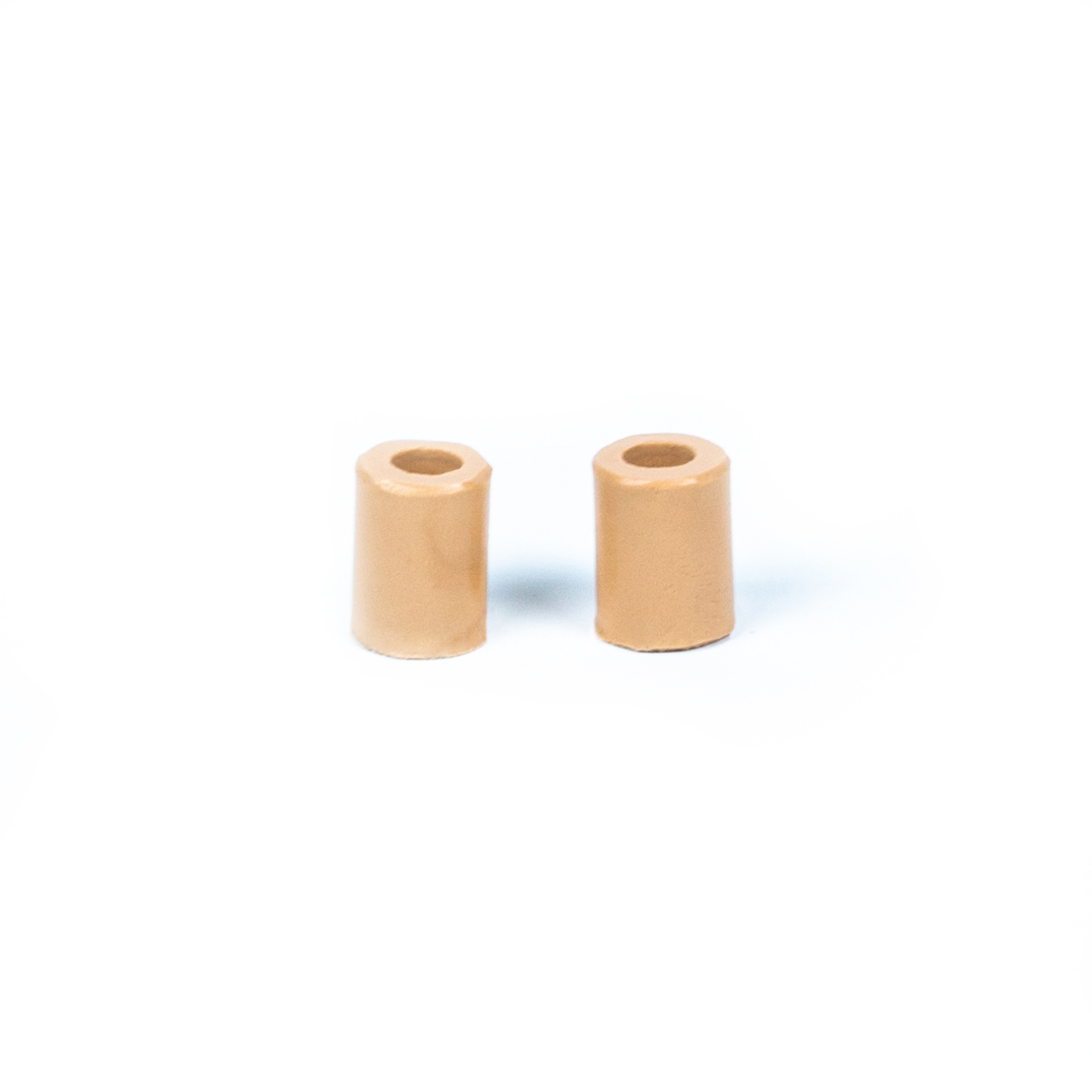

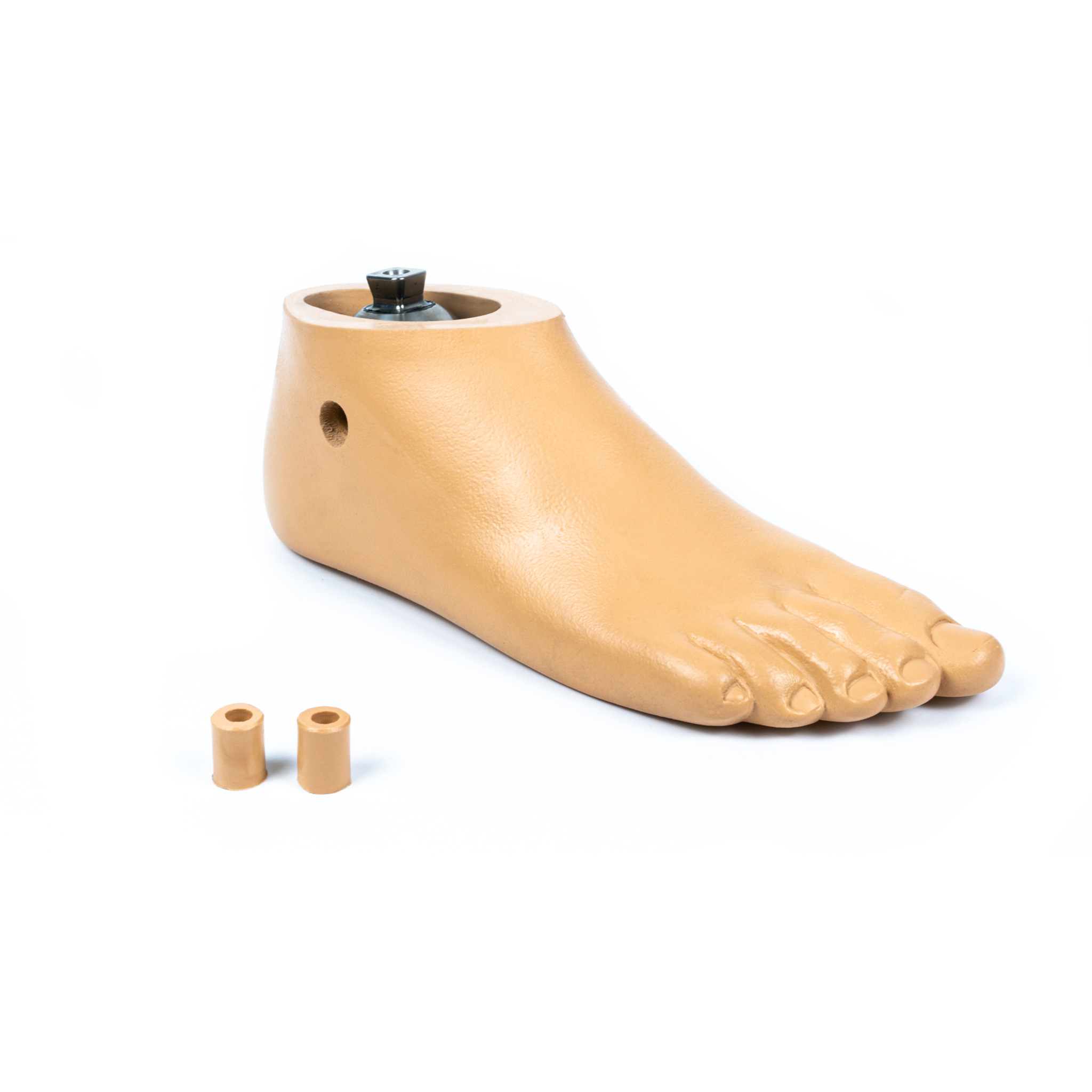

The Single Axis Foot features a strong, lightweight composites and an advanced design. This low activity model is ten to twenty percent lighter than conventional Single Axis Foot, and features interchangeable anterior and posterior bumpers in three durometers.
- Unisex, lifelike, water-resistant cosmesis
- Lightweight composite heel
- Ships pre-assembled

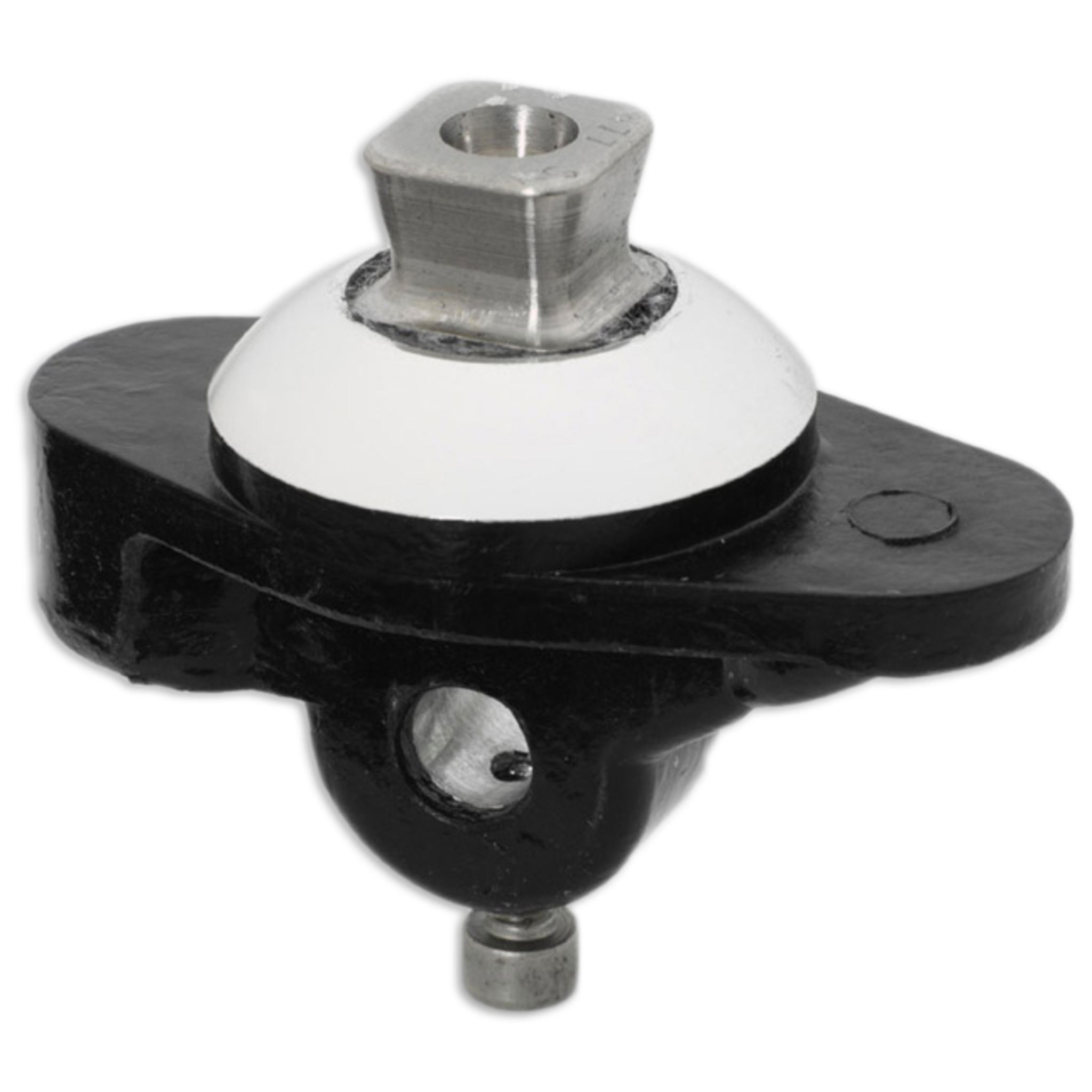

- Features a molded-in titanium pyramid
Specifications
- Foot Type: Single Axis Foot
- Material Composition: Composite
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K1, K2
- Foot Shell: Included

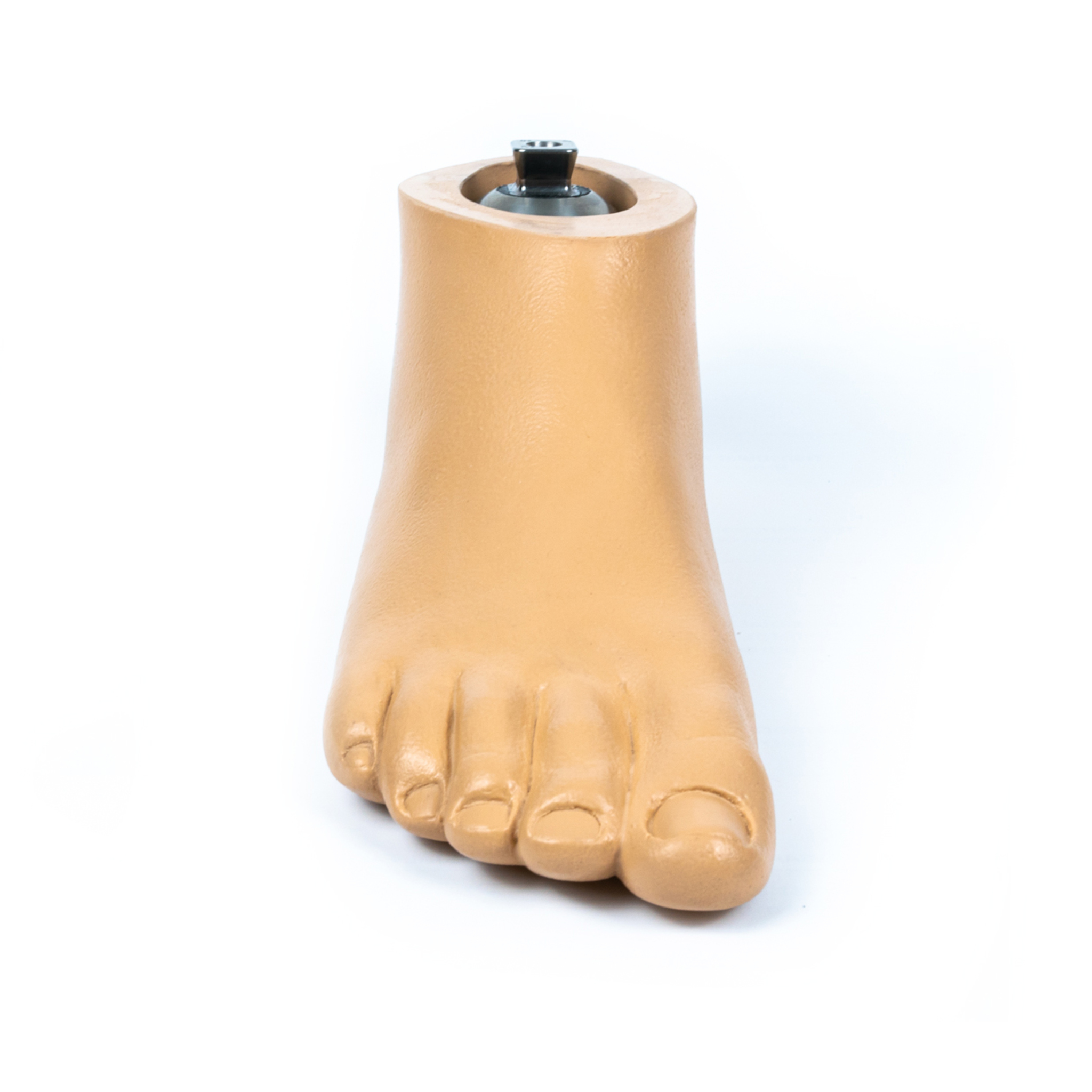

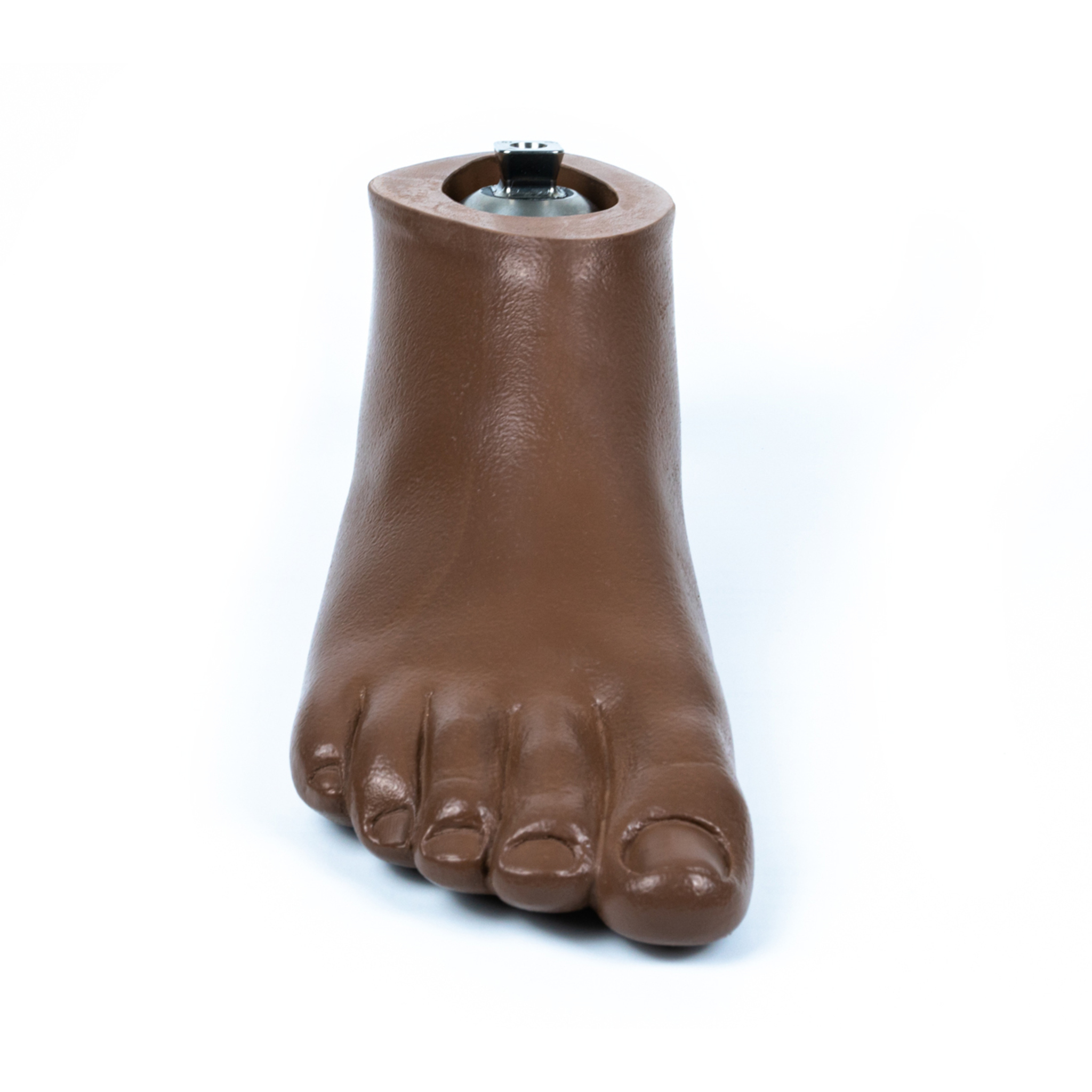

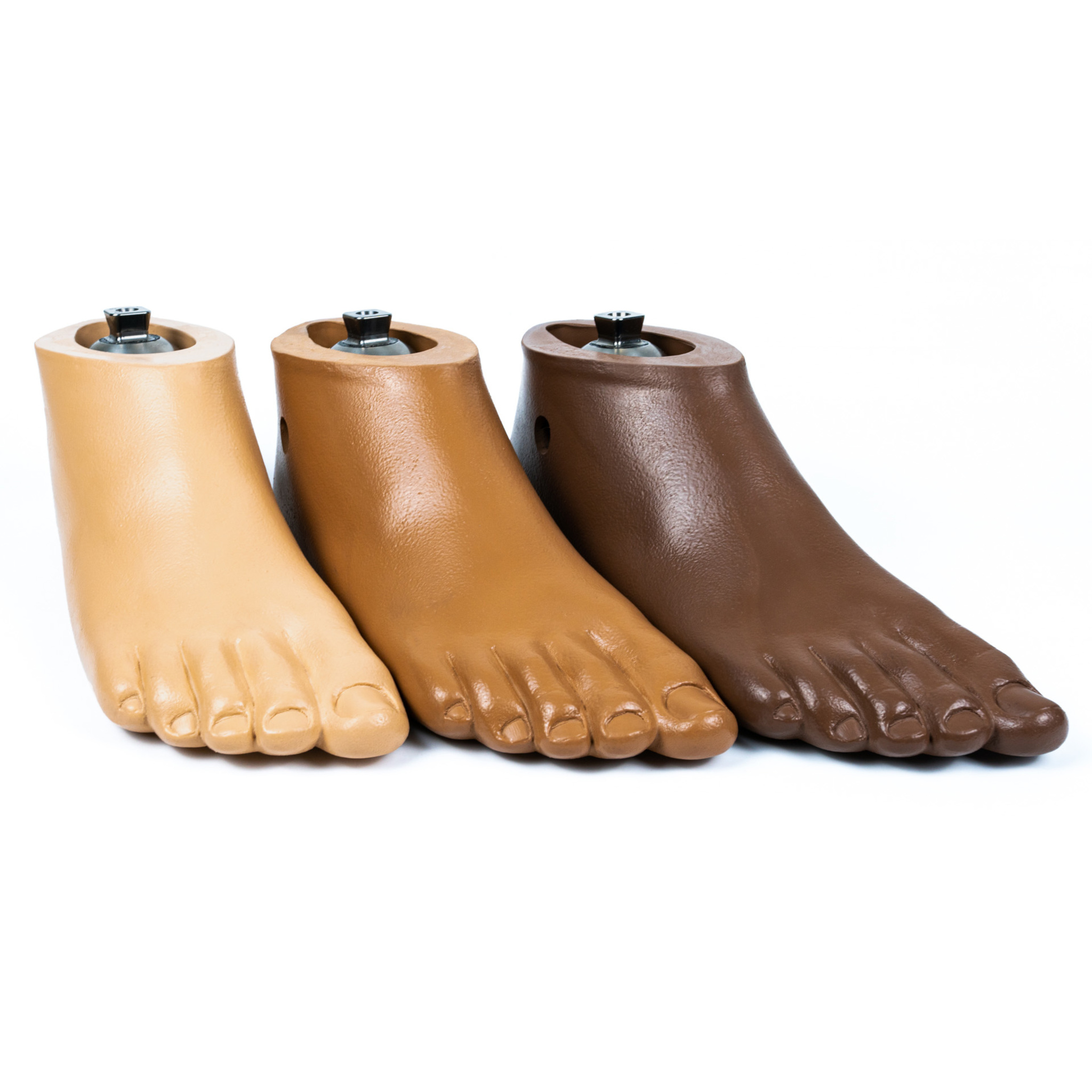

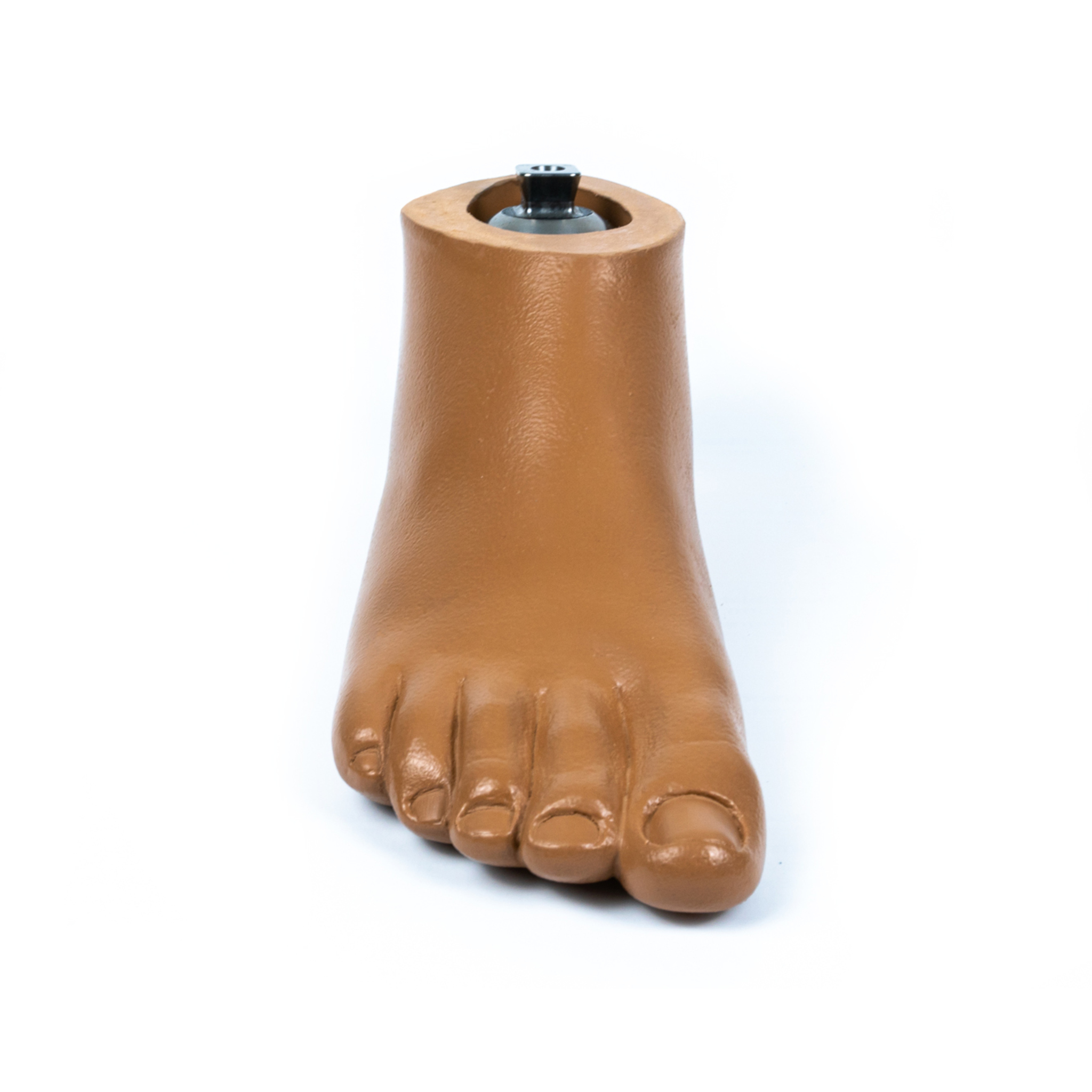

- Foot Shell Color: Buff, Medium Brown, Tan
- Sandal Toe: No
- Waterproof: Water Resistant
- Split Keel: No
- Adjustable Heel: No
- Weight Rating: 250lbs (115kg)
- Stiffness Categories: 2-4
- Sizes (cm): 22-31
- Product Weight (g): 451-571
- Build Height: 2.9in (74mm), 3.2in (81mm)
- Heel Height: 3/8in (10mm), 3/4in (18mm)
- Connector: Male Pyramid
- Trial Period: 30 days from fit date
- Warranty: 12 months from fit date
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
Requires Ankle Unit. Please see chart for more information on Spring Stiffness, Anterior and Posterior Bumper Selection.
| HCPCS: | L5974 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Activity Level: | K1 (Low), K2 (Moderate) |
| Foot Type: | Single Axis |
| Build Height: | 51-76 mm (2-2.9 in), 77-101 mm (3-3.9 in) |
| Foot Shell Included: | Yes |
| Key Features: | Exclusive Distributor |
| Weight Limit: | 100 kg (220 lbs) |
| Material: | Carbon Composite |
