ProCarve Foot
Quick Links
| Part # | Description |
|---|
Product information

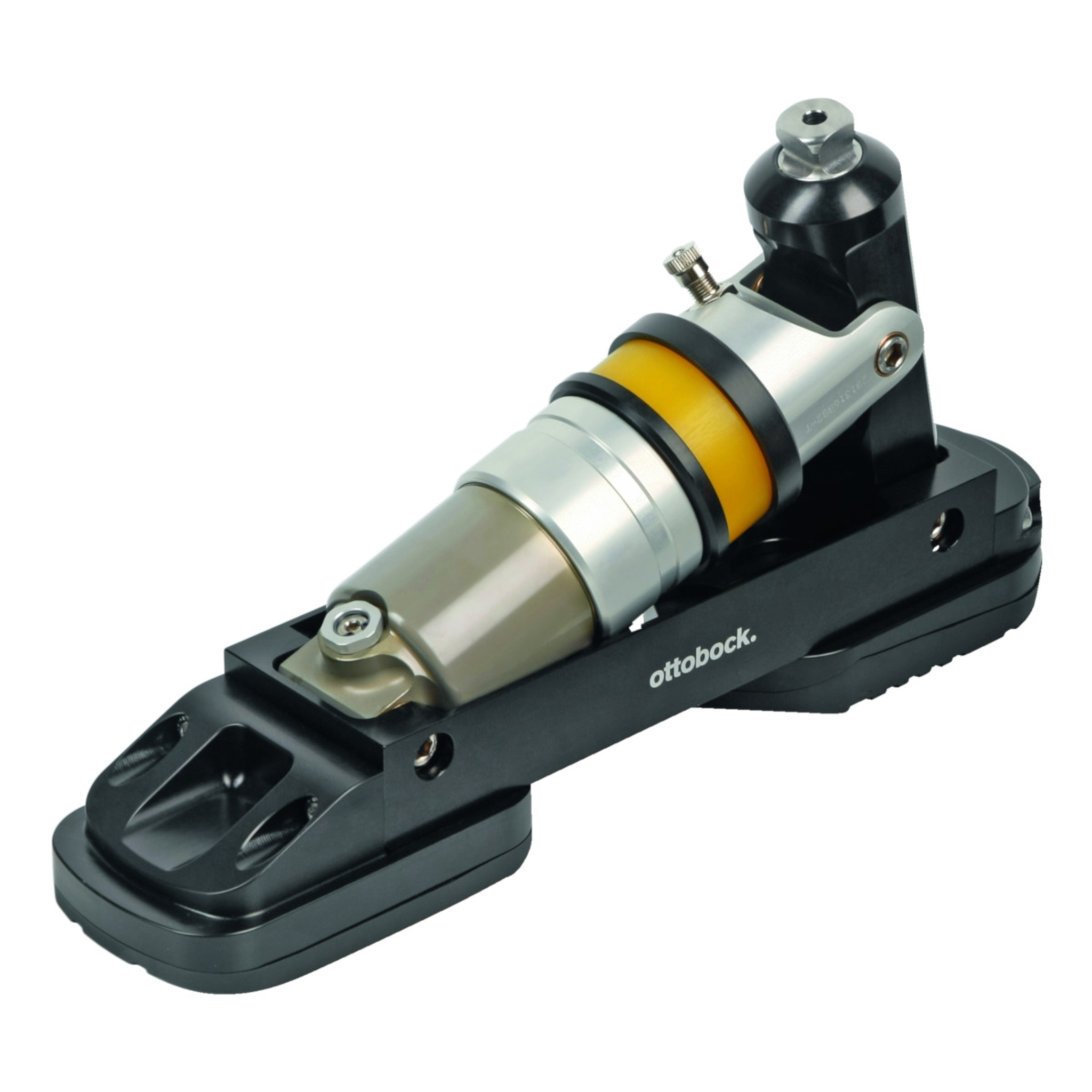

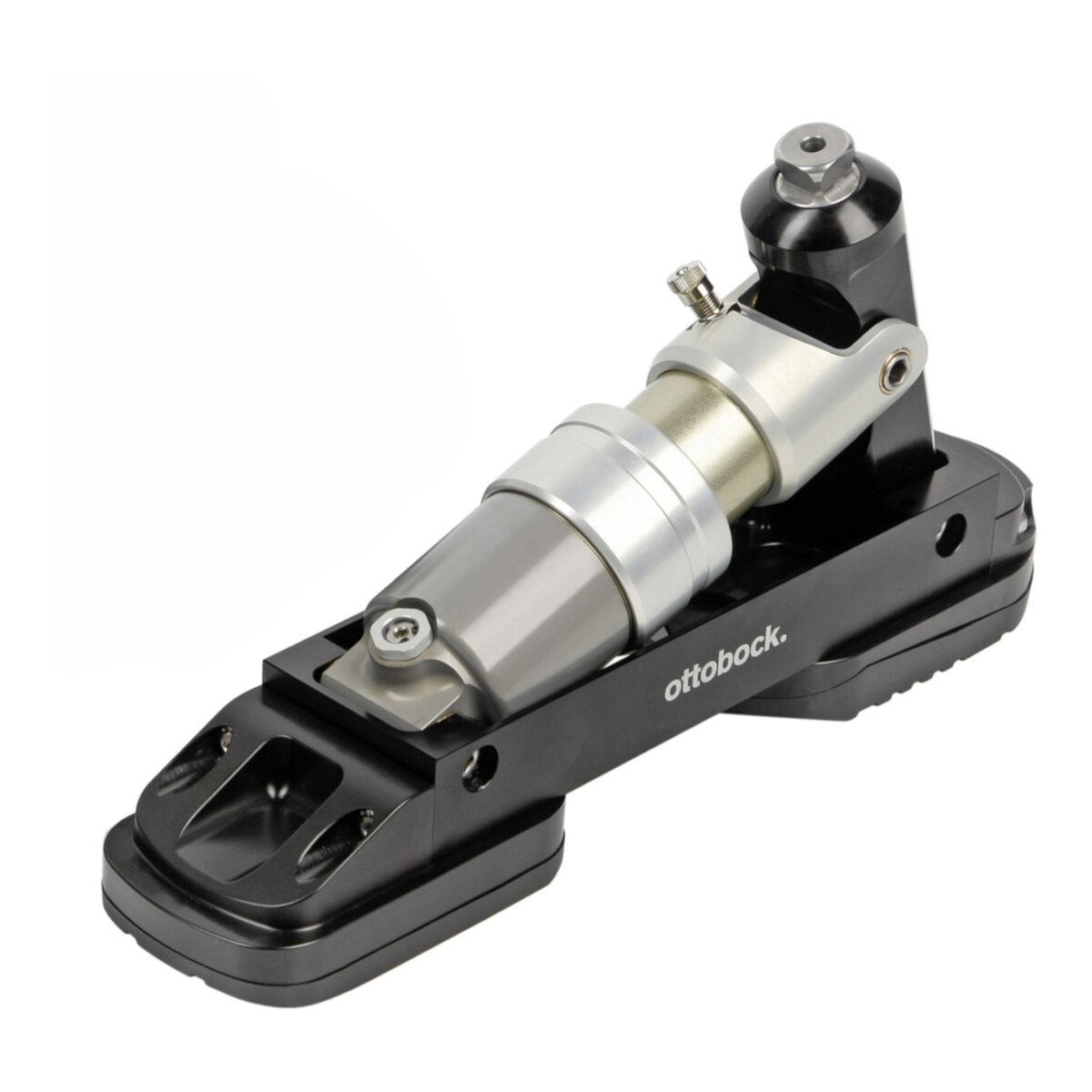

The ProCarve™ Foot features a high-performance damping unit for controlling movement around pivot points. It can be connected directly to the ski binding or combined with a foot shell that has a shape suited especially for snowboard boots.
- Disengagement function for comfortable sitting down
- Sturdy and wear-resistant
Specifications
- Foot Type: Shank Foot System
- Material Composition: Aluminum
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K3, K4
- Foot Shell: Included
- Foot Shell Color: Black
- Sandal Toe: No
- Waterproof: Yes
- Split Keel: No
- Adjustable Heel: No
- Weight Rating: 220lbs (100kg)
- Stiffness Categories: N/A
- Sizes (cm): 26
- Product Weight (g): 1,550
- Build Height: 4.1in (103mm)
- Heel Height: N/A
- Connector: Male Pyramid
- Trial Period: N/A
- Warranty: 24 months from delivery date
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
| HCPCS: | L5999 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Activity Level: | K3 (High), K4 (Very High) |
| Foot Type: | Shank Foot |
| Build Height: | 102-126 mm (4-4.9 in), 127-177 mm (5-6.9 in) |
| Foot Shell Included: | Yes |
| Key Features: | Waterproof |
| Weight Limit: | 100 kg (220 lbs) |
| Material: | Aluminum |
Frequently Bought Together
34mm Water Resistant Tube Adapter
The 34mm tube adapter is water-resistant. It has four grooves in the pyramid receiver section, which ensure that the tube is flooded when setting foot in water. The prosthesis is prevented from becoming buoyant as a result.

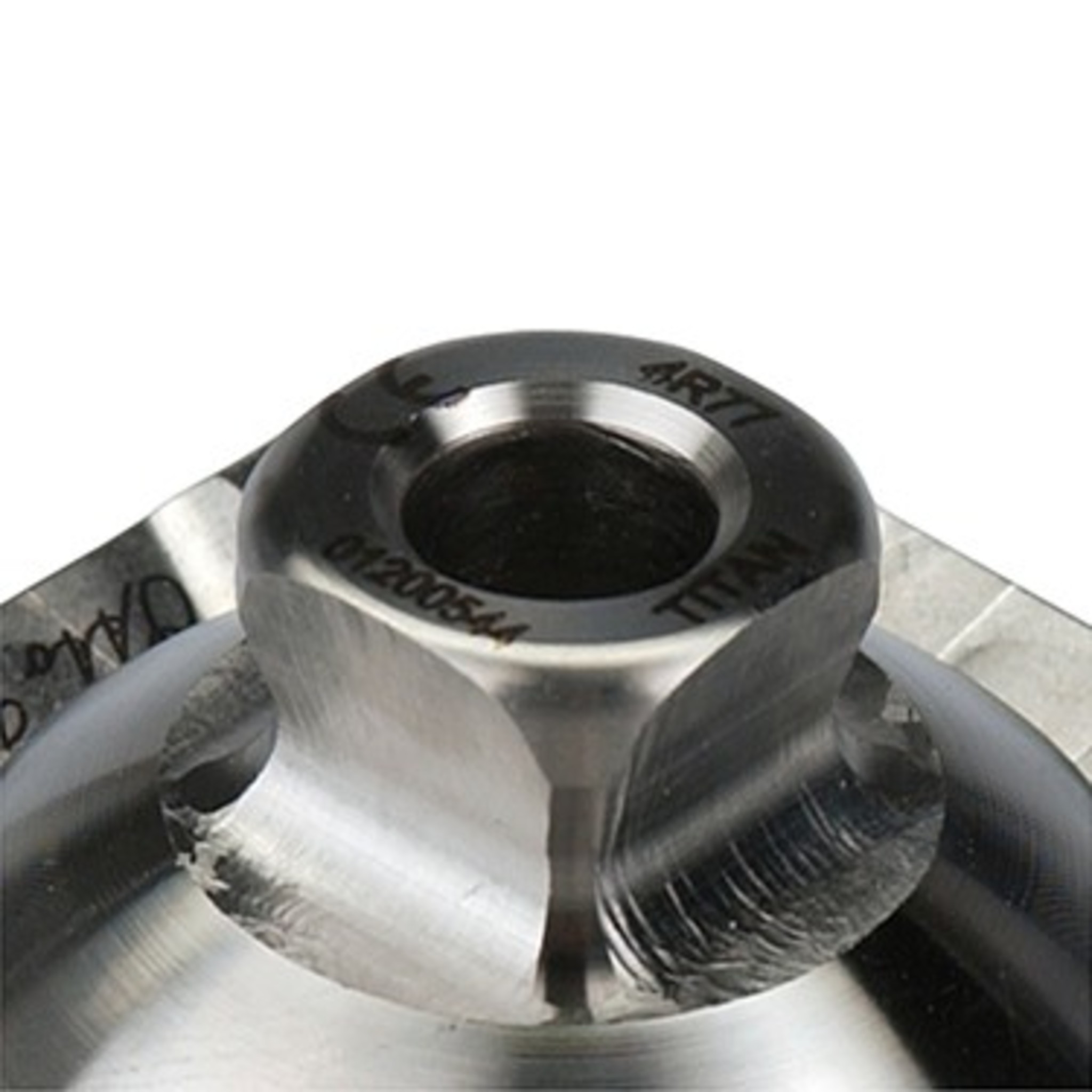

Socket Adapter with Rotatable Pyramid Adapter
The rotatable pyramid adapter has a 9.5mm bore hole for shuttle lock.

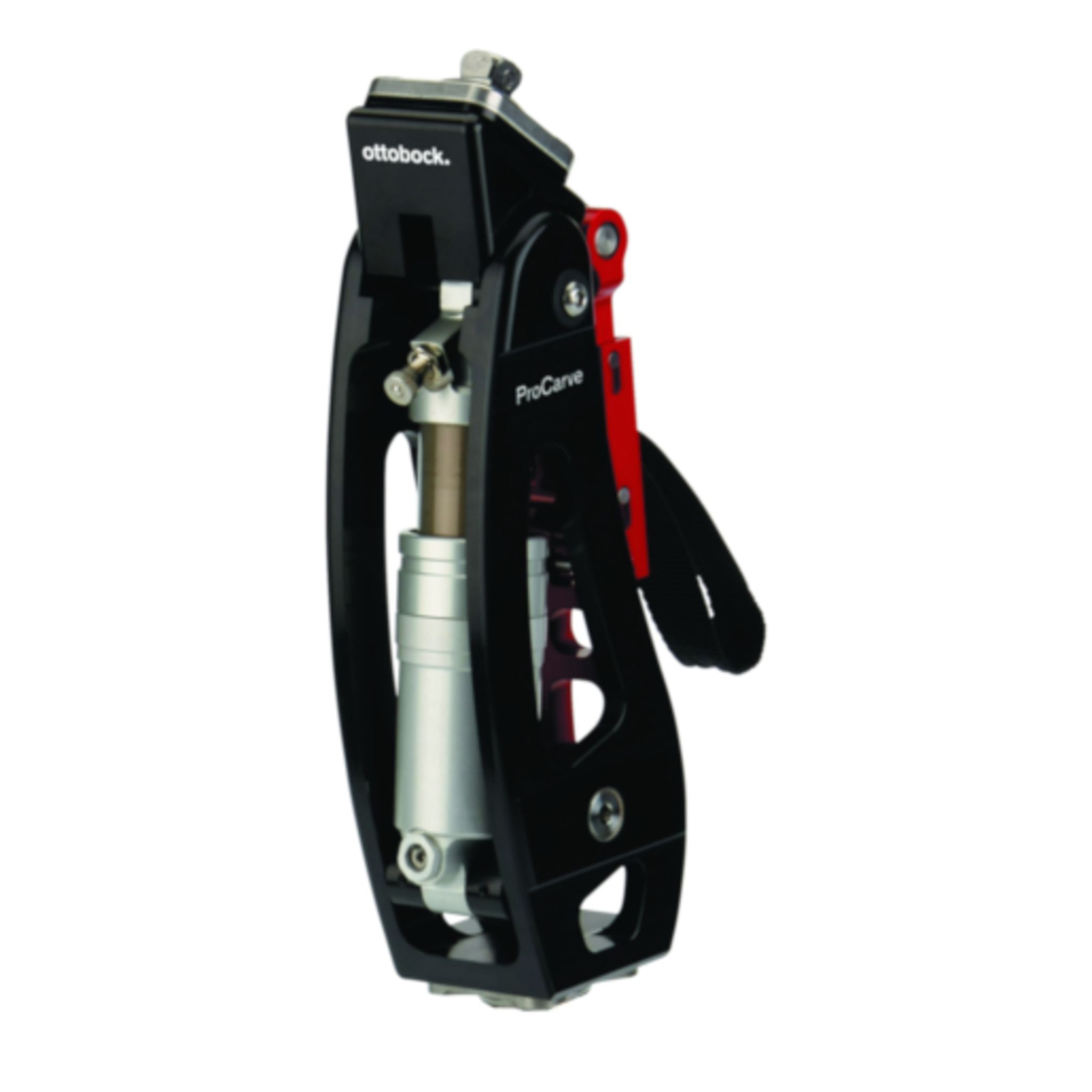

ProCarve Knee
The ProCarve knee joint features hydraulic damping elements and a disengagement function to make sitting down more comfortably. Individually adjustable air pressure controls the flexion movement and the hydraulics dampen the extension movement. To sit down, the patient can bend the knee joint without damping simply by pulling on the attached belt.Suitable for Transfemoral and Knee Disarticulation amputationsDamping element ensures dynamic movementFlexion angle when engaged is 67 degrees
