Pneumatic 4 Bar Knee
Quick Links
| Part # | Description |
|---|
Product Information

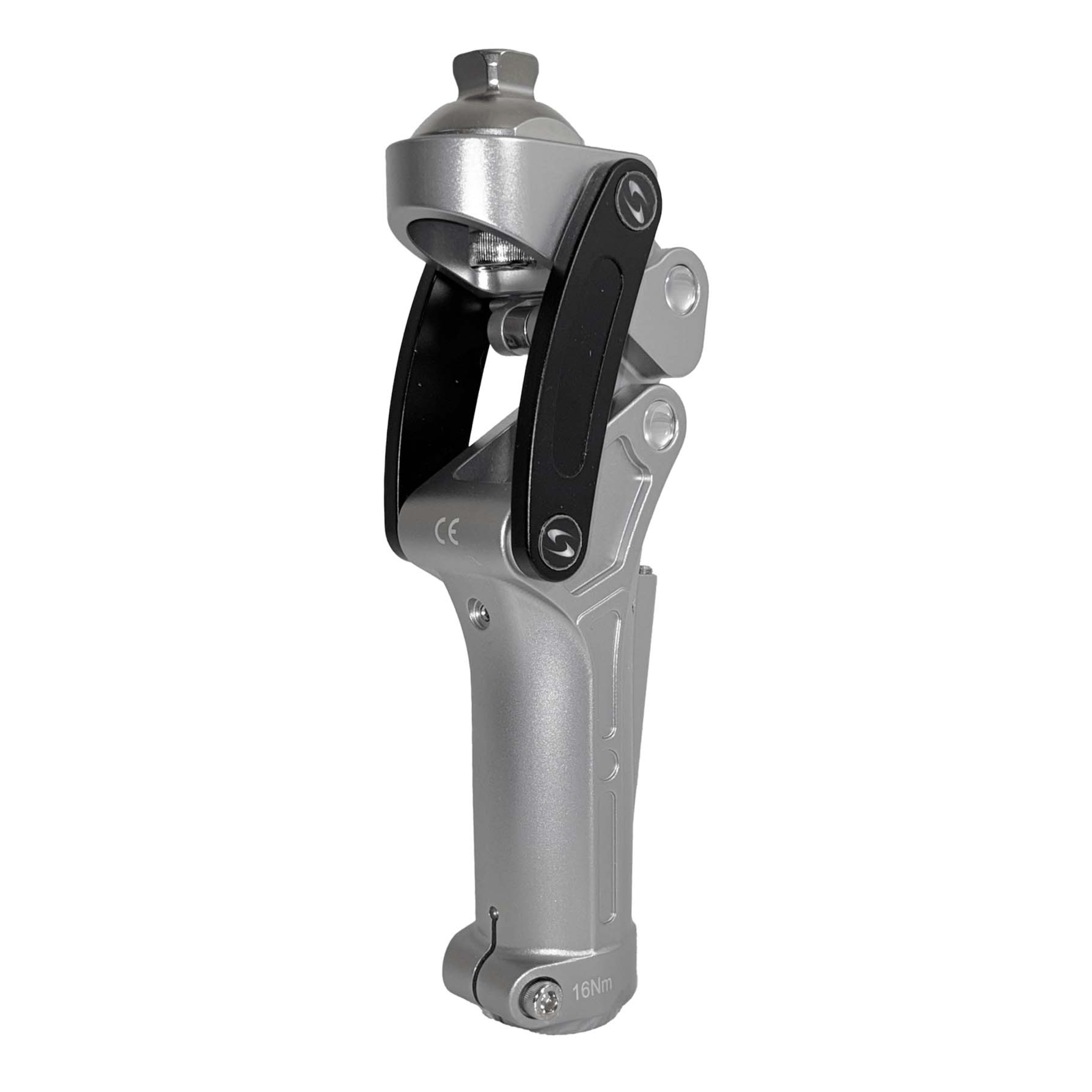

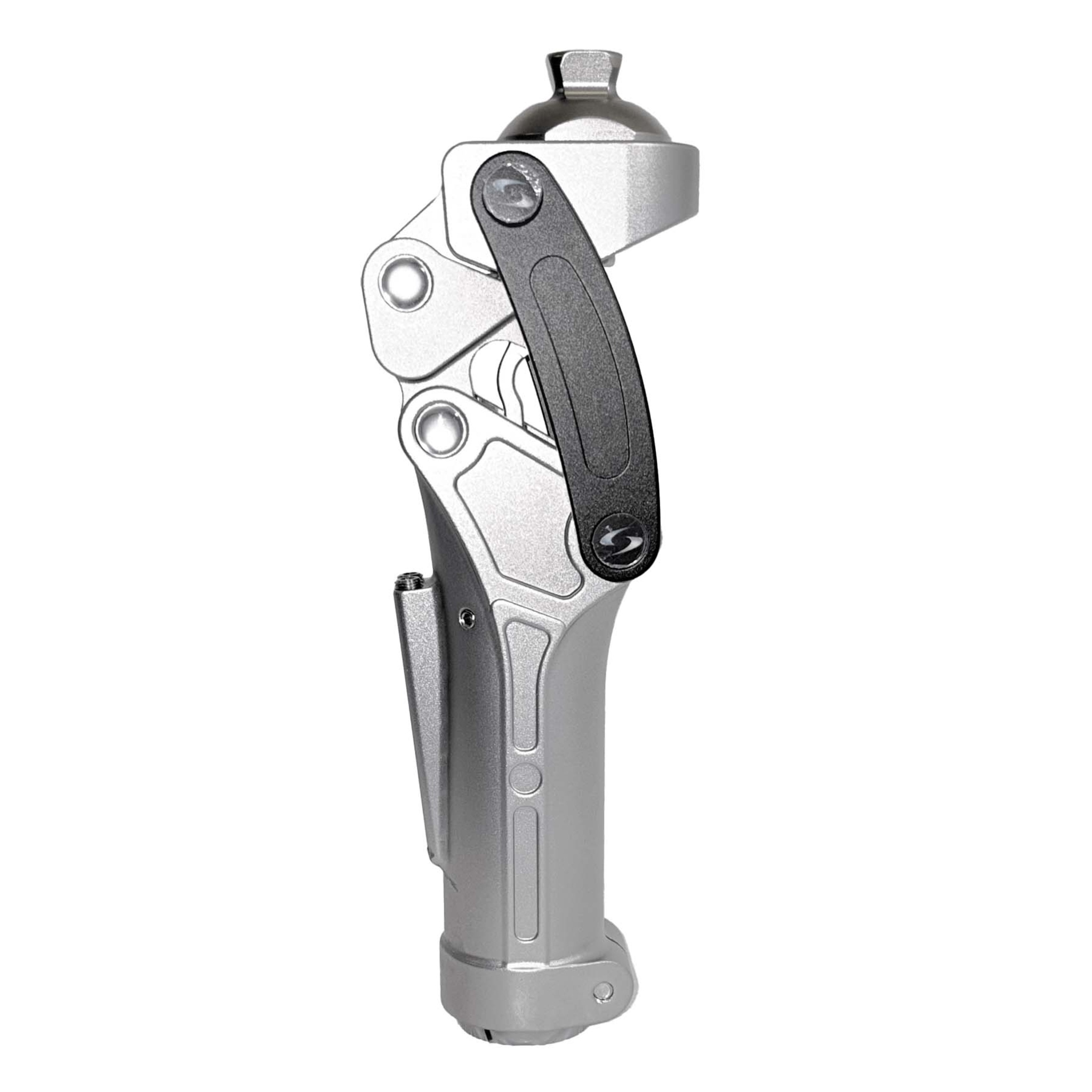

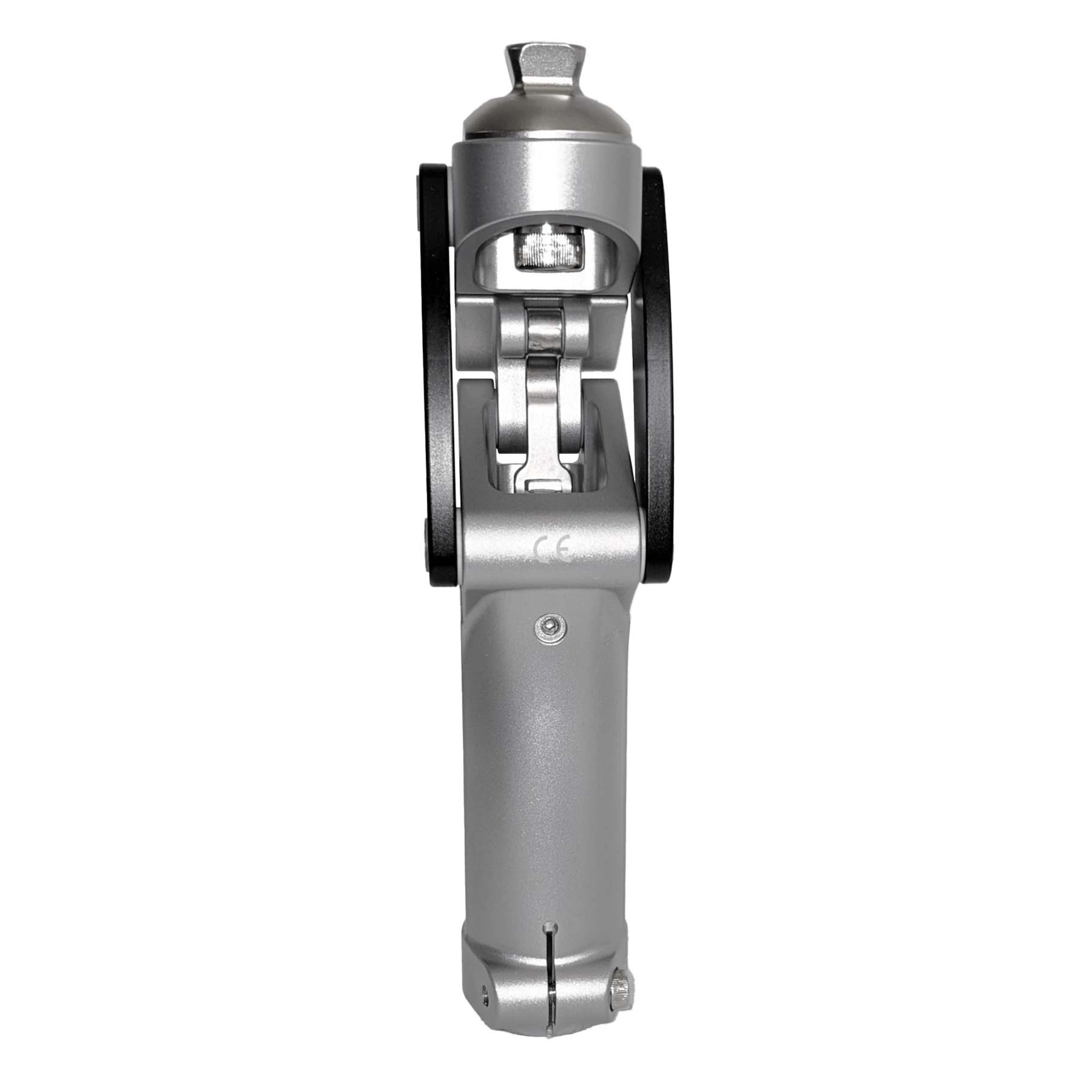

The 1335 Pneumatic 4 Bar Knee for AP and KD is a polycentric knee designed with pneumatic swing phase control. It provides dependable stance phase stability for users with moderate activity levels, while supporting a comfortable range of walking speeds during the swing phase.
Specifications
- Activity Level: K2, K3
- Knee Design Type: Pneumatic Swing Phase Control
- Axis: Polycentric
- Swing Phase: Pneumatic
- Stance Phase: Pneumatic
- Control Frame Material: Aluminum Alloy
- Product Weight (g): 898 (AP), 852 (KD)
- Maximum User Weight: 275 lbs. (125 kg)
- Maximum Knee Flexion Angle: 150°
- Proximal Connection: Pyramid Adapter, KD Adapter
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months
Sold each.
Manufacturer Recommended HCPCS: L5840, L5850
Please contact your Account Manager to set up a Demo
| HCPCS: | L5840, L5850 |
|---|---|
| Activity Level: | K2 (Moderate), K3 (High) |
| Axis Type: | Polycentric |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Tube Clamp |
| Material: | Aluminum |
