Orbit Foot
By
College Park
Quick Links
| Part # | Description |
|---|
Product information

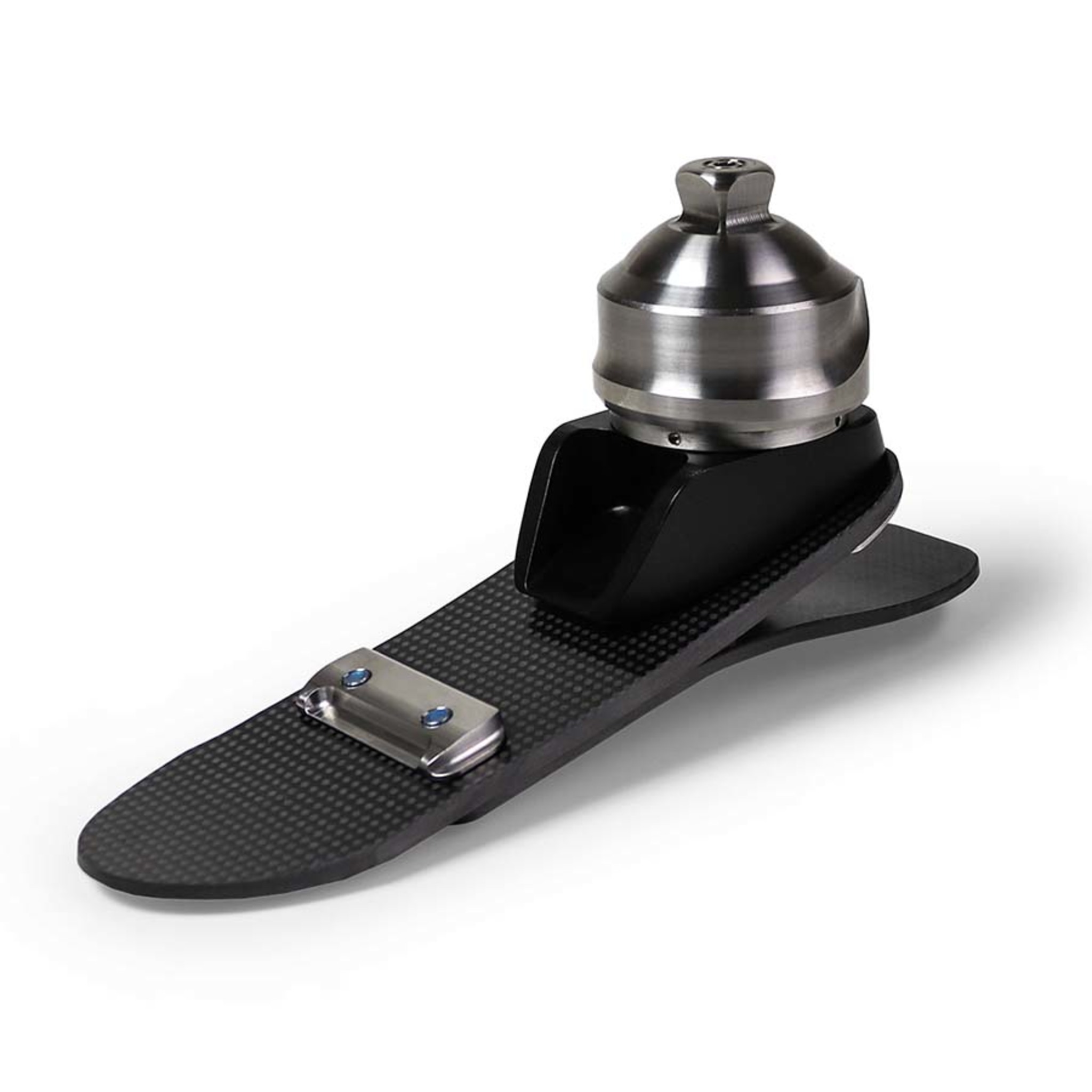

The Orbit has a unique, built-in torsion feature that promotes energy return, smooth rotation, and rollover. The carbon fiber design provides a dynamic response during low to high impact activities.
- ±20° of internal and external rotation
- Low profile
- Heel spring and curved toe spring
Specifications
- Foot Type: Flex-Walk System
- Material Composition: Carbon Fiber
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K3, K4
- Foot Shell: Not Included
- Foot Shell Color: Caucasian, Tan, Brown, Jet Black
- Sandal Toe: Yes
- Waterproof: Freshwater Only
- Split Keel: No
- Adjustable Heel: No
- Weight Rating: 330lbs (150kg)
- Stiffness Categories: 1-6
- Sizes (cm): 21-30
- Product Weight (g): 895 (with Foot Shell)
- Build Height: 3.7in (93mm) – 3.9in (99mm)
- Heel Height: .38in (9.6mm)
- Connector: Integrated Male Pyramid
- Trial Period: 60 days from purchase date
- Warranty: 36 months from purchase date
Note: Foot shell sold separately. Please see related items below for more information on foot shell ordering.
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
| HCPCS: | L5981, L5984 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Activity Level: | K3 (High), K4 (Very High) |
| Foot Type: | Flex-Walk |
| Build Height: | 77-101 mm (3-3.9 in) |
| Foot Shell Included: | No |
| Key Features: | Low Profile, Split Toe, Waterproof |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs) |
| Material: | Carbon Composite |
