OHP3 Knee™
By
Ossur
Quick Links
| Part # | Description |
|---|
Product information

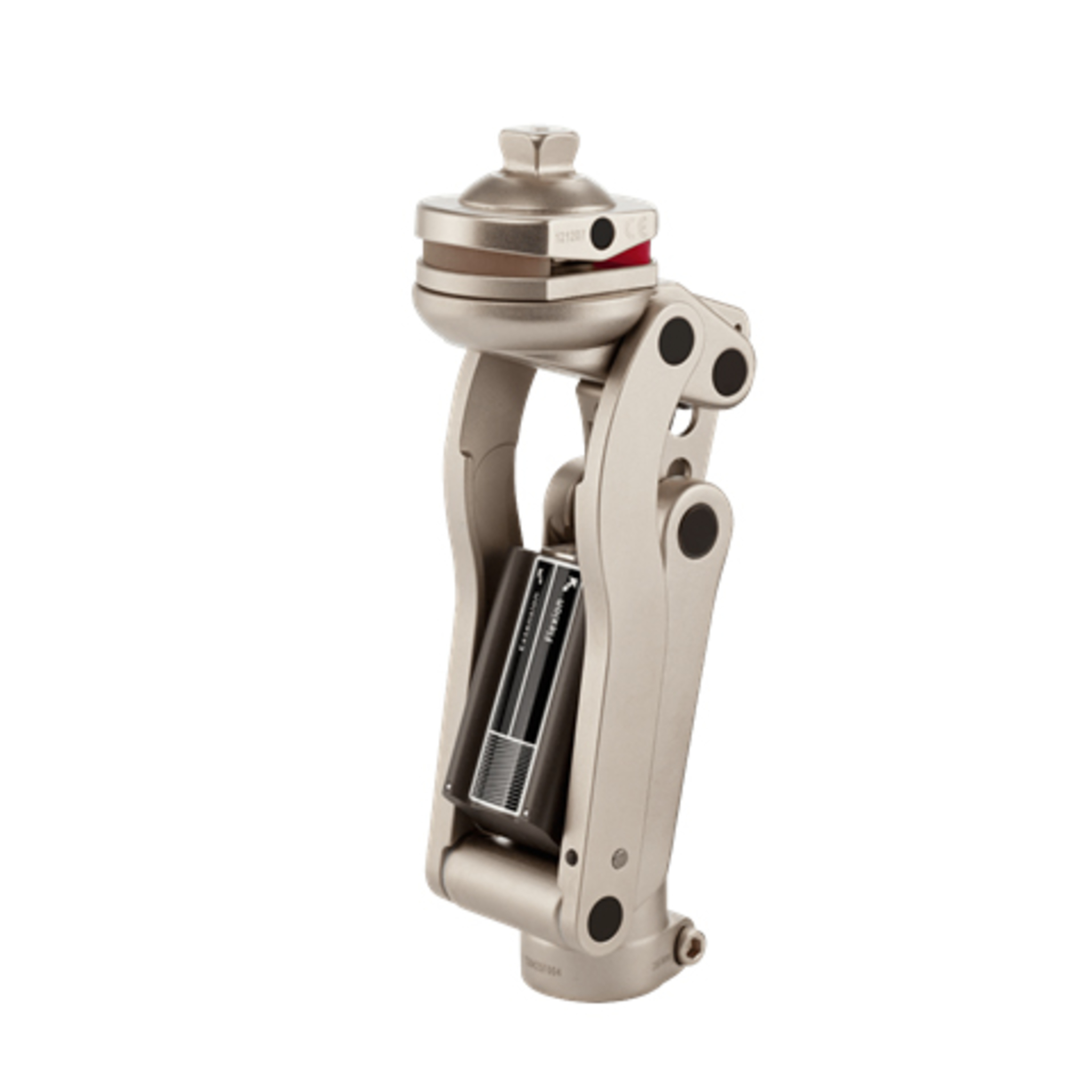

The OHP3 Knee™ is a polycentric, hydro-pneumatic knee joint. Multiple socket connection options support use for different amputation levels.
- Designed for transfemoral or knee disarticulation amputations
- Individually adjustable swing phase
- Simple modification of the socket connector
- Can be adapted to the user’s safety requirements
- Kneecap provides additional protection for both the knee and clothing
Specifications
- Activity Level: K3
- Knee Design Type: Multi-Axial 4-Bar Linkage, Pneumatic Swing Control
- Axis: Polycentric
- Swing Phase: Pneumatic
- Stance Phase: Friction, Adjustable Geometry
- Control Frame Material: Aluminum
- Product Weight (g): 1040-1155
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 150 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Integrated 30mm Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from ship date
If packaging is opened, product is not eligible for return.
Demo units are available upon request. Please contact your Account Manager to coordinate.
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
| HCPCS: | L5840, L5845, L5850 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Knee Disarticulation |
| Activity Level: | K3 (High) |
| Swing Phase: | Pneumatic |
| Stance Phase: | Friction |
| Axis Type: | Polycentric |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Tube Clamp |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs) |
| Material: | Aluminum |
