Michelangelo Hand Transcarpal
Quick Links
| Part # | Description |
|---|
Product information

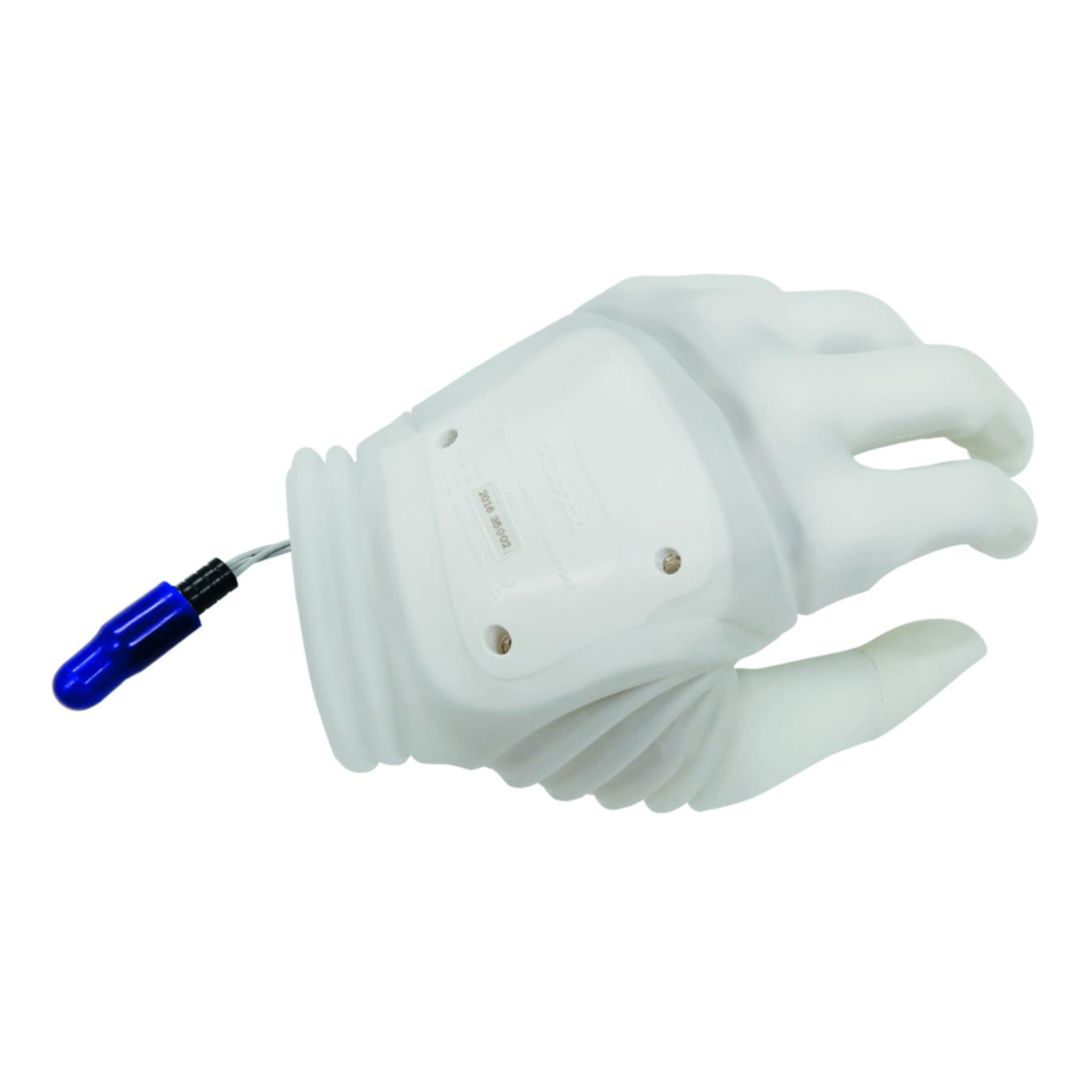

The Michelangelo Hand Transcarpal makes it possible to fit users with long residual limbs and transcarpal-level amputations.
Features:
- Proven technology and features of the Michelangelo Hand
- Short build height – almost 50mm shorter than the normal Michelangelo Hand
- Easy to use alignment options for socket attachment with +/-15° adjustment range
- Scope of Delivery:
- 1 pc. 8E550=L/R-M Michelangelo Hand Transcarpal
- 1 pc. 10S550=M lamination ring. Includes the lamination dummies for the upper and lower side in addition to the lamination ring.
- 8 pc. 501S101=M4x12 countersunk head screws
- 8 pc. 501S84=M4x14 countersunk head screws
- 1 pc. cosmetic case for battery charger and power supply
The Axon-Bus system is system for transcarpal, transradial and transhumeral fittings. Axon stands for adaptive eXchange Of Neuroplacement data. The Axon-Bus itself is a new development by Ottobock for the field of exoprosthetics. It was derived from safety-related bus systems in the aviation and automotive industries and is a true innovation of our Research and Development department.
The advantage is that it constitutes an optimised, self-contained data transmission system. The individual components communicate with each other perfectly, eliminating losses in terms of data transmission, speed and functionality. This results in a plus in safety and reliability for the user. Compared to conventional systems, this is achieved by a significant reduction in sensitivity to outside interference.
In combination with the Michelangelo hand, the Axon-Bus system offers more degrees of freedom than ever before. The user benefits from enhanced hand functionality. The modular prosthesis system can be expanded with additional components in the future.
Specifications
- Size: M (7 3/4)
- Weight: 460 g
- Operating voltage: 11,1 V
- Operating temperature: -10 to +60 degrees C
- Storage temperature: (-)20 - (+) 40 degrees C
- Relative humidity max.: 80% non-condensing
- Opening width: 120 mm
- Gripping force in Opposition Mode: 70 N
- Gripping force in Lateral Mode: 60 N
- Gripping force in Neutral Mode: 15 N
- Average speed: 325 mm/sec
- For: Women, Men
| HCPCS: | L6881, L6882, L6890, L7499 |
|---|
Frequently Bought Together
AxonCharge Integral
The 757L500 AxonCharge Integral is designed to charge the 757B500/757B501 AxonEnergy Integral of the Ottobock Axon-Bus® prosthetic system. Charging is performed automatically after the charging plug has been connected to the charging receptacle of the 757B500/757B501 AxonEnergy Integral.The charging plug is secured to the charging receptacle by the integrated magnet. The special contour of the charging receptacle and charging plug ensures quick, reliable positioning of the two components. LEDs indicate when the charger is ready and the current battery capacity.The 757L500 AxonCharge Integral is intended exclusively for the purpose of charging the 757B500/757B501 AxonEnergy Integral.
AxonEnergy Integral
The 757B501 AxonEnergy Integral serves exclusively to provide power to the Axon-Bus prosthetic system. The battery consists of 3 Li-Ion cells. The integrated electronics protect the battery against short circuits, overvoltage, undervoltage and charging outside the allowable temperature range.The Axon-Bus cable with the three-pin receptacle is used to exchange data and connects the respective prosthesis components to the battery.The 757B5001 AxonEnergy Integral may only be used in conjunction with components of the Ottobock Axon-Bus prosthetic system. Only the 757L500 AxonCharge Integral may be used for charging.
AxonMaster

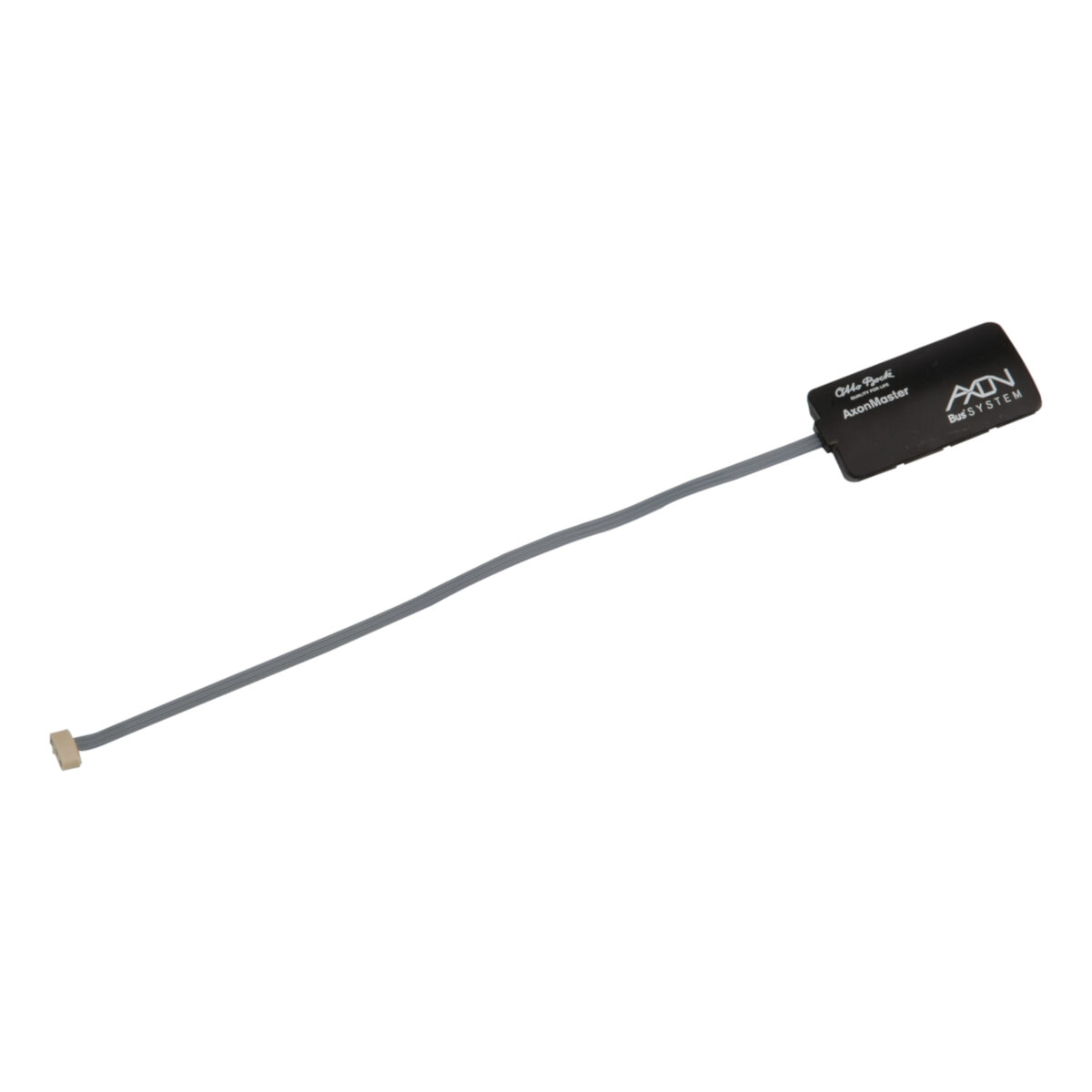

The 13E500 AxonMaster is the central control unit in the Axon-Bus prosthetic system. The AxonMaster samples the user's control signals and routes them to the corresponding prosthesis components via the Axon-Bus (joint control and power supply connection). This allows the user to control the prosthesis and switch between the prosthesis components. The AxonMaster also controls the data communication process of the Axon-Bus. The 13E500 AxonMaster is intended exclusively for exoprosthetic fittings of the upper limbs and serves to control and coordinate all active Ottobock Axon-Bus prosthesis components within the system.5 control programs are available:MultiGripDMC LowInputDigitalVarioControlDoubleChannel
AxonSkin Silicone Glove

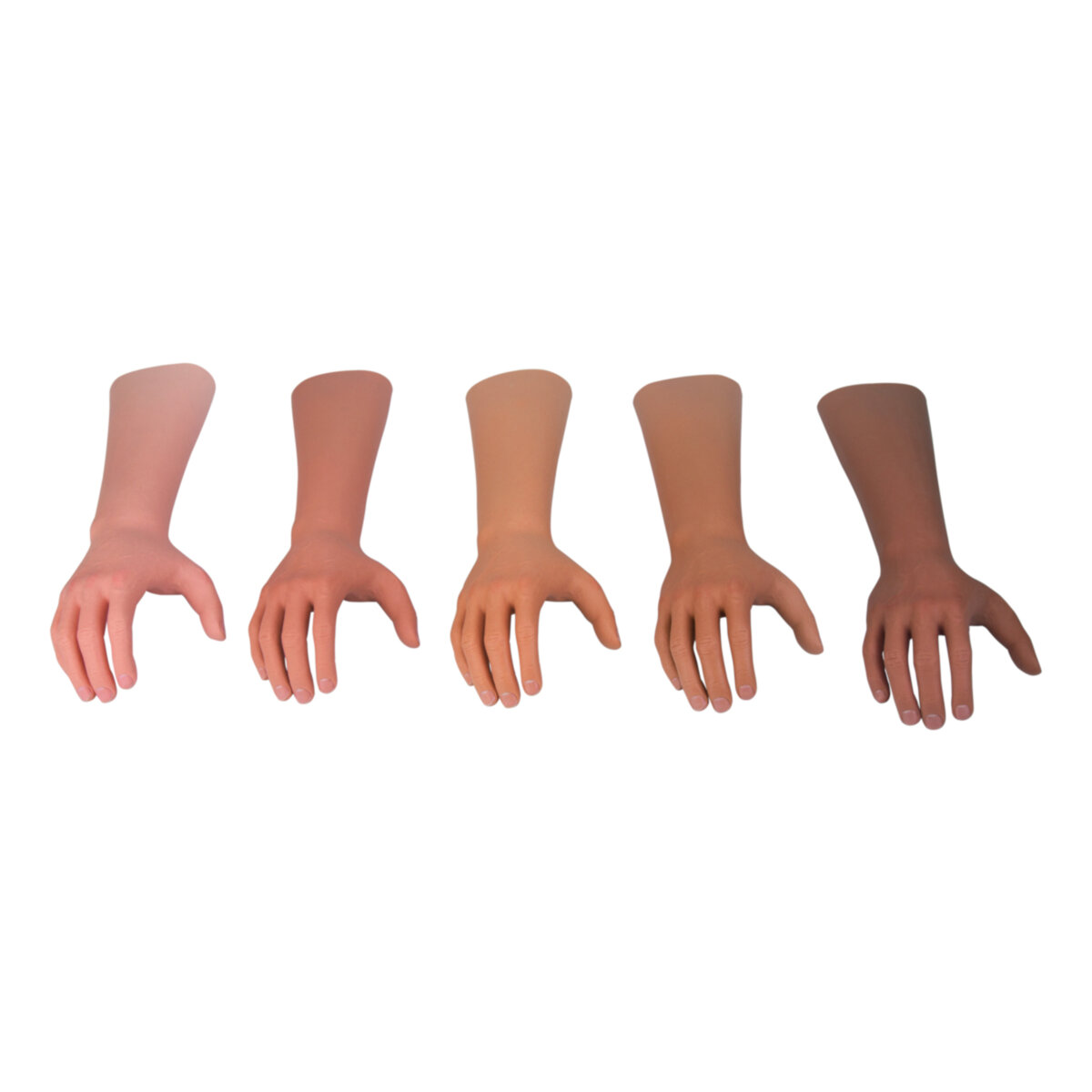

The AxonSkin Silicone Glove is made of a multilayered silicone, therefore the features differ from the AxonSkin Natural Glove (PVC):Silicone is stain resistant and easy to clean. AxonSkin Silicone does not show any change or reduced functionality in lower temperaturesPatients will benefit from the natural look and feelEvery AxonSkin Silicone Glove is hand painted with a 2-tone coloringExclusive to the Michelangelo HandColoring differs to AxonSkin Natural (PVC)Please use color swatch 646M72 (AxonSkin Silicone Gloves) for choosing the right color
AxonSkin Natural Glove

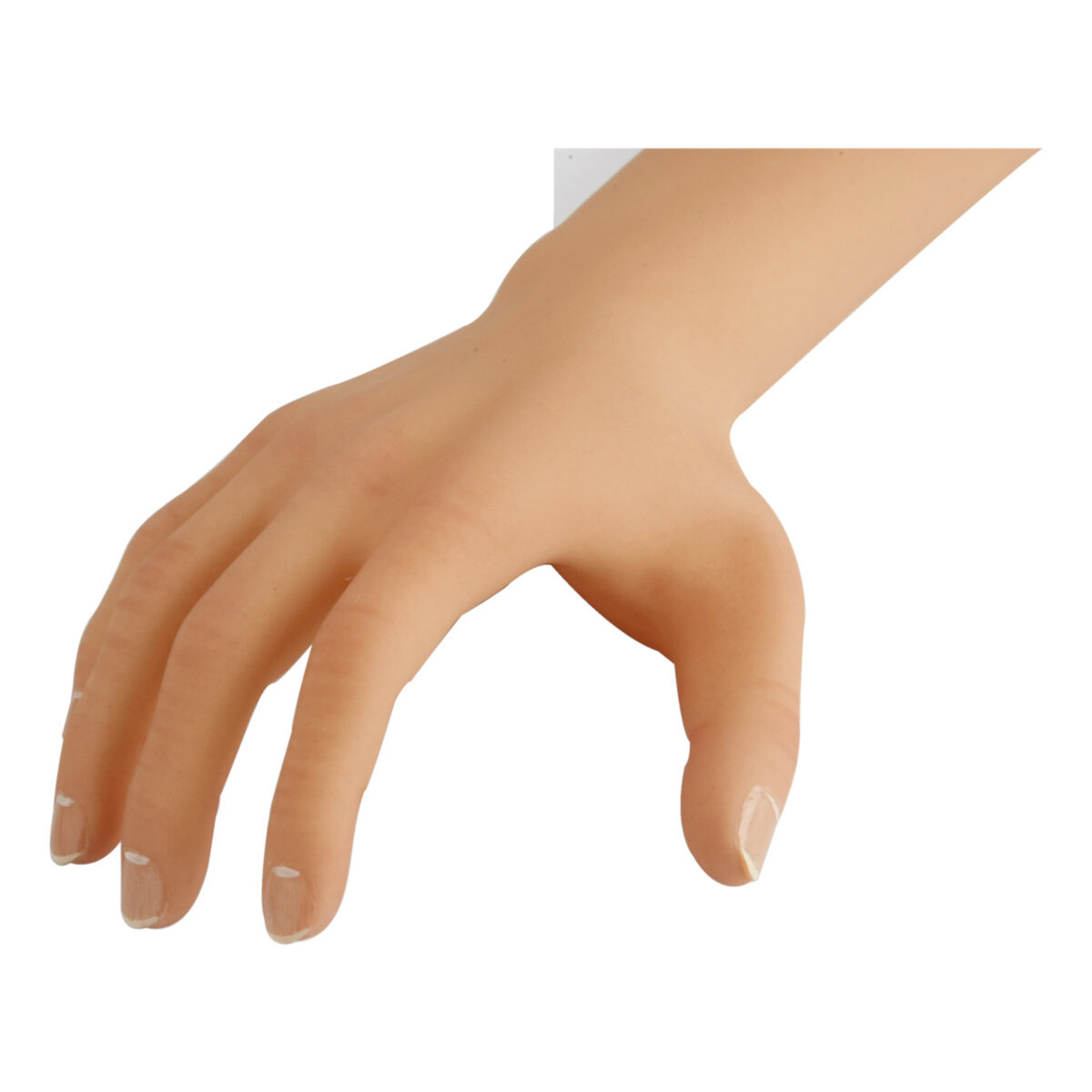

The AxonSkin glove serves as structural protection for the Michelangelo prosthetic hand and creates a natural appearance for the user. It is intended exclusively for use with the Ottobock Michelangelo Hand. Use the color pattern set 646M47 to determine the color. The Michelangelo Hand is locked with the help of the hand holding tool and holding tool (711M1) in order to apply and remove the prosthesic glove. Available for men and women.
