LimbLogic® M
Quick Links
| Part # | Description |
|---|
Product information

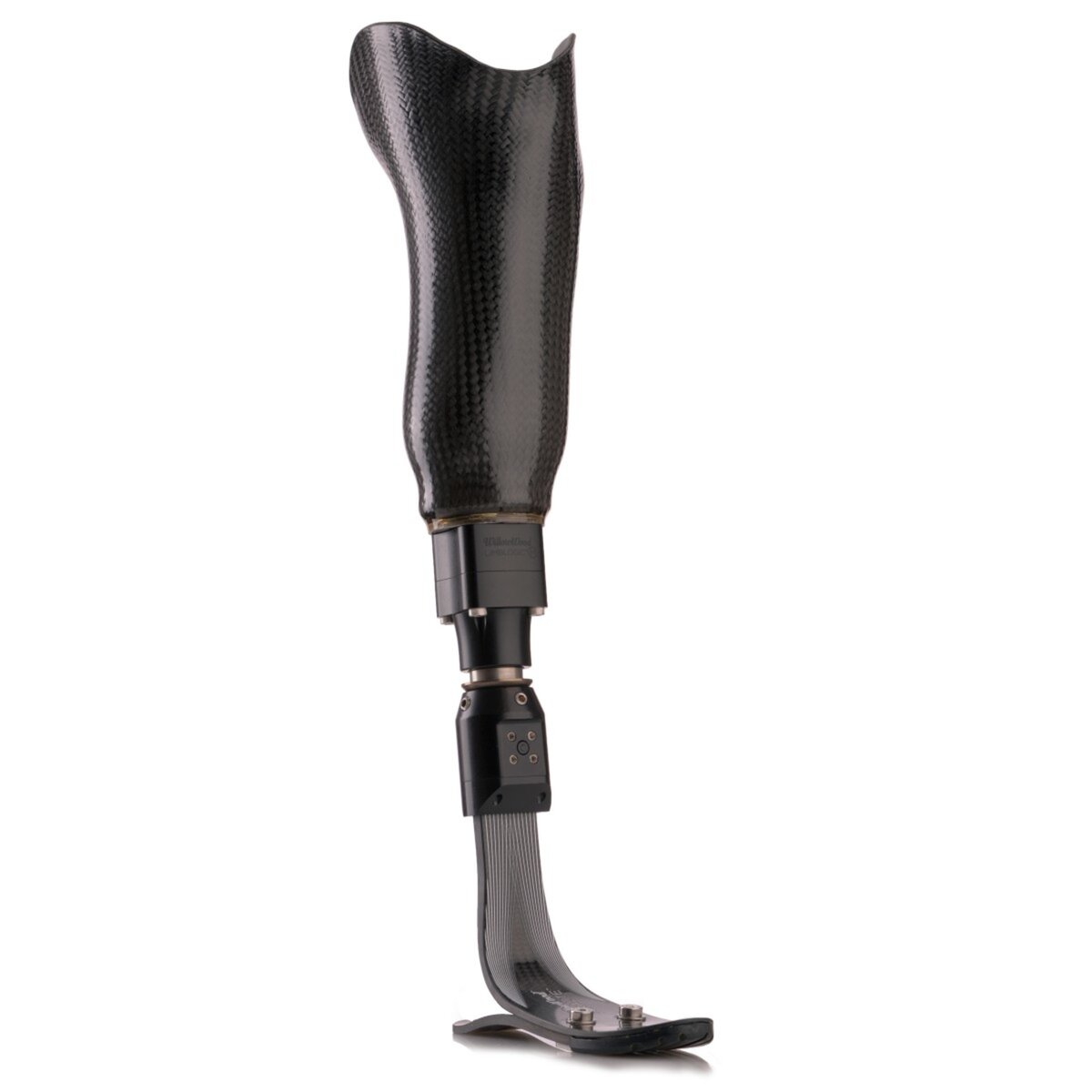

The LimbLogic® M is an elevated vacuum suspension system that operates by compressing with each step and is completely integrated into the prosthesis. Low or high vacuum may be set by turning a screw on the posterior side of the pump. Additionally, by turning a screw inset into the distal pyramid, stiffness of the pump and its amount of shock absorption may be increased or decreased.
Specifications
- Amputation Level: Transtibial
- Activity Level: K2, K3, K4
- Housing Material: N/A
- Max Vacuum (inHg): 22
- Weight Limit:
- Light: 100-170lbs (45-77kg)
- Standard: 300lbs (150kg) for K2-K3, 300lbs (135kg) for K4
| HCPCS: | L5781, L5988 |
|---|---|
| User: | Adult |
| Amputation Level: | Transtibial (TT/BK) |
| Suspension Type: | Vacuum Systems |
| Fabrication Technique: | Lamination, Thermoplastic |
| Key Features: | Exclusive Distributor |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs) |
Frequently Bought Together

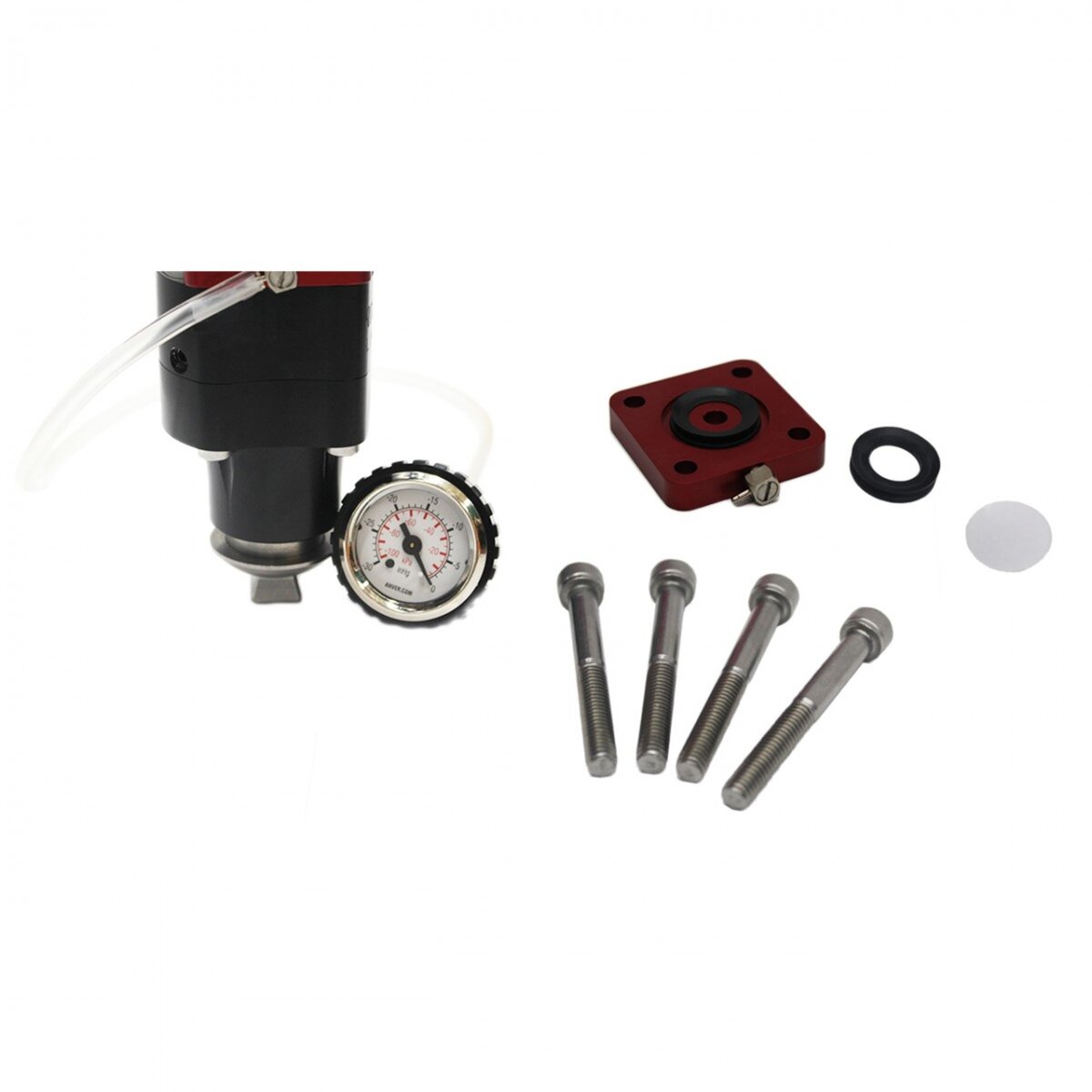

LimbLogic® M Diagnostic Kit
Used for checking vacuum levels and aiding in troubleshooting.Includes:(1) Diagnostic Plate(1) Proximal Gasket(4) M6 X 60 Socket Head Capscrews(1) Diagnostic Disc(1) Tube(1) Vacuum Gauge
LimbLogic® Sleeve
The LimbLogic® Sleeve works with the LimbLogic® controller to ensure an airtight, secure system. This fabric-covered silicone sleeve comes with a separate repositionable silicone cuff, allowing patients using elevated vacuum to fix a leak immediately. The cuff is placed directly over the socket’s trim line for extra protection from wear and impact. The sleeve is then donned over the cuff.Innovative silicone sleeve with repositionable silicone cuffEnhances knee flexibilityRepairable for extended sleeve wearUses proprietary platinum-cured, medical grade silicone
