Hytrek Knee
By
Proteor USA
Quick Links
| Part # | Description |
|---|
Product information

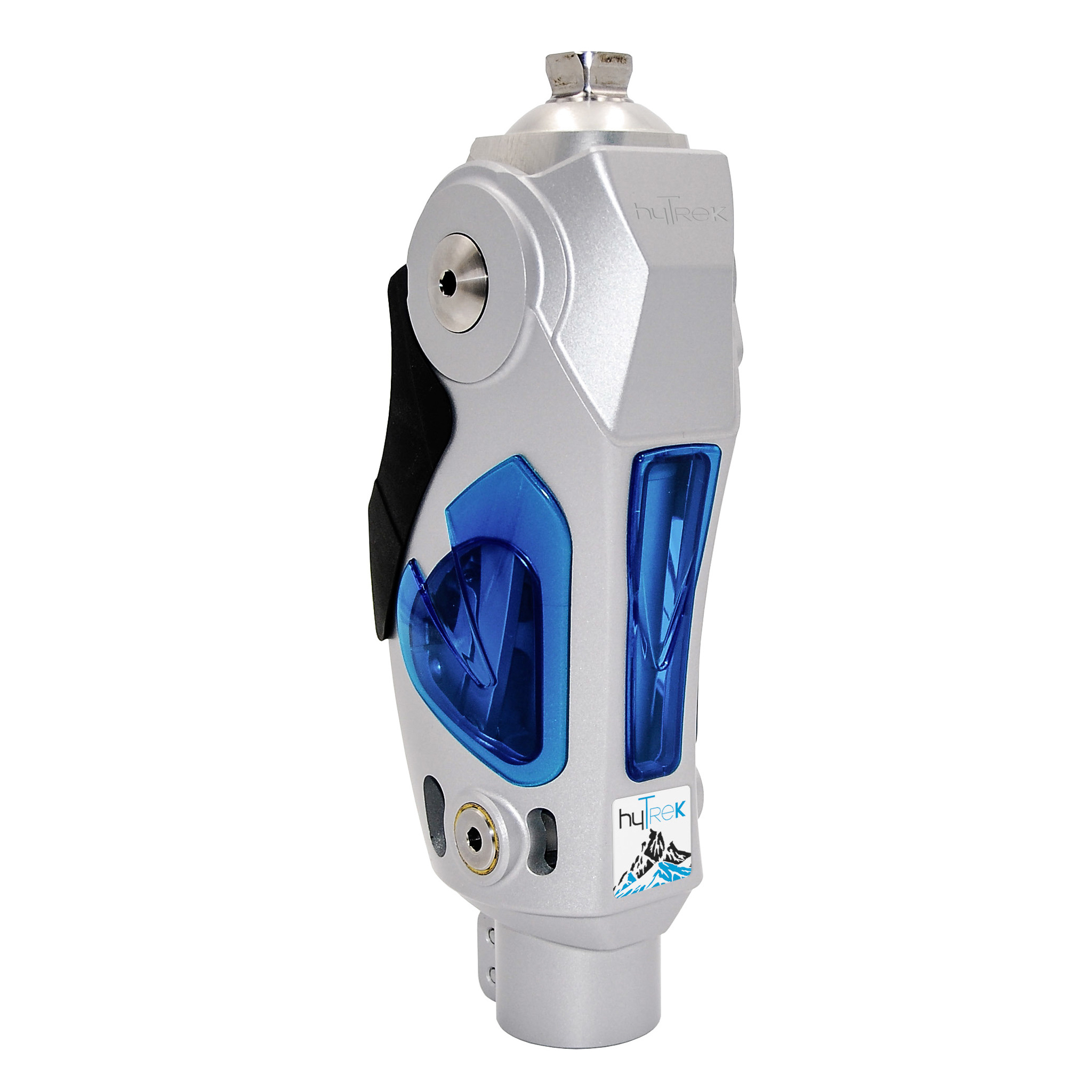

The Hytrek is a single axis knee that features hydraulic regulation of stance and swing phase with a manual lock. It is suitable for everyday life activities and all-terrain activities.
- Suitable for Transfemoral or Knee Disarticulation amputations
- Wide braking range
- Weather resistant
Specifications
- Activity Level: K3, K4
- Knee Design Type: Single Axis, Fluid Swing and Stance Phase Control
- Axis: Single Axis
- Swing Phase: Hydraulic
- Stance Phase: Hydraulic
- Control Frame Material: Aluminum, Stainless Steel, Titanium
- Product Weight (g): 1265-1285
- Maximum User Weight: 330lbs (150kg)
- Maximum Knee Flexion Angle: 120 Degrees
- Proximal Connection: Pyramid, Threaded Adapter
- Distal Connection: Tube Clamp
- Trial Period: 60 days from shipment date
- Warranty: 24 months from invoice date
Non-discount item.
| HCPCS: | L5828, L5845, L5850, L5925 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Knee Disarticulation |
| Activity Level: | K3 (High), K4 (Very High) |
| Swing Phase: | Hydraulic |
| Stance Phase: | Hydraulic |
| Axis Type: | Single Axis |
| Proximal Connection: | Male Pyramid Adapter, Threaded Adapter |
| Distal Connection: | Tube Clamp |
| Key Features: | Exclusive Distributor |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs) |
| Material: | Aluminum, Stainless Steel |
