Horizon HD Foot
Quick Links
| Part # | Description |
|---|
Product information

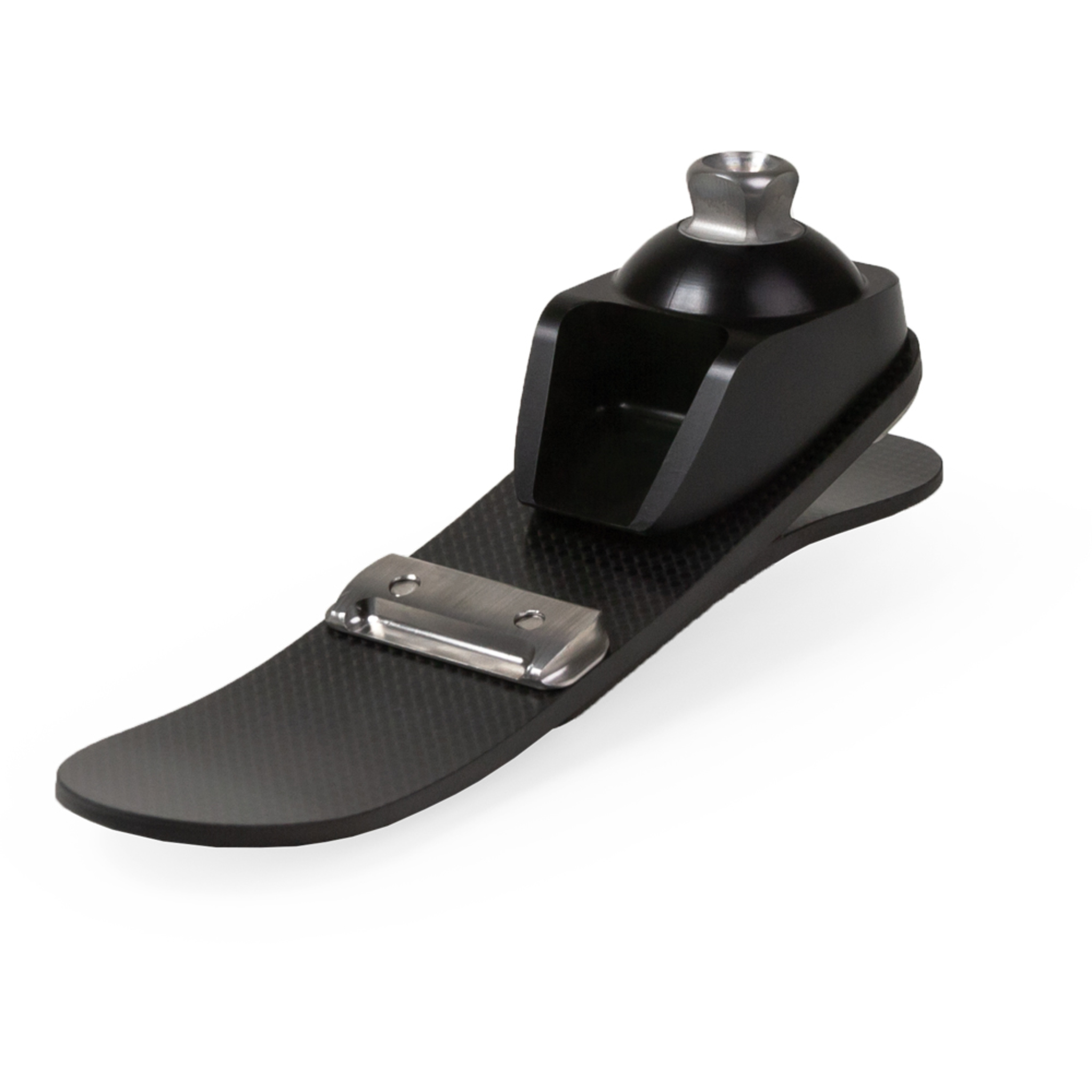

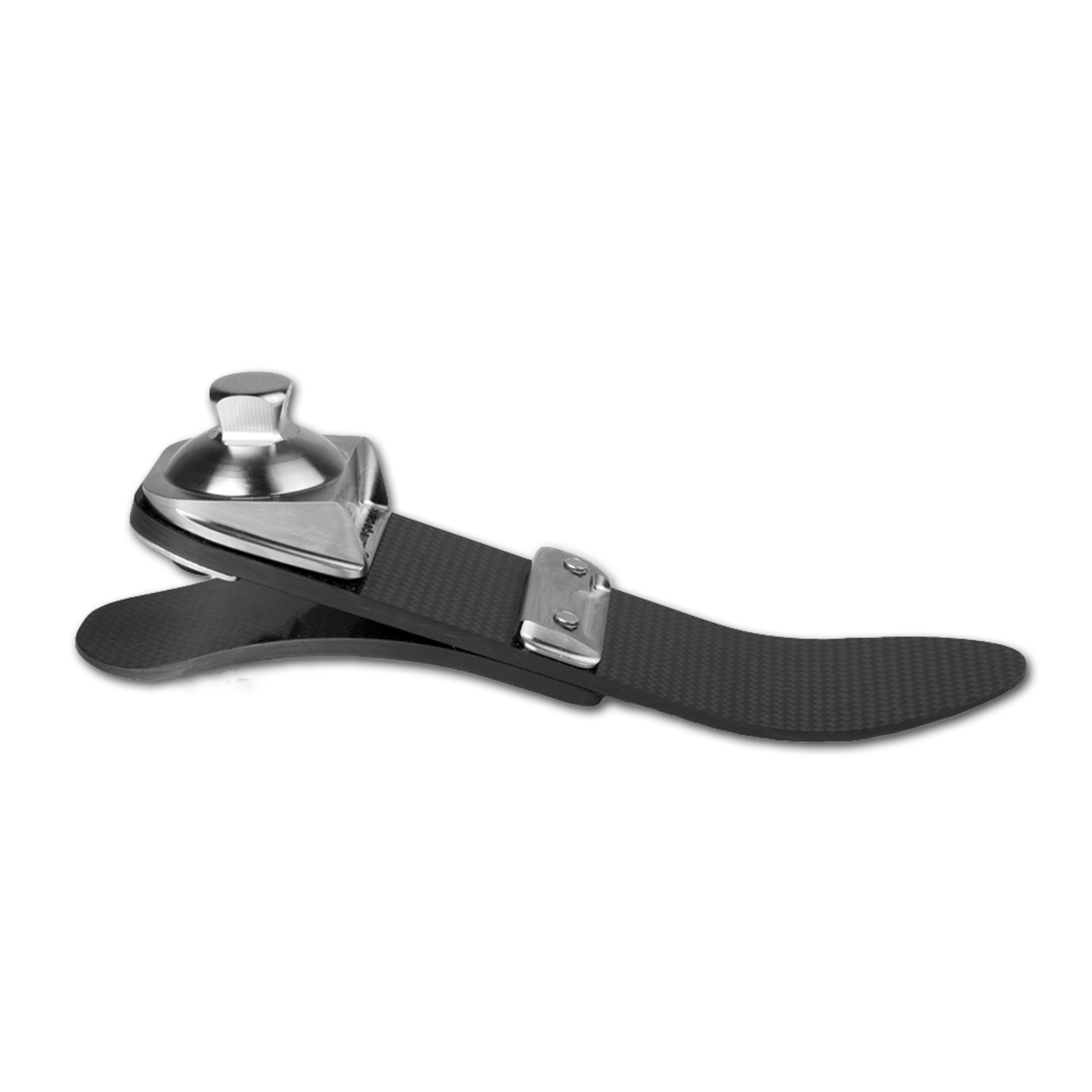

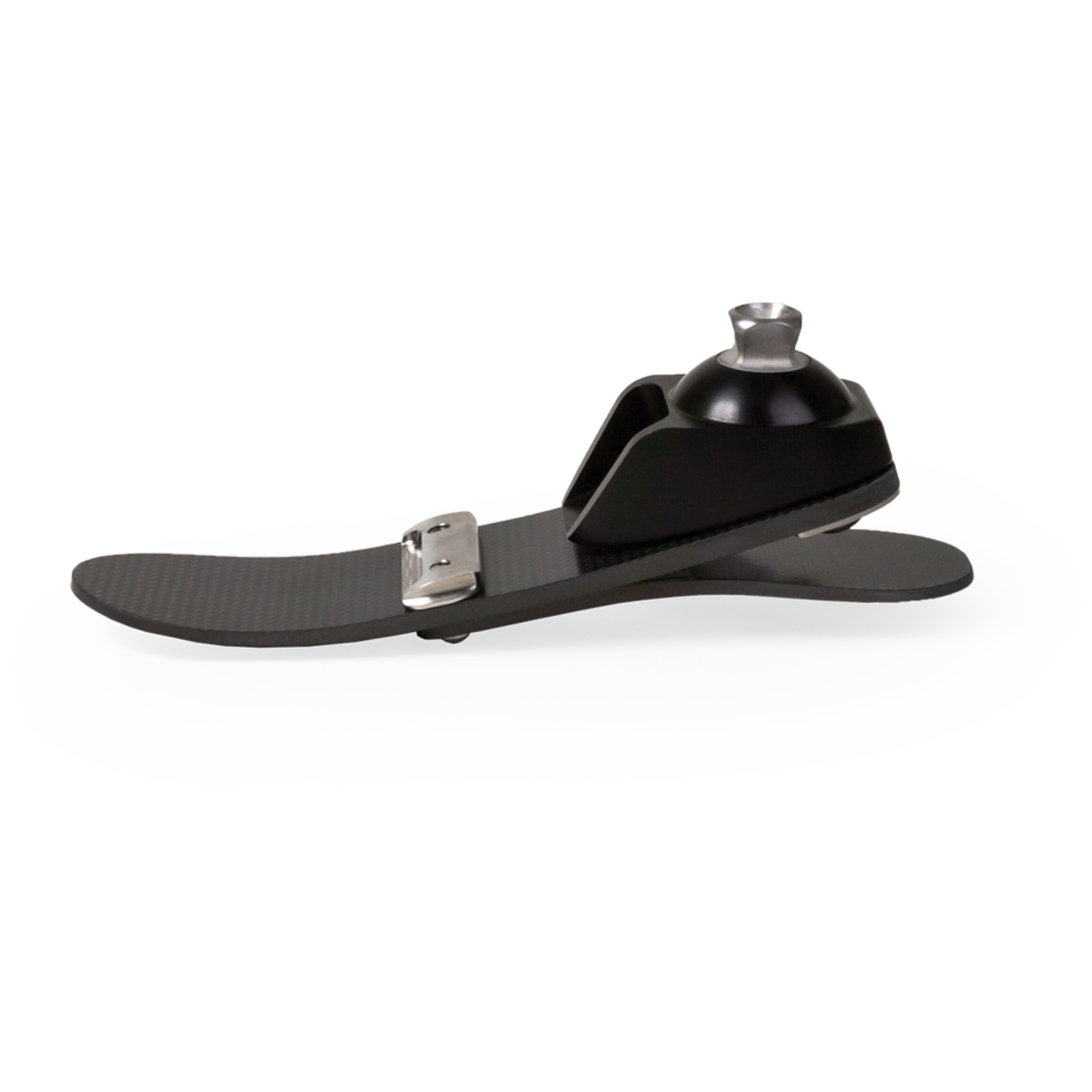

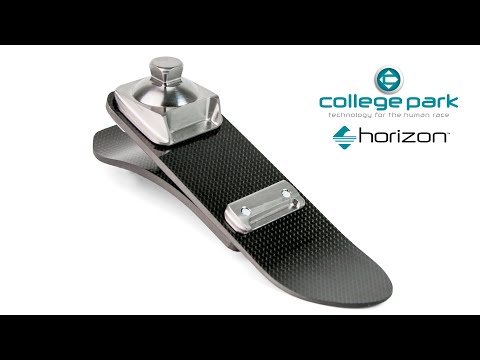

The Horizon HD brings College Park’s composite expertise to a carbon fiber foot design. It has an ultra-low profile and ultra-light weight design. The dynamics of the foot provide energy return for high-impact K3 users.
- Heel and toe springs
- Titanium components
- Spectra sock included
- Pair with the College Park Torsion Adapter of your choice to maximize product performance
Specifications
- Foot Type: Flex-Walk System
- Material Composition: Carbon Fiber
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K3, K4
- Foot Shell: Not Included
- Foot Shell Color: Caucasian, Tan, Brown, Jet Black
- Sandal Toe: Yes
- Waterproof: No
- Split Keel: No
- Adjustable Heel: No
- Weight Rating: 365lbs (165kg)
- Stiffness Categories: 1-7
- Sizes (cm): 21-30
- Product Weight (g): 518 (with Foot Shell)
- Build Height: 2.5in (64mm)
- Heel Height: 3/8in (10mm)
- Connector: Integrated Male Pyramid
- Trial Period: 60 days from purchase date
- Warranty: 36 months from purchase date
Note: Foot shell sold separately. Please see related items below for more information on foot shell ordering.
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.| HCPCS: | L5981 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Activity Level: | K3 (High), K4 (Very High) |
| Foot Type: | Flex-Walk |
| Build Height: | 51-76 mm (2-2.9 in) |
| Foot Shell Included: | No |
| Key Features: | High Weight Limit, Low Profile, Split Toe, Water Resistant |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs), 159 kg (350 lbs) |
| Material: | Carbon Composite |
Frequently Bought Together
Spectra Socks
The Spectra sock helps to create a barrier between the foot shell and the composite for noise abatement and prevention of dirt accumulation and moisture.
Enviroshell - Horizon, Odyssey K3, Orbit, Terrain
College Park's Enviroshells utilize a custom foam polymer blend, are antimicrobial and infused with a UV inhibitor for ultimate durability against any environment.
Stride Control Key
Stride control hex key for various milimeter sizes.CP HK 3, Hex Key 3mmCP HK 4, Hex Key 4mm
Shelltread - Horizon, Odyssey K3, Orbit, Terrain
Tread for foot shells made from abrasion resistant styrene-butadiene rubber with a cross hatch design for enhanced non-skid.Extends the life of the Enviroshell for users who walk barefootColors: Neutral, Jet BlackRight or left specificFoot Size (cm): 21-30
Breeze Cosmetic Attachment Plate
The College Park CAP system is an interface that snaps into the top of the foot shell to allow easy gluing to a cosmetic cover. This provides quick access to the foot mechanics without having to interrupt any glued surface, while still providing a solid lock into the foot shell.
Foot Horn, Stainless Steel
Aircraft-grade stainless steel foot horn for donning and doffing a foot shell.

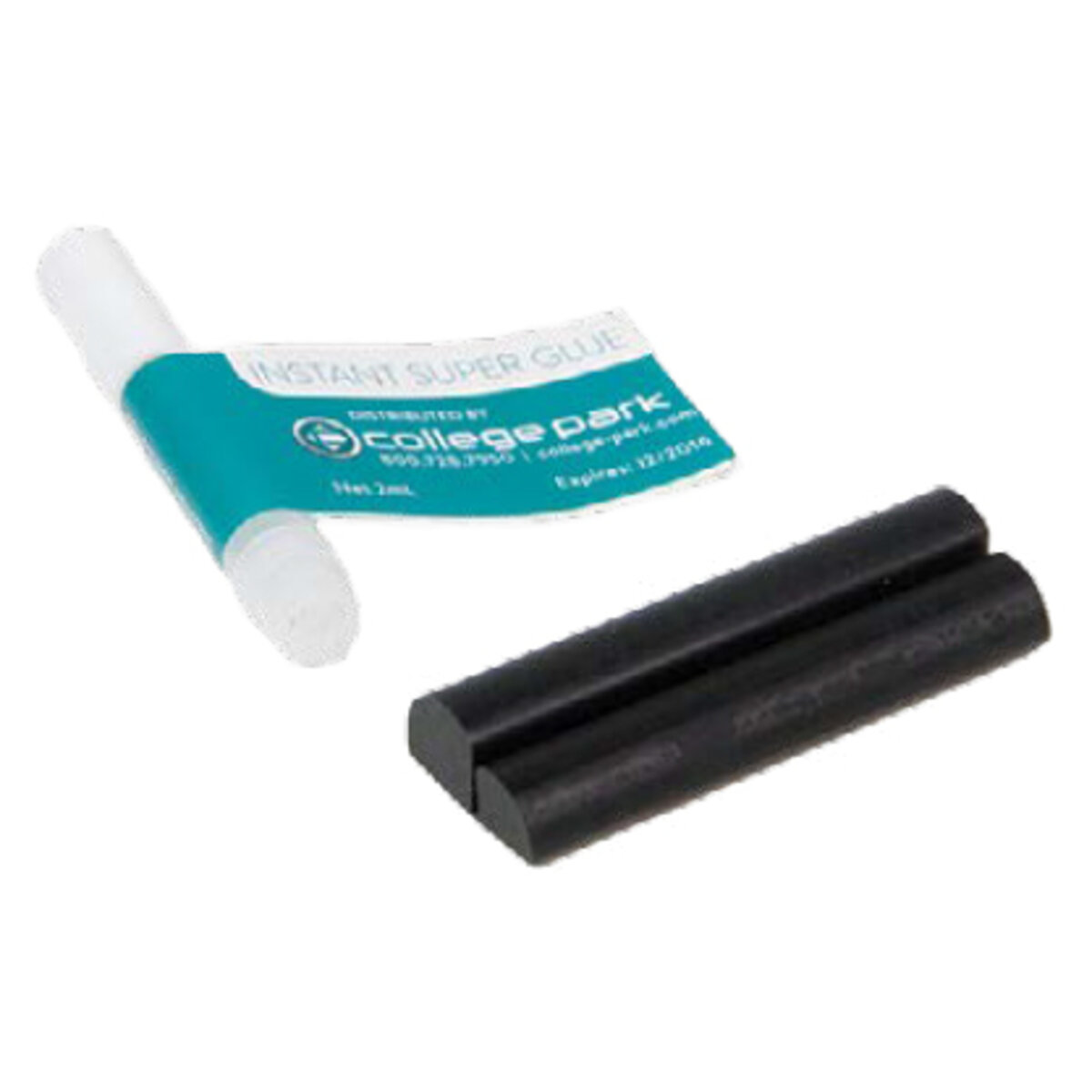

Horizon Wedge Kit
Replacement rounded heel wedge provides firmer heel response in the Horizon HD and LT Feet.
