Harmony P3
Quick Links
| Part # | Description |
|---|
Product information
The core function of the Harmony P3 is provided by a functional ring. It assumes the pumping function, offers vertical shock absorption, and permits natural rotation. The functional rings can be easily adjusted and exchanged to meet the user's needs. The 3-in-1 functional rings additionally make the Harmony P3 field-serviceable.
- Pyramid reciver made out of titanium
- Pylon receiver for 34mm pylons
Specifications
- Amputation Level: Transtibial
- Activity Level: K3, K4
- Housing Material: Aluminum
- Max Vacuum (inHg): 20
- Weight Limit: Refer to chart below
- Product Weight (g): 400
- System Height (mm): 175
- Diameter (mm): N/A
- Trial Period: N/A
- Warranty: 24 months from purchase date
| Ring | Body Weight |
|---|---|
| Functional Ring 0 | 88-103lbs (40-47kg) |
| Functional Ring 1 | 104-121lbs (48-55kg) |
| Functional Ring 2 | 122-143lbs (56-65kg) |
| Functional Ring 3 | 144-165lbs (66-75kg) |
| Functional Ring 4 | 166-192lbs (76-87kg) |
| Functional Ring 5 | 193-220lbs (88-100kg) |
| Functional Ring 6 | 221-247lbs (101-112kg) |
| Functional Ring 7 | 248-276lbs (113-125kg) |
| HCPCS: | L5781, L5984, L5988 |
|---|---|
| User: | Adult |
| Amputation Level: | Transtibial (TT/BK) |
| Suspension Type: | Vacuum Systems |
| Key Features: | Waterproof |
| Material: | Aluminum |
Frequently Bought Together
Spots
Spots are polyurethane cushions used to compensate for variations in residual limb volume. One spot per package. Spots are .5mm thick.
Accessory Kit for Harmony P2 and HD
Contains all components for the maintenance and service of the P2, DP and HD Harmony pumps.Includes:(1) 4Y348 Harmony Elastomer Rod (yellow Shr A 90)(1) 4Y347 Harmony Elastomer Rod (80 shore A) Red(1) 4Y346 Intake Valve with Screen(1) 4Y345 Expulsion Valve(1) 4Y351-5 P2, Rubber Air Value - Kit of 5(1) 4Y319=3 Harmony Boot – Black (3pc)(2) 4Y344 Barbed Socket Connector Filter, SS(4) SL=2300-7174 Washer, 1/4"x 0.06 thk shim(2) 4Y350 Barbed Socket Elbow Connector 1/8", Kit(3) SL=2300-7167 30mm Clamp Screw, M5x22, 12.9 grade Zinc(4) 506G3=M8X14 Adjustment Screw(1) 619R32=6.2X3.6 PU Tubing, .245"OD x .142" ID, black,80A(1) 4Y360=5 Harmony P2/HD Muffler, Kit of 5(4) 507U73=5X8.25X7 S.S. Washer .211" ID x .333" OD x .025"

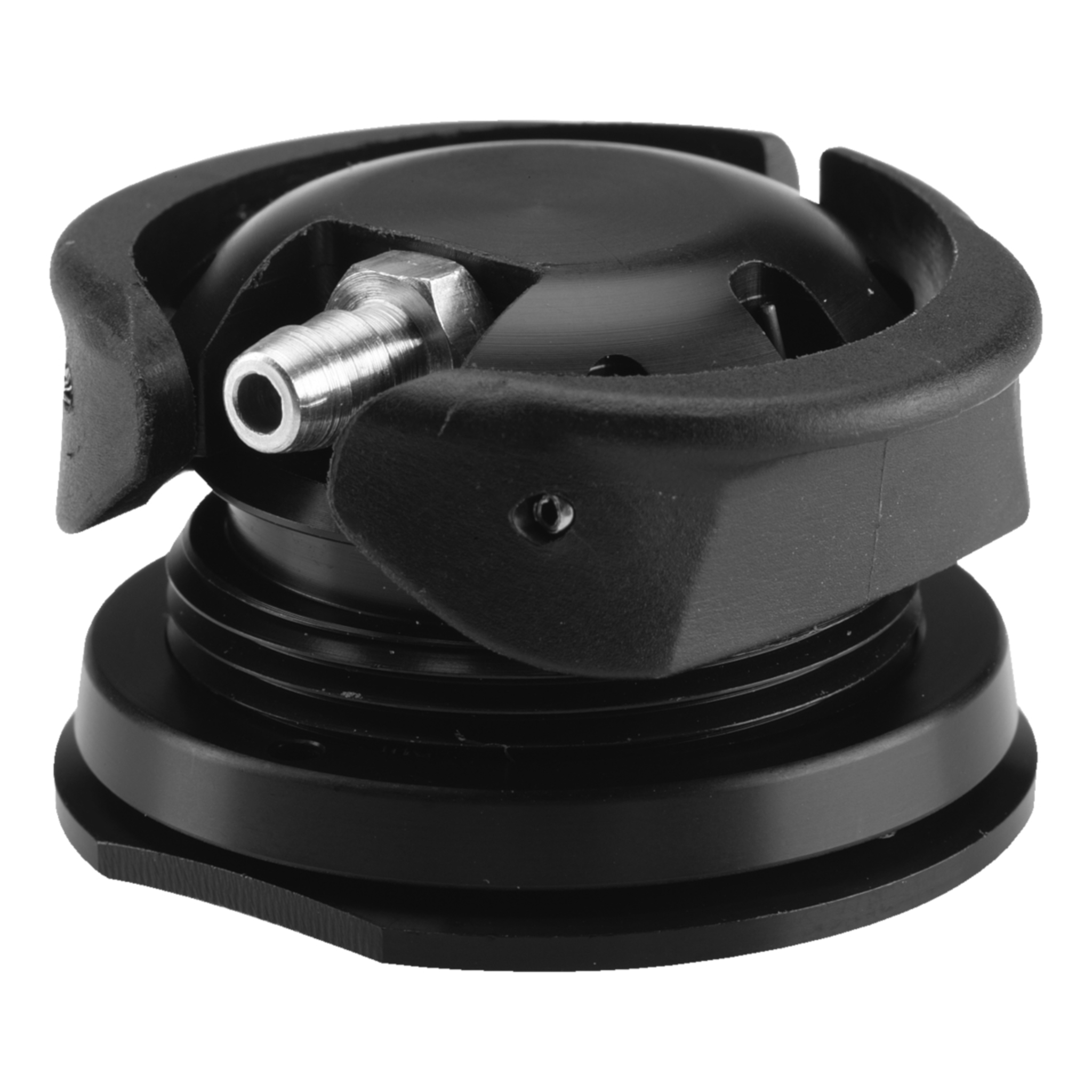

Vacuum Connector
Easy-to-use vacuum connector designed for the connection between the socket and Harmony pump. The design is based on the 21Y14 Push Valve.
Harmony Cosmesis Exhaust Flange
The exhaust flange should be incorporated into Harmony Systems when using a cosmetic cover. It connects to the exhaust valve and routes air and moisture from the socket to the outside of the cosmetic cover.
Sticky Spots
Spots are polyurethane cushions used to compensate for variations in residual limb volume. With additional adhesive coating for permanent adjustment of the residual limb volume. One spot per package. Spots are .5mm thick and are available in different diameters.
