Harmony E2 System - Adapter Plate with Offset
By
ottobock
Quick Links
| Part # | Description |
|---|
Product information

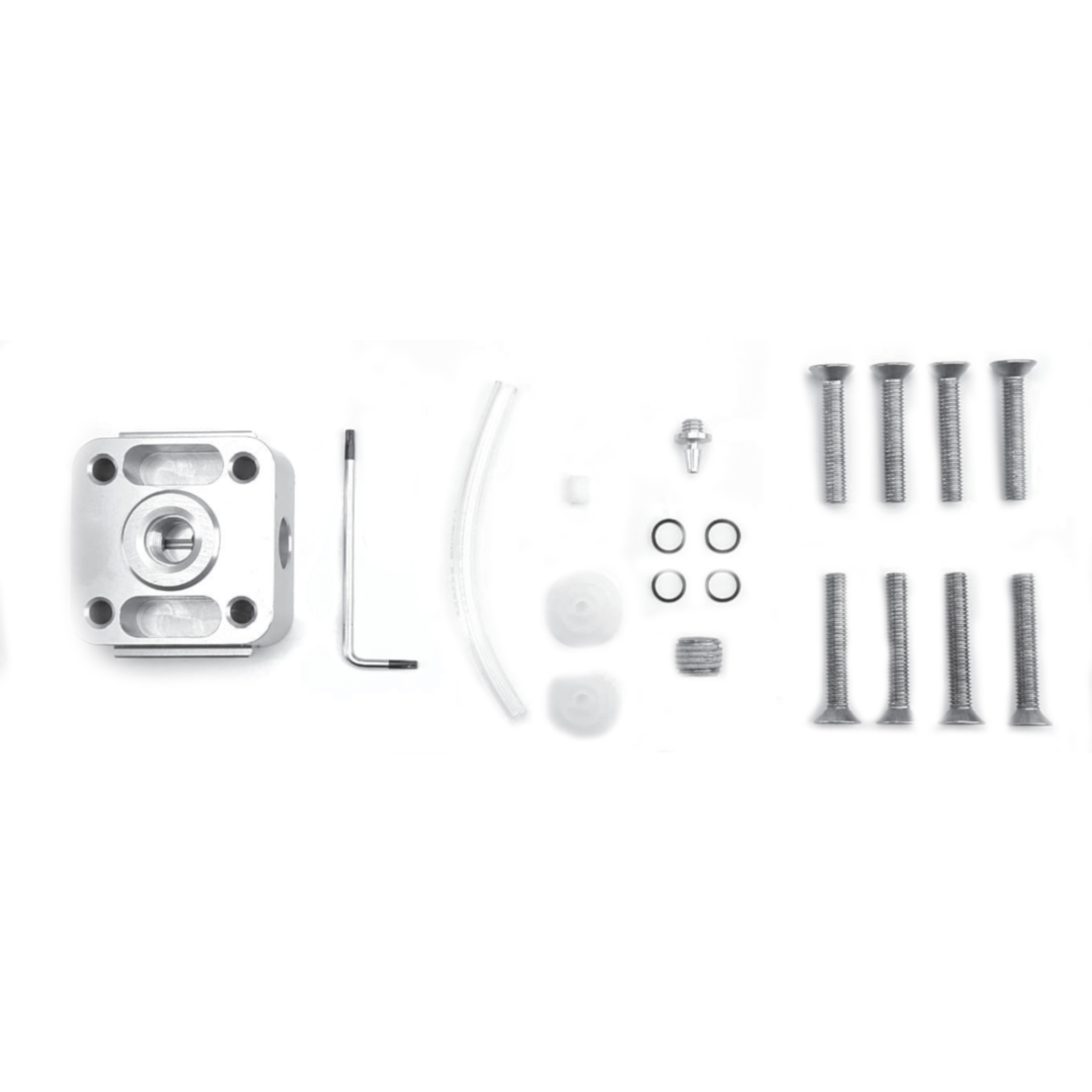

The 4R153 adapter plate with offset is installed between the prosthetic socket and the distal components of the modular prosthesis. The adapter plate features two connectors for generating a vacuum in the prosthetic socket and one for connecting to a vacuum pump. A PE sinter filter protects the vacuum pump from contamination. Additionally, the adapter plate is equipped with a check valve, which retains the vacuum generated in the prosthetic socket.
Specifications
- Material: Aluminum
- Weight Limit: 330lbs (150kg)
- Build Height (mm): 22
- Assembly Weight (g): 160
- Torque: N/A
- Warranty: 24 months from purchase date
| User: | Adult |
|---|
