Flex-Symes™
Quick Links
| Part # | Description |
|---|
Product information
The Flex-Symes™ foot is designed for patients with Symes and Pirogoff amputations, or transtibial users with long residual limbs. It features a carbon foot module connected to an actively deflecting carbon heel, as well as an improved alignment adapter that offers angulation and adjustments in ML/AP planes.
- Proportional response
- CARBON-X® Active Heel
- Full length toe lever
- Spectra sock included
Specifications
- Foot Type: Flex-Walk System
- Material Composition: Carbon Composite
- Amputation Level: Symes, Pirogoff, Ankle Disarticulation, Transtibial
- Activity Level: K1, K2, K3
- Foot Shell: Not Included
- Foot Shell Color: Beige, Brown
- Sandal Toe: No
- Waterproof: Yes
- Split Keel: Yes
- Adjustable Heel: No
- Weight Rating: 365 lbs (166 kg)
- Stiffness Categories: 1-9
- Sizes (cm): 22-30
- Product Weight (g): 528 (with Foot Cover)
- Build Height: 2.4in (60mm)
- Heel Height: 3/8in (10mm)
- Connector: Direct Lamination
- Trial Period: 60 days from invoice date
- Warranty: Three years from ship date
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
| HCPCS: | L5910, L5981 |
|---|---|
| User: | Adult |
| Amputation Level: | Transtibial (TT/BK), Ankle Disarticulation, Pirogoff, Symes |
| Activity Level: | K1 (Low), K2 (Moderate), K3 (High) |
| Foot Type: | Flex-Walk |
| Build Height: | 51-76 mm (2-2.9 in) |
| Foot Shell Included: | No |
| Key Features: | Waterproof |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs), 159 kg (350 lbs) |
| Material: | Carbon Composite |
Frequently Bought Together
FSE Foot Cover Kit
Replacement foot shell for Vari-Flex®, Re-Flex, Cheetah® Xplore, and Flex-Symes™.Includes:Foot coverFlex-Foot sockFoot cover attachment
Alignment Disc Kit
Alignment disc kit for the Flex-Symes™ foot.Includes:Two circular alignment wedgesTwo Alignment pinsOne anti-rotation boltWasherLoctite 410

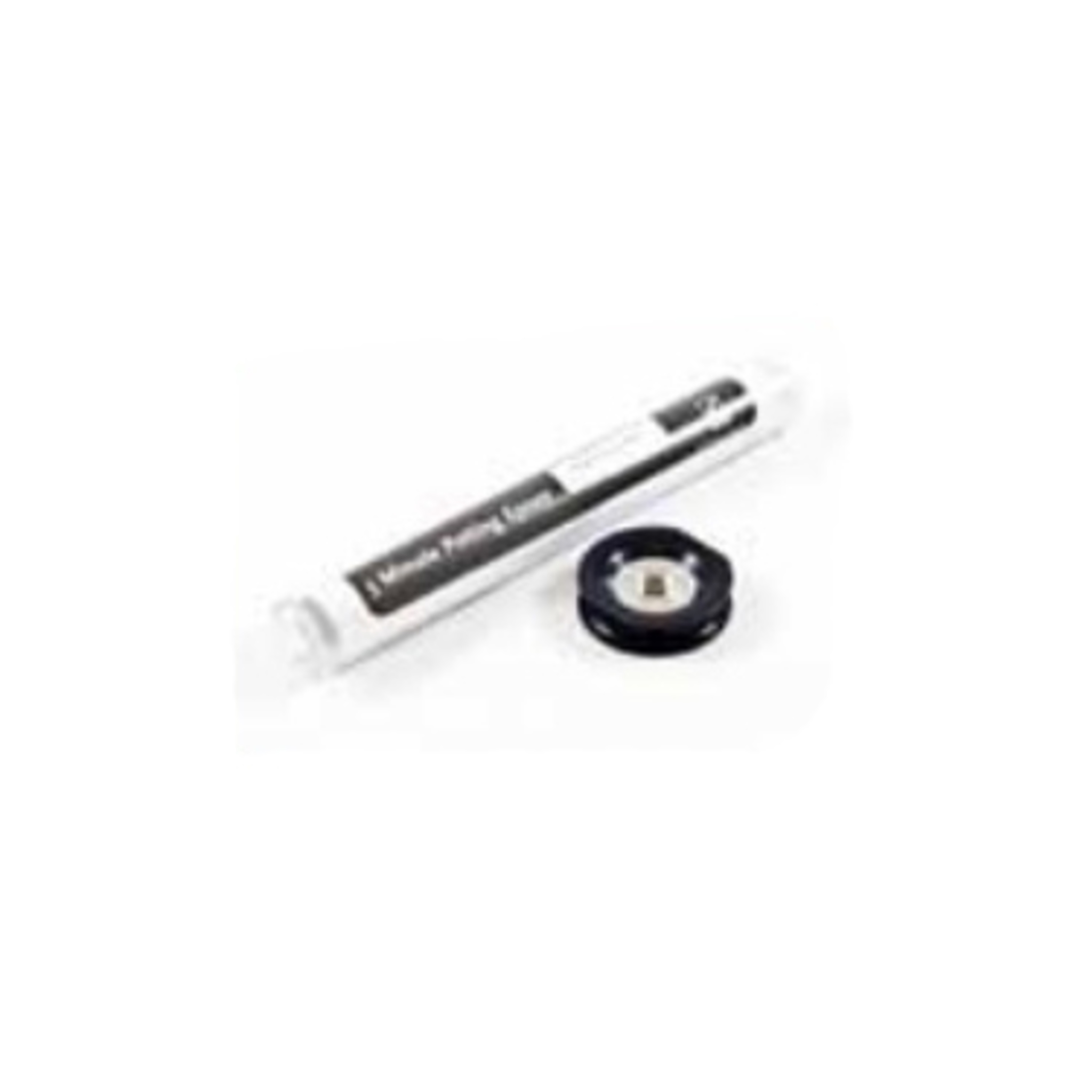

Lamination Kit

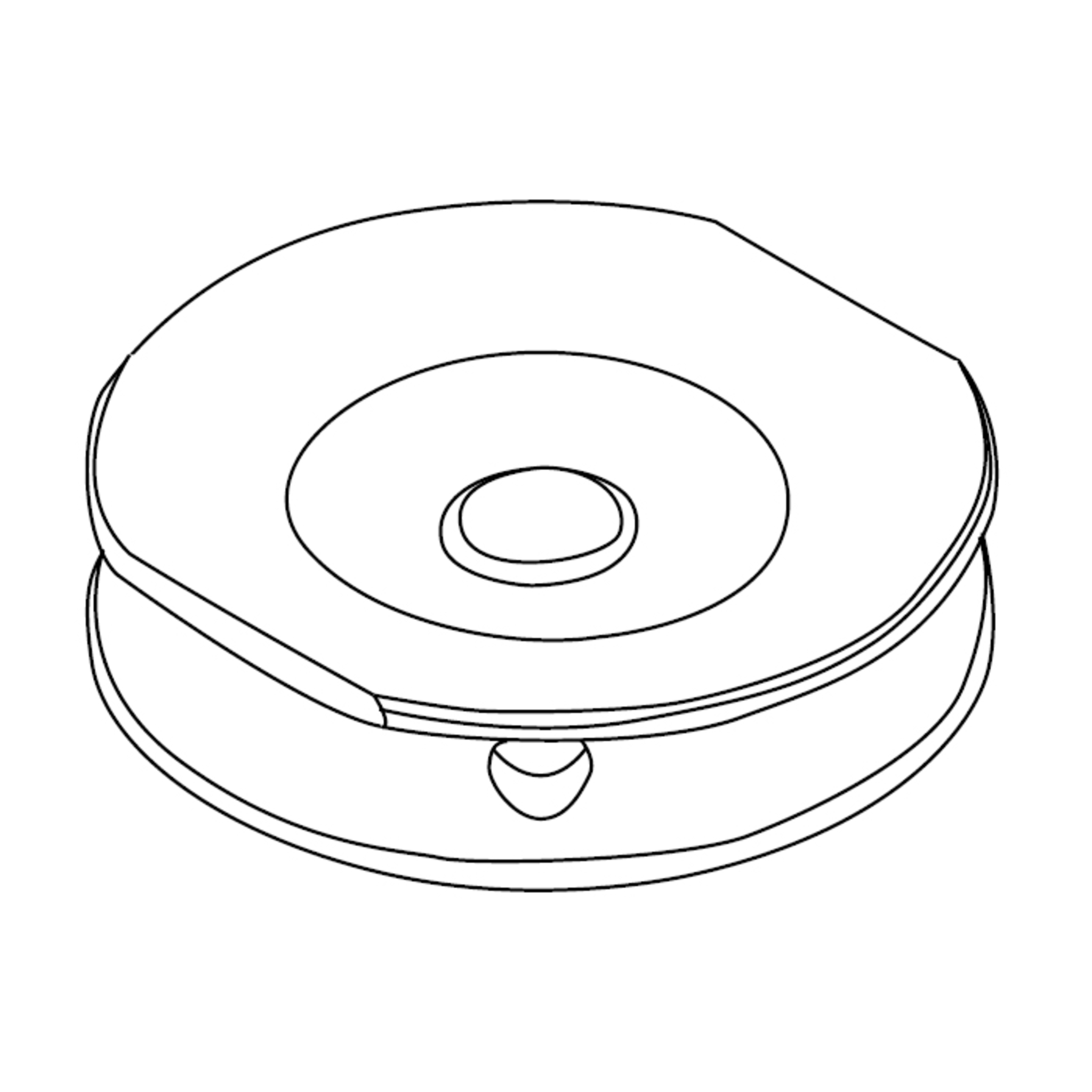

Lamination kit for the Flex-Symes™ foot. Includes: Socket adapter with insert Epoxy potting

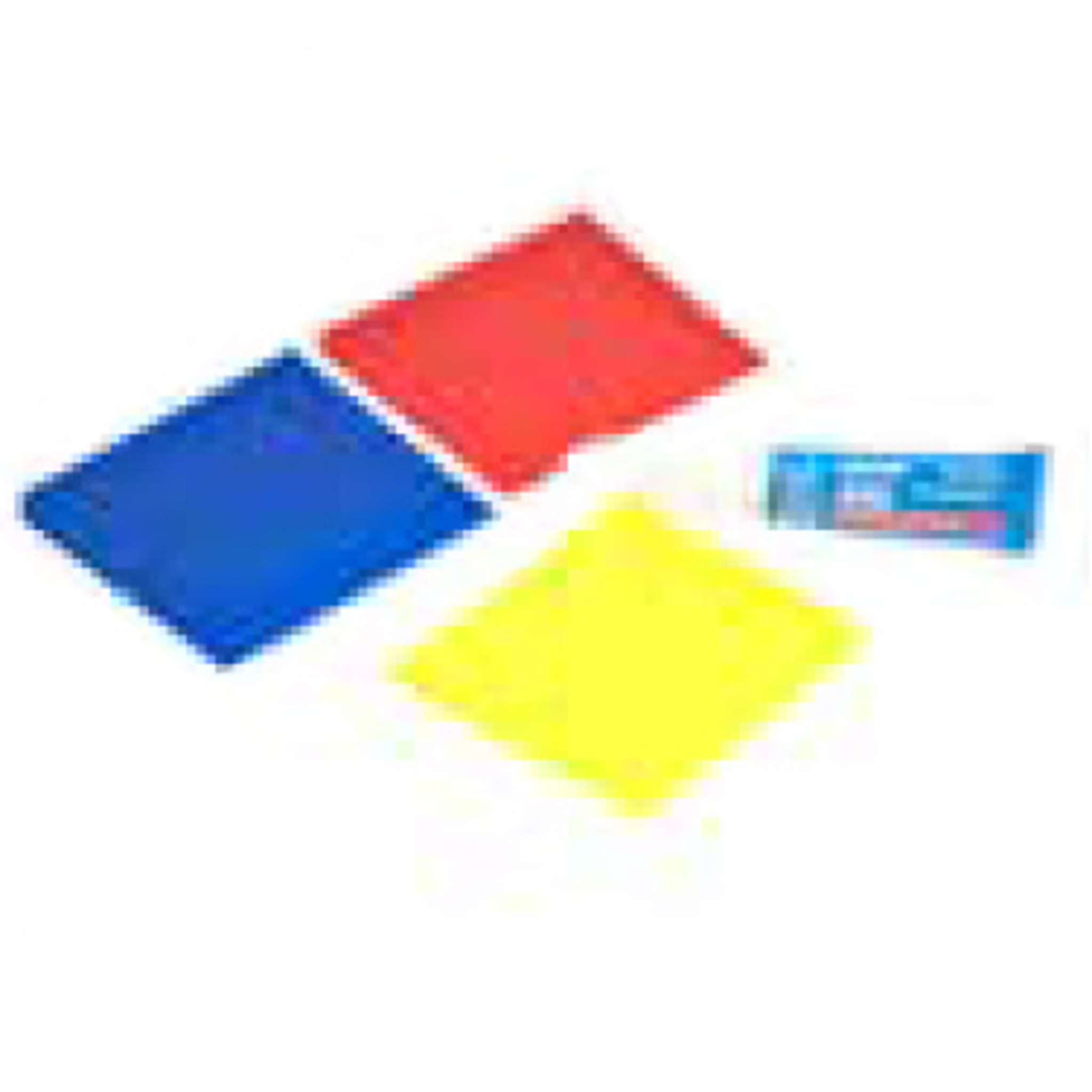

Heel Wedge Kit
For adjustment of heel stiffness and roll-over characteristics.Includes:(3) Wedges(1) Adhesive
