ErgoArm

Part # Description

Product information

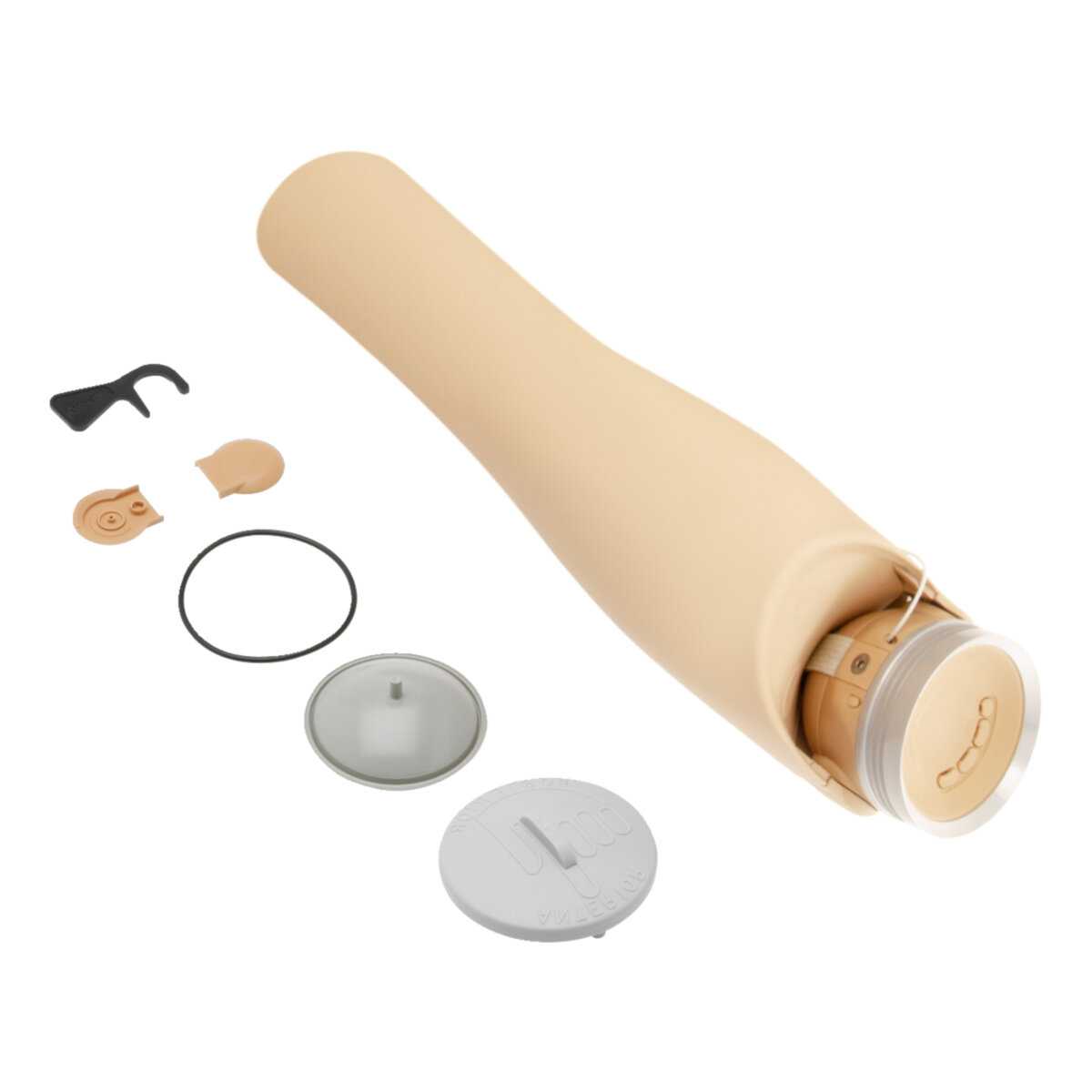

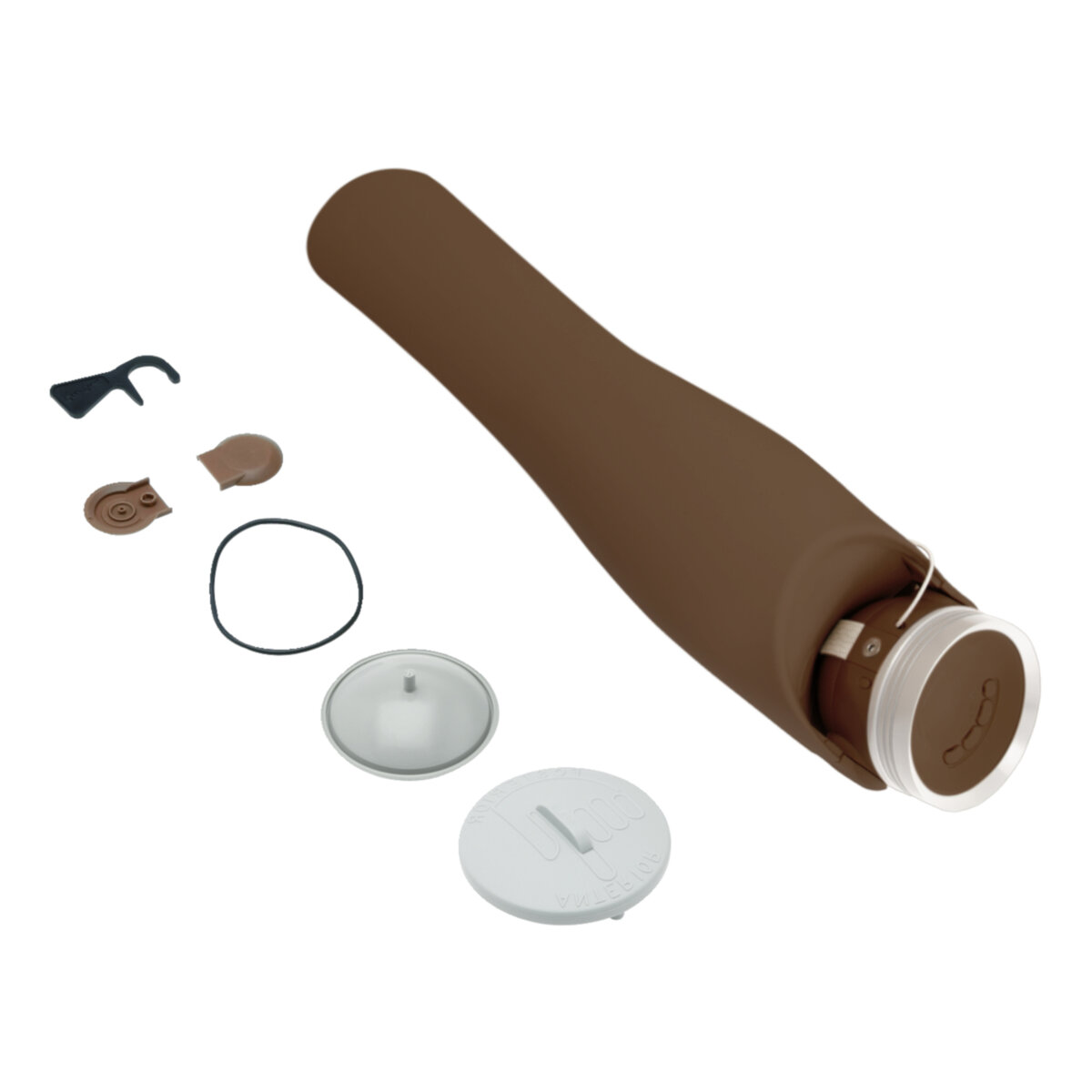

The ErgoArm is a lightweight and versatile mechanical elbow that is compatible with a passive or body-powered hand or terminal device. Please see the ErgoArm Family Selection Guide for available sizes and corresponding color options.

  • Features include:

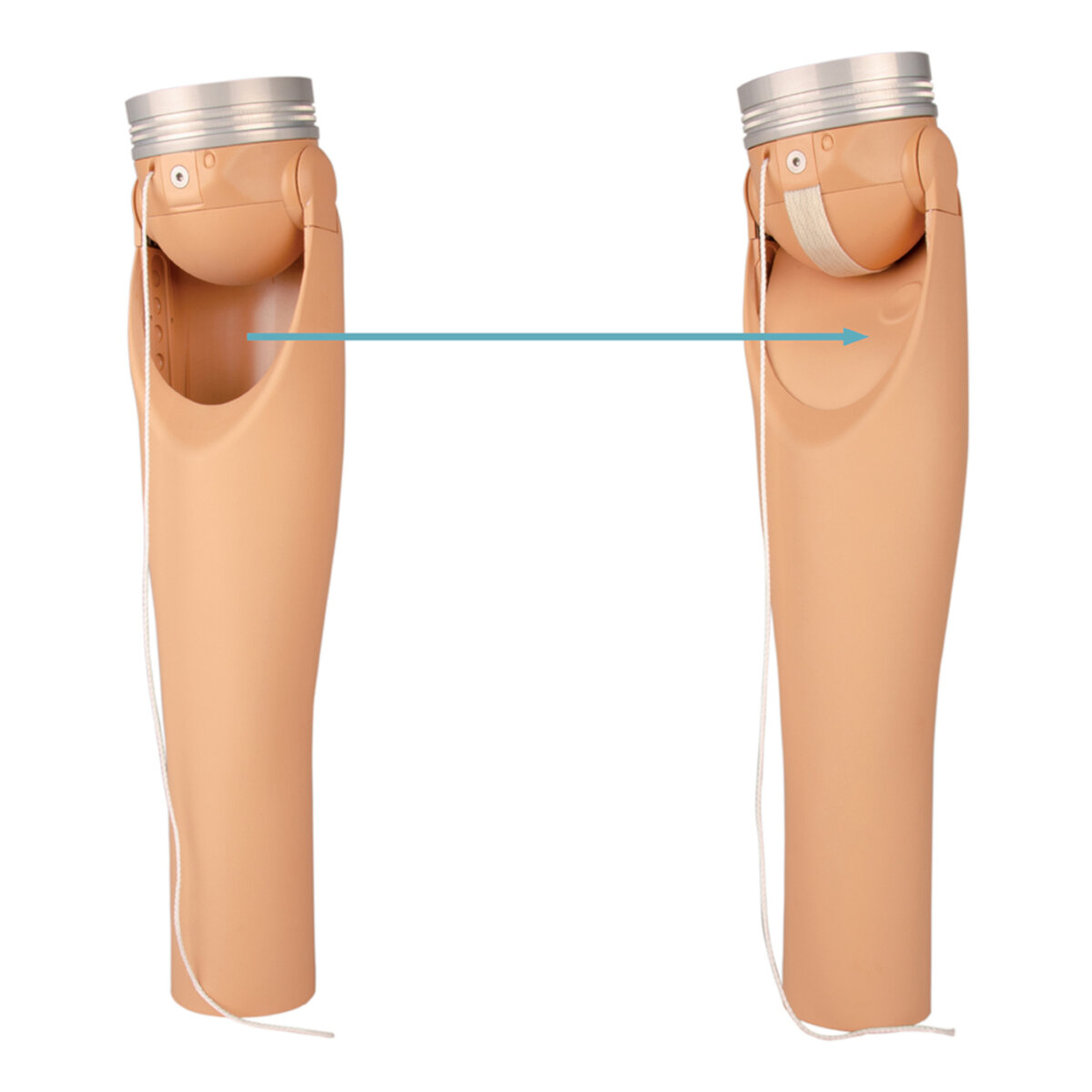

  • The internal Infinite Position lock is cable-operated and can be locked, or unlocked, under load in any position. It can bear a load of up to 230N at a forearm length of 305mm.
  • The Slip-Stop function makes it possible to lower the forearm in a controlled manner without having to fully release and reactivate the lock.
Skip product gallery

Frequently Bought Together

Alignment Aid for ErgoArm® Elbow Set-Ups

Alignment Aid for ErgoArm® Elbow Set-Ups

Alignment Aid for ErgoArm® Elbow Set-Ups is an adjustment and foaming aid that allows the alignment of an interim prosthesis for functional training in the rehabilitation phase.

Adapter for Mounting

Adapter for Mounting

The Adapter is used for mounting a 12K50 Ottobock Elbow Component to a Hosmer lamination ring.

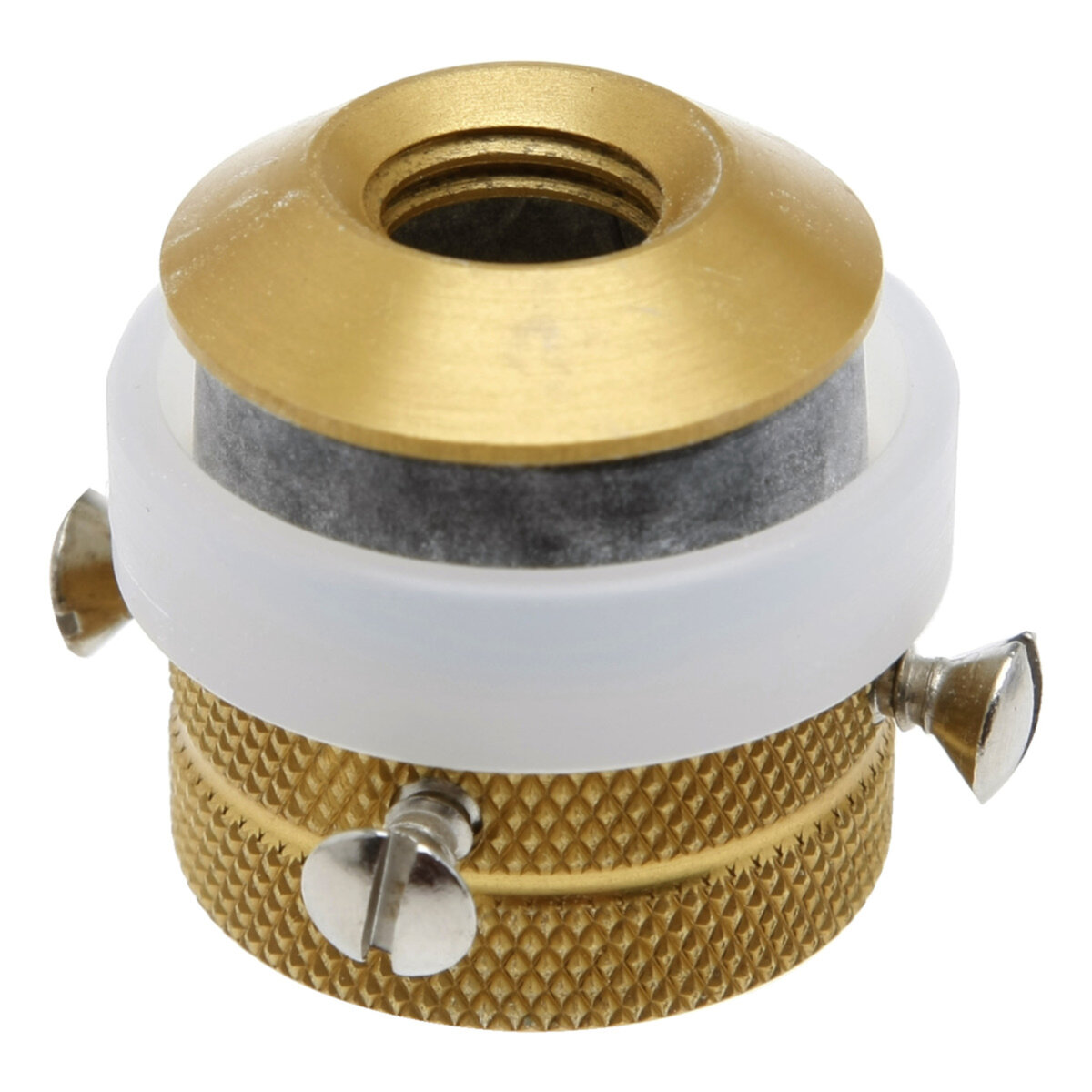

Friction Wrist Unit

Friction Wrist Unit

The Friction Wrist Unit comes with interior thread (M12x1.5) and a cylindrical lamination ring.

Wrist Unit with Ratchet Type Rotation - Short

Wrist Unit with Ratchet Type Rotation - Short

Movo exoskeletal wrist unit with short profile for long residual limbs. Movo Wrist joints attach the forearm to a cable powered or passive terminal device, providing flexion/extension and/or quick disconnection of hand or hook. Short profile for long below-elbow residual limb application Lock lever secures and releases pronation/supination position Ratchet style resistance to pronation/supination when not in the locked position A second lever provides quick disconnection of terminal device 50 mm diameter Connects to hand or hook with 10A56 Threaded Stud

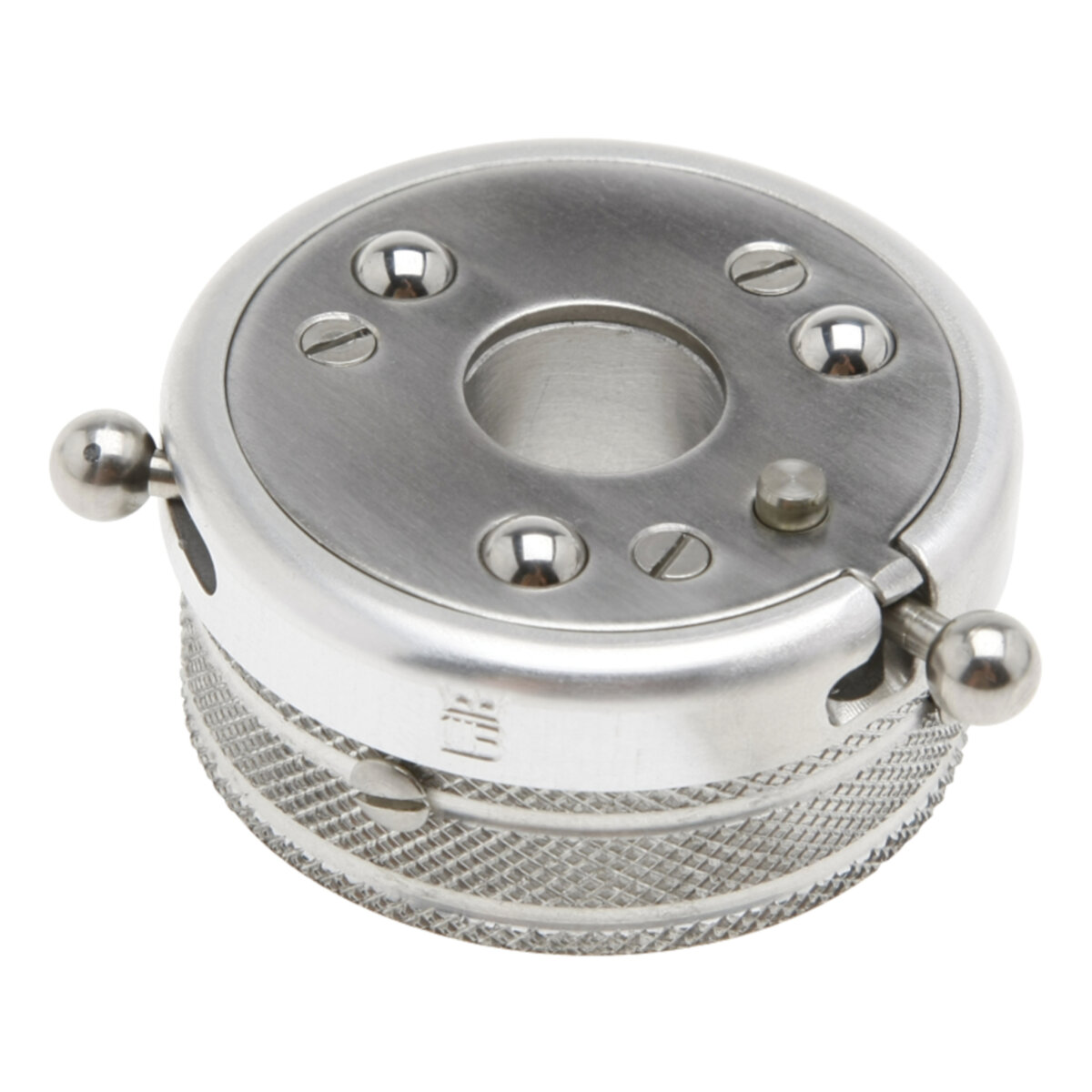

Movo Exoskeletal Wrist Unit

Movo Exoskeletal Wrist Unit

The Movo Exoskeletal Wrist Unit for incorporation into body powered prosthesis.Wrist unit with ratchet-type rotationQuick disconnectLock Lever provides quick disconnect50 mm diameterConnect to hand or hook with 10A43 Attachment Plate with Threaded Stud

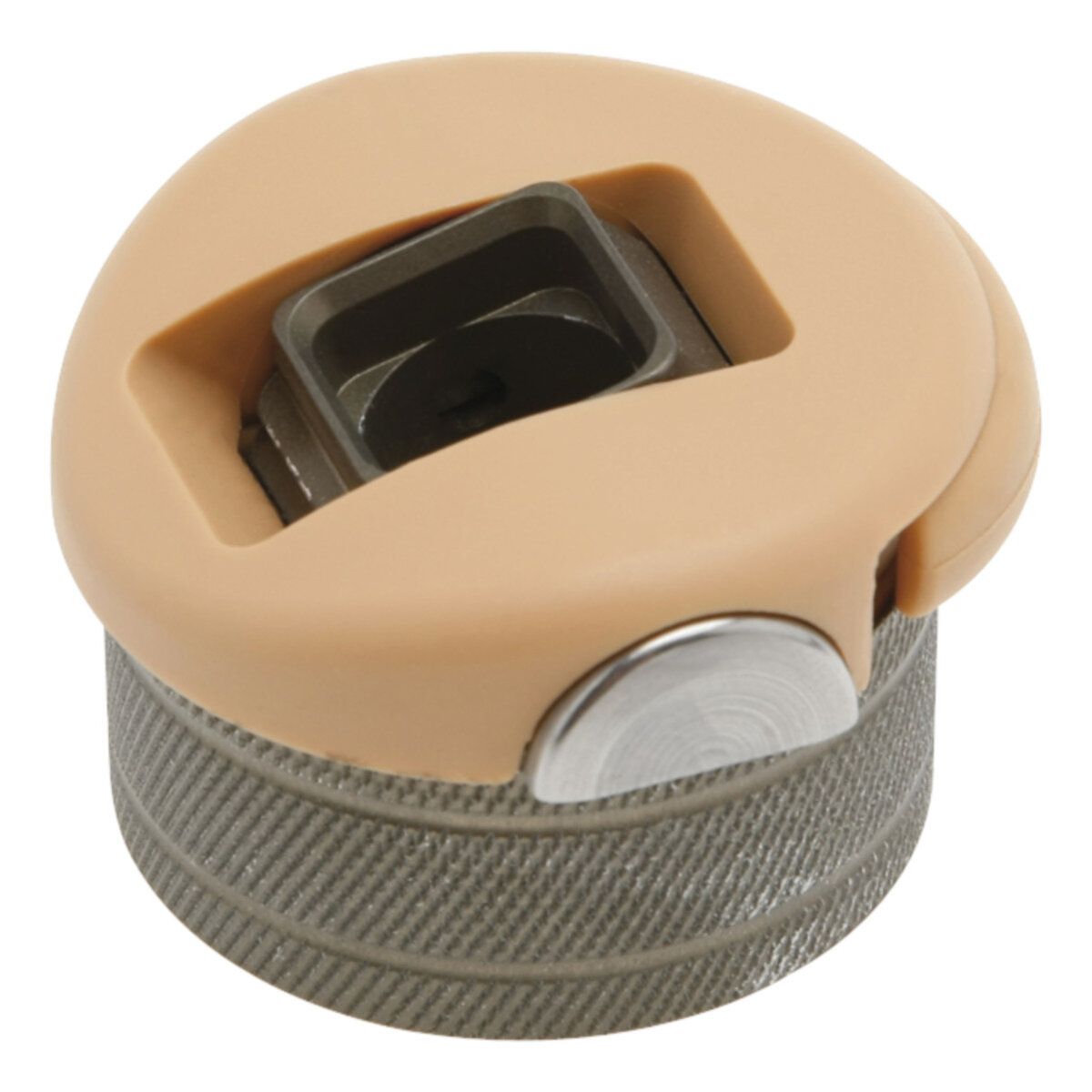

MovoWrist Flex

MovoWrist Flex

MovoWrist joints attach the forearm to a cable powered or passive terminal device, providing flexion/extension and/or quick disconnection of hand or hook. Enables flexion and extension of a cable-controlled or passive terminal device Provides Flexion/Extension settings of 45°, 30°, 15°, 0° and -15 20 rotation settings in increments of 18° Quick Disconnect of system hands, hooks or working tools Independent activation of flexion/extension and rotation 45 mm or 50mm diameter options 10V39=50 weighs 130 g; 10V39=45 weighs 110 g Total length of 33 mm, of which 12 mm is distally visible
