ErgoArm Hybrid Plus
Quick Links
| Part # | Description |
|---|
Product information

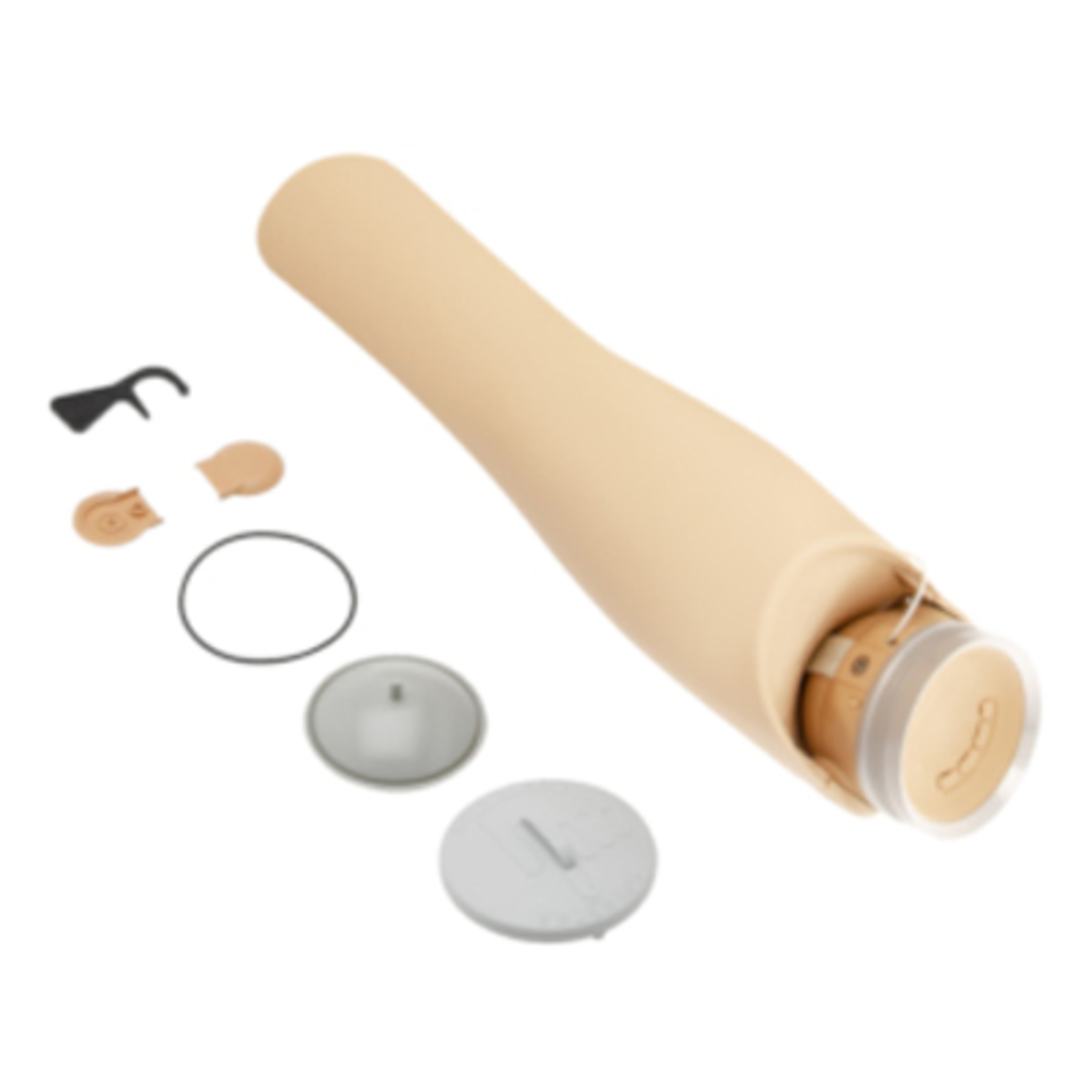

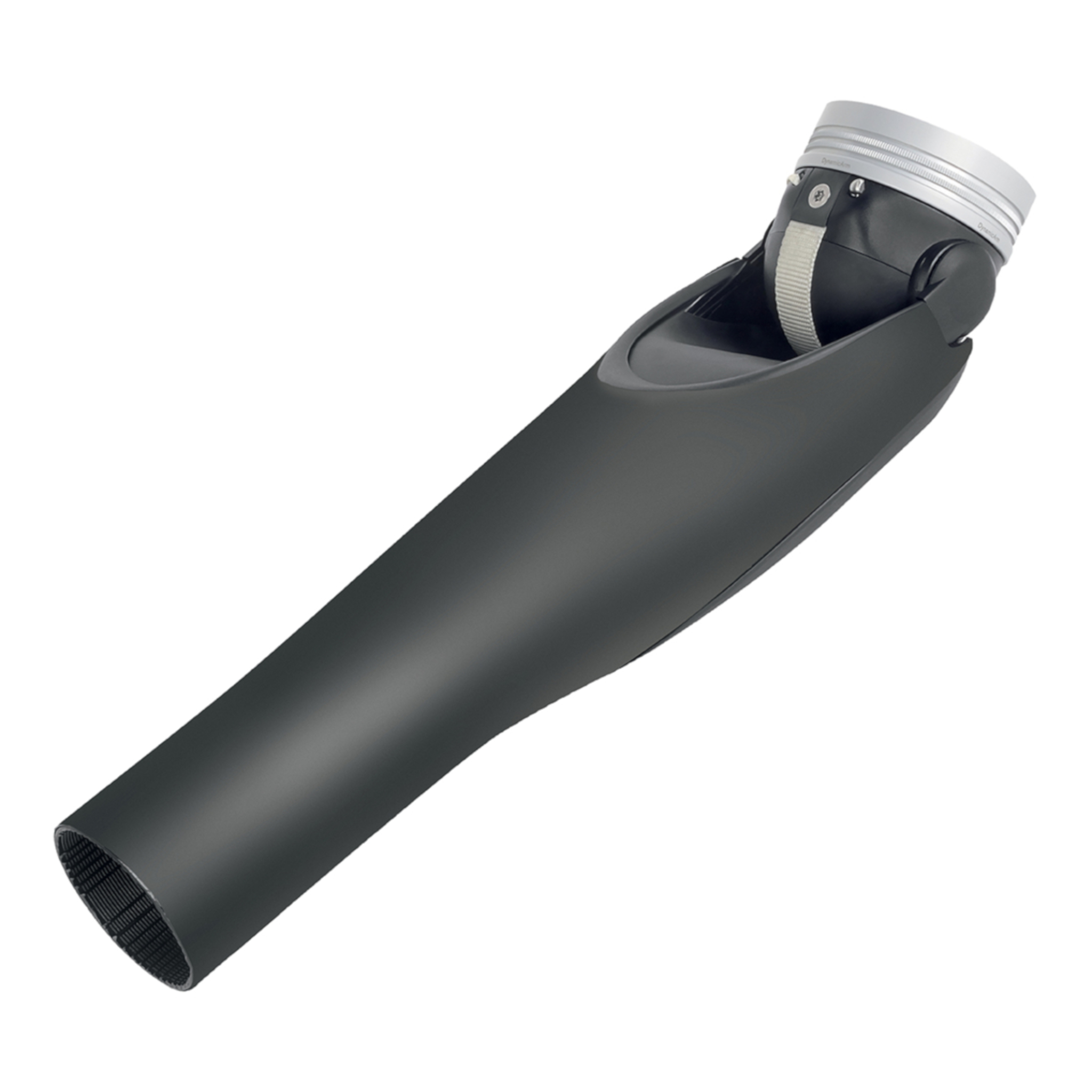

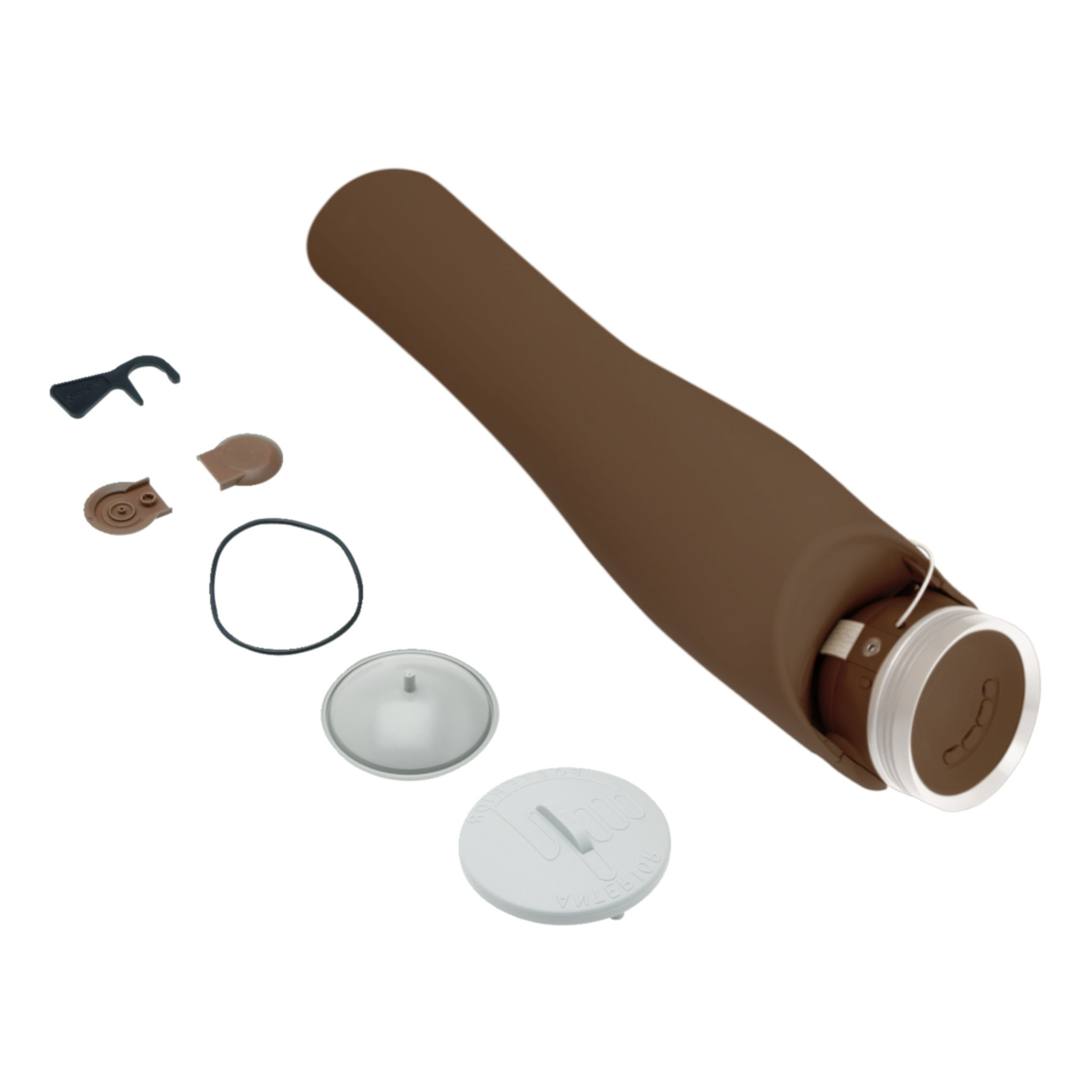

The 12K44 ErgoArm Hybrid plus is a lightweight and versatile mechanical elbow that is compatible with a myolectric hand or terminal device.
Features include:
- The internal Infinite Position lock is cable-operated and can be locked, or unlocked, under load in any position. It can bear a load of up to 230N at a forearm length of 305mm.
- The Slip-Stop function makes it possible to lower the forearm in a controlled manner without having to fully release and reactivate the lock.

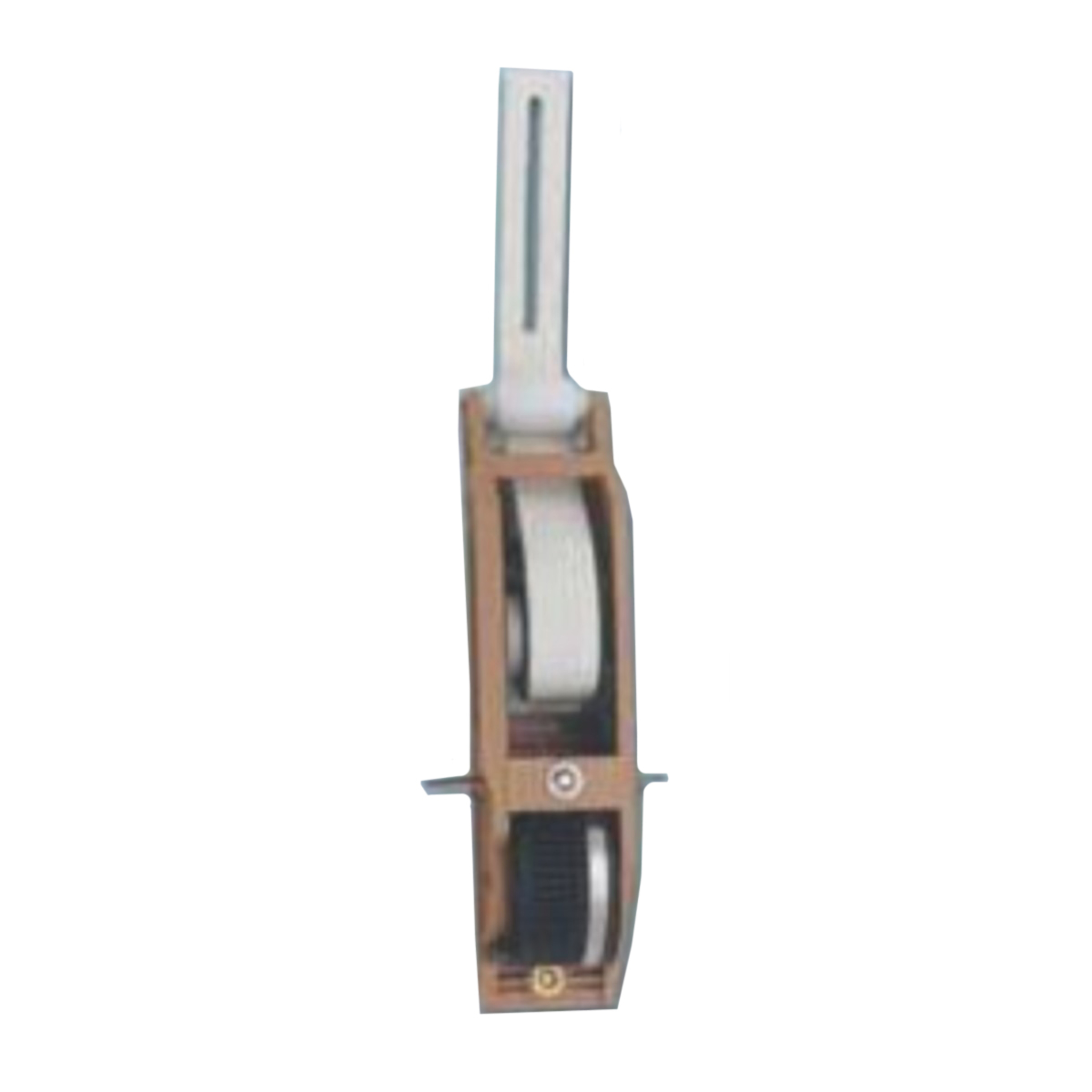

- Automatic Forearm Balance (AFB) supports flexion by using energy stored during extension. It promotes a smoother motion when swinging the arm, making it easier to lift the arm.
- For improved cosmesis, the AFB finger wheel is now the same color as the forearm shell.
- Easy Plug allows the electrode and battery connecting cables to be plugged into the elbow cover. Internal cables enhance overall cosmetic appearance while also increasing durability.

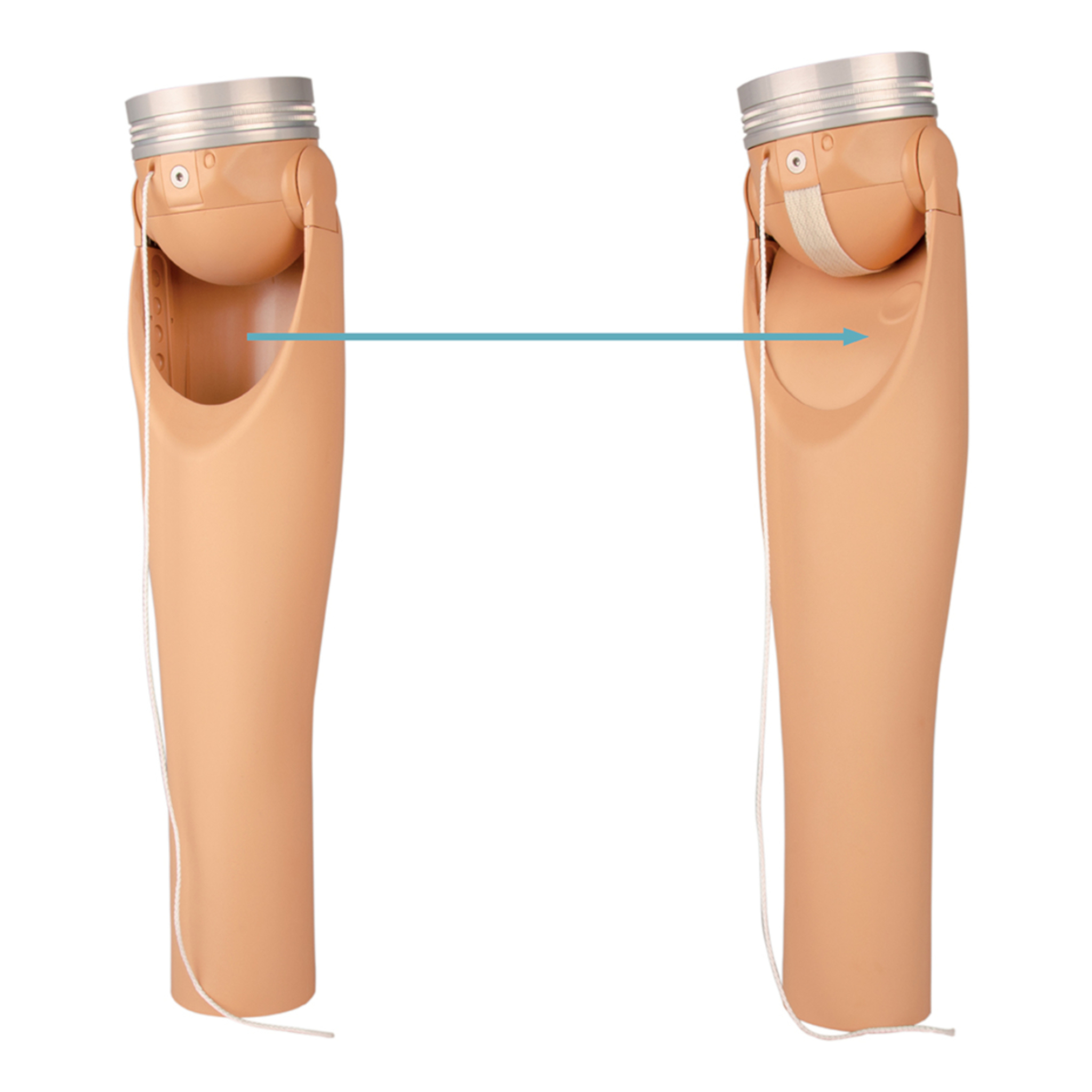

- A new membrane cover in the crook of the arm protects internal components and prevents user’s clothing from potentially getting trapped, enhancing overall appearance and functionality.
Please see the ErgoArm Selection Guide for available sizes and corresponding color options.
Specifications
- Circumference: approx. 250 mm
- Length: 305 mm
- Weight: approx. 670–700 g
| HCPCS: | L6693 |
|---|---|
| User: | Adult |
Frequently Bought Together
Lamination Ring
Lamination ring for System Electric Hands or System Electric Greifers with lamination protection cover for bonding.
Alignment Aid for ErgoArm® Elbow Set-Ups
Alignment Aid for ErgoArm® Elbow Set-Ups is an adjustment and foaming aid that allows the alignment of an interim prosthesis for functional training in the rehabilitation phase.
Adapter for Mounting
The Adapter is used for mounting a 12K50 Ottobock Elbow Component to a Hosmer lamination ring.
Carbon Shell
The Carbon Shell is a removable cover for the Black DynamicArm myoelectric elbow. If purchased with Black DynamicArm special pricing applies.Size 50 wrist fits:DynamicArm 12K100N=50-7DynamicArm Plus 12K110N=50-7
Ball Cap
Replacement elbow cap for 12K41, 12K42. Color no. 11.Available in 3 colors:Color 4: 13Z48Color 11: 13Z48-1Color 15: 13Z48-2
Thread Segment
Replacement part for 12K41, 12K42. Color no. 4.Available in 3 colors:Color 4: 13Z50Color 11: 13Z50-1Color 15: 13Z50-2

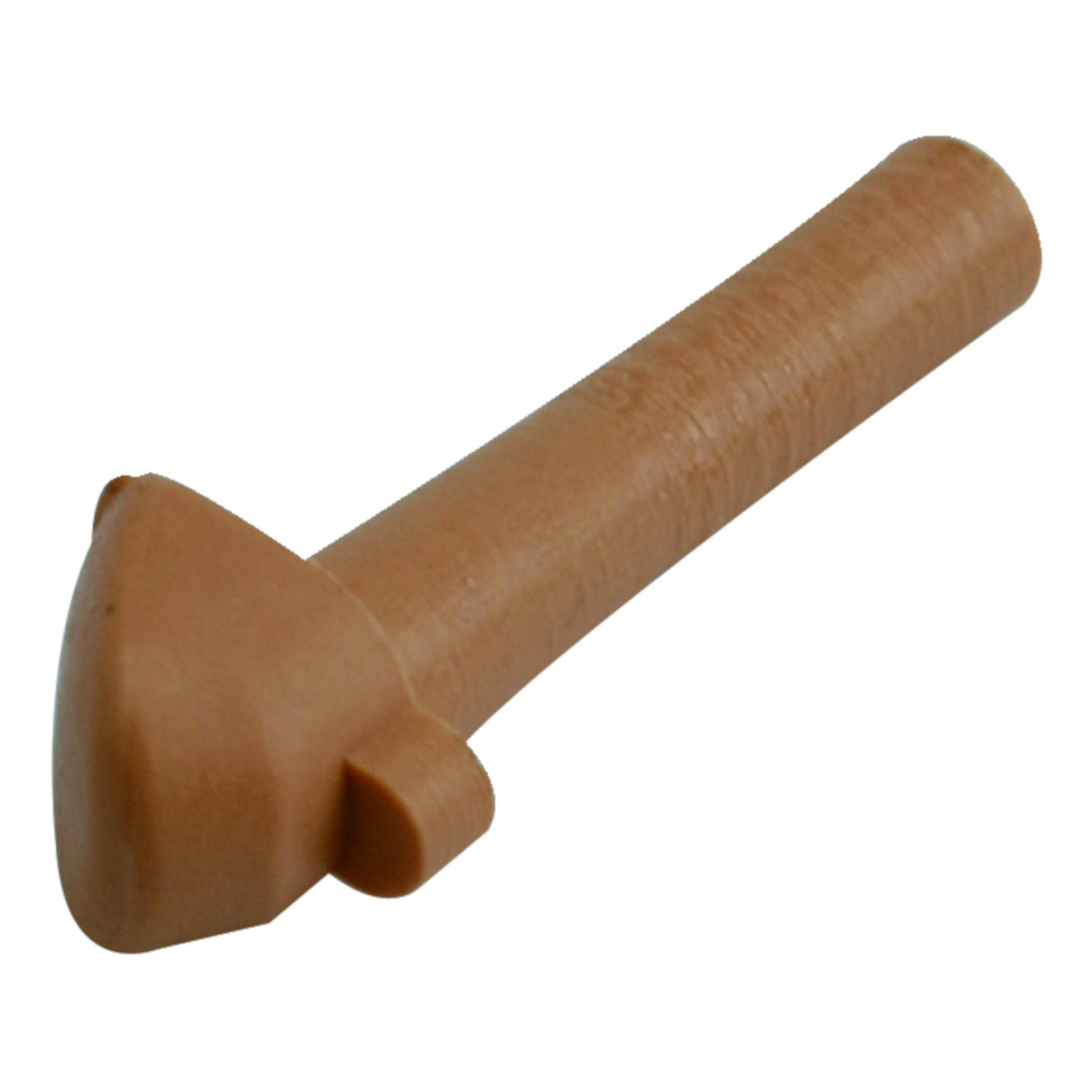

Hole Covering
The Hole Covering is a replacement part for the ErgoArm and ErgoArm Plus. Marked articles are available in colour shade no. 11 (please add –1 to the end of the order number) or in colour shade no. 15 (add –2 to the end of the order number).

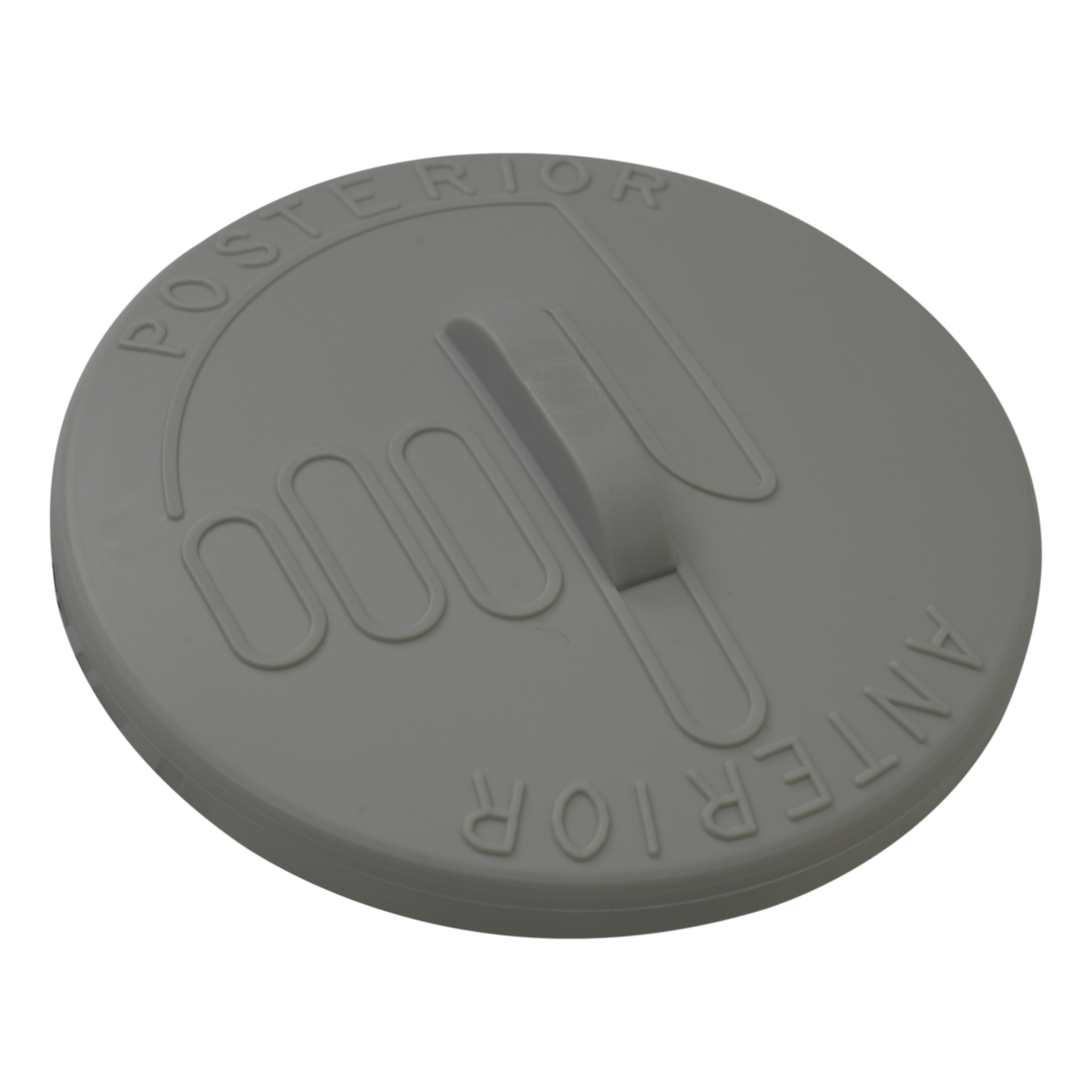

Lamination Protection Cover
