ErgoArm Electronic Plus
Quick Links
| Part # | Description |
|---|
Product information

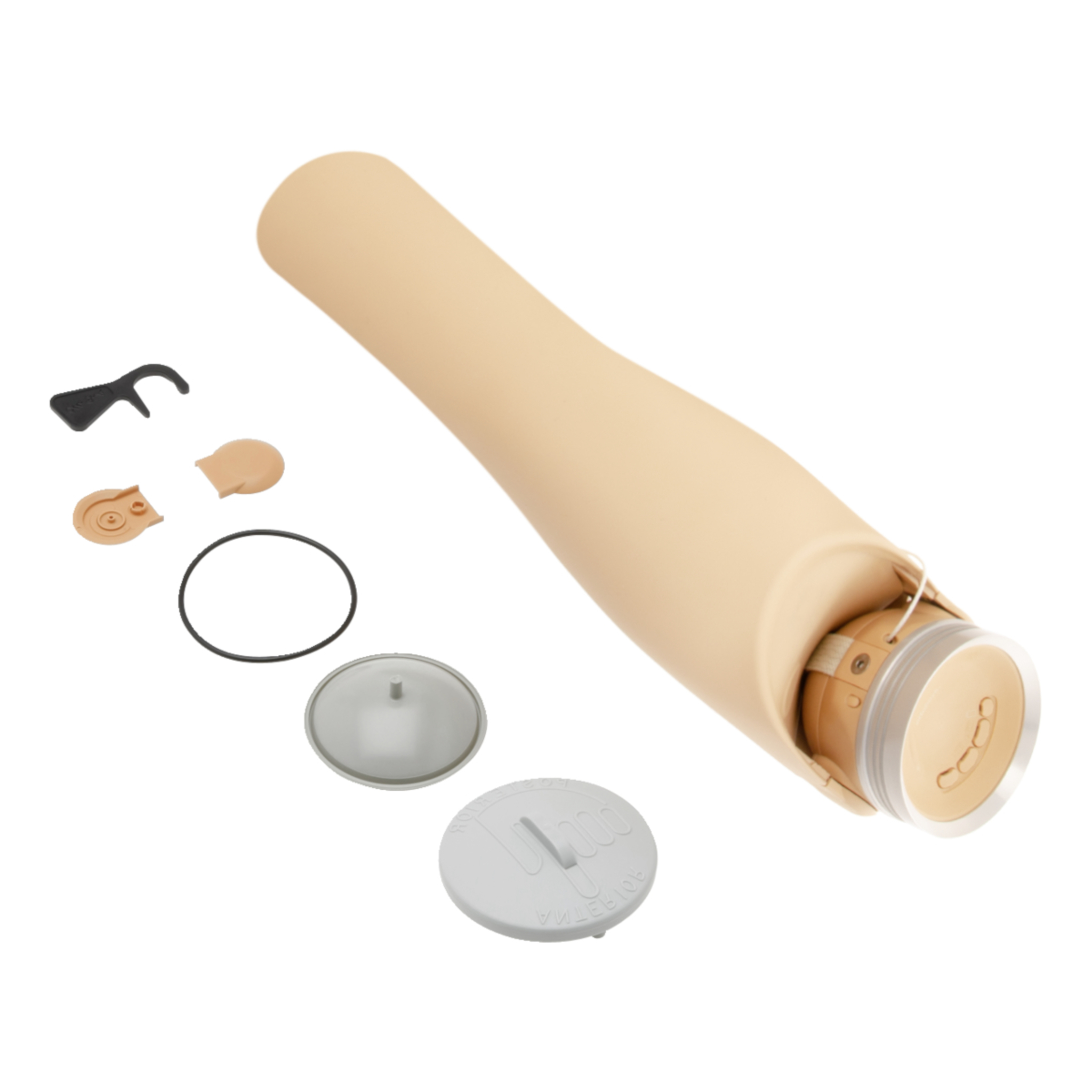

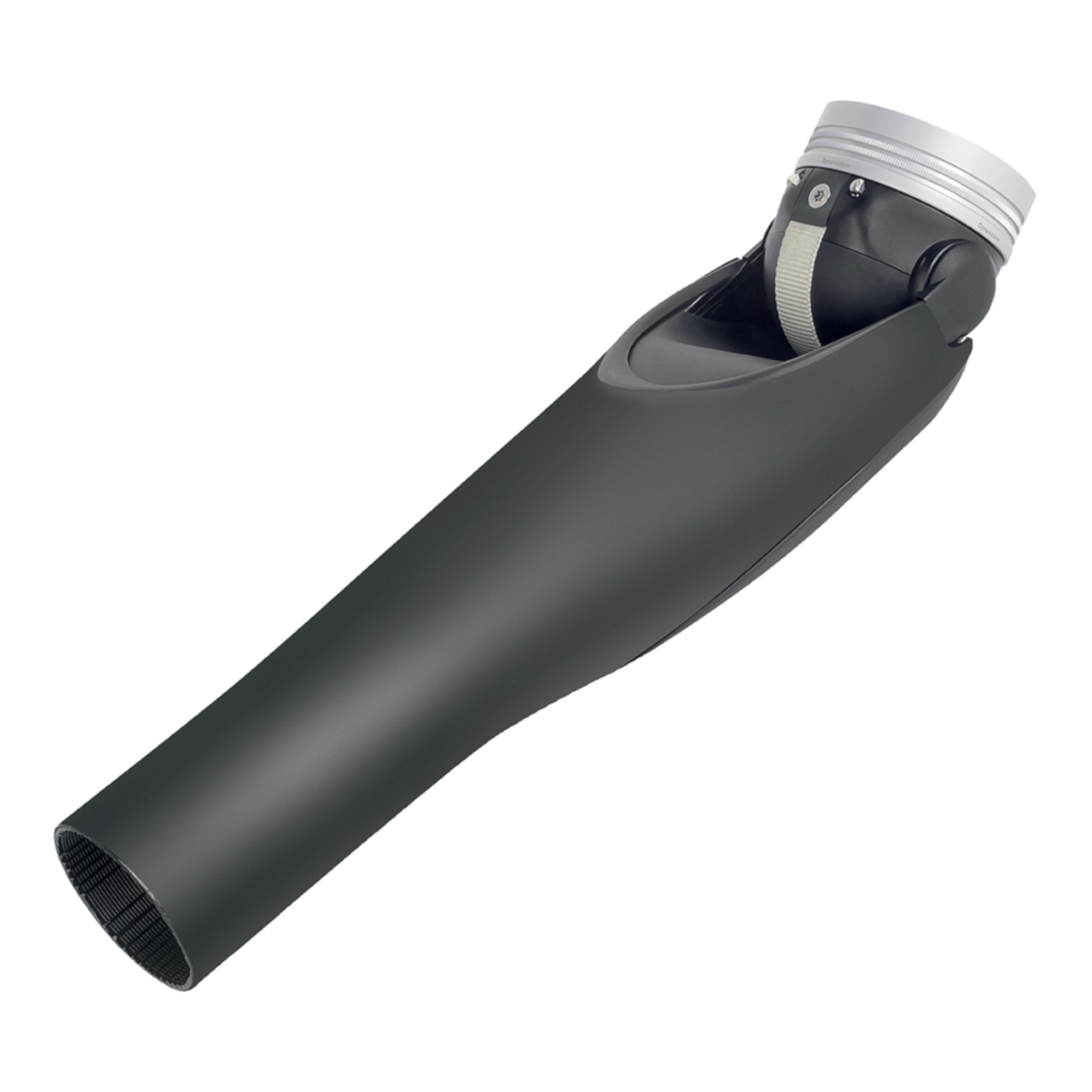

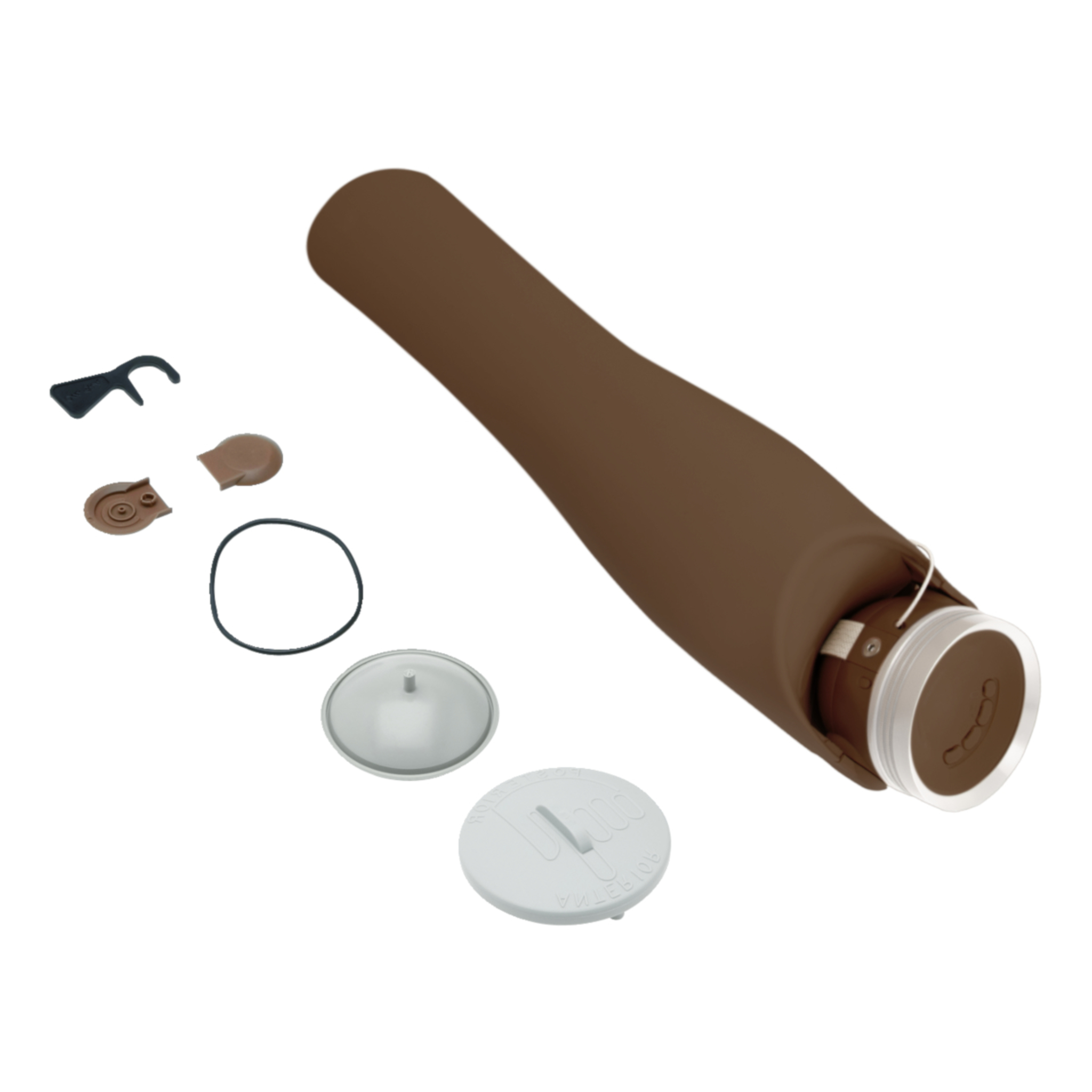

The 12K50 ErgoArm Electronic plus is a lightweight and versatile electronic locking elbow that is compatible with a myolectric hand or terminal device.
Features include:
- The internal Infinite Position lock is cable-operated and can be locked, or unlocked, under load in any position. It can bear a load of up to 230N at a forearm length of 305mm.
- The Slip-Stop function makes it possible to lower the forearm in a controlled manner without having to fully release and reactivate the lock. In the ErgoArm Electronic plus, this feature is electronic versus mechanical.

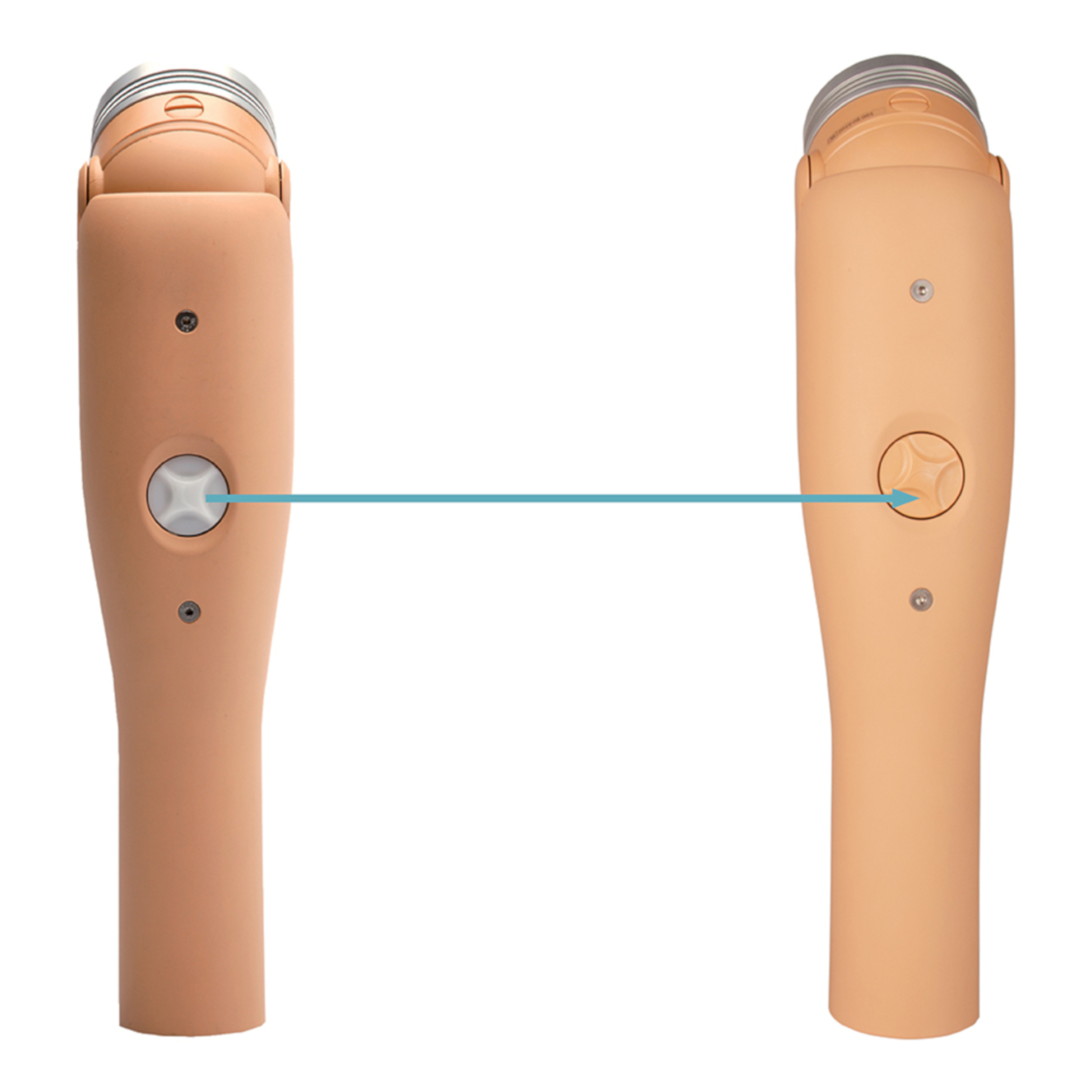

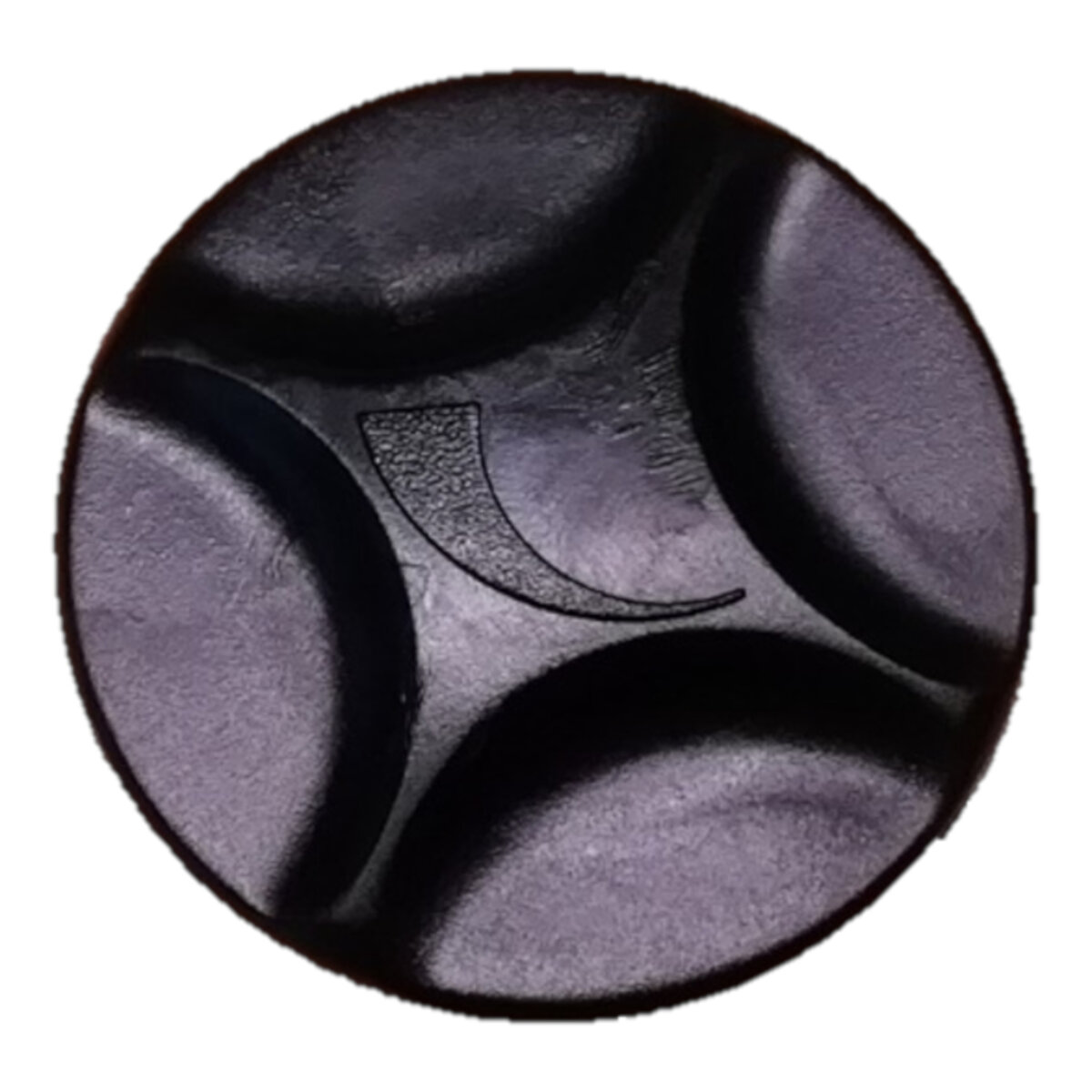

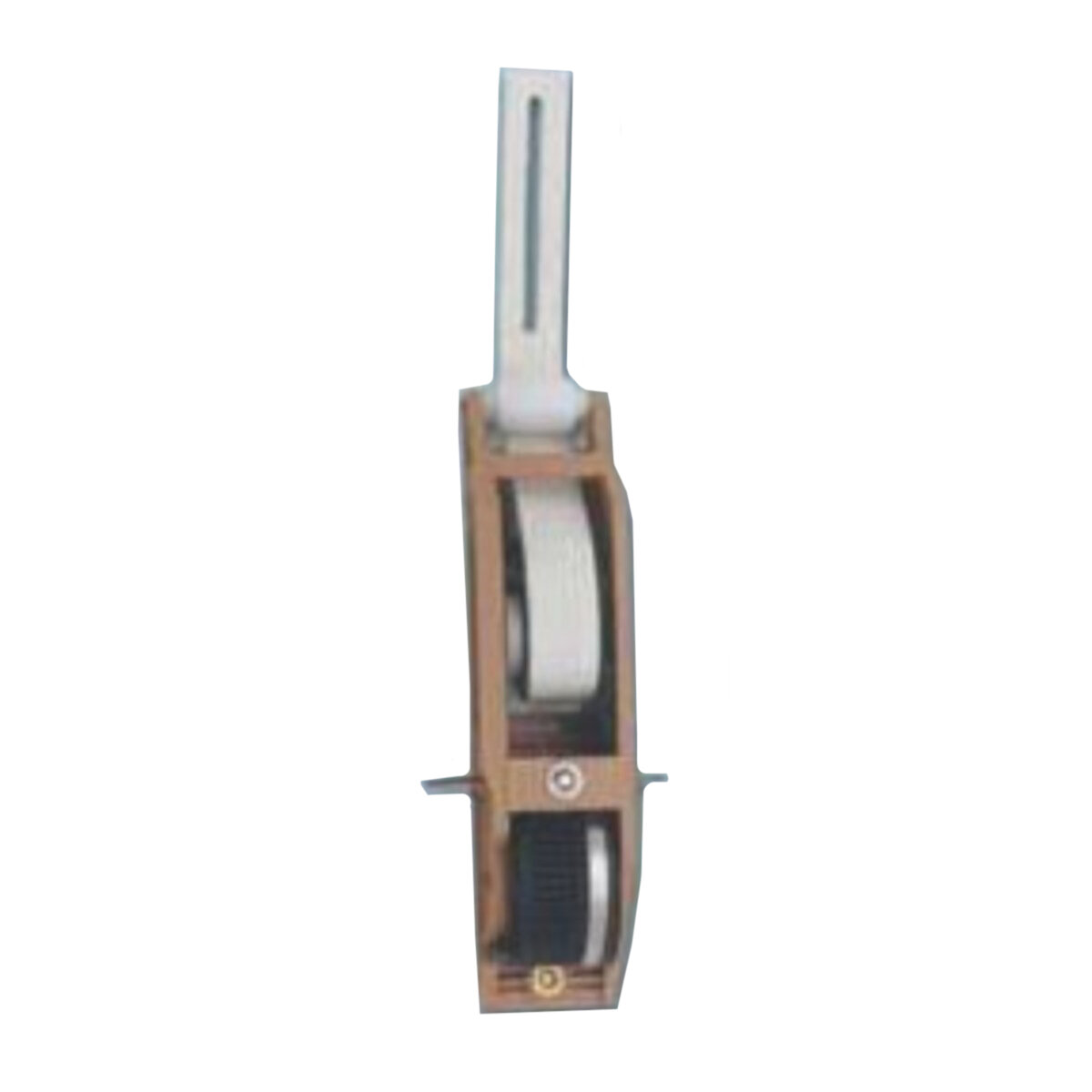

- Automatic Forearm Balance (AFB) supports flexion by using energy stored during extension. It promotes a smoother motion when swinging the arm, making it easier to lift the arm. For improved cosmesis, the AFB finger wheel is now the same color as the forearm shell.
- Easy Plug allows the electrode and battery connecting cables to be plugged into the elbow cover. Internal cables enhance overall cosmetic appearance while also increasing durability.
- Electronic Lock enables the user to control the elbow’s locking and unlocking with myoelectric signals (2 electrodes: co-contraction) or by means of a switch. Eight switching modes are available which permits customization of the lock control system to the user’s personal requirements.
- A new membrane cover in the crook of the arm protects internal components and prevents user’s clothing from potentially getting trapped, enhancing overall appearance and functionality.
Please see the ErgoArm Selection Guide for available sizes and corresponding color options.
Specifications
- Circumference (mm): approx. 260
- Length (mm): 305
- Weight (g): approx. 680–710
| HCPCS: | L6693, L6698 |
|---|
Frequently Bought Together
Alignment Aid for ErgoArm® Elbow Set-Ups
Alignment Aid for ErgoArm® Elbow Set-Ups is an adjustment and foaming aid that allows the alignment of an interim prosthesis for functional training in the rehabilitation phase.

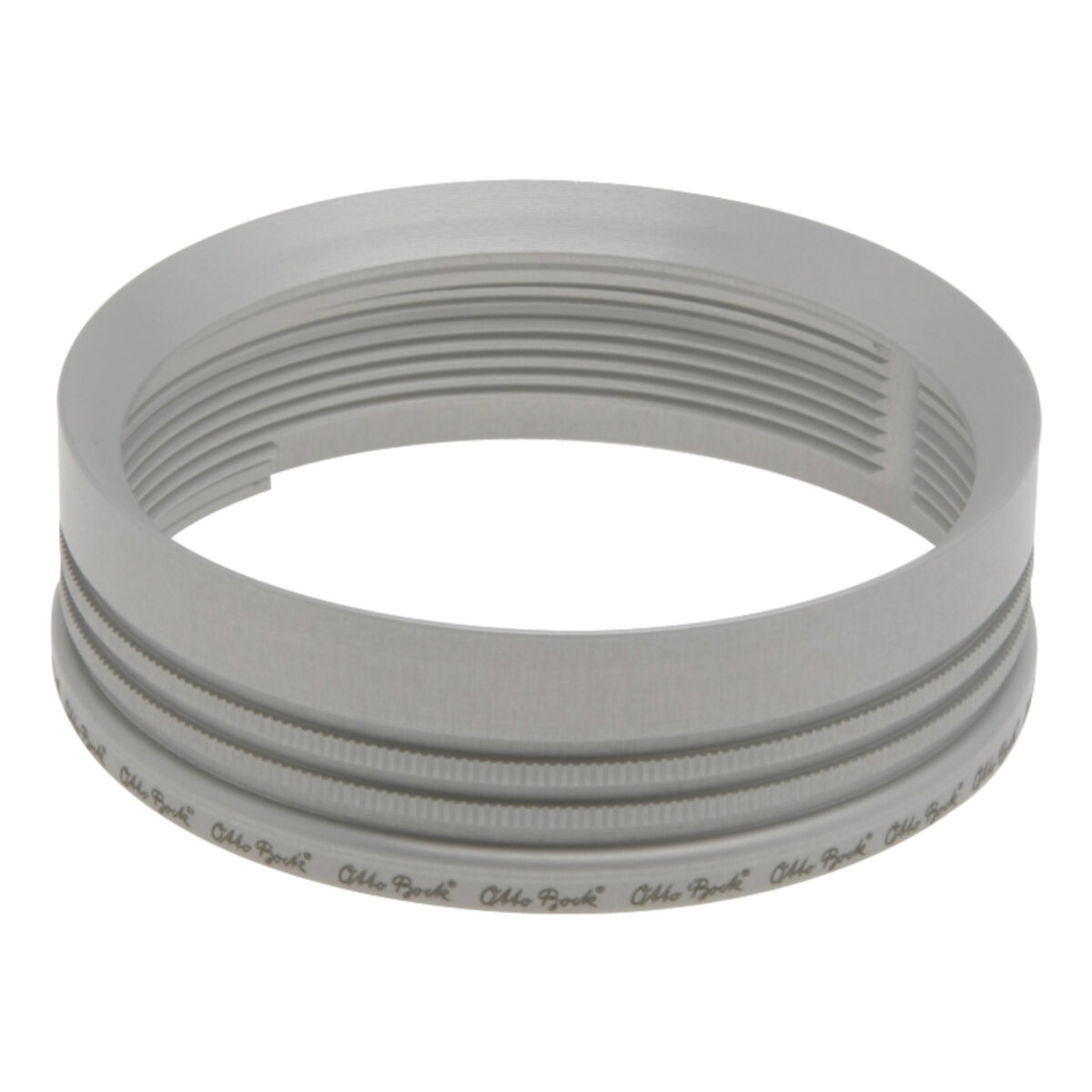

Adapter for Mounting
The Adapter is used for mounting a 12K50 Ottobock Elbow Component to a Hosmer lamination ring.

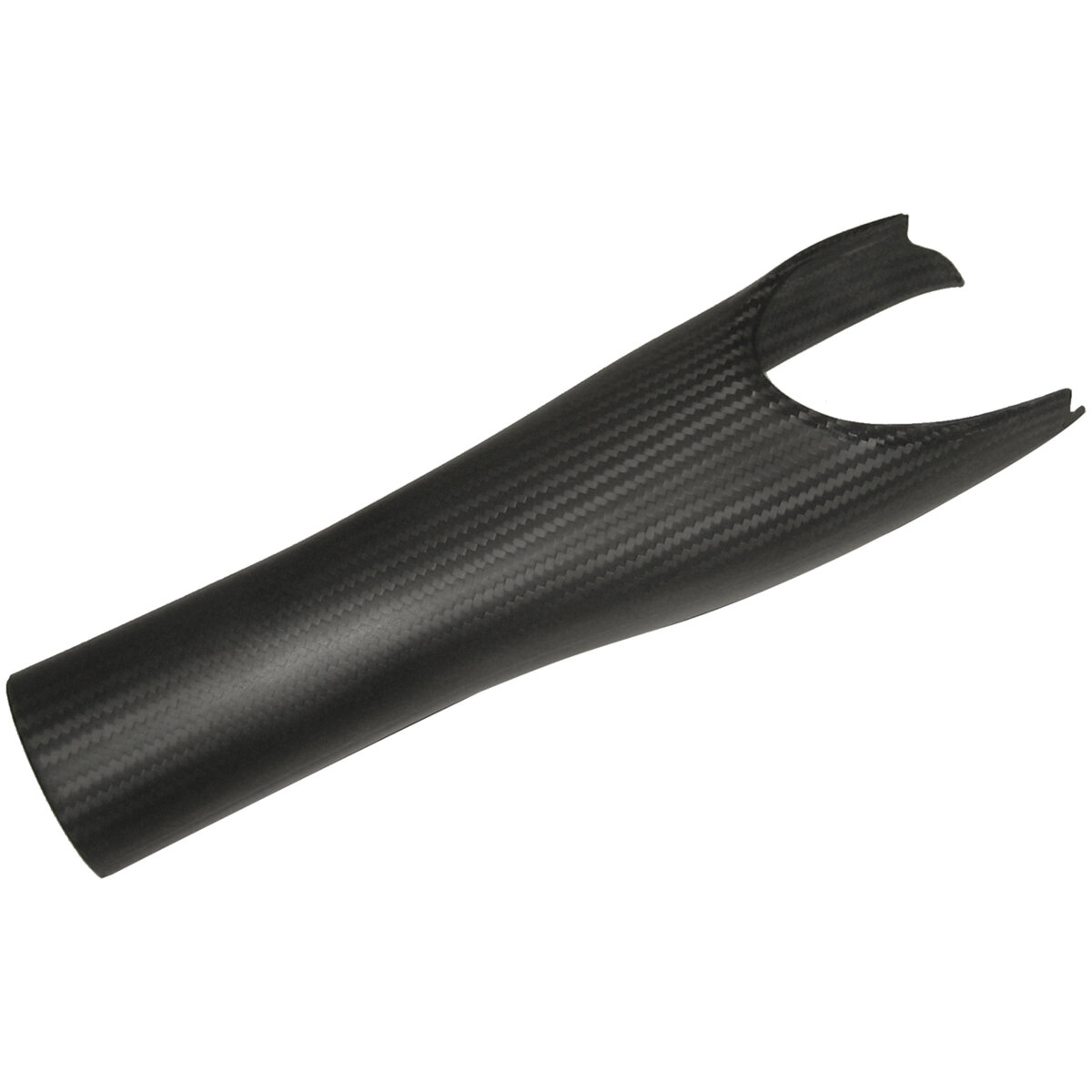

Carbon Shell
The Carbon Shell is a removable cover for the Black DynamicArm myoelectric elbow. If purchased with Black DynamicArm special pricing applies.Size 50 wrist fits:DynamicArm 12K100N=50-7DynamicArm Plus 12K110N=50-7

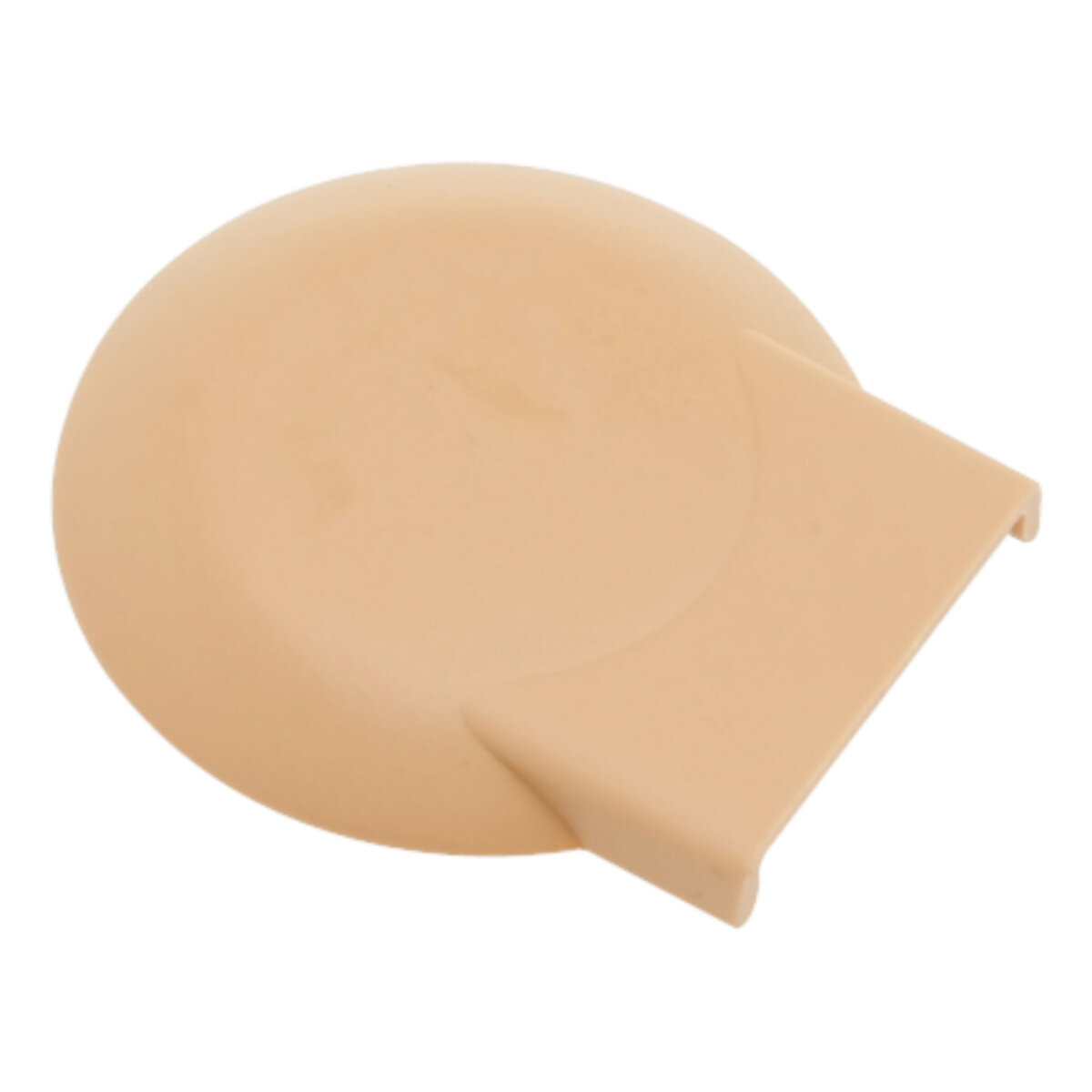

Tongue Cap
Replacement joint cap for 12K42, 12K41Available in 3 colors:Color 4: 13Z56Color 11: 13Z56-1Color 15: 13Z56-2

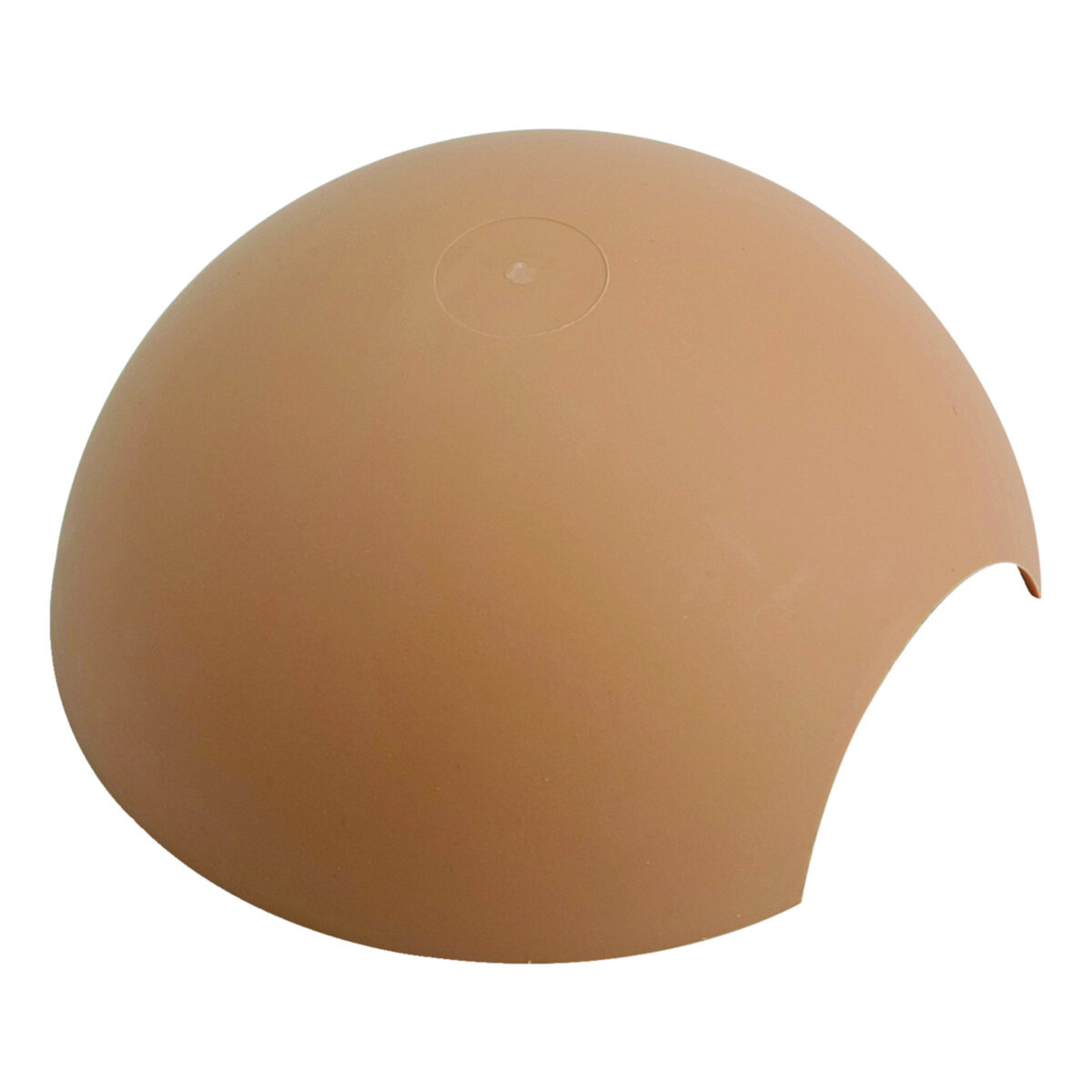

Ball Cap
Replacement elbow cap for 12K41, 12K42. Color no. 11.Available in 3 colors:Color 4: 13Z48Color 11: 13Z48-1Color 15: 13Z48-2

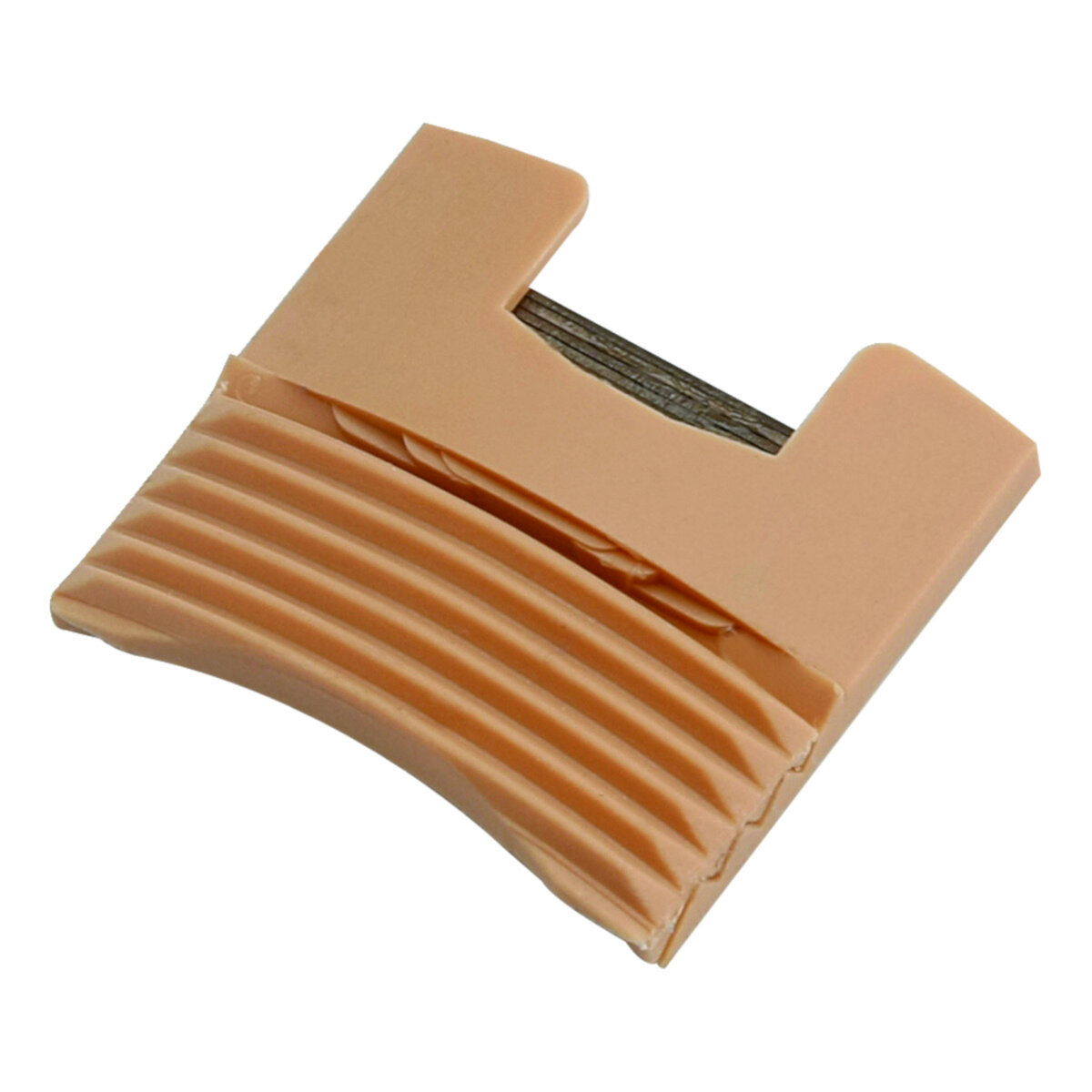

Thread Segment
Replacement part for 12K41, 12K42. Color no. 4.Available in 3 colors:Color 4: 13Z50Color 11: 13Z50-1Color 15: 13Z50-2

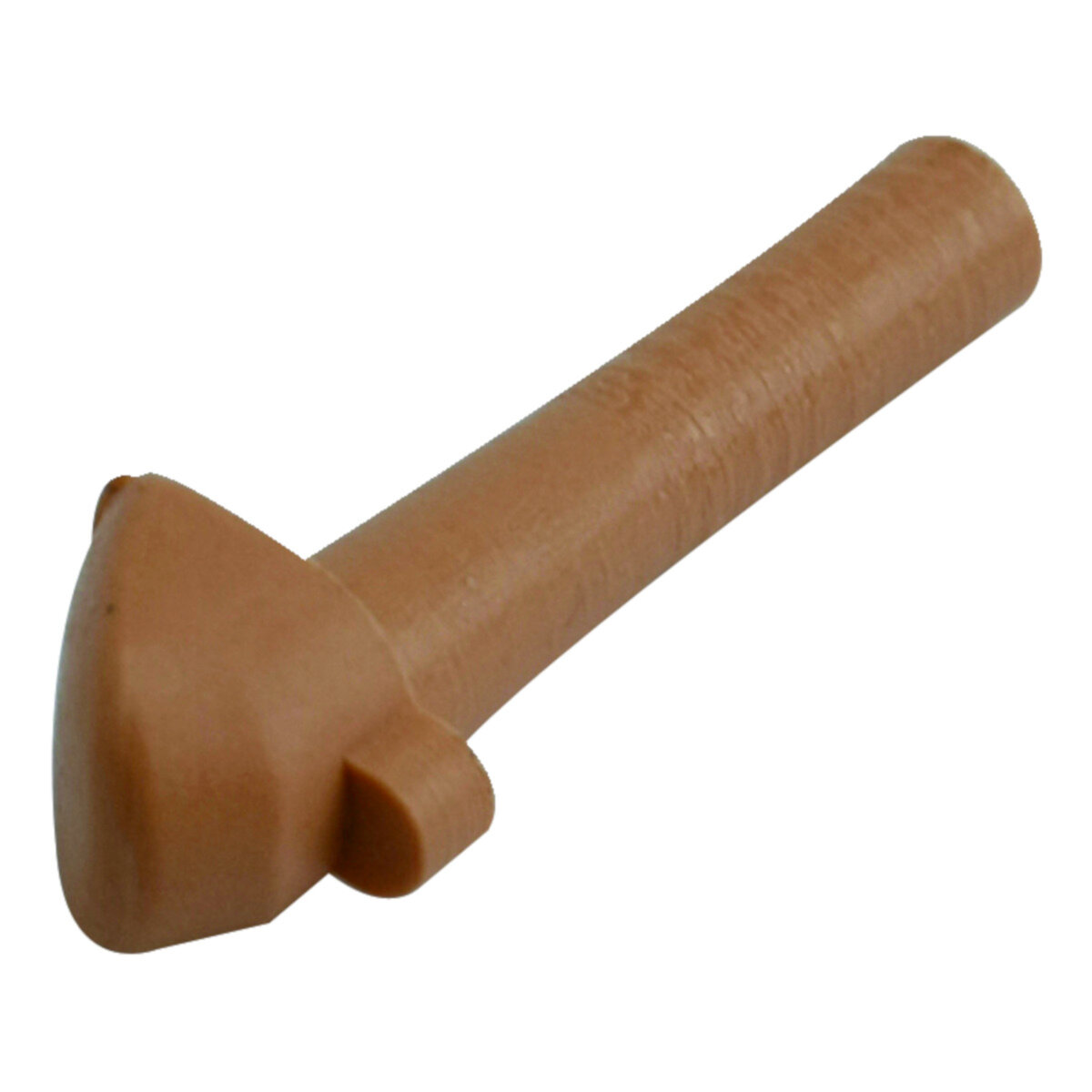

Hole Covering
The Hole Covering is a replacement part for the ErgoArm and ErgoArm Plus. Marked articles are available in colour shade no. 11 (please add –1 to the end of the order number) or in colour shade no. 15 (add –2 to the end of the order number).

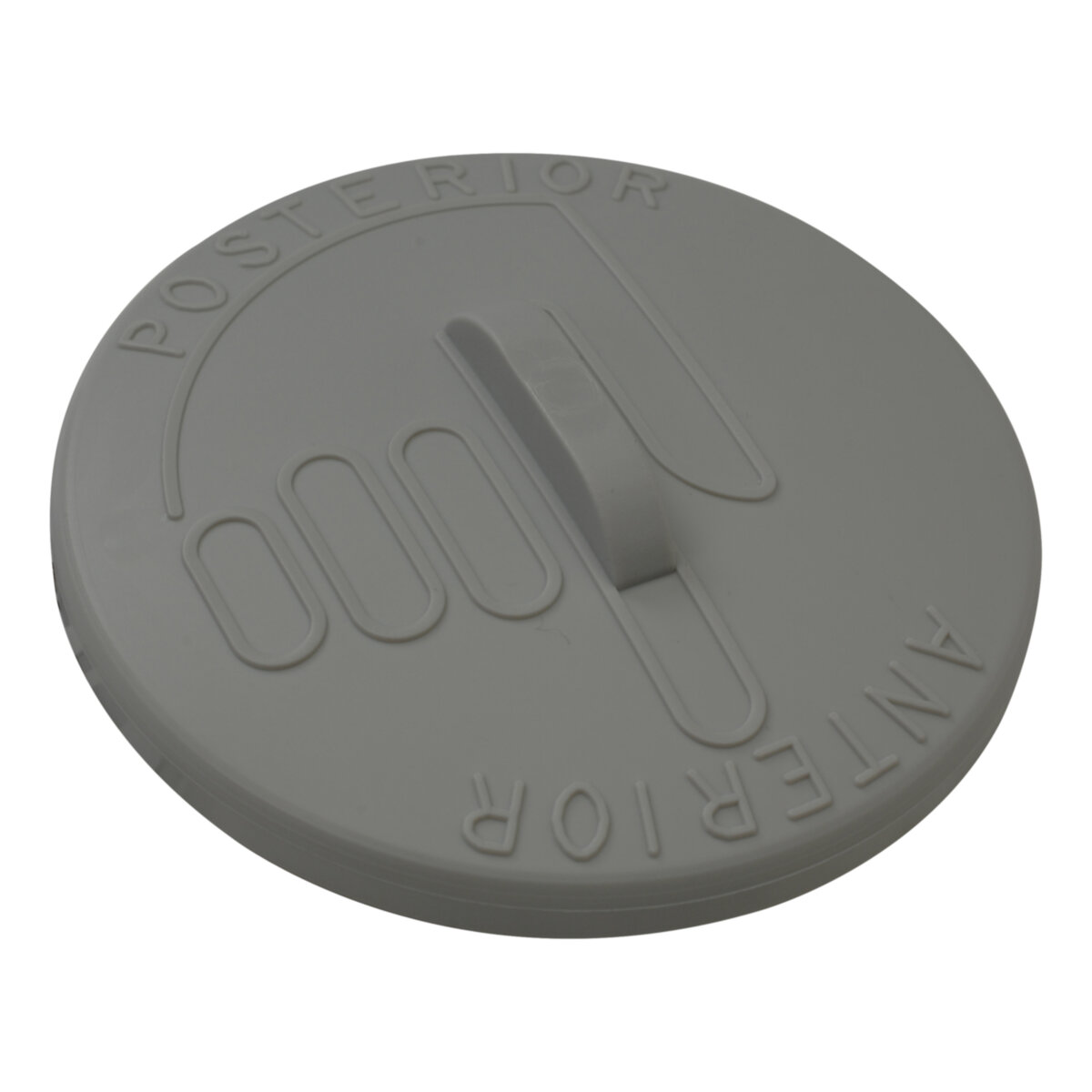

Lamination Protection Cover
The Lamination Protection Cover is also referred to as an elbow lamination ring cover.

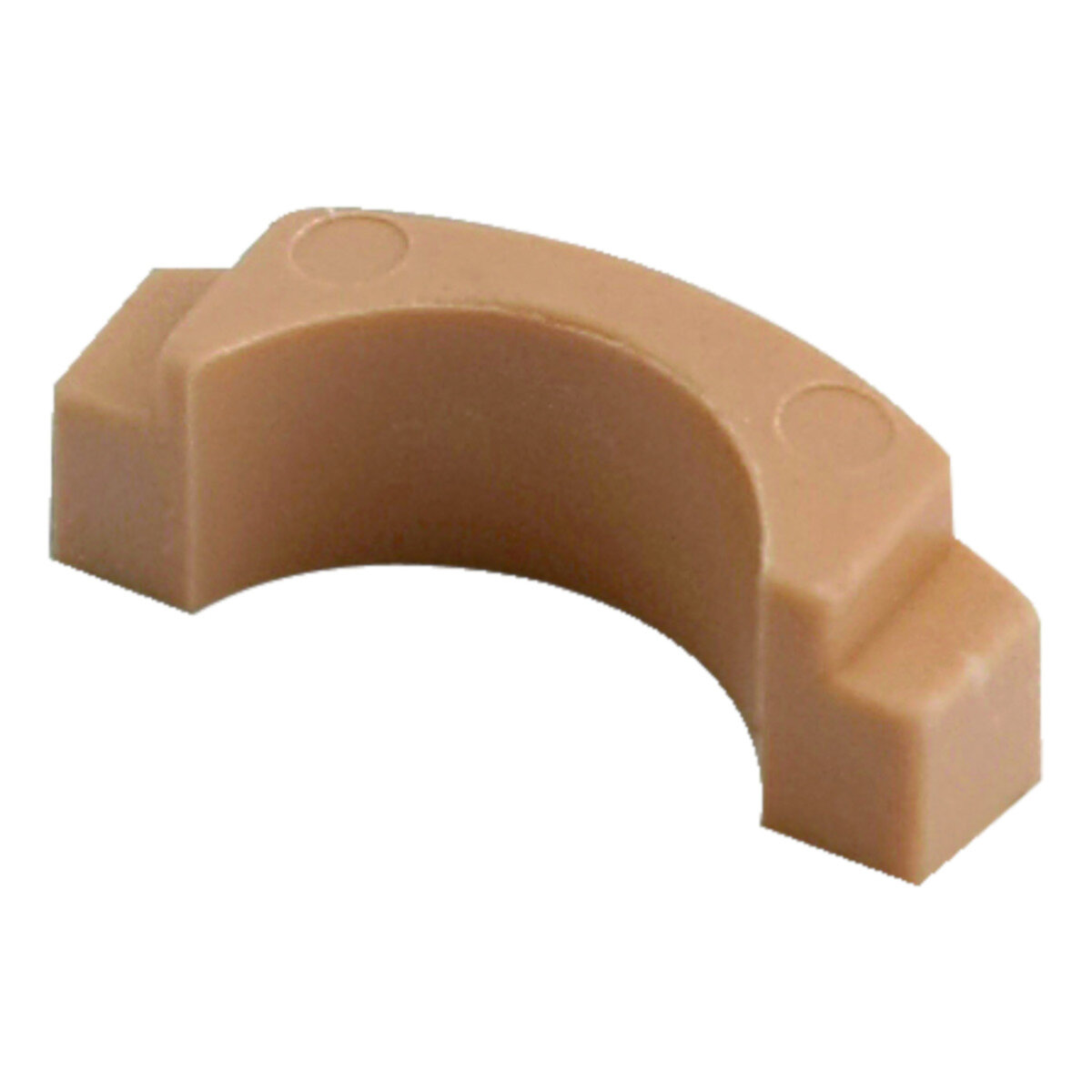

Pressure Piece
?Replacement part for 12K42, 12K41Available in 3 colors:Color 4: 13Z57Color 11: 13Z57-1Color 15: 13Z57-2?

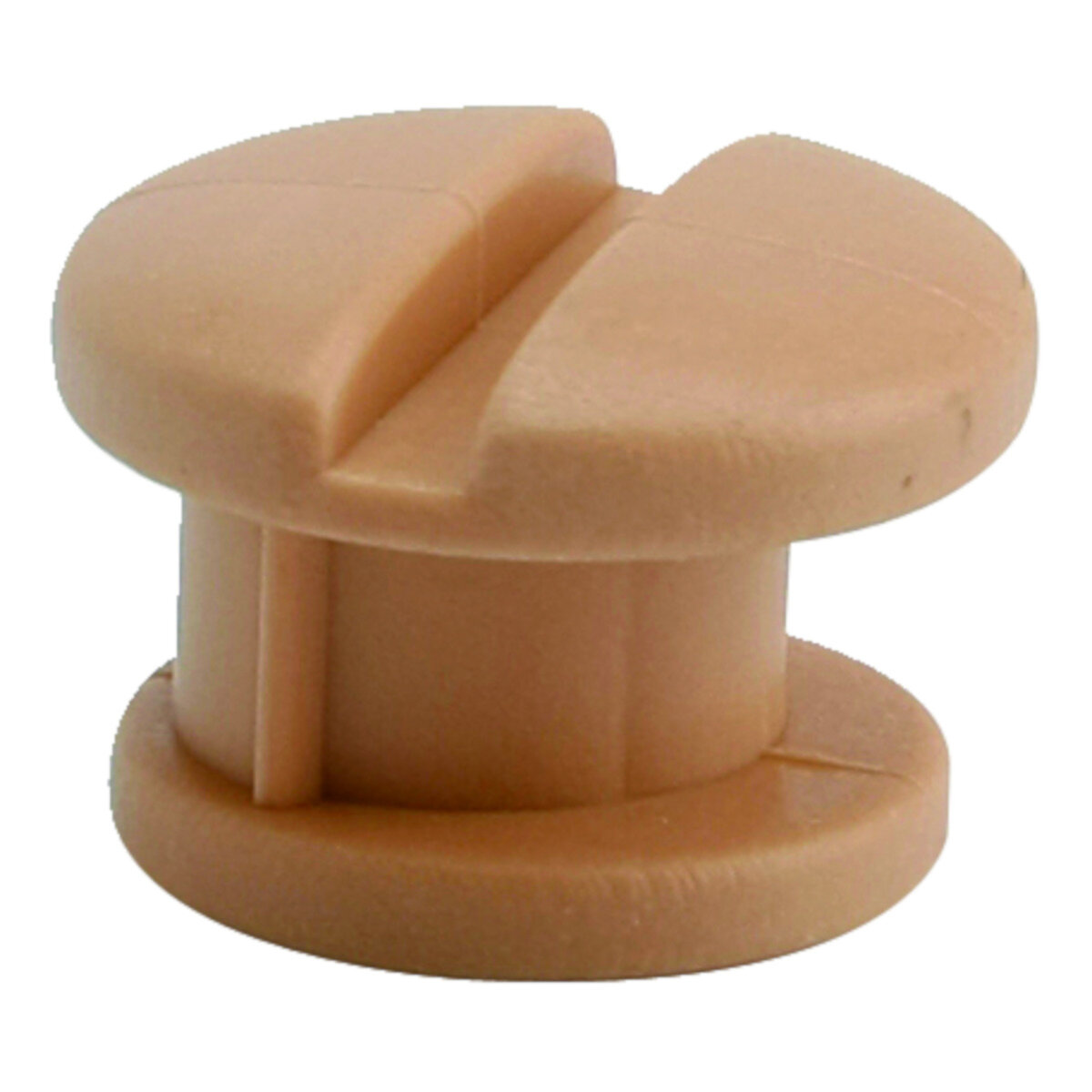

Eccentric
