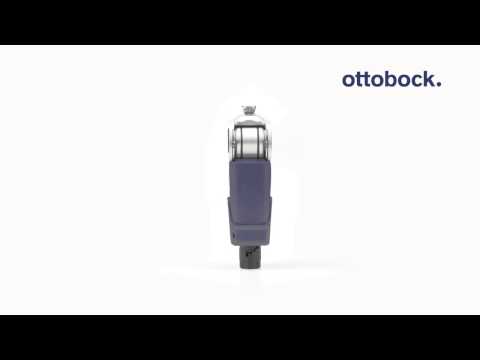

Comfort-Brake Knee with Mechanical Extension Assist
Quick Links
| Part # | Description |
|---|
Product Information
The Comfort-Brake Knee features an integrated extension assist that can be regulated by adjusting the tension of the spring combination. The technology with a load-dependent brake mechanism engages when the heel is loaded and stabilizes the prosthesis to achieve a high degree of safety.
- Minimizes hip hike
- Braking mechanism releases automatically when the forefoot is loaded
- Swing phase can be initiated easily and harmoniously
Specifications
- Activity Level: K1, K2
- Knee Design Type: Single Axis, Friction Swing and Stance Phase Control
- Axis: Single Axis
- Swing Phase: Friction
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 745
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 135 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
