Caleo Liner
Quick Links
| Part # | Description |
|---|
Product information

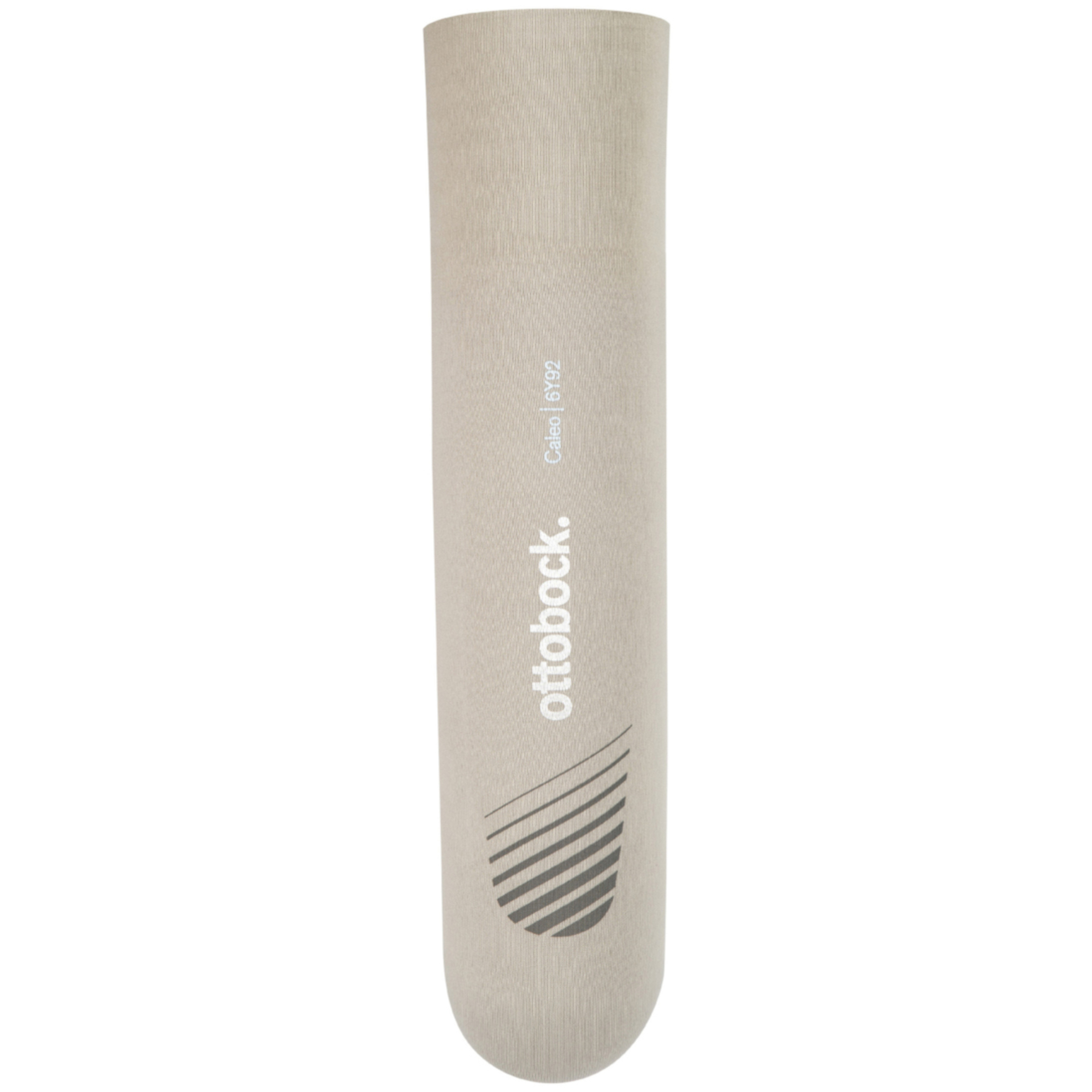

The Caleo liner has a cylindrical shape that is ideal for use with a full contact socket for transtibial amputees with low to moderate activity level. It features a 10mm distal cushion pad and wall thickness tapering from 5mm to 3mm proximal for protection against socket forces.
- Thermoformable to accommodate atypical residual limb shapes
- Textile coating has no exterior seams
- Copolymer contains medical grade mineral oil to moisturize skin
Specifications
- Amputation Level: Transtibial
- Activity Level: K1, K2
- Type: Cushion, Locking
- Material: Thermoplastic Elastomer
- Cover: Fabric Cover
- Profile: Tapered
- Style: Standard
- Color: Beige
- Thickness (mm): 5:3 (Tapered)
- Sizes (cm): 20-36
- Trial Period: N/A
- Warranty: 6 months from fit date
Measure the residual limb circumference 4 cm above the distal end of the residual limb and select the liner size which corresponds to this measurement, or the next smallest size.
| HCPCS: | L5673, L5679 |
|---|---|
| User: | Adult |
| Amputation Level: | Transtibial (TT/BK) |
| Activity Level: | K1 (Low), K2 (Moderate) |
| Liner Type: | Cushion, Locking |
| Liner Style: | Standard |
| Liner Thickness: | 5 mm (3/16 in) |
| Liner Profile: | Tapered |
| Key Features: | Skin Care Infused |
| Material: | Thermoplastic Elastomer (TPE/Gel) |
Frequently Bought Together
Derma ProFlex Sleeve
The Derma ProFlex Sealing Sleeve is made from a hard-wearing copolymer with outer textile. It features a preflexion of 15 degrees for easier knee flexion and reduced formation of wrinkles in the hollow of the knee. The conical shape allows for pressure distribution in the thigh area and adhesion to the prosthetic socket. The pre-shaped patella section reduces pressure on the patella during the entire range of movement.Suitable for low to high activity level
ProFlex Plus Sleeve
The ProFlex Plus Sealing Sleeve has flexible fabric and a smooth proximal seam. It is soft and supple but tough. The 15 degrees of preflexion make it easier to bend the knee and allows fewer creases to form in the hollow of the knee. The sealing sleeve is tapered in two directions which increases the grip on the prosthetic socket and reduces pressure on the thigh at the same time.Smooth, elastic fabricPre-shaped kneecap area reduces pressure on the knee cap

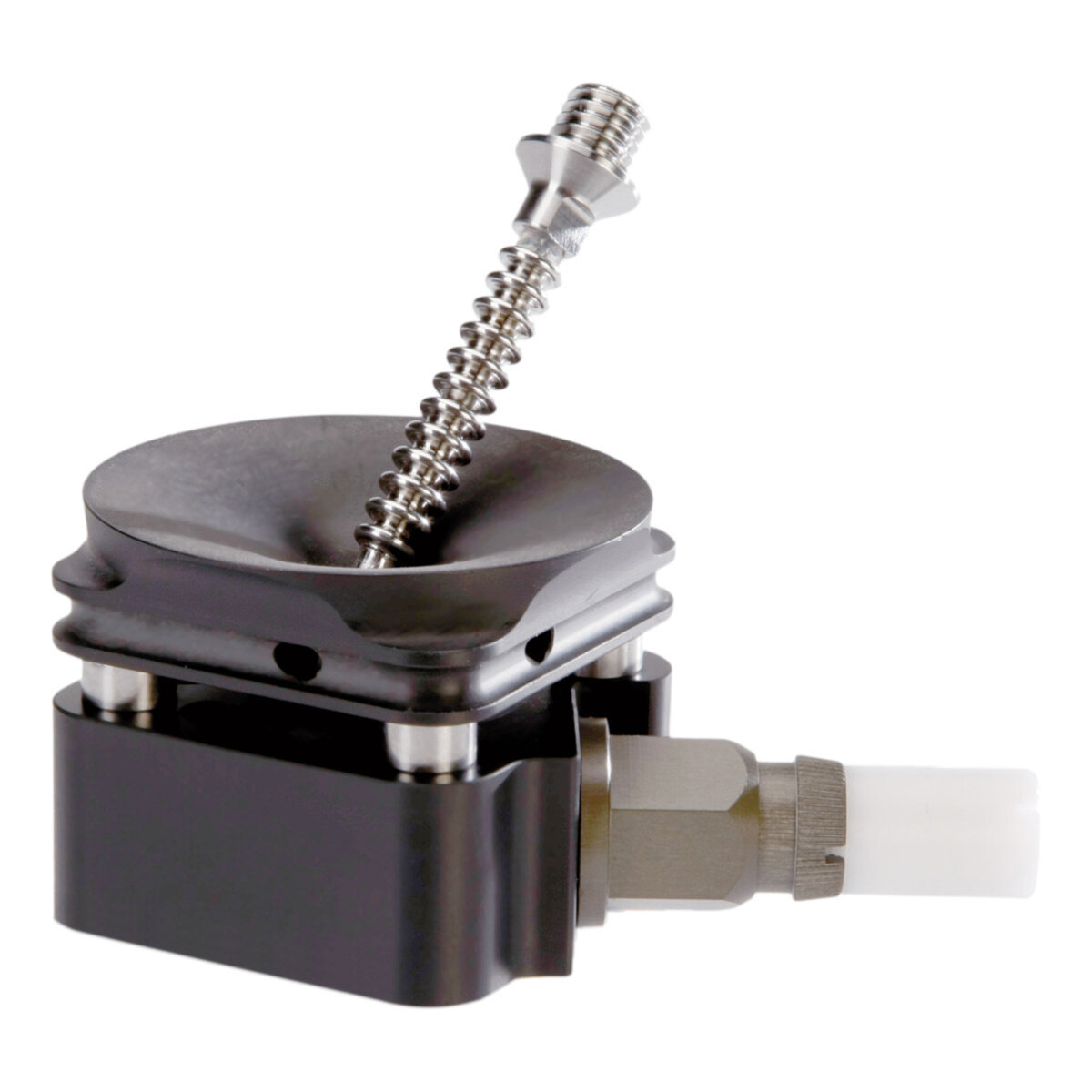

MagnoFlex Lock
The MagnoFlex has a magnetic pin guide.Has an easy to release ratchet unitIncludes a valve for fast conversion to a suction fitting.
Shuttle Lock with Pyramid
This shuttle lock with pyramid threads into the socket lamination anchor provided with the kit. The infinitely variable locking mechanism offers a secure connection between the liner and prosthesis.Has an easy to release ratchet unit

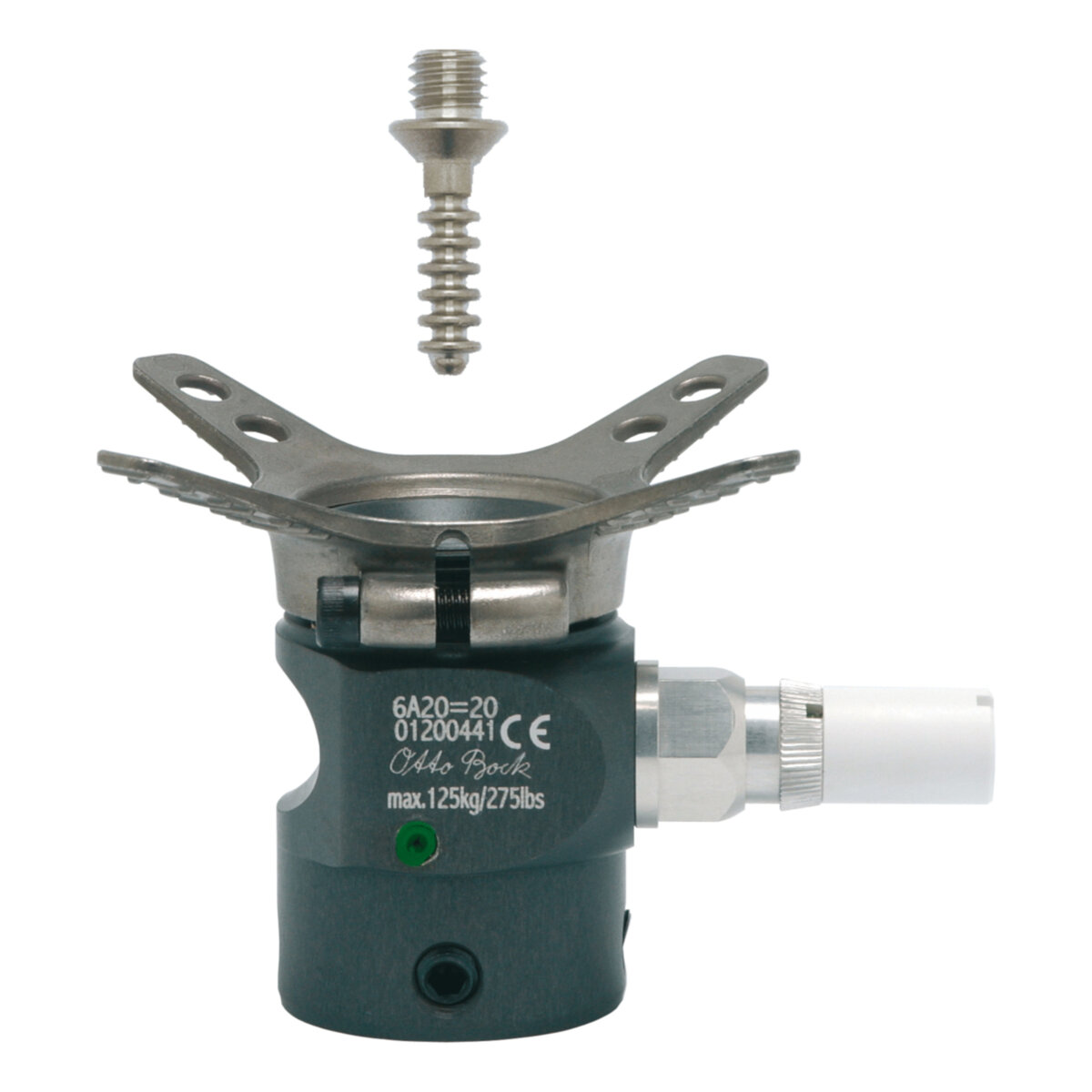

Shuttle Lock with Adjustment Screw
This shuttle lock is suitable for long residual limbs. Its pyramid receiver enables placement on top of a knee-joint or on top of a foot.Has an easy to release ratchet unit

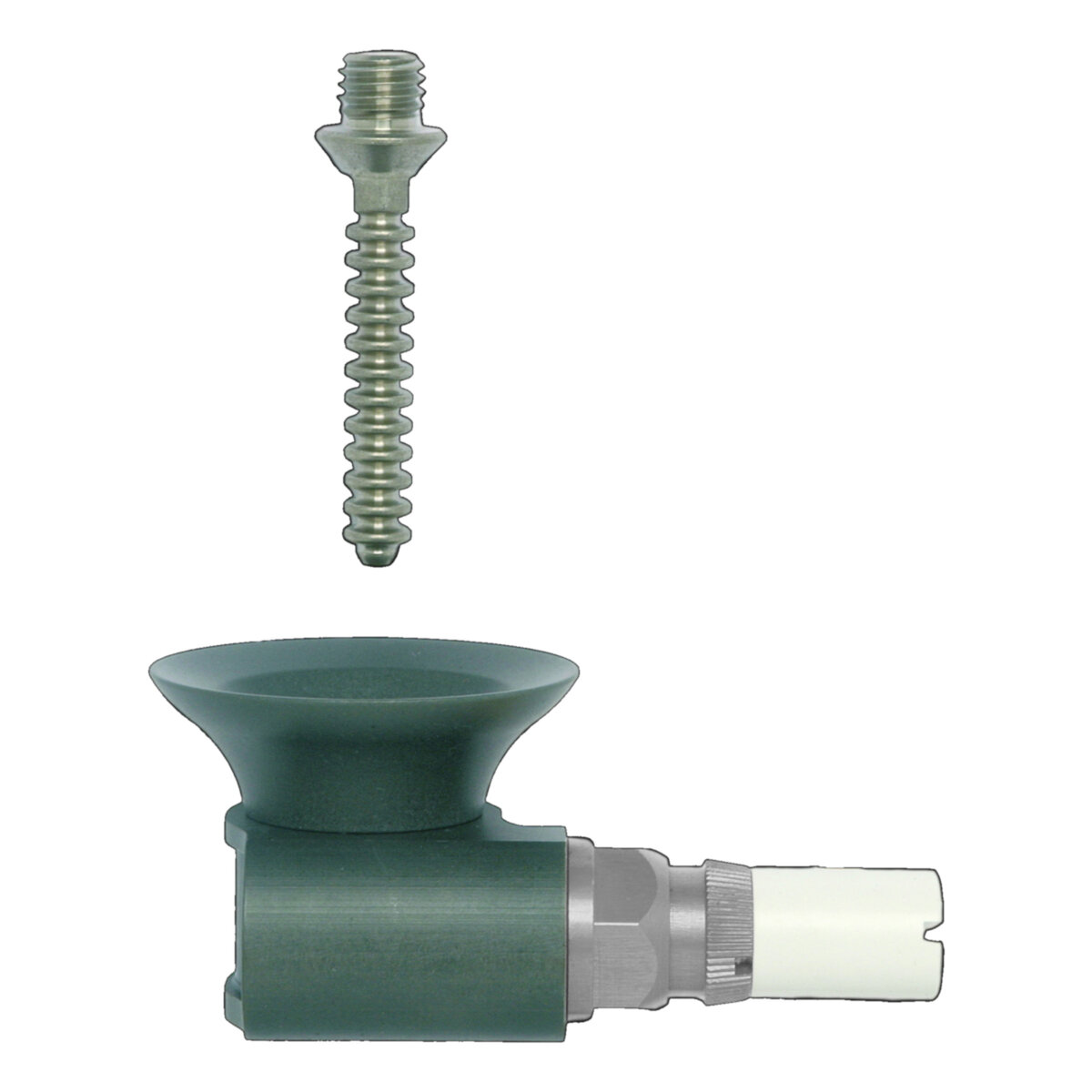

Shuttle Lock for Conventional Liner
This shuttle lock is best fitted with patients that have a contracted joint or an unusual alignment line. The lock is delivered completely assembled and ready to be integrated into the socket during the lamination or thermoplastic process.Dummy system ensures easy laminationHas an easy to release ratchet unit
Shuttle Lock with Plastic Housing
This shuttle lock is best fitted with patients that have a contracted joint or an unusual alignment line. The lock is delivered completely assembled and ready to be integrated into the socket during the lamination or thermoplastic process.
Special Fibre Shears
The Special Fibre Shears are used to cut fabric covered liners. They cut through synthetic fibers and ensure effective protection against abrasive wear.DurableCorrosion resistantLow-friction coating cuts through high-performance fabricsCeramic oxide
Progressive Sock
A prosthetic sock that has varying thickness to compensate for volume fluctuations of the residual limb.Reduces pressure points and rotation in the socketComfortable and durable
