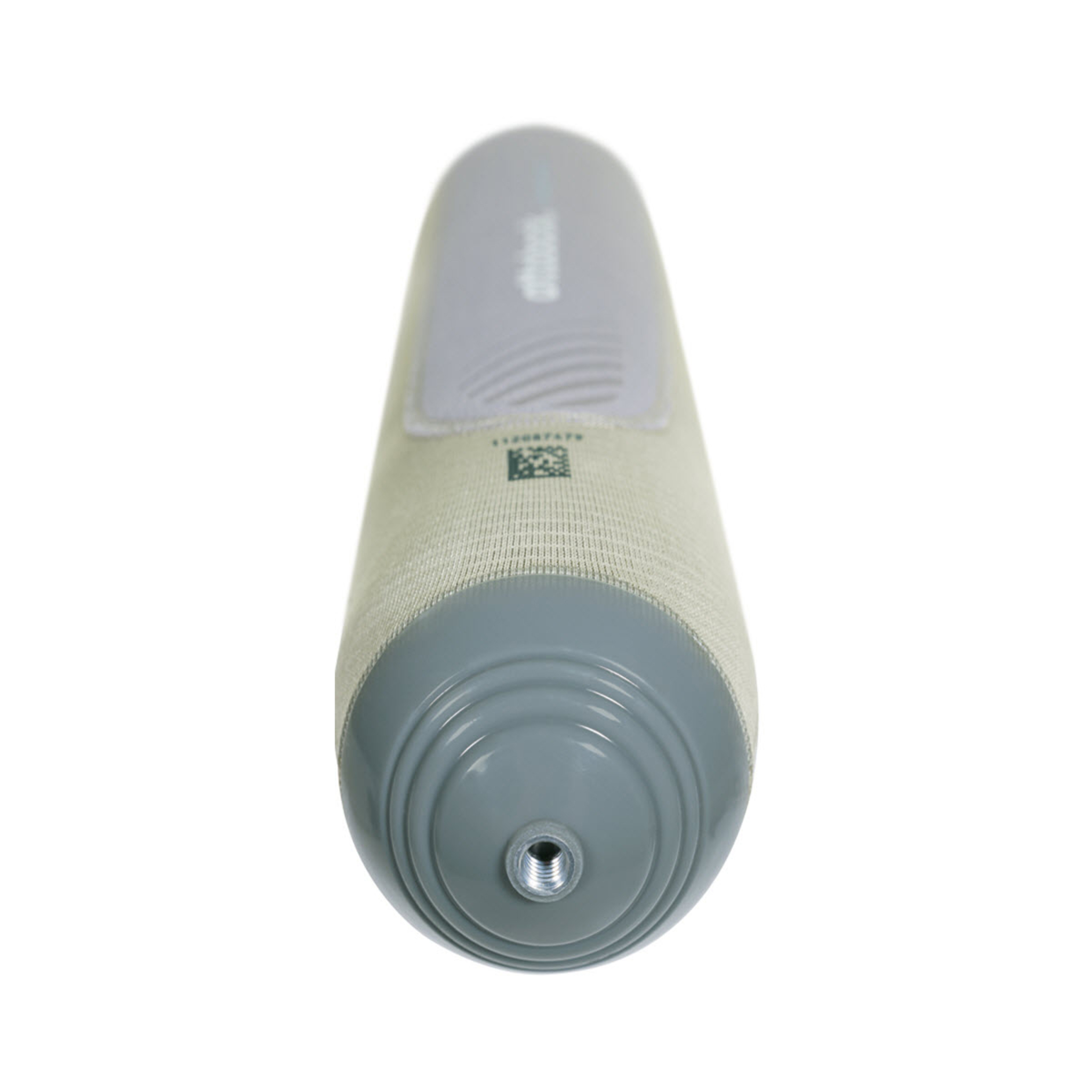

Caleo 3D Thermoformable Liner
Quick Links
| Part # | Description |
|---|
Product information
The Caleo 3D offers a shape that mimics the anatomy of the body. The material characteristics in the knee area allow for significantly easier flexion and reduced pressure on the patella.
The thermoformable Caleo 3D is comfortable and durable for amputees with active lifestyles.
- Medical white oil nurtures dry and sensitive residual limbs
- Gel formula combines durability and comfort
- Monoelastic fabric prevents pistoning and eliminates the need for a distal matrix
Specifications
- Amputation Level: Transtibial
- Activity Level: K1, K2, K3
- Type: Cushion, Locking
- Material: Thermoplastic Elastomer
- Cover: Fabric Cover
- Profile: Uniform
- Style: Standard
- Color: Gray
- Thickness (mm): 6 (Uniform)
- Sizes (cm): 150-690
- Trial Period: N/A
- Warranty: 6 months from fit date
Measure the residual limb circumference 4 cm above the distal end of the residual limb and select the liner size which corresponds to this measurement, or the next smallest size.
| HCPCS: | L5673, L5679 |
|---|---|
| User: | Adult |
| Amputation Level: | Transtibial (TT/BK) |
| Activity Level: | K1 (Low), K2 (Moderate), K3 (High) |
| Liner Type: | Cushion, Locking |
| Liner Style: | Standard |
| Liner Thickness: | 6 mm (1/4 in) |
| Liner Profile: | Uniform |
| Key Features: | Skin Care Infused |
| Material: | Thermoplastic Elastomer (TPE/Gel) |
