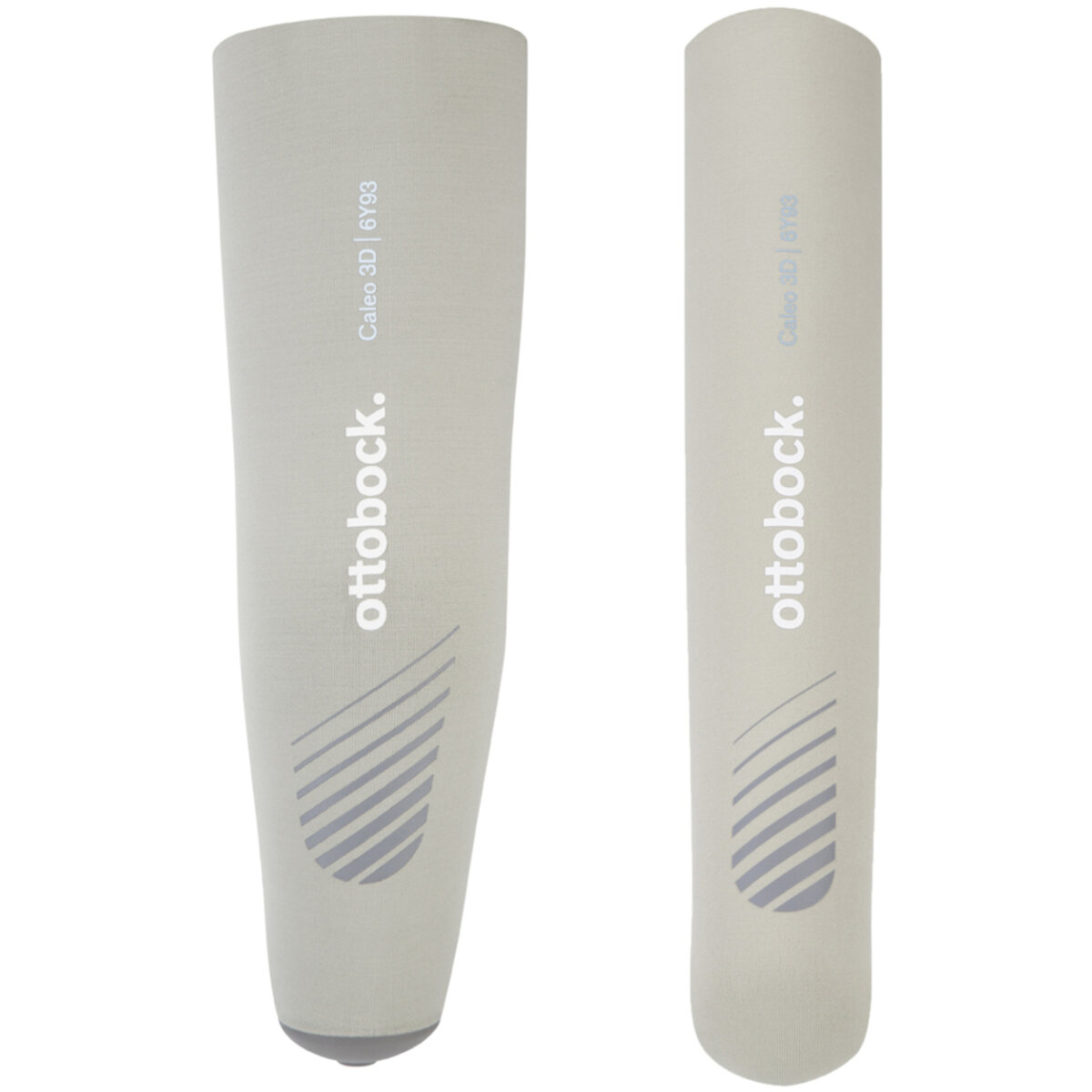

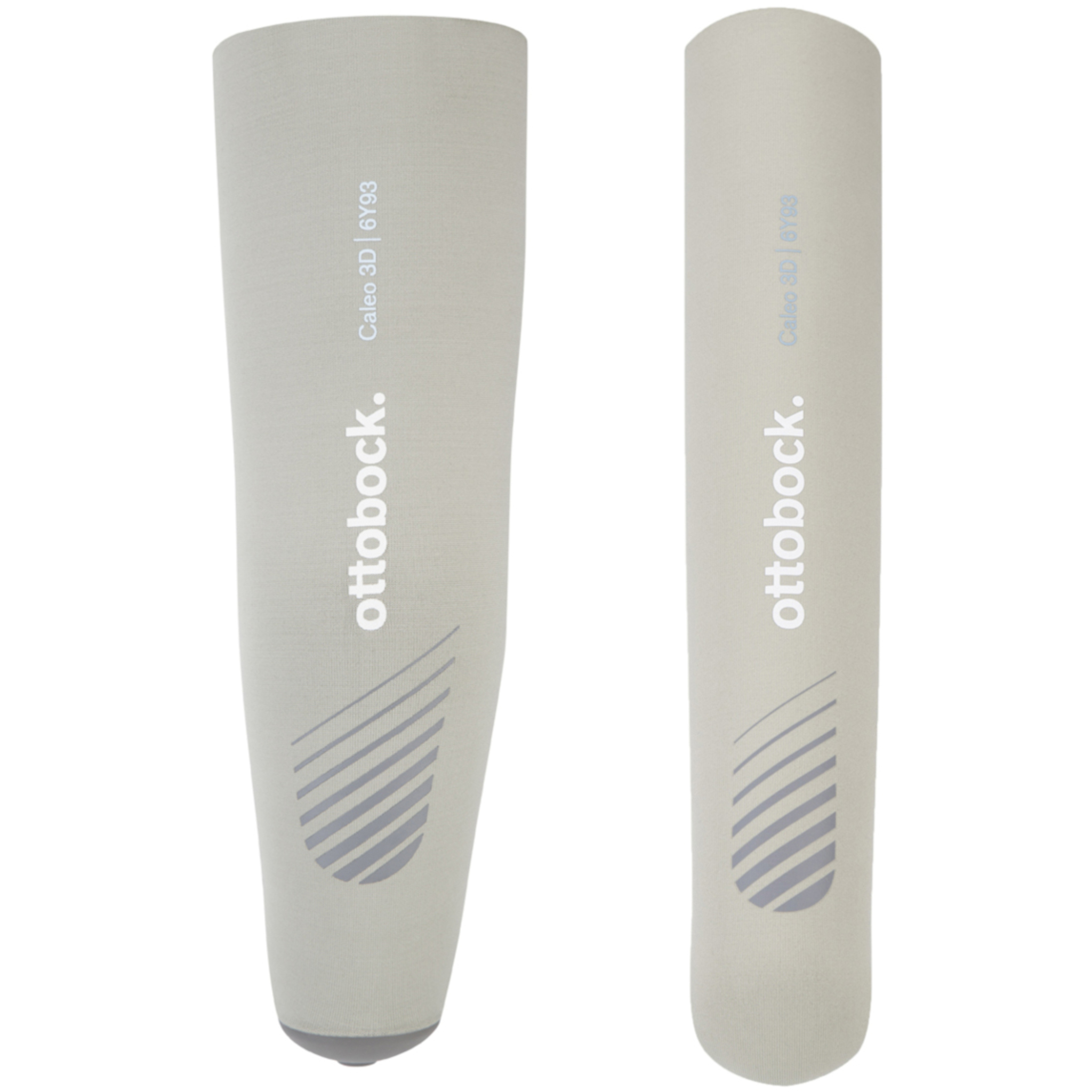

Caleo 3D Liner
Quick Links
| Part # | Description |
|---|
Product information
The Caleo 3D Liner is skin-friendly and easy to handle for low to medium activity transtibial amputees. It features a 6mm front wall thickness for protection against socket forces and 3mm back wall thickness for easier bending and reduced bulging in the hollow of the knee.
- Thermoformable to accommodate atypical residual limb shapes
- Flat seams to avoid pressure points
- Copolymer contains medical-grade mineral oil to moisturize skin
- Two-tone color helps with proper alignment
Specifications
- Amputation Level: Transtibial
- Activity Level: K1, K2, K3
- Type: Cushion, Locking
- Material: Thermoplastic Elastomer
- Cover: Fabric Cover
- Profile: Tapered
- Style: Conical
- Color: Gray
- Thickness (mm): 7.5, 13, 16, 21
- Sizes (cm): 150-650
- Trial Period: N/A
- Warranty: 6 months from fit date
Measure the residual limb circumference 4 cm above the distal end of the residual limb and select the liner size which corresponds to this measurement, or the next smallest size.
| HCPCS: | L5673, L5679 |
|---|---|
| User: | Adult |
| Amputation Level: | Transtibial (TT/BK) |
| Activity Level: | K1 (Low), K2 (Moderate) |
| Liner Type: | Cushion, Locking |
| Liner Style: | Conical |
| Liner Thickness: | 6 mm (1/4 in) |
| Liner Profile: | Tapered |
| Key Features: | Heat Moldable, Skin Care Infused |
| Material: | Thermoplastic Elastomer (TPE/Gel) |
