Cable System Hand with Spring-Loaded Thumb
Quick Links
| Part # | Description |
|---|
Product information
The The Cable System Hand with Spring-Loaded Thumb is a Movo terminal device which can be used for all residual limb lengths with a cosmetic prosthesis. Lightweight and stable, the device is opened with the sound hand and closed via spring tension.
- Lightweight and stable
- Includes 1/2"-20 threaded stud and system inner hand
- Available in sizes 6 ¾, 7 ¼, 7 ¾ and 8.
- Applicable for men, women, adolescents and children
- Opens with sound hand and closes with spring tension
- Prosthetic glove must be ordered separately
| HCPCS: | L6708 |
|---|---|
| Key Features: | Detachable Pyramid |
Frequently Bought Together

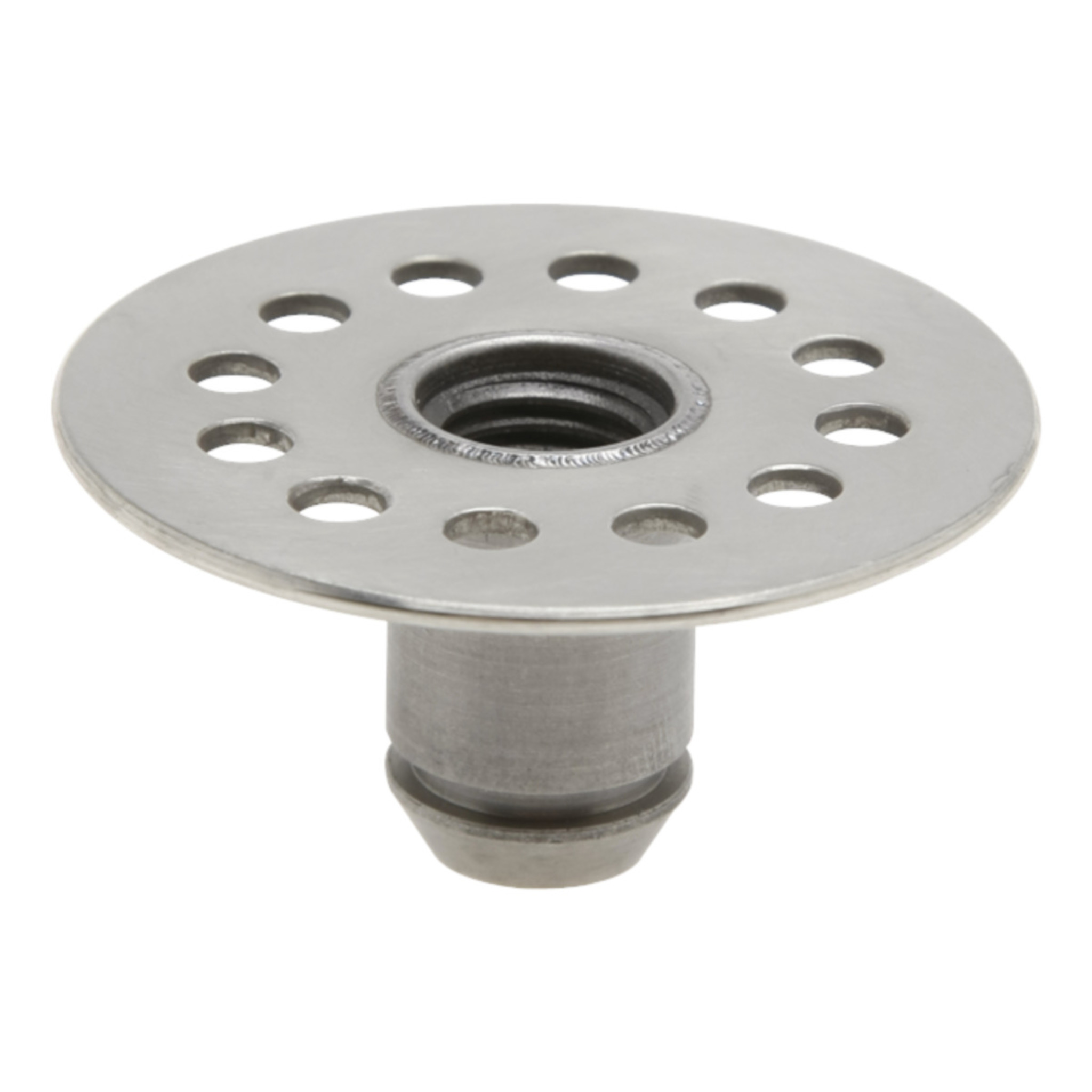

Attachment Plate
The 10A43 adapter is used to connect system hands or hooks to Movo Exoskeletal Wrist Units.Attachment element for wrist unitsStainless Steel, 50 mm diameter attachment plate for connecting to the 10V8 wrist unit10A43=M12x1.5 with metric interior thread10A43=1/2”-20 with english interior thread

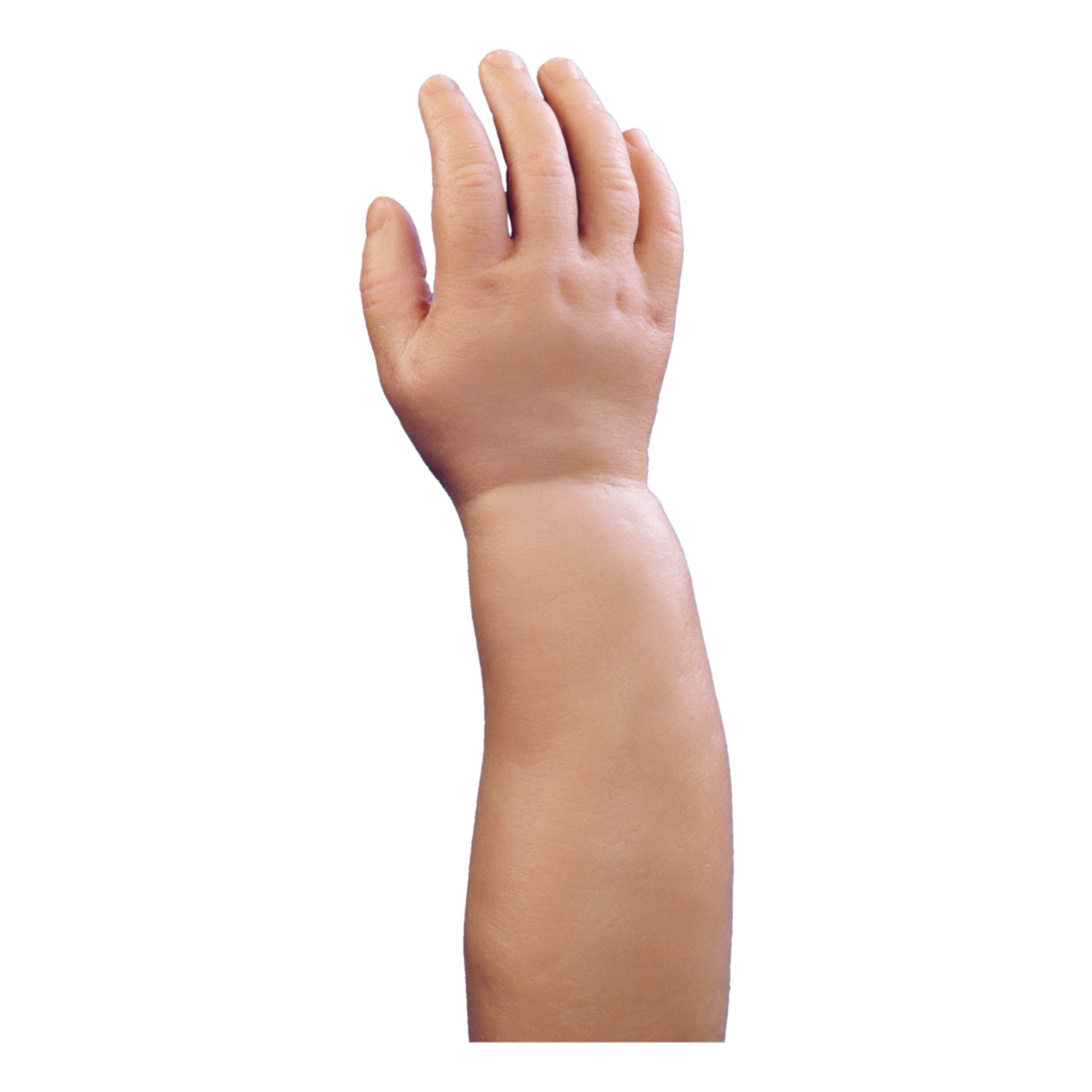

Cosmetic Glove for Children
The 8S6 Cosmetic Glove for Children offers a realistic appearance due to the shape, color and detailed surface structure.For Body Powered and Passive HandsFor hand sizes 6 3/4, with long sleeveStandard prosthetic glove available in 18 different shades

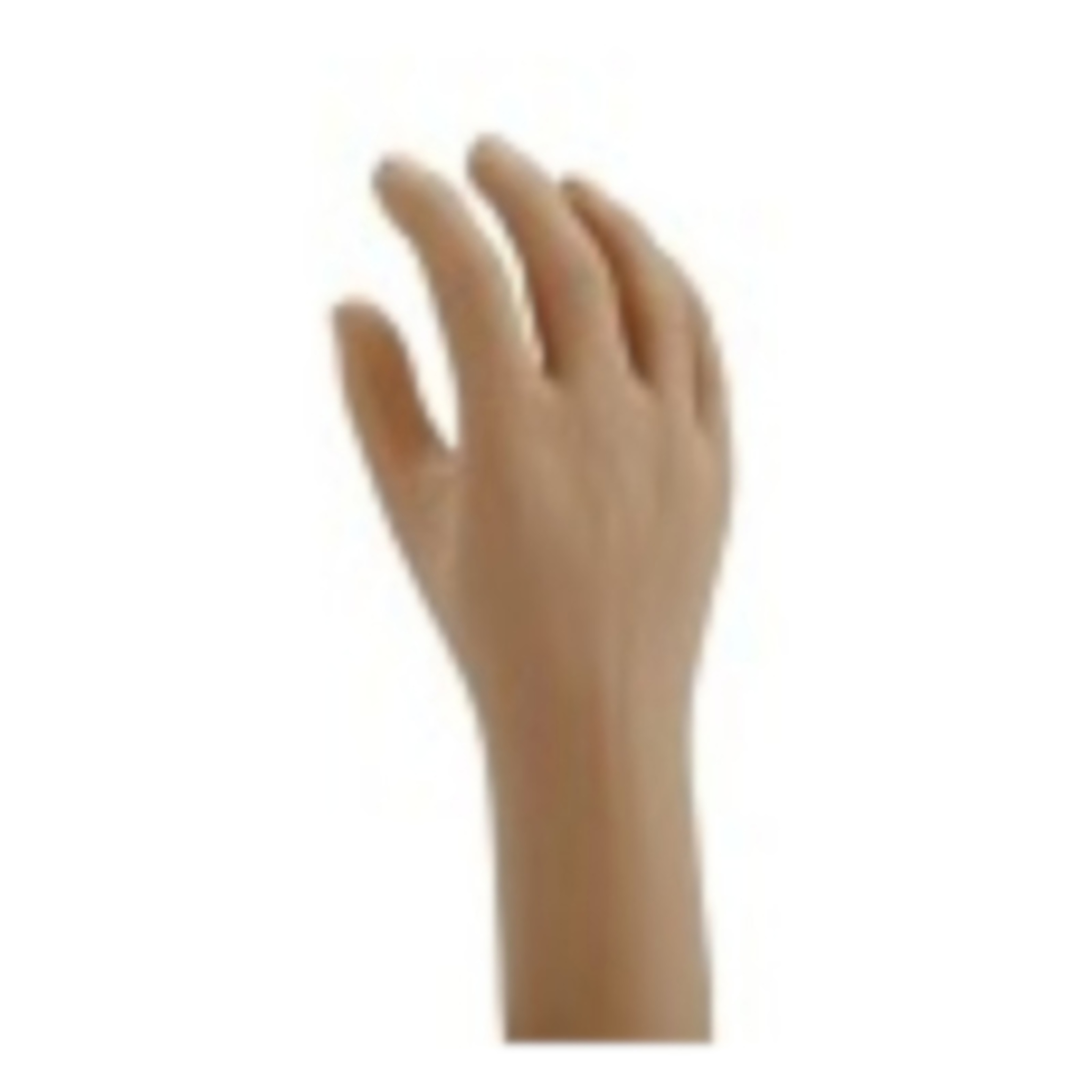

Cosmetic Glove for Men
Standard PVC prosthetic glove available in 18 different shades.Available for hand sizes 7 ¼ and 8 with short sleeveFor hand size 7 ¾ use glove 8S11

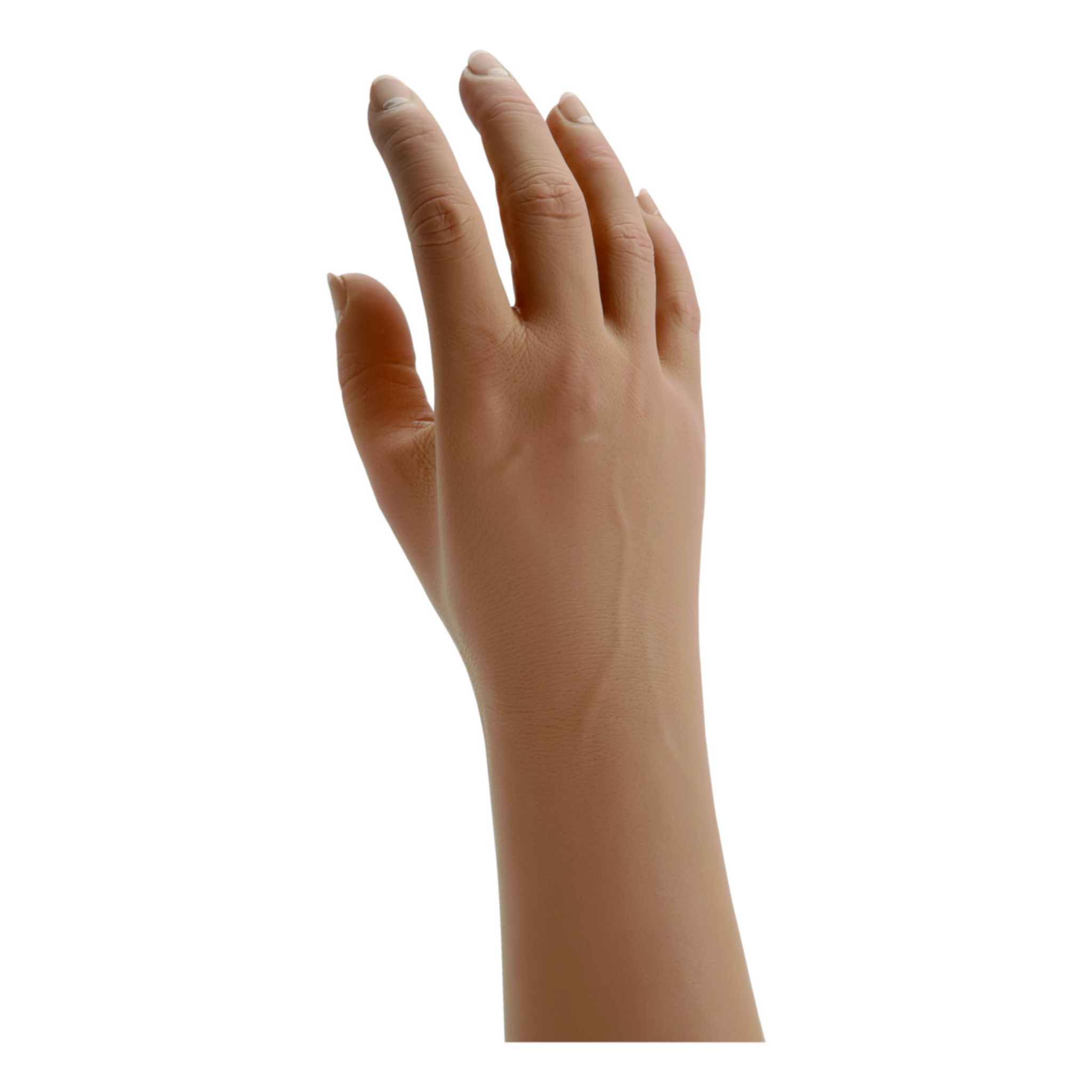

Cosmetic Glove for Women
The 8S5 Cosmetic Glove for Women offers a realistic appearance due to the shape, color and detailed surface structure.Applicable for protection of Movo/Physo terminal devicesFor Movo hands, available to fit hand sizes 7 ¼Physo Prosthetic Gloves 8S5 vary to fit the inner hand and the individual’s anatomical forearm measurements.Produced in 18 different skin shades

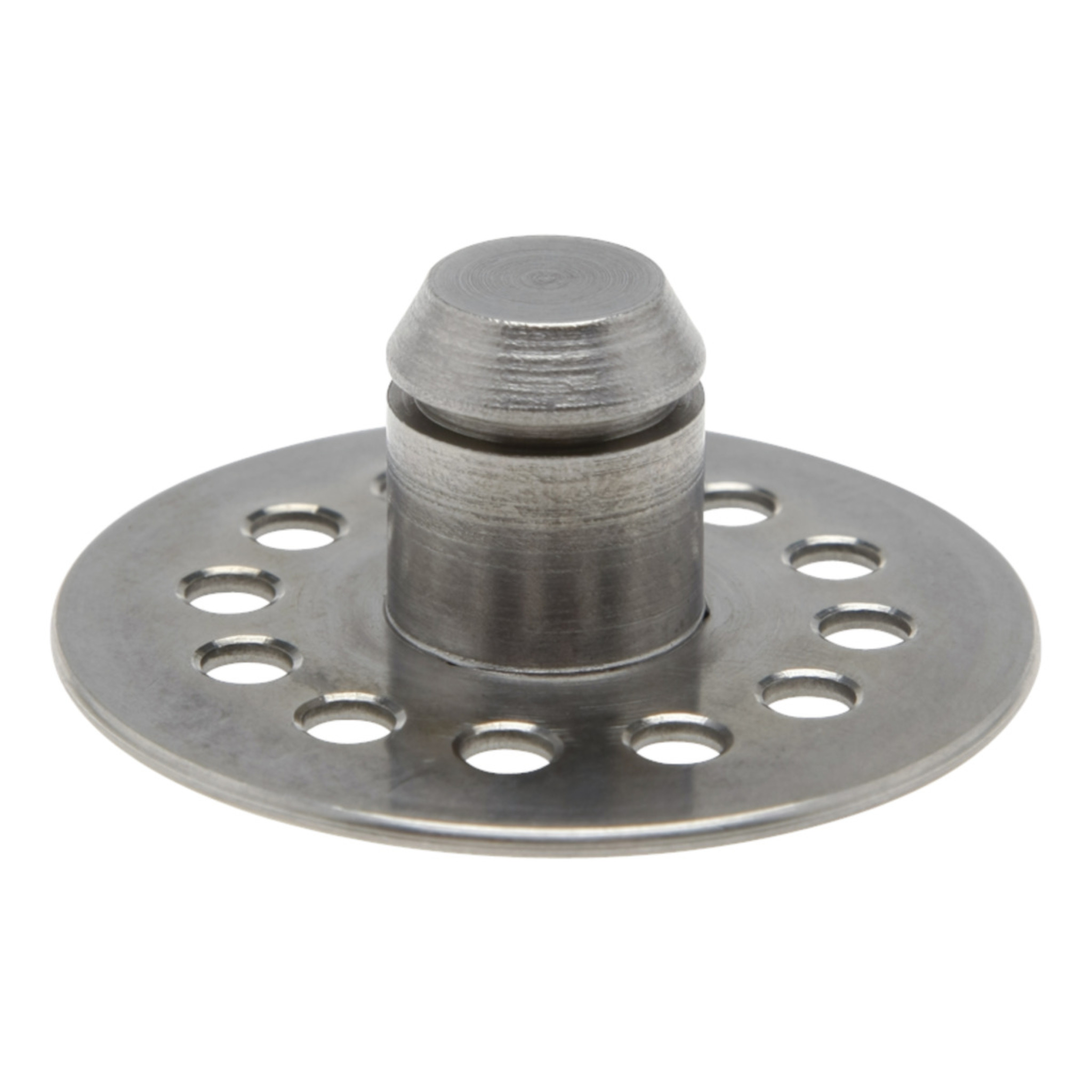

Attachment Plate with Short Stud
Utilized for connecting hooks or system hands to various Movo Exoskeletal Wrist Units.Stainless Steel, 50 mm diameter attachment plate for connecting to the 10V30 wrist unitUtilize for long residual limbs
Adapter for 10V39
Utilized to facilitate a quick disconnect of the terminal device and the wrist unit, each connecting element is designed for proper mating with specific wrist joints.Enables flexion and extension of a cable-controlled or passive terminal deviceCan be locked in 5 positions from –15° to +45° and rotation over 360° with 20 different positionsTotal length: 33 mm, of which 12 mm is distally visibleStainless steel adapter used to connect to the 10V39 MovoWrist Flex
Wrist Unit with Ratchet Type Rotation - Short
Movo exoskeletal wrist unit with short profile for long residual limbs. Movo Wrist joints attach the forearm to a cable powered or passive terminal device, providing flexion/extension and/or quick disconnection of hand or hook. Short profile for long below-elbow residual limb application Lock lever secures and releases pronation/supination position Ratchet style resistance to pronation/supination when not in the locked position A second lever provides quick disconnection of terminal device 50 mm diameter Connects to hand or hook with 10A56 Threaded Stud

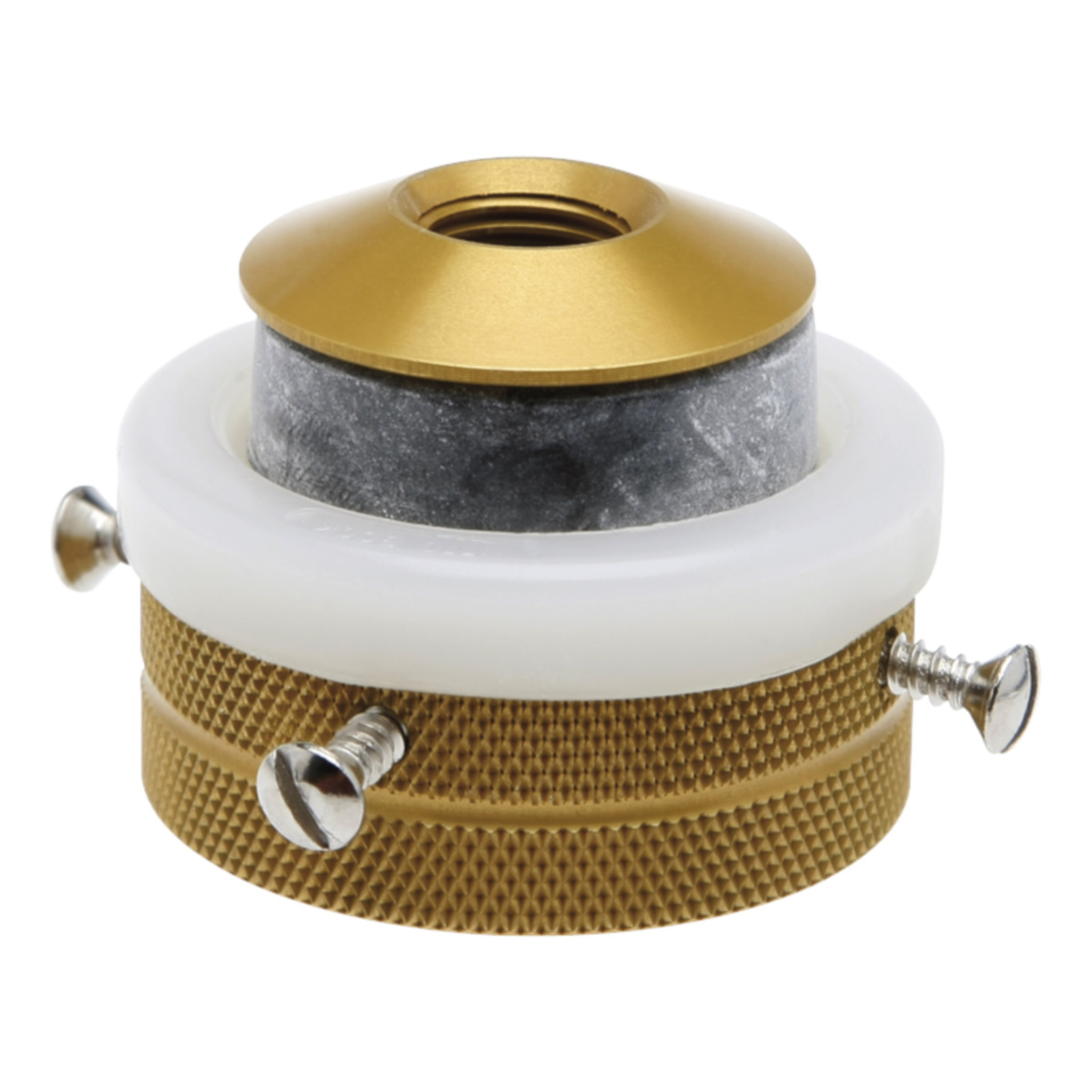

Friction Wrist Unit
Movo exoskeletal wrist unit with friction for incorporation into body powered prosthesis. Friction wrist with ½”-20 internal thread and cylindrical lamination ring Three diameters; 34 mm, 45 mm, 50 mm
Movo Exoskeletal Wrist Unit
The Movo Exoskeletal Wrist Unit for incorporation into body powered prosthesis.Wrist unit with ratchet-type rotationQuick disconnectLock Lever provides quick disconnect50 mm diameterConnect to hand or hook with 10A43 Attachment Plate with Threaded Stud
MovoWrist Flex
MovoWrist joints attach the forearm to a cable powered or passive terminal device, providing flexion/extension and/or quick disconnection of hand or hook. Enables flexion and extension of a cable-controlled or passive terminal device Provides Flexion/Extension settings of 45°, 30°, 15°, 0° and -15 20 rotation settings in increments of 18° Quick Disconnect of system hands, hooks or working tools Independent activation of flexion/extension and rotation 45 mm or 50mm diameter options 10V39=50 weighs 130 g; 10V39=45 weighs 110 g Total length of 33 mm, of which 12 mm is distally visible

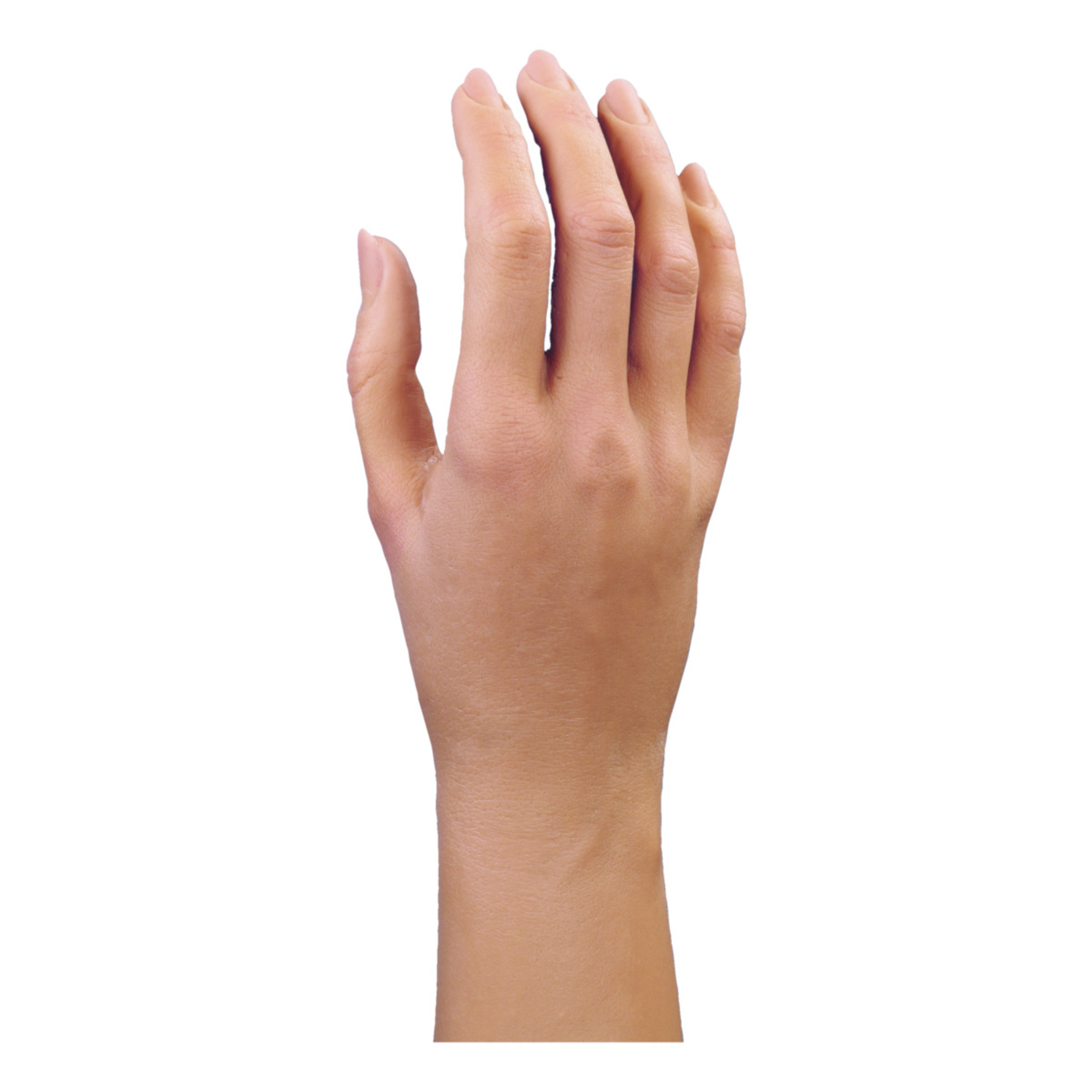

MovoSkin Natural Prosthetic Glove for Women
The MovoSkin Natural Glove for Women has a multi-layered design providing depth and a very vivid, natural appearance. Robust and easy to clean, the glove protects the prosthesis from dust, dirt and moisture.Applicable for protection of Movo/Physo terminal devicesMultilayered structure provides natural appearance and resilient prosthetic coveringDirt can be removed with water and soap, while tough stains can be cleaned with the 640F12 Ottobock Special CleanerMulti-Layered PVC provides depth effect for vivid, natural appearanceOuter translucent layer allows colored fibers to shine through producing luminous qualityTreated with a special surface treatment for easy clean-upNail polish can be applied and reapplied to the finger nails and removed with acetone-free nail polish remover.

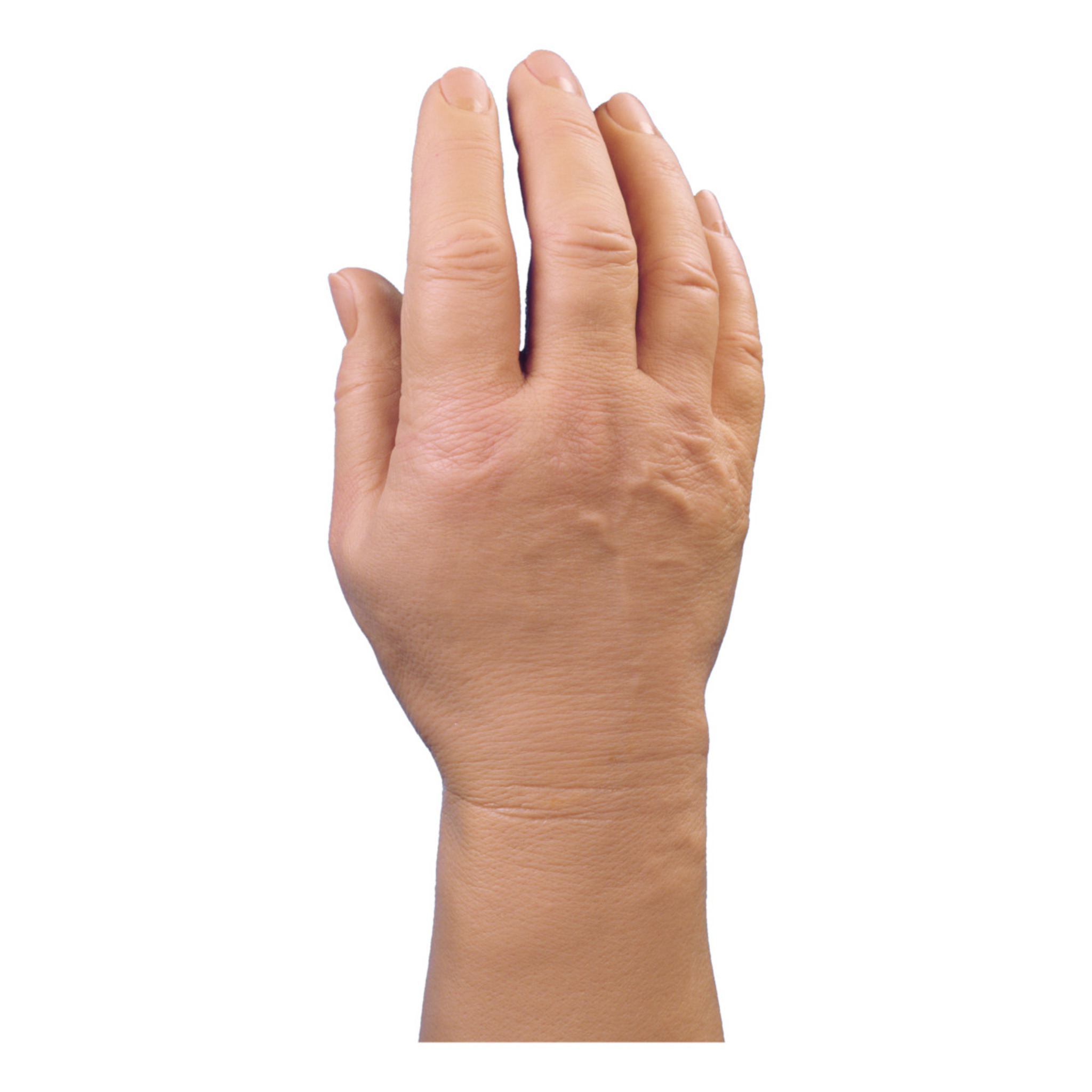

MovoSkin Natural Prosthetic Glove for Men
The MovoSkin Natural Glove for Men has a multi-layered design providing depth and a very vivid, natural appearance. Robust and easy to clean, the glove protects the prosthesis from dust, dirt and moisture.Applicable for protection of Movo/Physo terminal devicesMultilayered structure provides natural appearance and resilient prosthetic coveringDirt can be removed with water and soap, while tough stains can be cleaned with the 640F12 Ottobock Special CleanerMulti-Layered PVC provides depth effect for vivid, natural appearanceOuter translucent layer allows colored fibers to shine through producing luminous qualityTreated with a special surface treatment for easy clean-upNail polish can be applied and reapplied to the finger nails and removed with acetone-free nail polish remover.
