AxonHook
Quick Links
| Part # | Description |
|---|
Product information

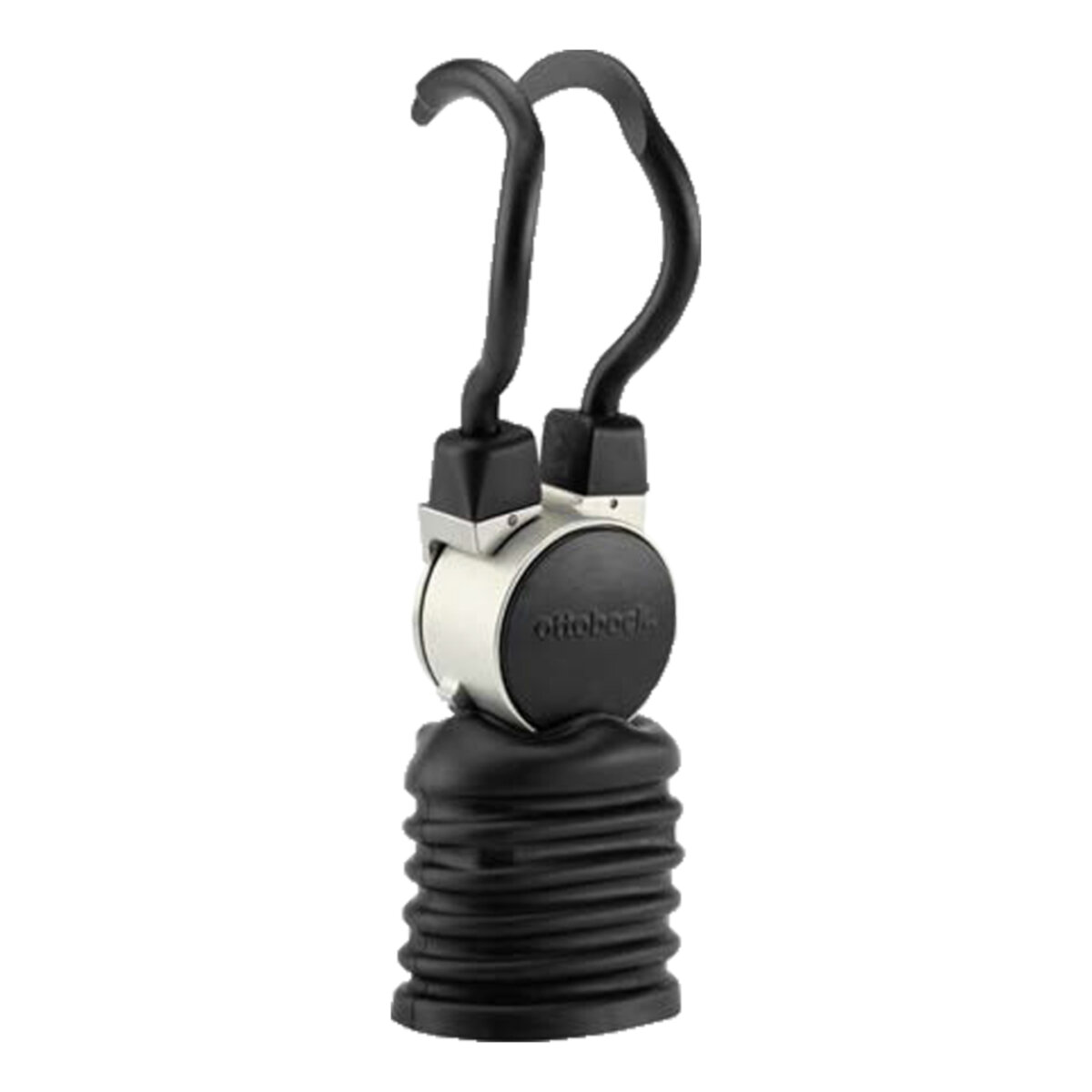

With the AxonHook, Michelangelo users are free to choose. In addition to the Michelangelo Hand, the AxonHook is designed to meet the performance needs of the most demanding wearers by increasing the number of functional work tasks available. Transradial and transhumeral patients can now benefit from the Michelangelo Hand as well as the powerful and rugged AxonHook. This is the perfect combination of terminal devices required for everyday tasks.

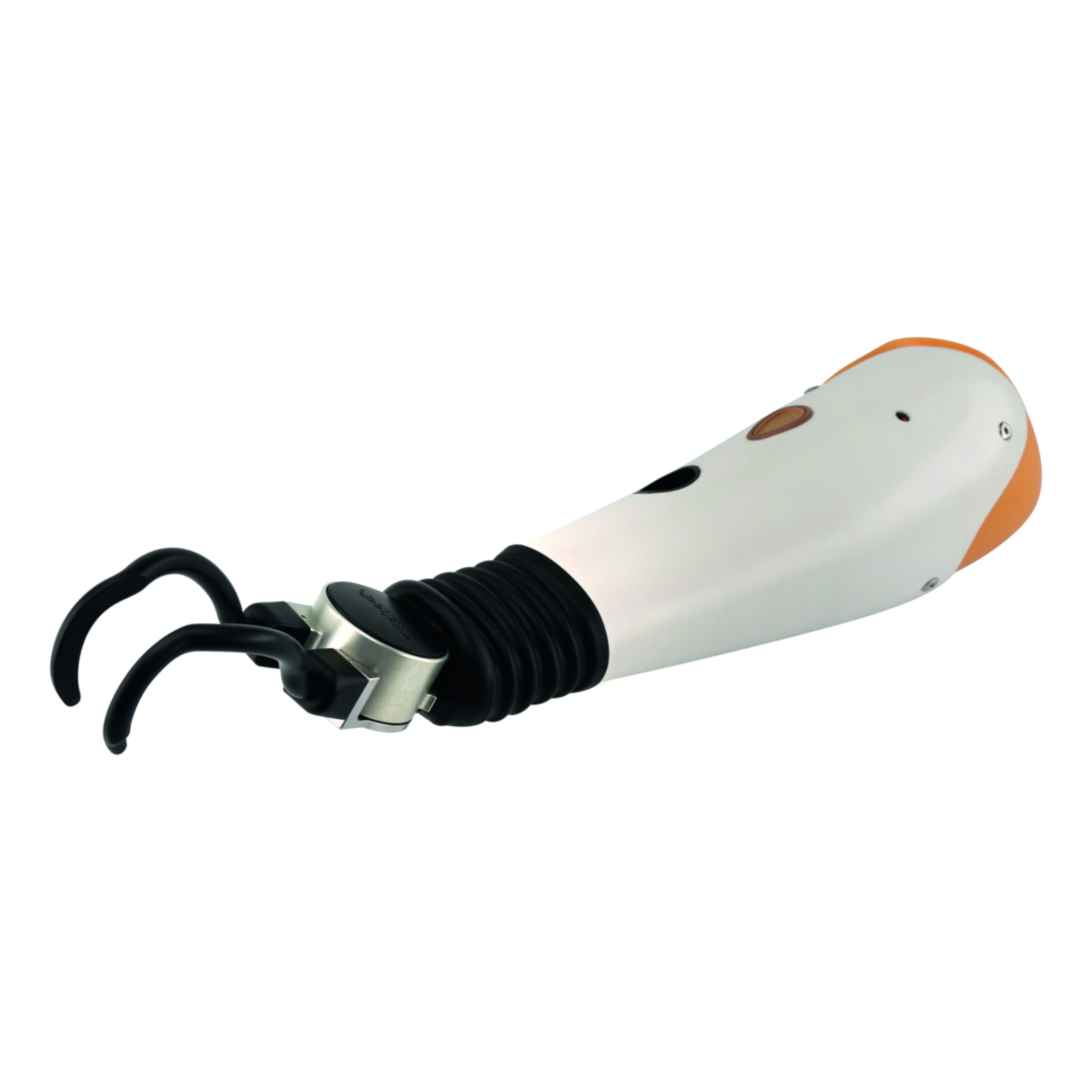

The AxonWrist (included) allows users to easily swap between the Michelangelo Hand and the AxonHook. All wrist functionality of the Michelangelo Hand is implemented into the AxonHook. This allows users to choose the most appropriate terminal device for maximum versatility and independence in everyday life. Combined with the AxonRotation or even with the AxonArm Ergo for TH fittings, it will be the preferred choice of the highly active prosthetic wearer.
Scope of delivery:
- AxonHook (8E600=*)
Specifications
- Weight approx.: 400 g (w/ flexible wrist)
- Grip force on hook tips: 110N +/- 15N (approx. 25 lbs)
- Speed: Maximum 173 mm/s
- Opening width: approx. 120 mm
- Temperature range: 14 degrees F to 140 degrees F / -10 degrees C to +60 degrees C
- Relative humidity: max. 93%

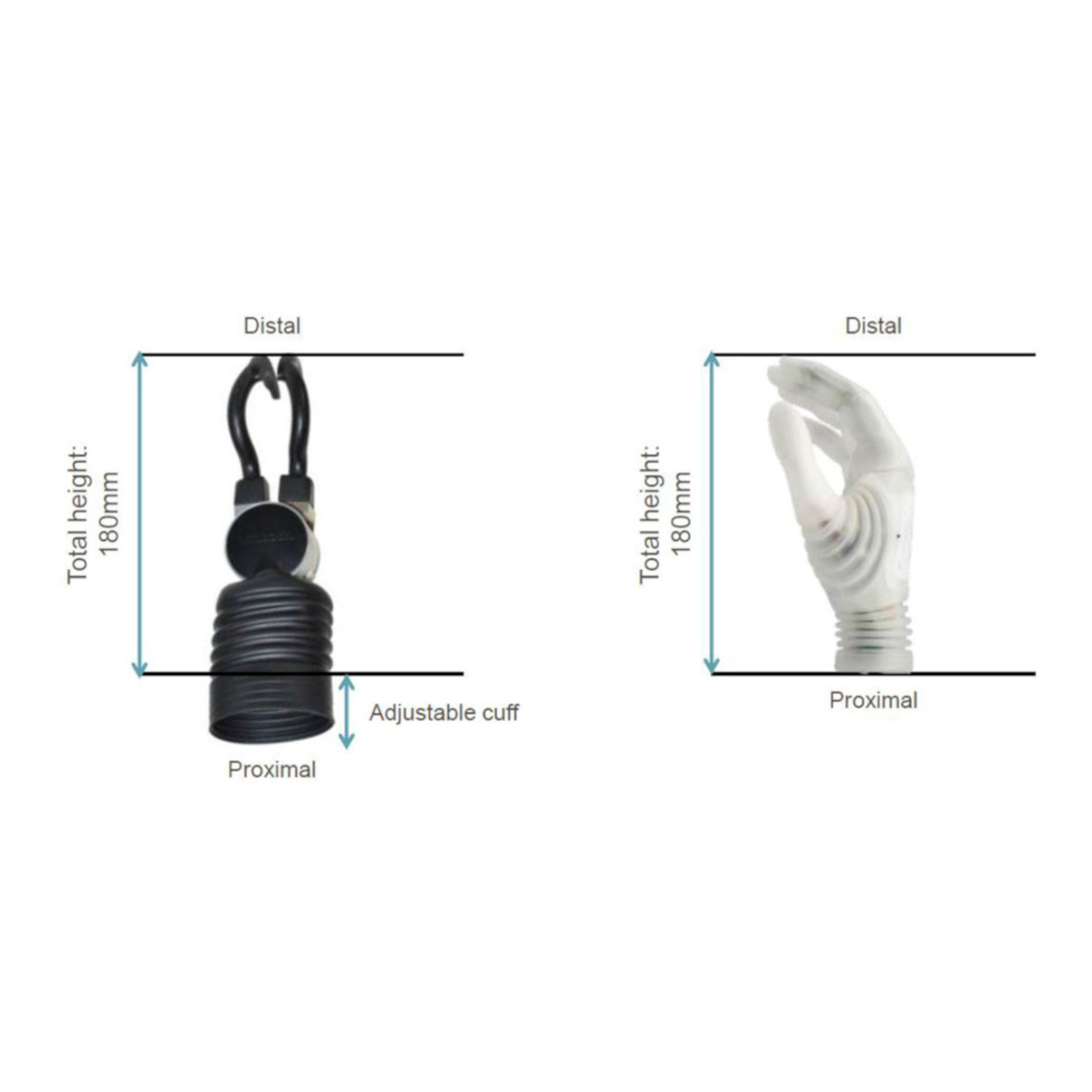

- Length (Tip of hook to proximal connection point): 180 mm
| HCPCS: | L6629, L6881, L6882, L7499 |
|---|
Frequently Bought Together

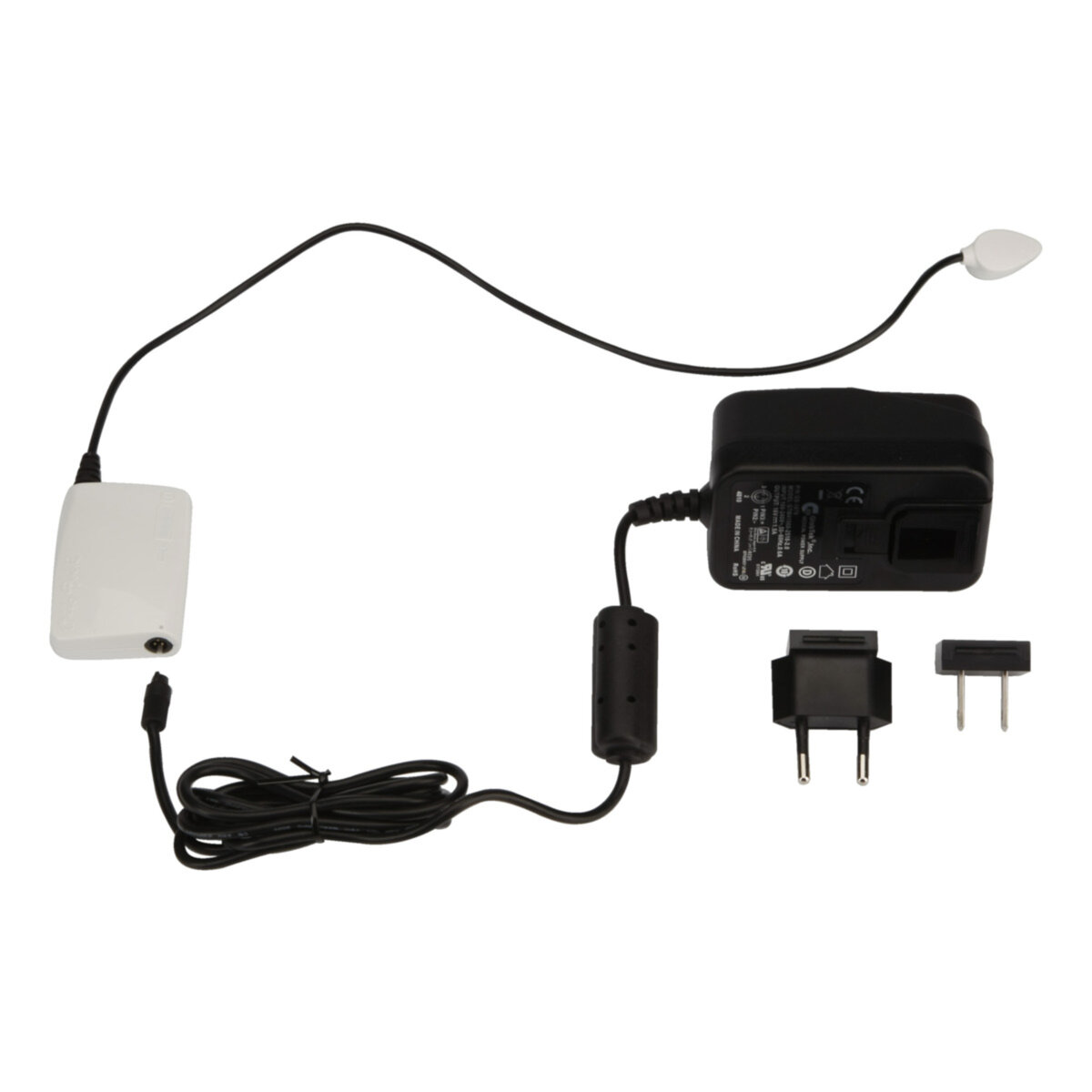

AxonCharge Integral
The 757L500 AxonCharge Integral is designed to charge the 757B500/757B501 AxonEnergy Integral of the Ottobock Axon-Bus® prosthetic system. Charging is performed automatically after the charging plug has been connected to the charging receptacle of the 757B500/757B501 AxonEnergy Integral.The charging plug is secured to the charging receptacle by the integrated magnet. The special contour of the charging receptacle and charging plug ensures quick, reliable positioning of the two components. LEDs indicate when the charger is ready and the current battery capacity.The 757L500 AxonCharge Integral is intended exclusively for the purpose of charging the 757B500/757B501 AxonEnergy Integral.

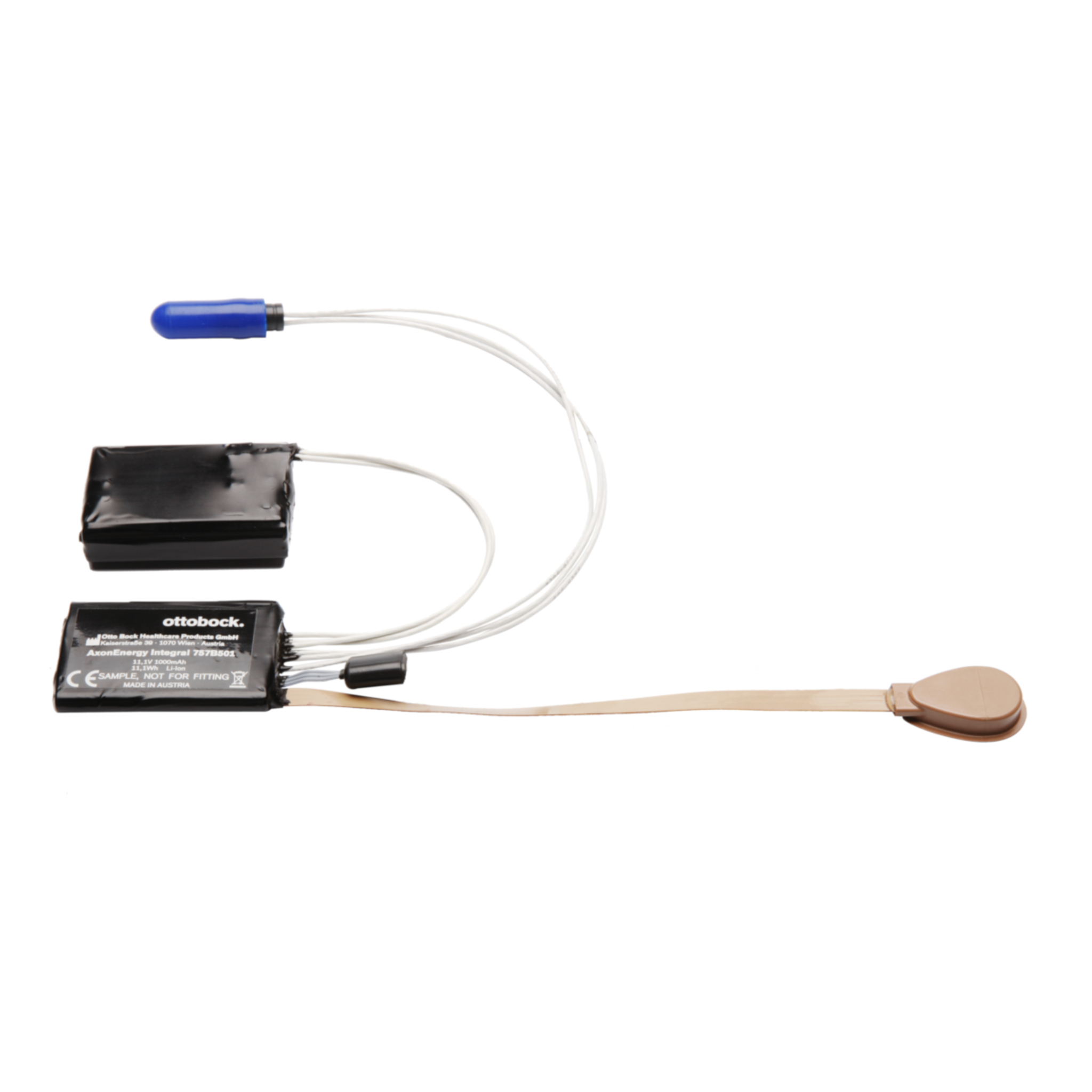

AxonEnergy Integral
The 757B501 AxonEnergy Integral serves exclusively to provide power to the Axon-Bus prosthetic system. The battery consists of 3 Li-Ion cells. The integrated electronics protect the battery against short circuits, overvoltage, undervoltage and charging outside the allowable temperature range.The Axon-Bus cable with the three-pin receptacle is used to exchange data and connects the respective prosthesis components to the battery.The 757B5001 AxonEnergy Integral may only be used in conjunction with components of the Ottobock Axon-Bus prosthetic system. Only the 757L500 AxonCharge Integral may be used for charging.
