AxonArm Ergo
Quick Links
| Part # | Description |
|---|
Product information

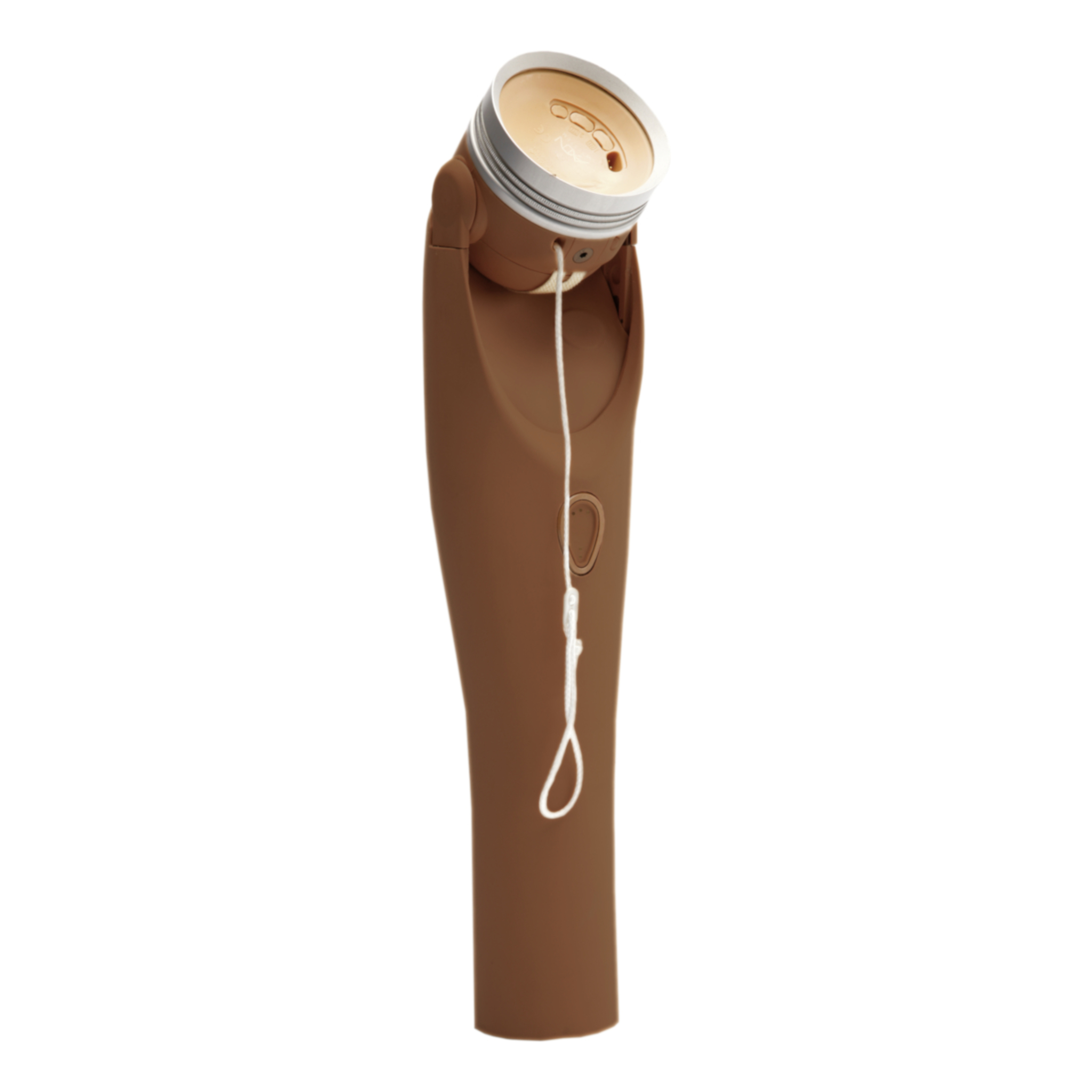

The AxonArm Ergo is a manually powered elbow component with electronic lock that adapts the proven strengths of the familiar 12K50 ErgoArm to the new Axon-Bus system.It is intended exclusively for use with the Michelangelo Hand. Thanks to the electronic lock, unlocking and locking the elbow joint is realised with myoelectric signals picked up by electrodes.Now all the advantages of the Michelangelo Hand (extraordinary functionality, natural design and trendsetting technology) are now also available to transhumeral amputees.
Features:
- Easy Plug (electronic through connection)
- Automatic Forearm Balance (AFB)
- Electronic ratchetless lock
- Humeral rotation joint (humeral rotation feature)
- Adjustable friction
- Forearm can be shortened
- Power supply: AxonEnergy Integral
- Battery charger: AxonCharge Integral
Specifications
- Weight (without battery): approximately 750 g
| HCPCS: | L6638, L6693, L7499 |
|---|
Frequently Bought Together

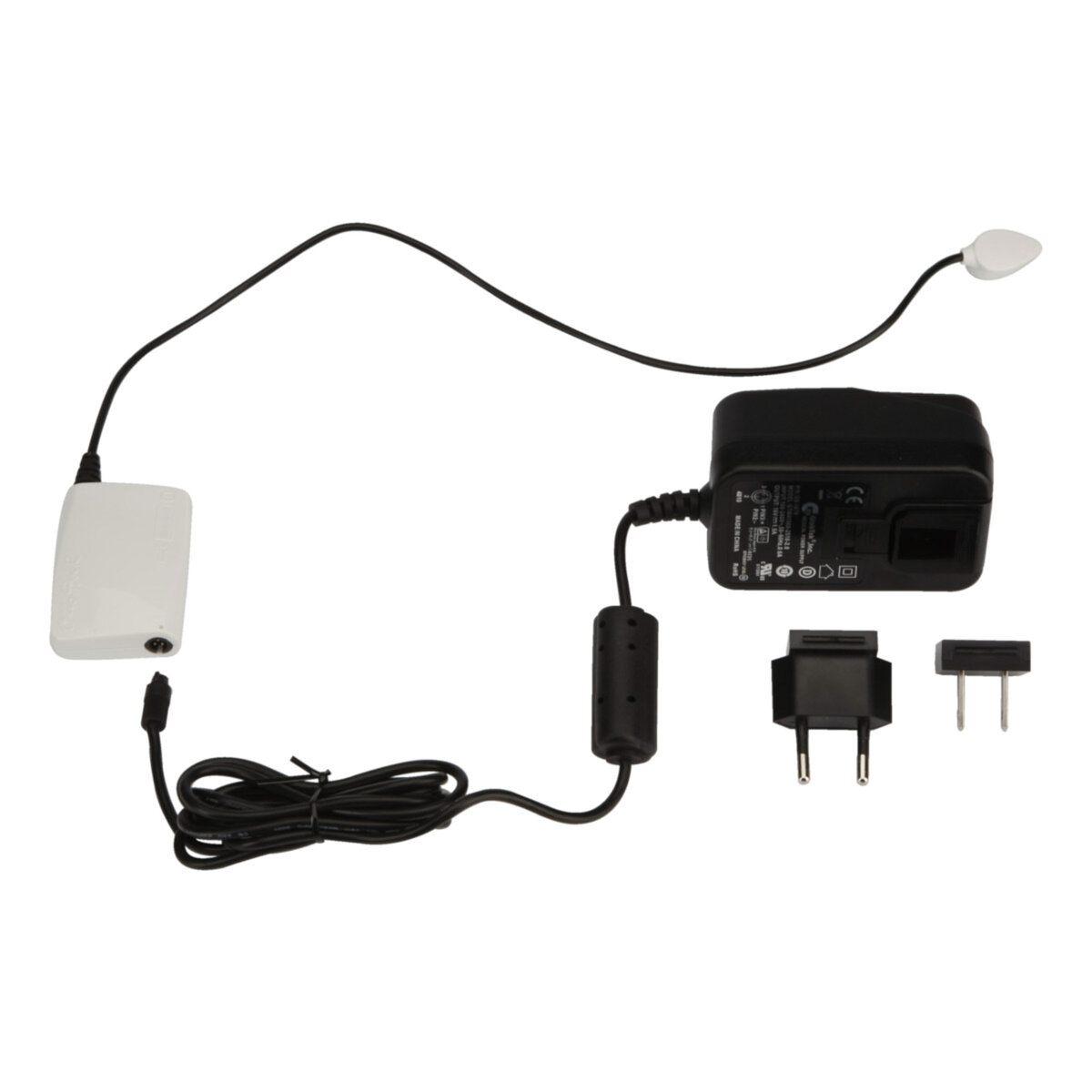

AxonCharge Integral
The 757L500 AxonCharge Integral is designed to charge the 757B500/757B501 AxonEnergy Integral of the Ottobock Axon-Bus® prosthetic system. Charging is performed automatically after the charging plug has been connected to the charging receptacle of the 757B500/757B501 AxonEnergy Integral.The charging plug is secured to the charging receptacle by the integrated magnet. The special contour of the charging receptacle and charging plug ensures quick, reliable positioning of the two components. LEDs indicate when the charger is ready and the current battery capacity.The 757L500 AxonCharge Integral is intended exclusively for the purpose of charging the 757B500/757B501 AxonEnergy Integral.

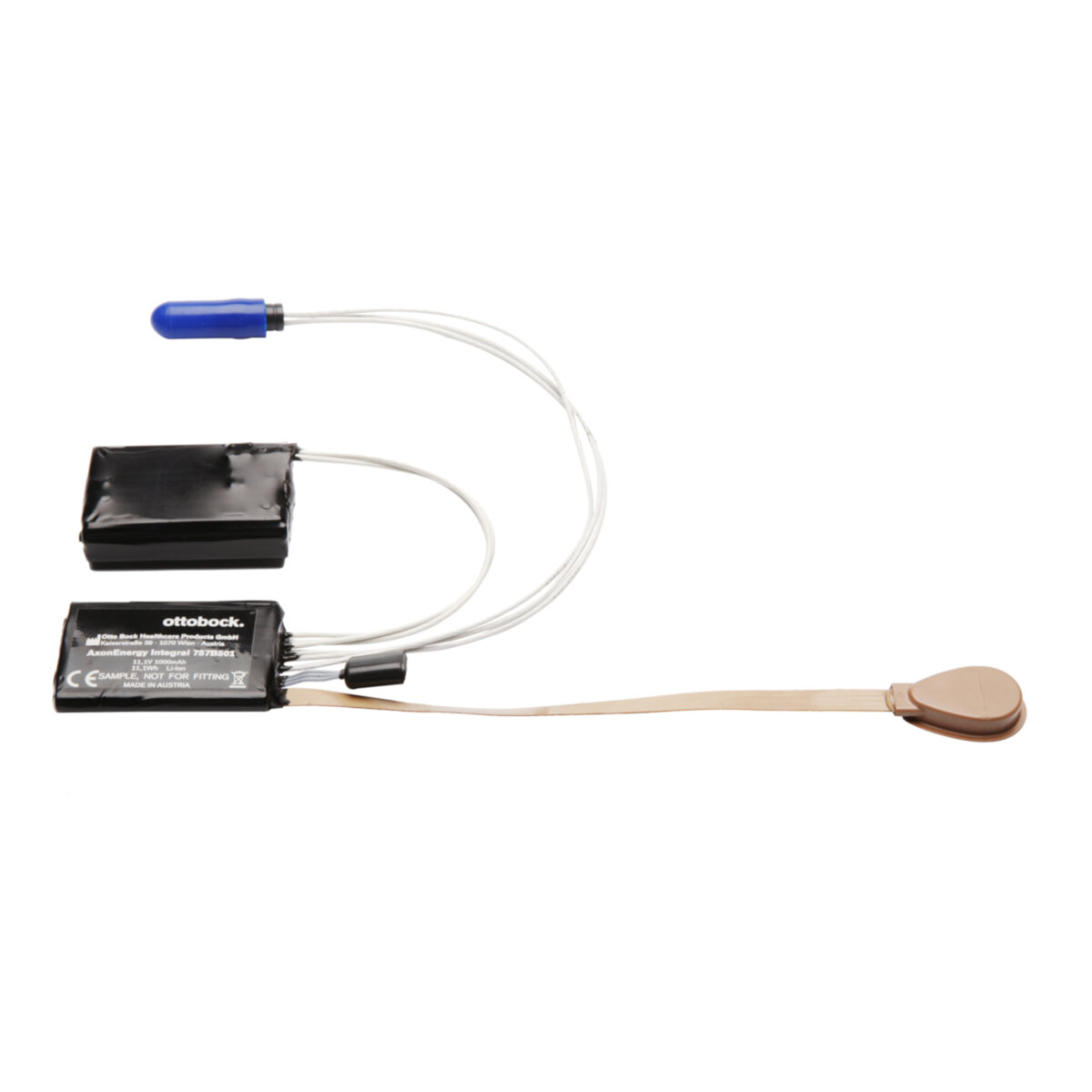

AxonEnergy Integral
The 757B501 AxonEnergy Integral serves exclusively to provide power to the Axon-Bus prosthetic system. The battery consists of 3 Li-Ion cells. The integrated electronics protect the battery against short circuits, overvoltage, undervoltage and charging outside the allowable temperature range.The Axon-Bus cable with the three-pin receptacle is used to exchange data and connects the respective prosthesis components to the battery.The 757B5001 AxonEnergy Integral may only be used in conjunction with components of the Ottobock Axon-Bus prosthetic system. Only the 757L500 AxonCharge Integral may be used for charging.

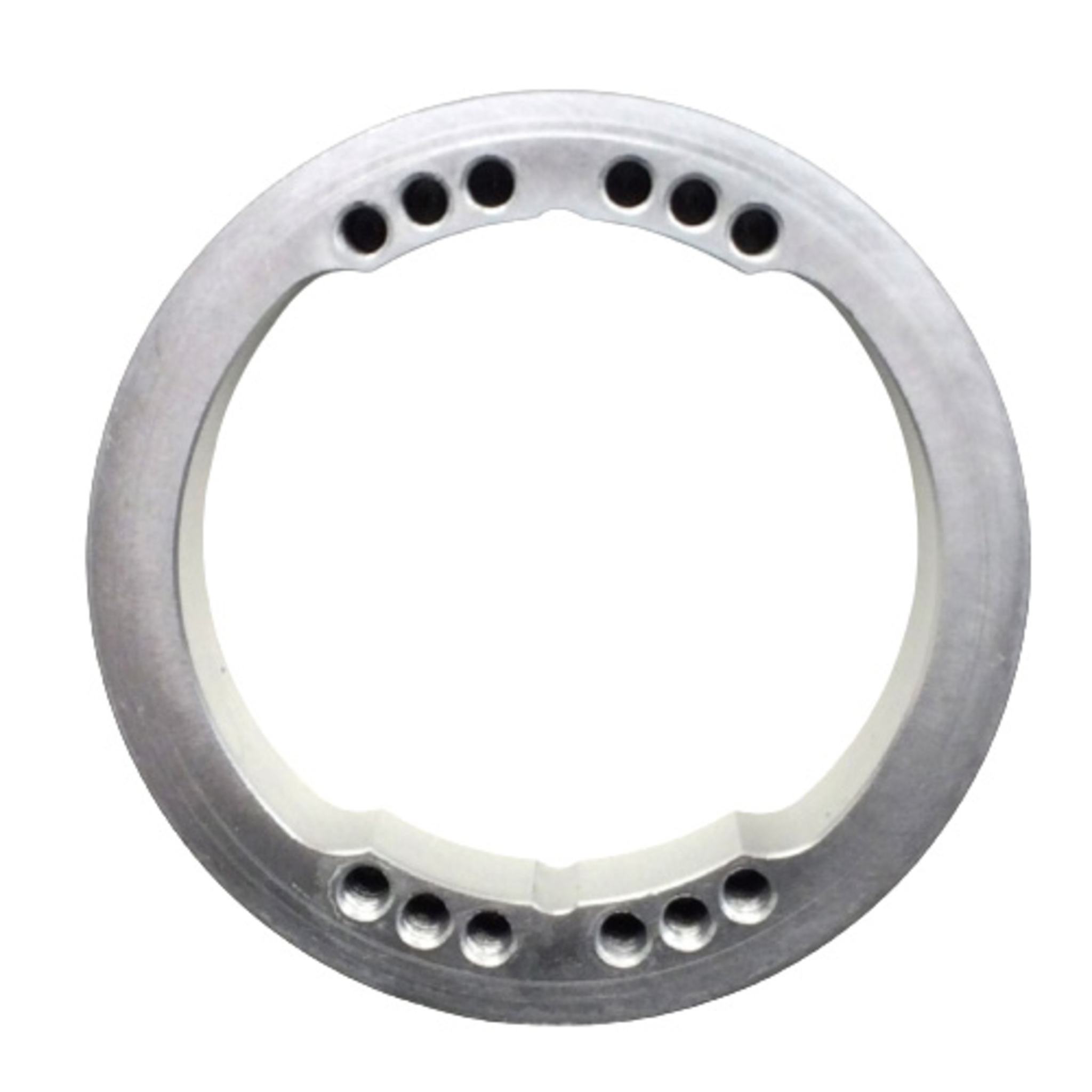

Lamination Ring for Axon-Bus
Lamination ring for Axon-Bus gripping component (accessory for 12K500 AxonArm Hybrid or 12K501 AxonArm Ergo).
