Product information

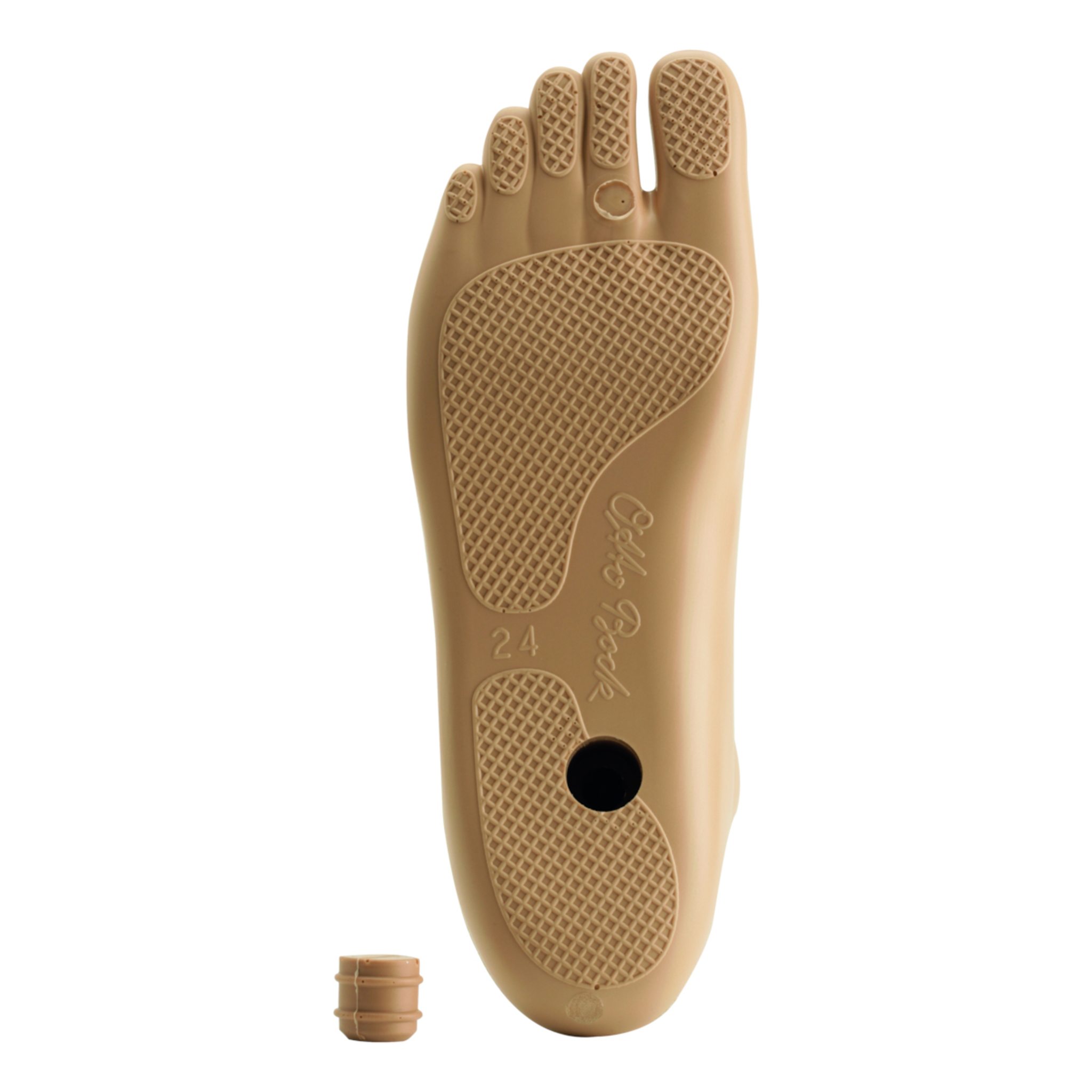

The Aqua Foot features a grid-shaped sole tread and a material composition that creates traction on slick surfaces. The proximal contact surface in the modular version is coated with sealing resin against water penetration.
- Natural shape with defined toes and abducted big toe
- Core with robust multiplex structure

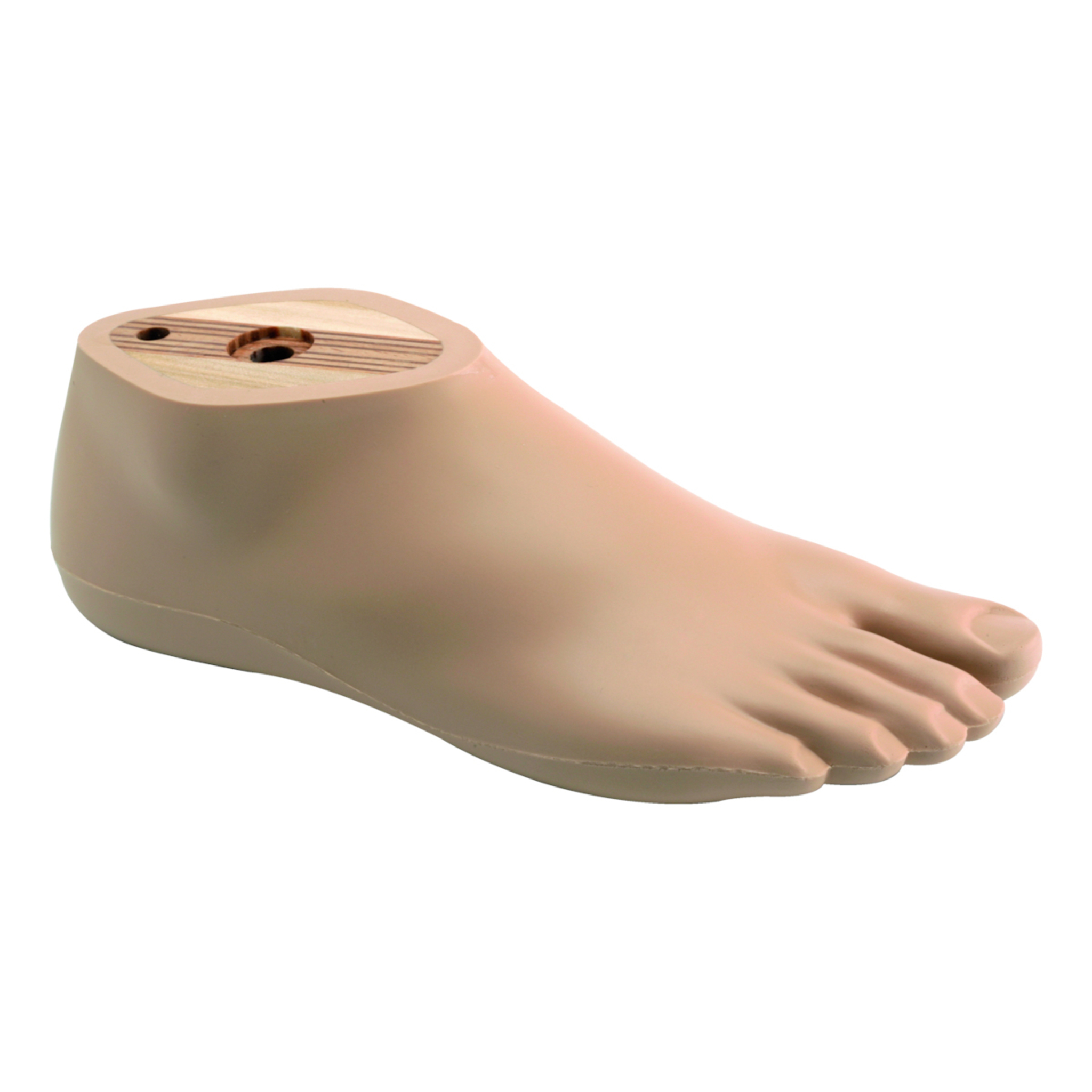

- Modular foot version is already factory-sealed against water penetration
Specifications
- Foot Type: Flexible Keel Foot
- Material Composition: Wood
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K1, K2
- Foot Shell: Included
- Foot Shell Color: Beige
- Sandal Toe: Yes
- Waterproof: Water Resistant
- Split Keel: No
- Adjustable Heel: No
- Weight Rating: 330lbs (150kg)
- Stiffness Categories: 1-3
- Sizes (cm): 24-28
- Product Weight (g): 507-634
- Build Height: 2.4in (61mm)-3.3in (83mm)
- Heel Height: N/A
- Connector: Male Pyramid
- Trial Period: N/A
- Warranty: 24 months from delivery date
All items shipped ground, 2nd Day Air, and 3rd Day Air direct from the manufacturer will be a flat rate of $10 per shipment. All items shipped Next Day Air Saver will be $40 and $55.00 for Next Day Air.
| HCPCS: | L5972 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Activity Level: | K1 (Low), K2 (Moderate) |
| Foot Type: | Flexible Keel |
| Build Height: | 51-76 mm (2-2.9 in), 77-101 mm (3-3.9 in) |
| Foot Shell Included: | Yes |
| Key Features: | High Weight Limit, Split Toe, Waterproof |
| Weight Limit: | 150 kg (330 lbs) |
| Material: | Wood |
Frequently Bought Together

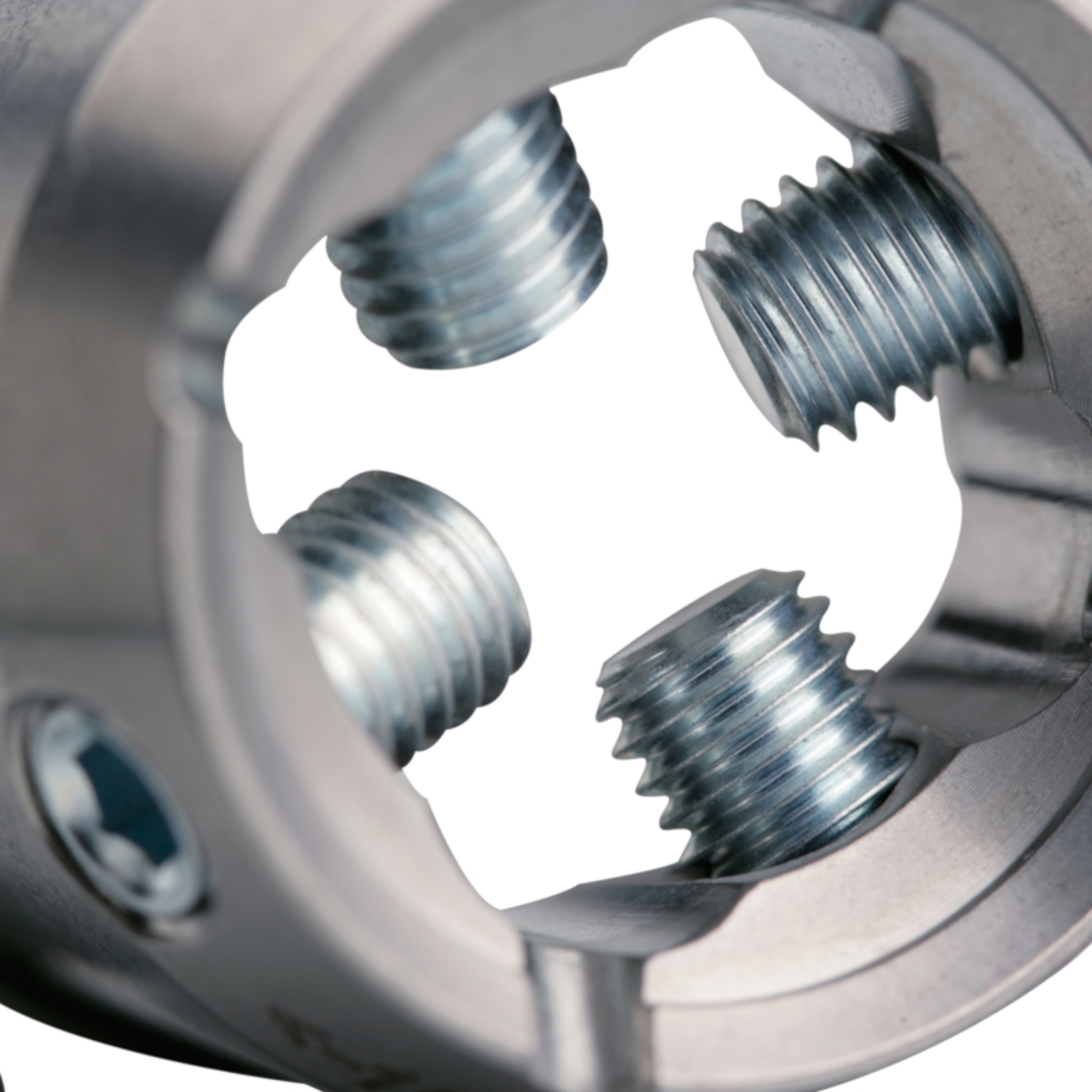

34mm Water Resistant Tube Adapter
The 34mm tube adapter is water-resistant. It has four grooves in the pyramid receiver section, which ensure that the tube is flooded when setting foot in water. The prosthesis is prevented from becoming buoyant as a result.

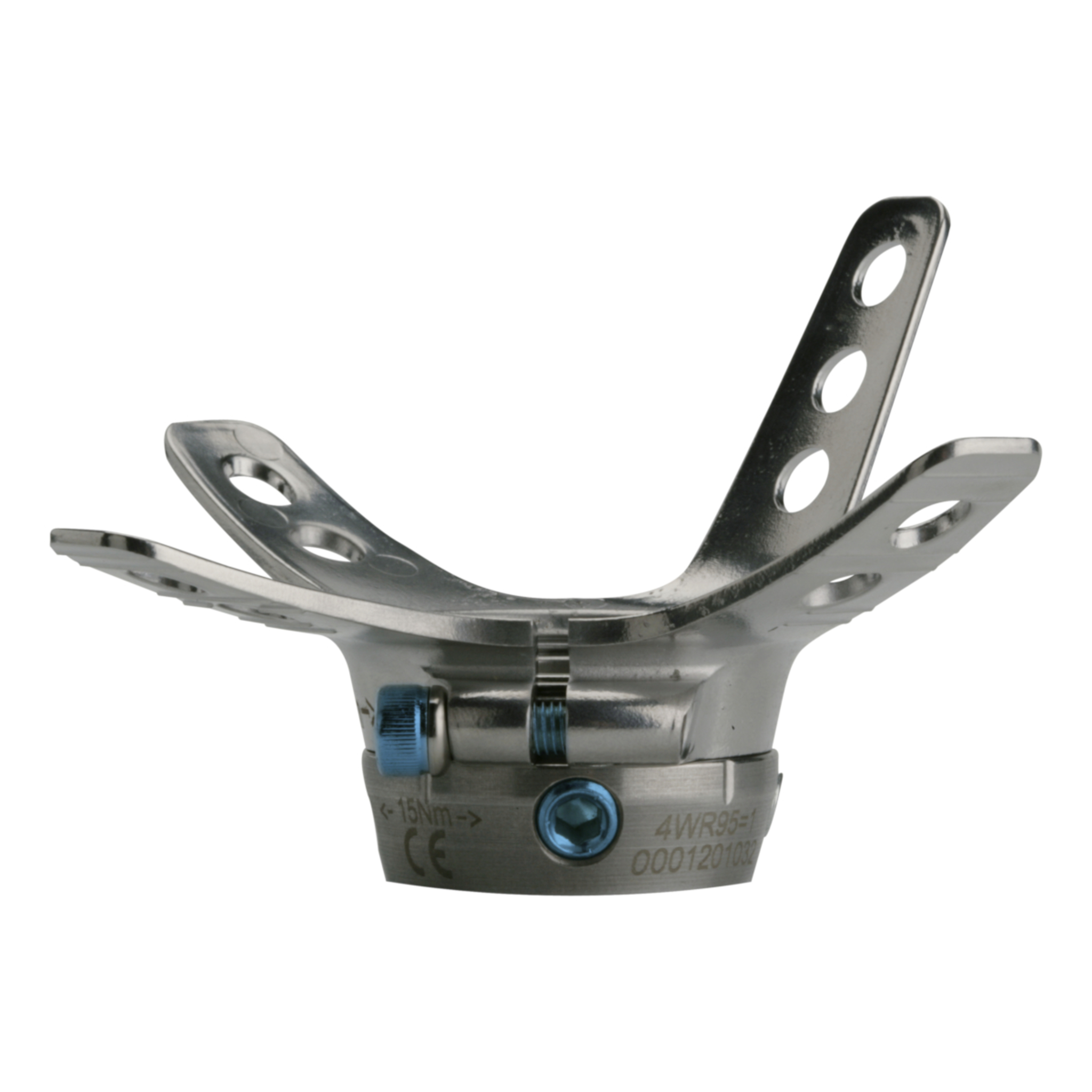

Lamination Anchor for Water Resistant Prostheses
The 4WR95=1 Lamination Anchor is water-resistant. It features a rotating pyramid receiver and an angled anchor arm, which is intended for posterior positioning. This allows easy positioning of the adapter in order to achieve optimized prosthesis alignment. The flexion position of the residual residual limb/socket is taken into account. No or only little manual bending is required.Only suitable for use in transfemoral prostheses. Use the 4X46 Lamination Dummy when laminating. It must be ordered separately.

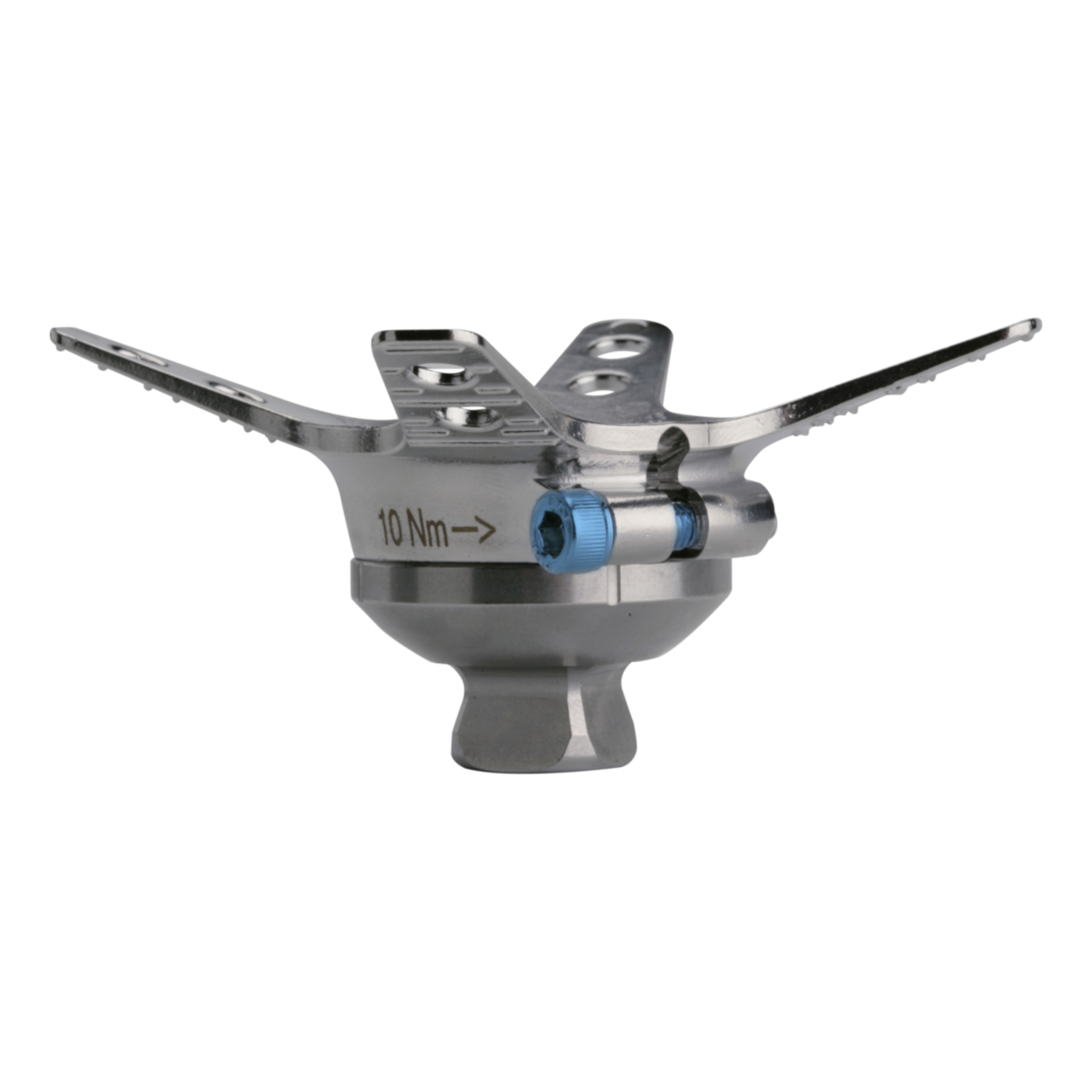

Lamination Anchor with Male Pyramid for Water Resistant Prostheses
Features a rotatable pyramid adapter.

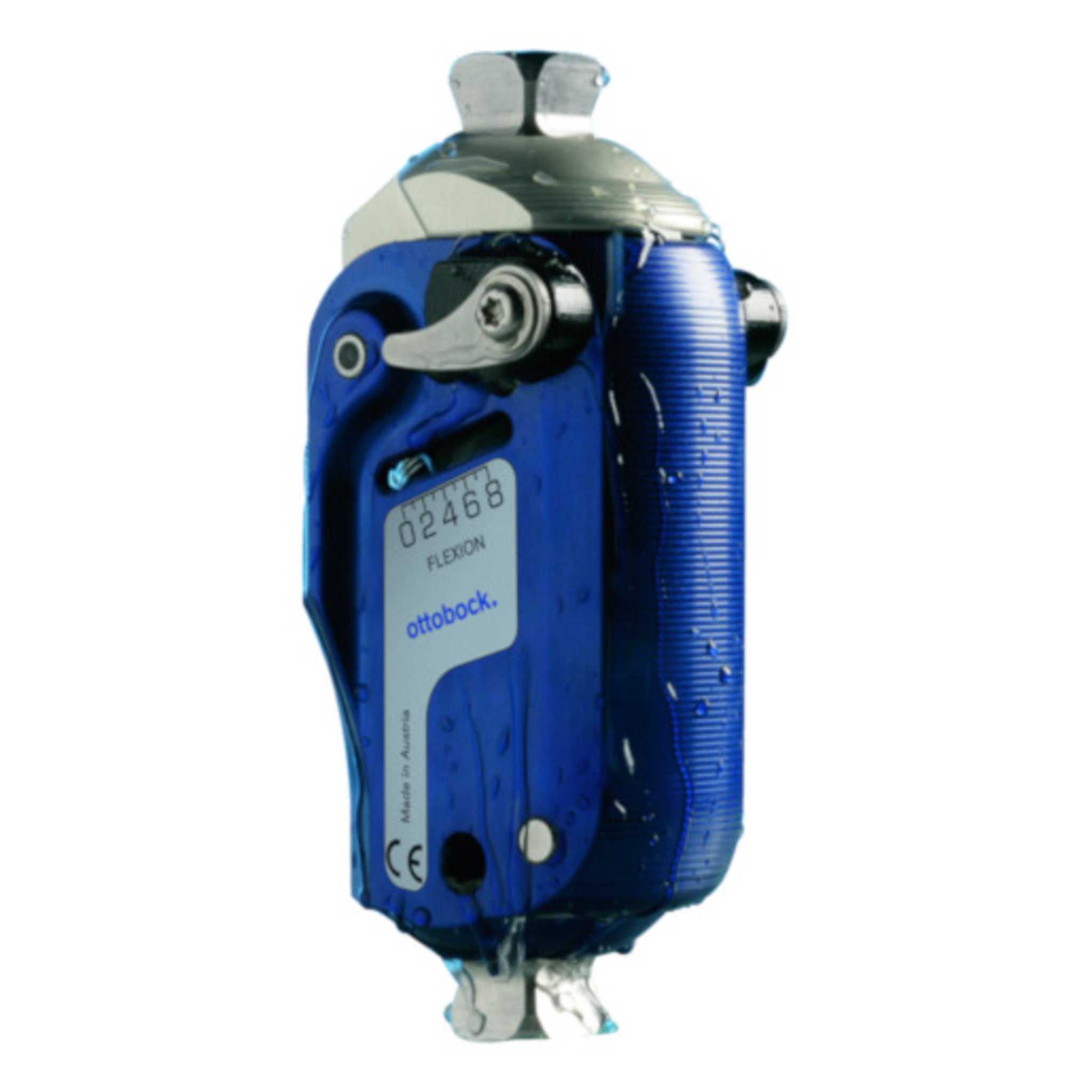

Aqua Knee
The Aqua Knee is a monocentric knee that features a lightweight design and integrated lock for stance phase control. The flood holes on the joint body make it possible for the knee joint to flood when setting foot in water and facilitate cleaning the joint.Water-resistantMiniature hydraulics based on 3R95 technologyIndividually adjustable swing phase
34mm Water Resistant Tube Adapter, Angled
The 34mm tube adapter is water-resistant and intended for use in a waterproof walking device. It has four grooves in the pyramid receiver section, which ensure that the tube is flooded when setting foot in water. It is also inclined by six degrees for alignment optimization. The prosthesis is prevented from becoming buoyant as a result.
