Aluminum Tube with Stainless-Steel Adapter
Quick Links
| Part # | Description |
|---|
Product information

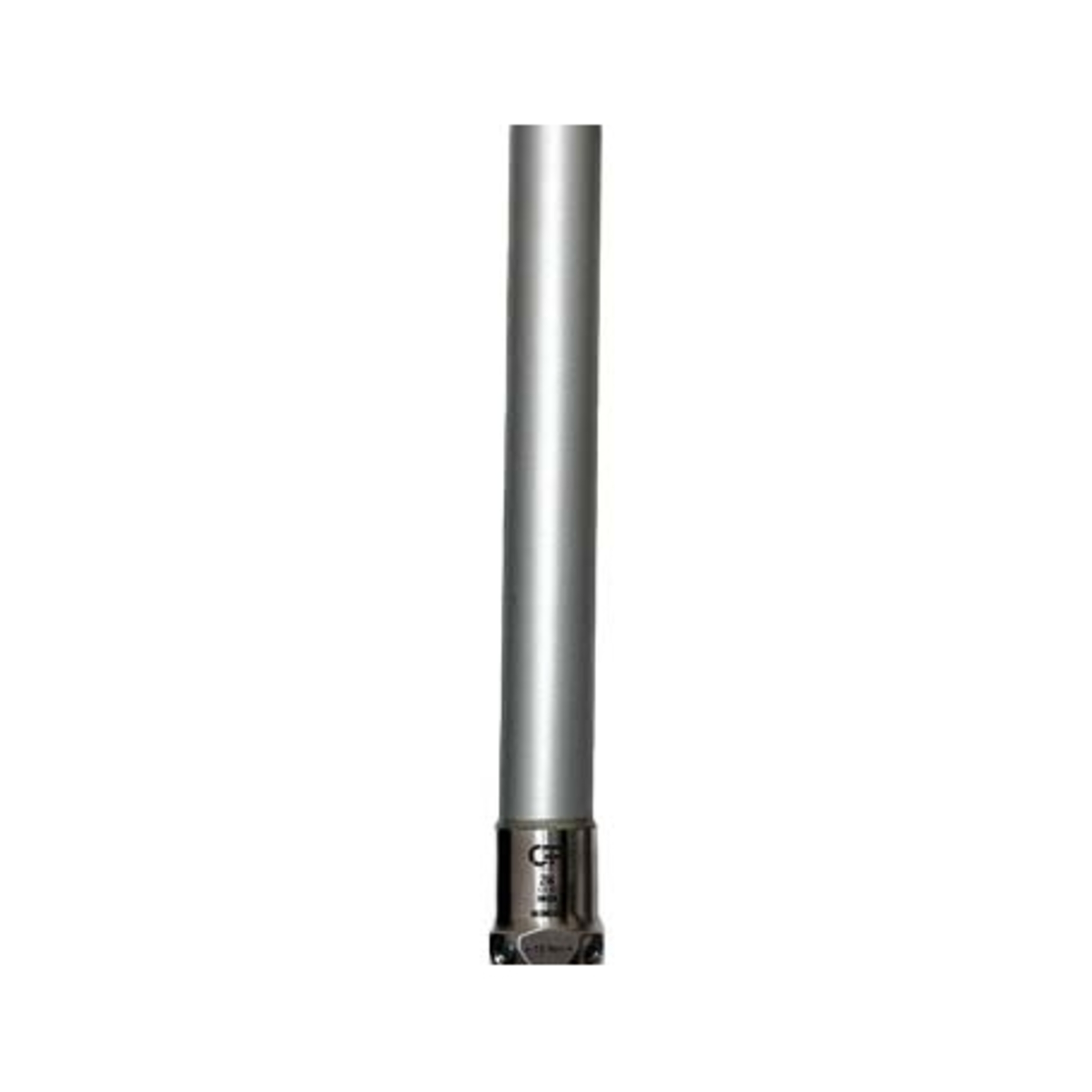

This aluminum tube, paired with a stainless-steel adapter, is specifically designed for lower extremity prostheses. The tube features a diameter of 30 mm and is available in lengths of 30 cm and 40 cm, excluding the height of the pyramidal receiver at the base.
Specifications
- Material: Aluminum, Stainless Steel
- Weight Limit: 275lbs (125kg)
- Build Height (mm): 300, 400
- Assembly Weight (g): 256, 313

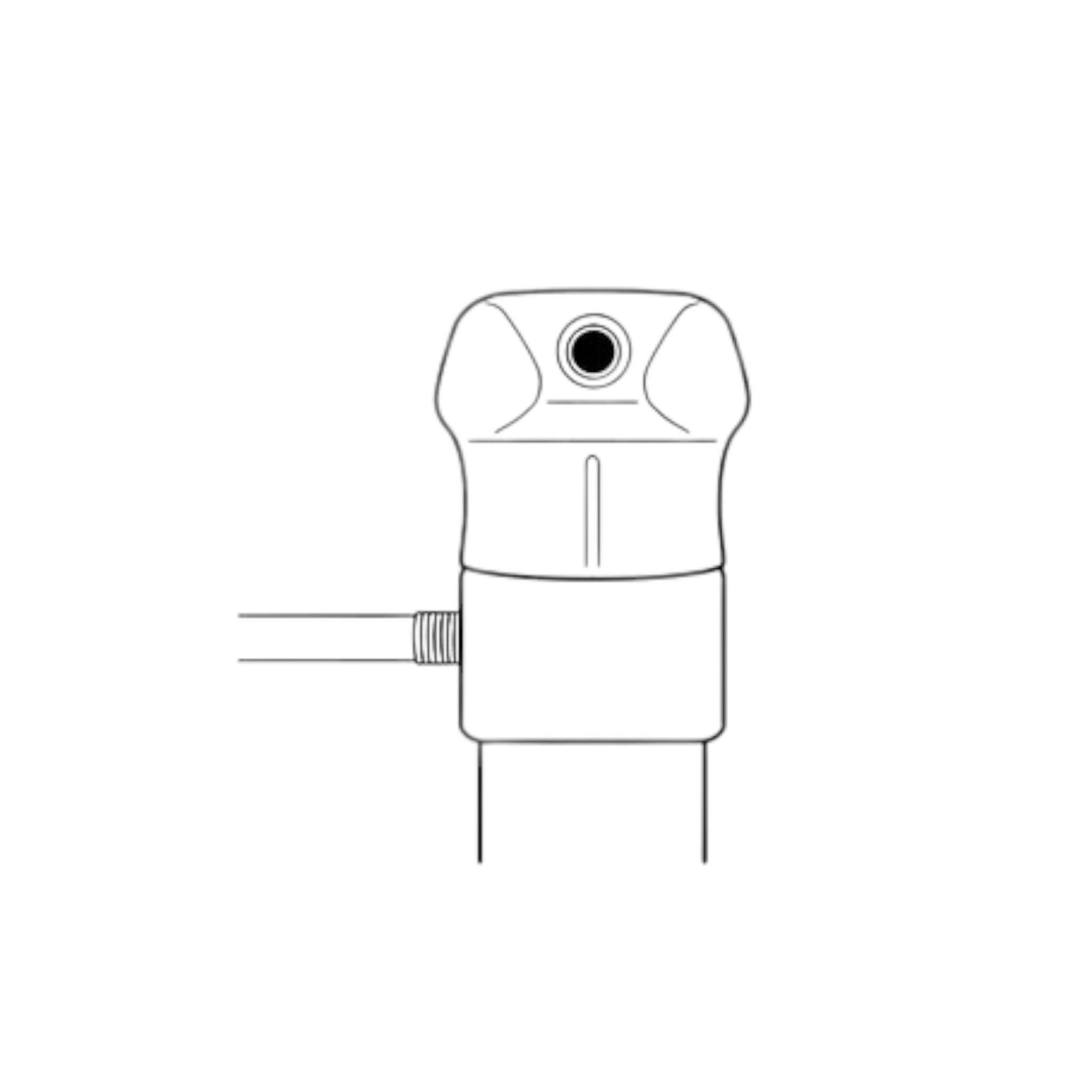

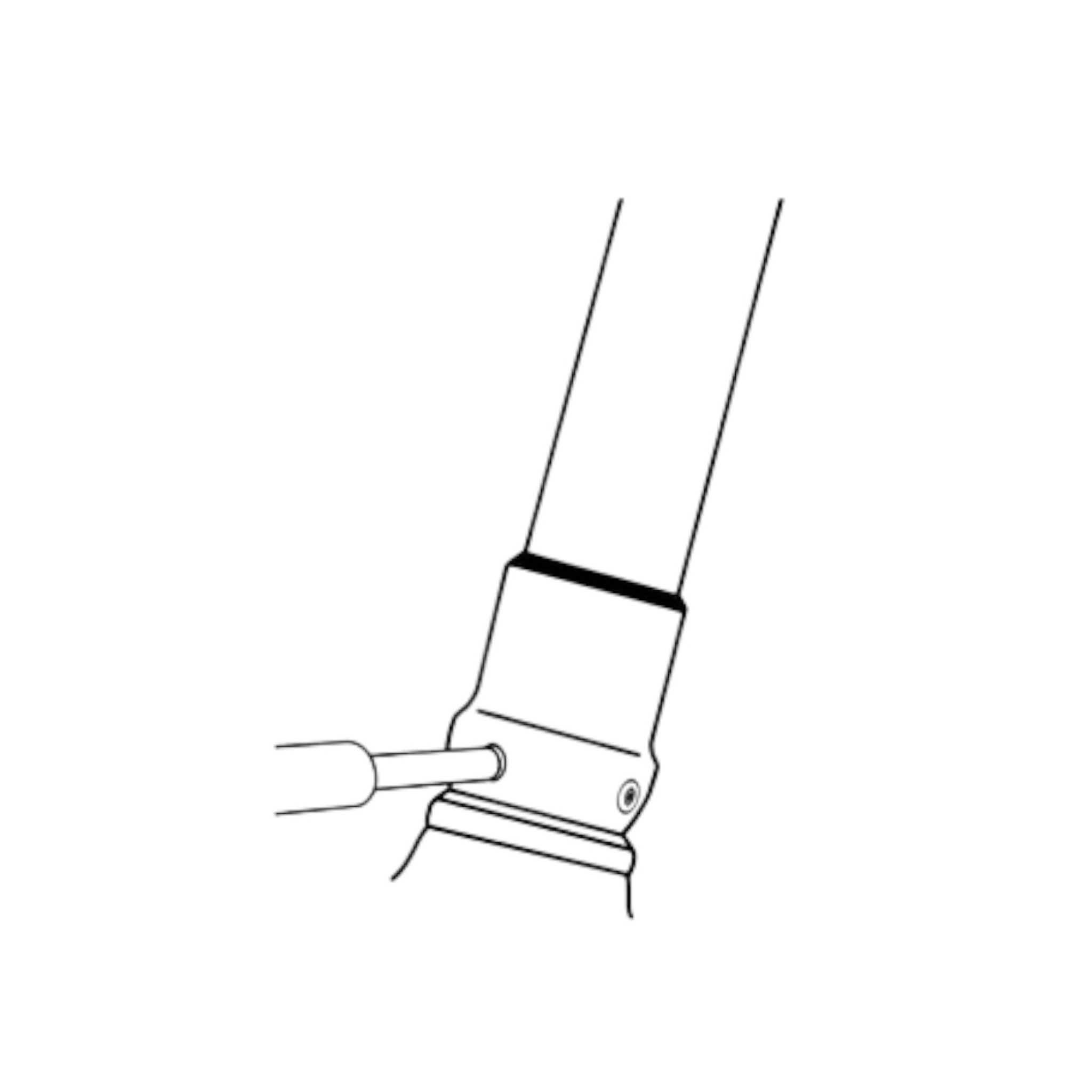

- Torque (Nm): 13 (M4 x 22 mm screw), 15 (M8 x 14 mm oppressors)
- Warranty: 1 year
| Endoskeletal Type: | Alignment Adapters, Tubing |
|---|---|
| User: | Adult |
| Weight Limit: | 45 kg (100 lbs), 100 kg (220 lbs), 125 kg (275 lbs) |
| Material: | Aluminum, Stainless Steel |
