Alpha Interlock™ Suspension System with Alpha® Lock
Quick Links
| Part # | Description |
|---|
Product information

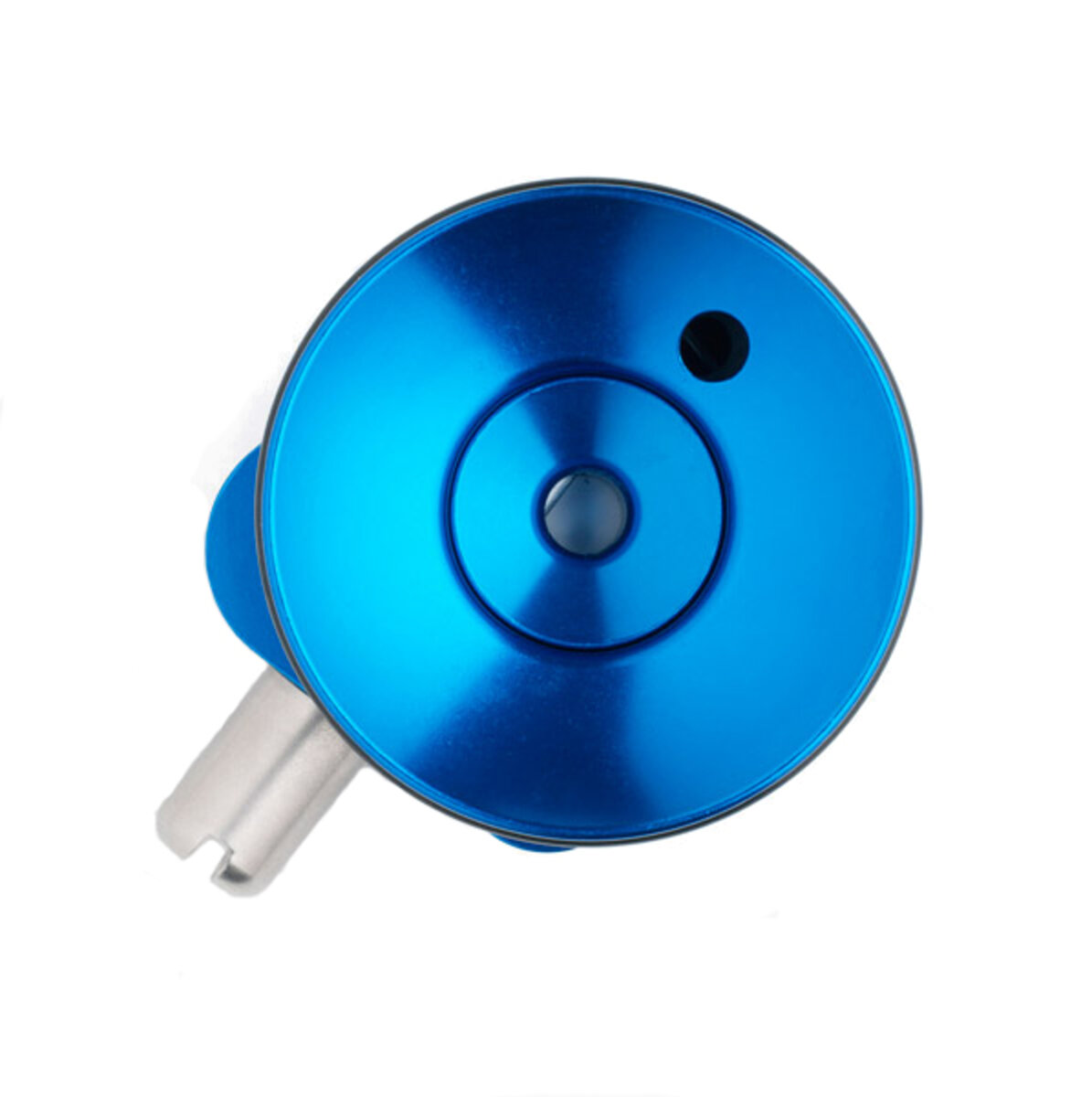

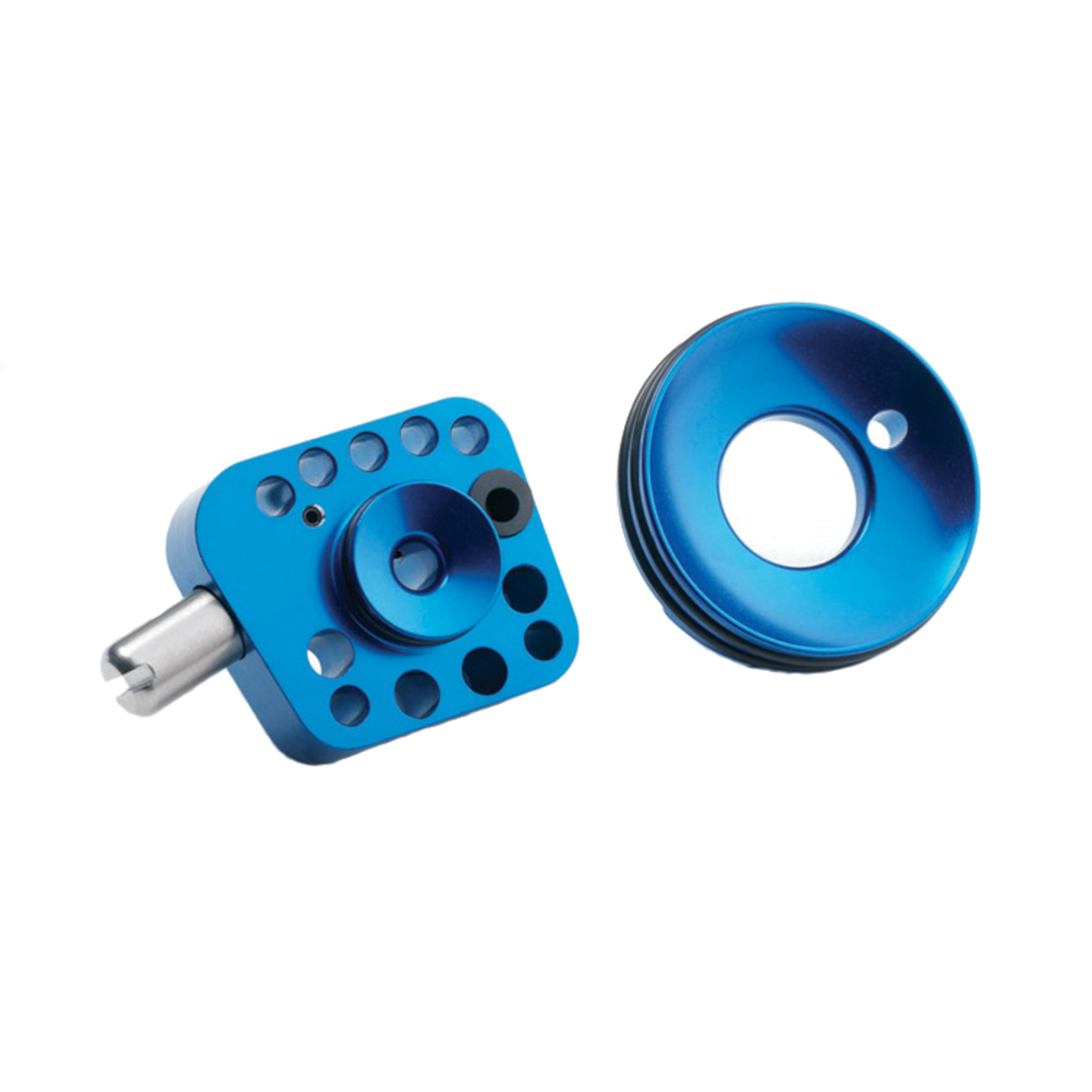

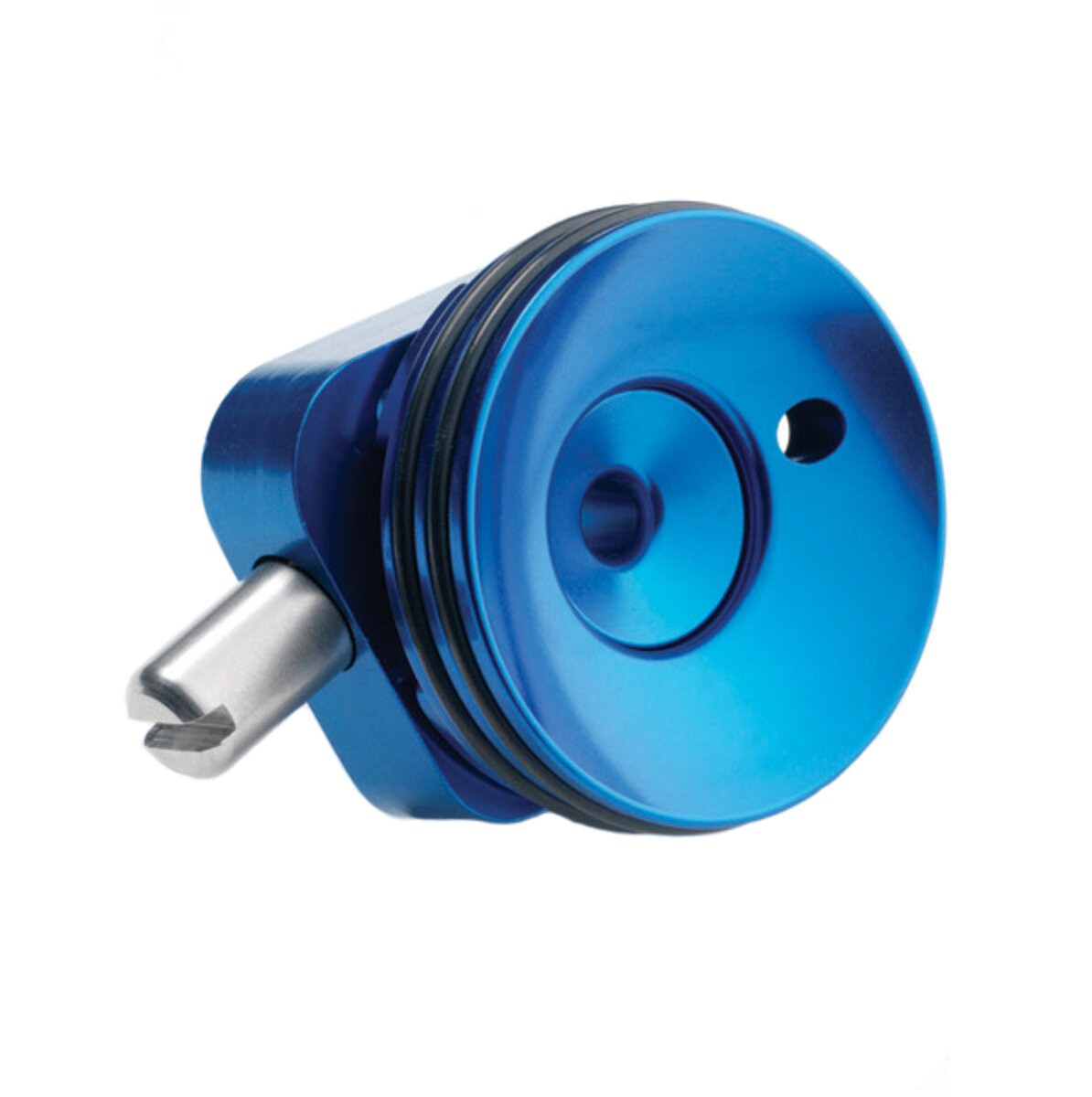

The Alpha Lock has a built-in one-way expulsion air valve which minimizes pistoning. The contoured design allows for easy pin alignment within the locking mechanism. The Alpha Interlock™ Suspension System allows you to interchange suspension methods without remaking a socket.
- Part of the Alpha Interlock™ Suspension System
- Simple fabrication process
Specifications
- Lock Type: Clutch with Valve
- Socket Material: Lamination, Thermoplastic
- Housing Material: N/A
- Amputation Level: Transfemoral, Transtibial
- Activity Level: N/A
- Weight Limit: 250lbs (115kg)
- Product Weight (g): 221 (4-Hole), 277 (Male Pyramid)
- Build Height (mm): N/A
- Distal Attachment: 4-Hole, Male Pyramid
- Warranty: 12 months from fit date
| HCPCS: | L5671 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Suspension Type: | Locks |
| Fabrication Technique: | Lamination, Thermoplastic |
| Key Features: | Exclusive Distributor |
| Weight Limit: | 100 kg (220 lbs) |
Frequently Bought Together

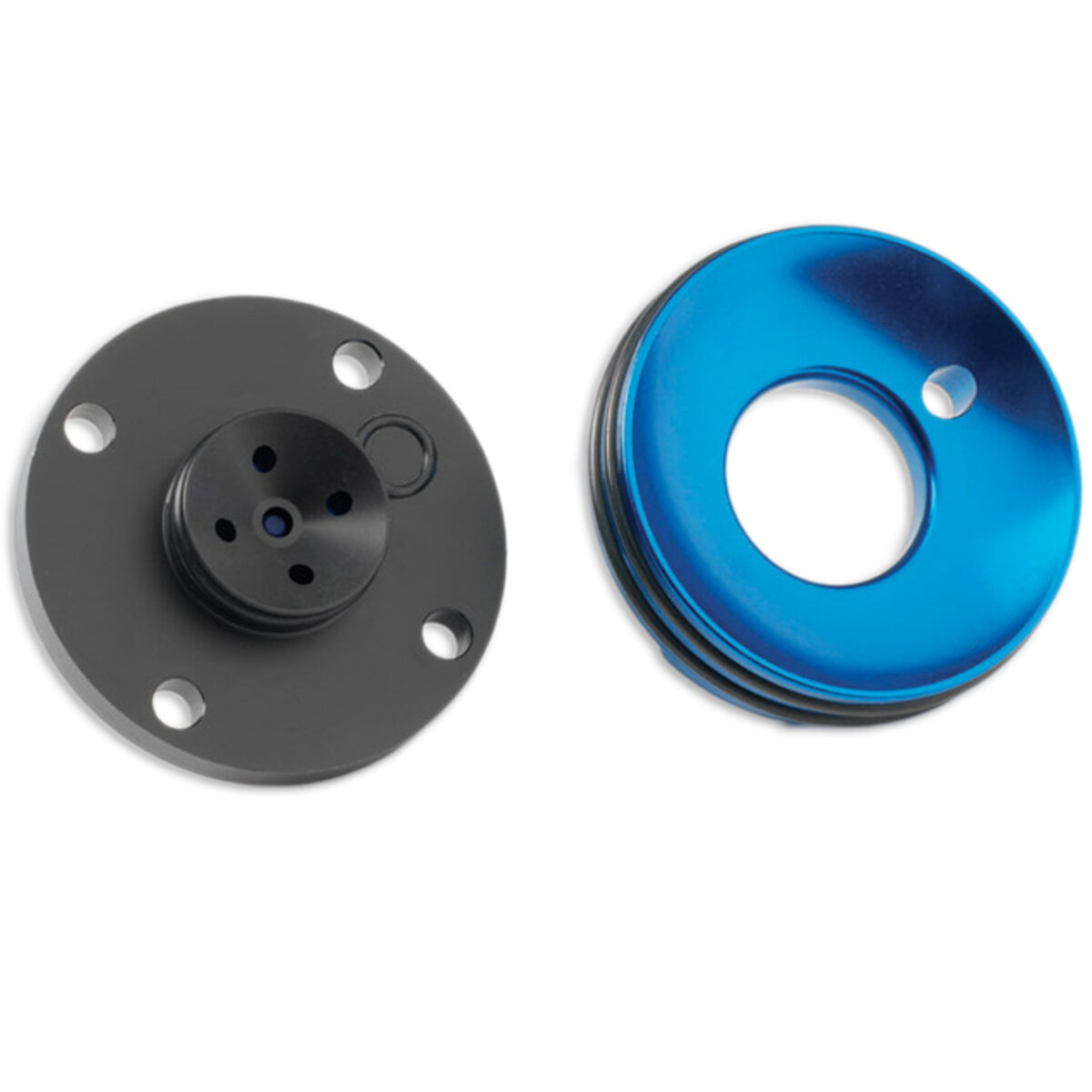

Alpha® Suction Insert
The Suction Insert is a lightweight suction device that is easy to fabricate into a socket by using a common distal adapter. The suction insert is part of the Alpha Interlock Suspension System. This system allows you to interchange suspension methods from suction to locking without remaking a socket.Quickly and quietly expels large volume of airRated up to 250lbs (115kg)
Alpha Interlock™ Suspension Kit
The Alpha Interlock™ Suspension System Kit includes: an Alpha® Lock, Alpha® Lanyard, and a Suction Insert.
