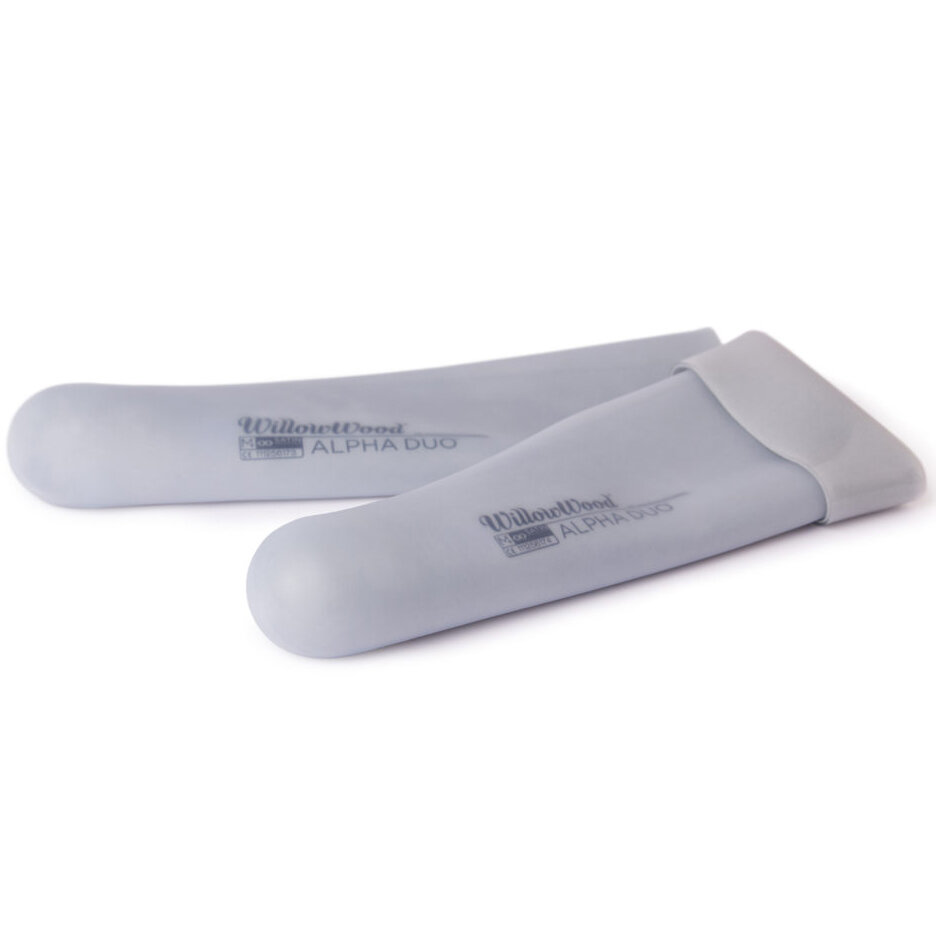

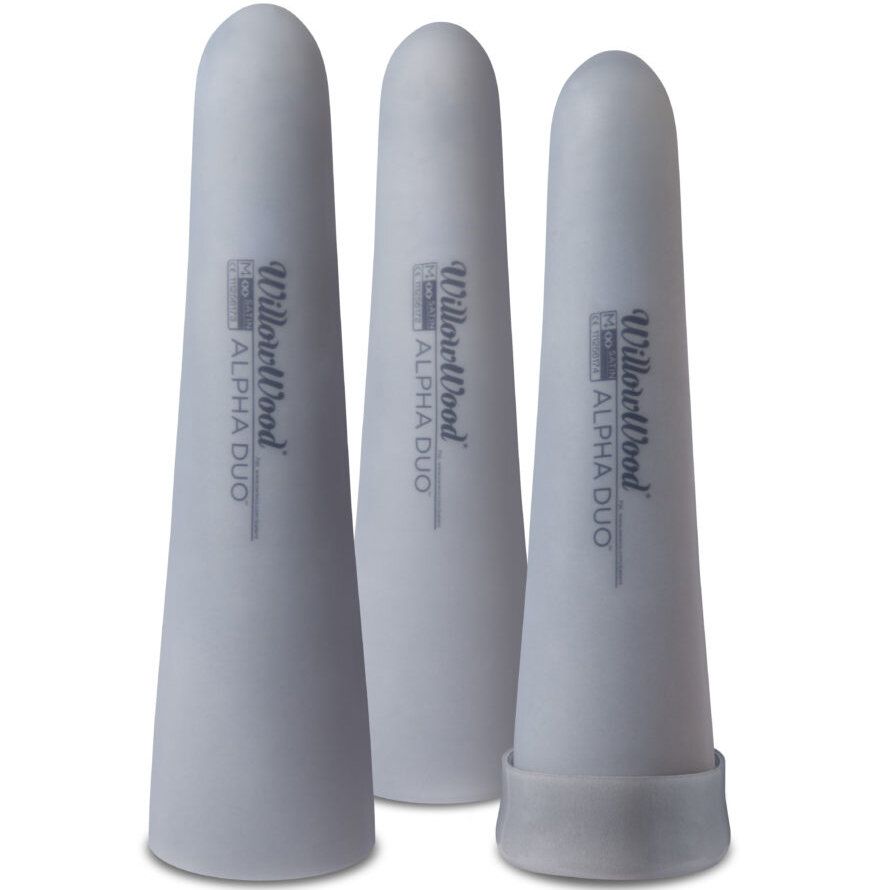

Alpha Duo® Liner
Quick Links
| Part # | Description |
|---|
Product information

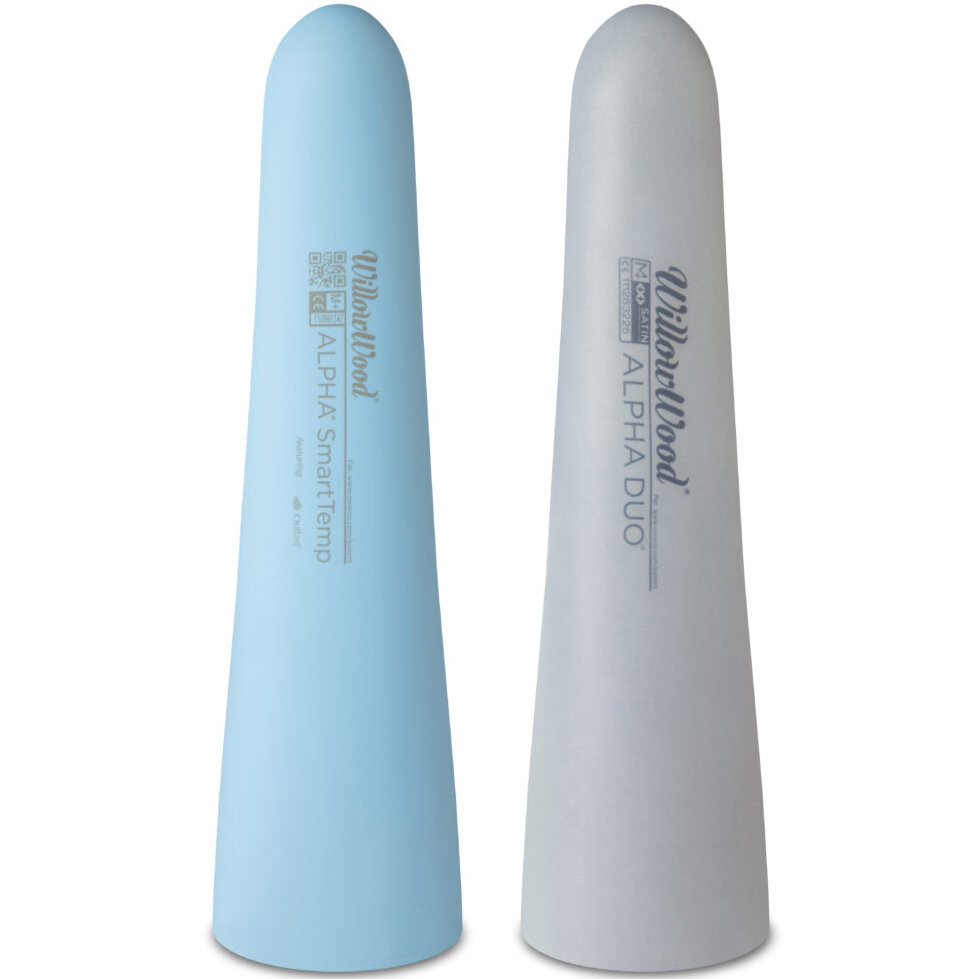

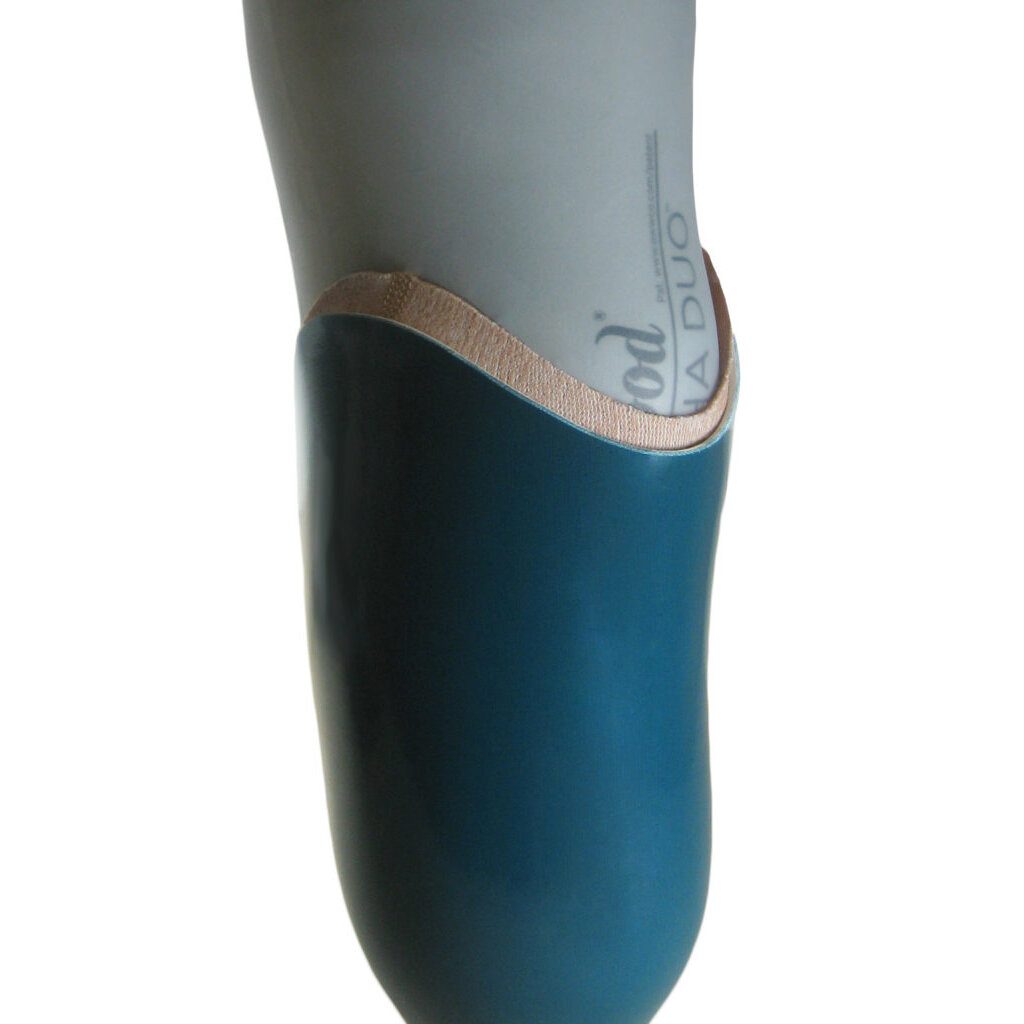

The Alpha Duo Liner was designed for transtibial or transfemoral use with suction suspension or elevated vacuum. Inside the Alpha Duo Liner is skin-friendly Alpha Classic gel, while Alpha Silicone covers the liner exterior providing durability and protection. The liner retrofits with the fabricless Alpha SmartTemp® Liner used in the l WillowWood One® TF system.
- Mineral-oil based Alpha Classic gel contains Vitamin E
- Symmetrical profile allows for liner rotation and extends the life of the liner

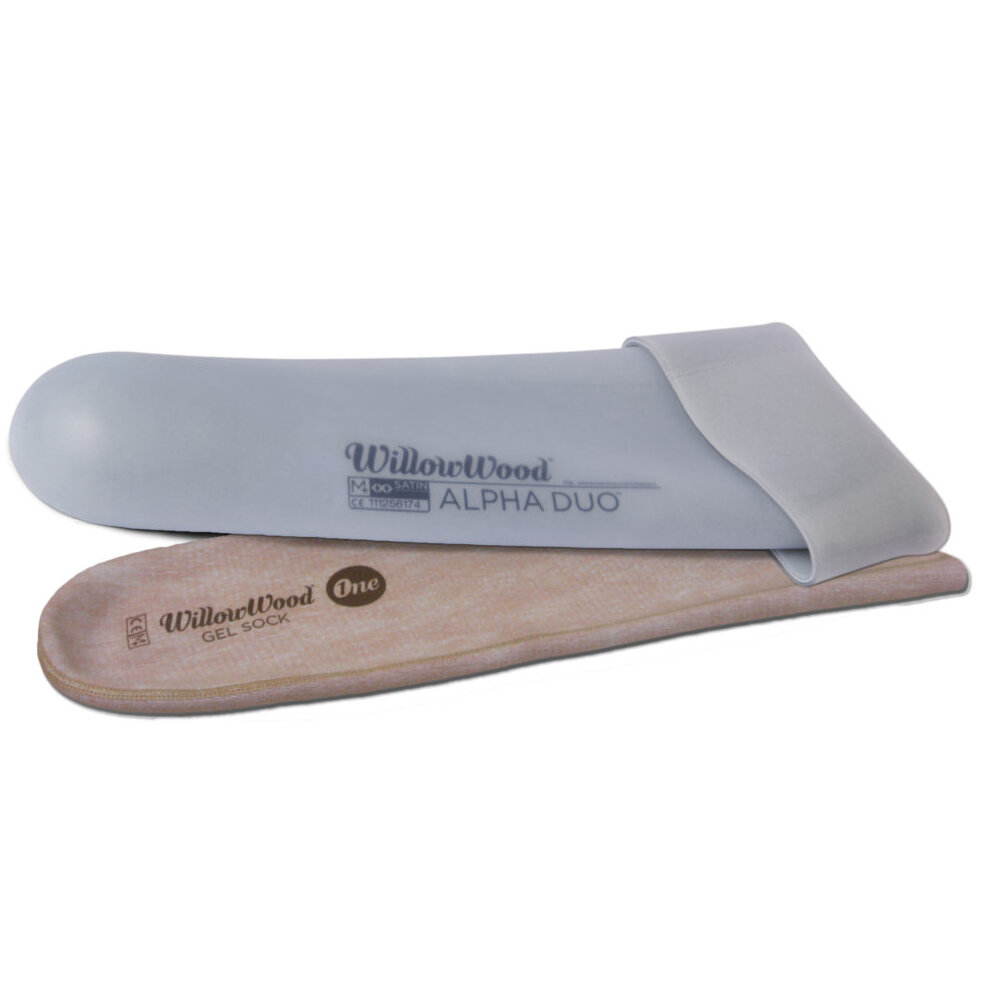

- One Gel Sock is included with each liner
Specifications
- Amputation Level: Transtibial, Transfemoral
- Activity Level: K1, K2, K3, K4
- Type: Cushion
- Material: Silicone, Thermoplastic Elastomer
- Cover: Uncovered

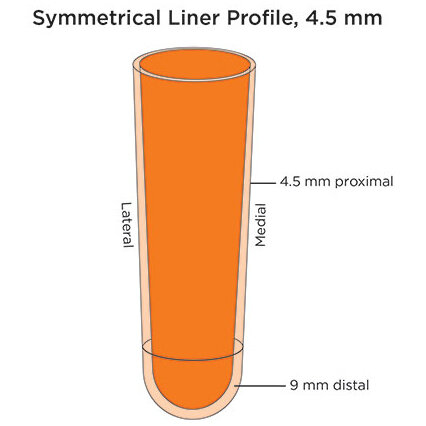

- Profile: Symmetrical
- Style: Standard
- Color: Dark Gray, Satin finish
- Thickness (mm): 4.5 (Uniform)
- Sizes (cm): M-XL
- Trial Period: 30 days from fit date
- Warranty: 12 months from fit date
| HCPCS: | L5679, L8417 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Transtibial (TT/BK) |
| Activity Level: | K1 (Low), K2 (Moderate), K3 (High), K4 (Very High) |
| Liner Type: | Cushion |
| Liner Style: | Standard |
| Liner Thickness: | 4 mm (5/32 in) |
| Liner Profile: | Symmetrical |
| Key Features: | Exclusive Distributor |
| Material: | Thermoplastic Elastomer (TPE/Gel) |
