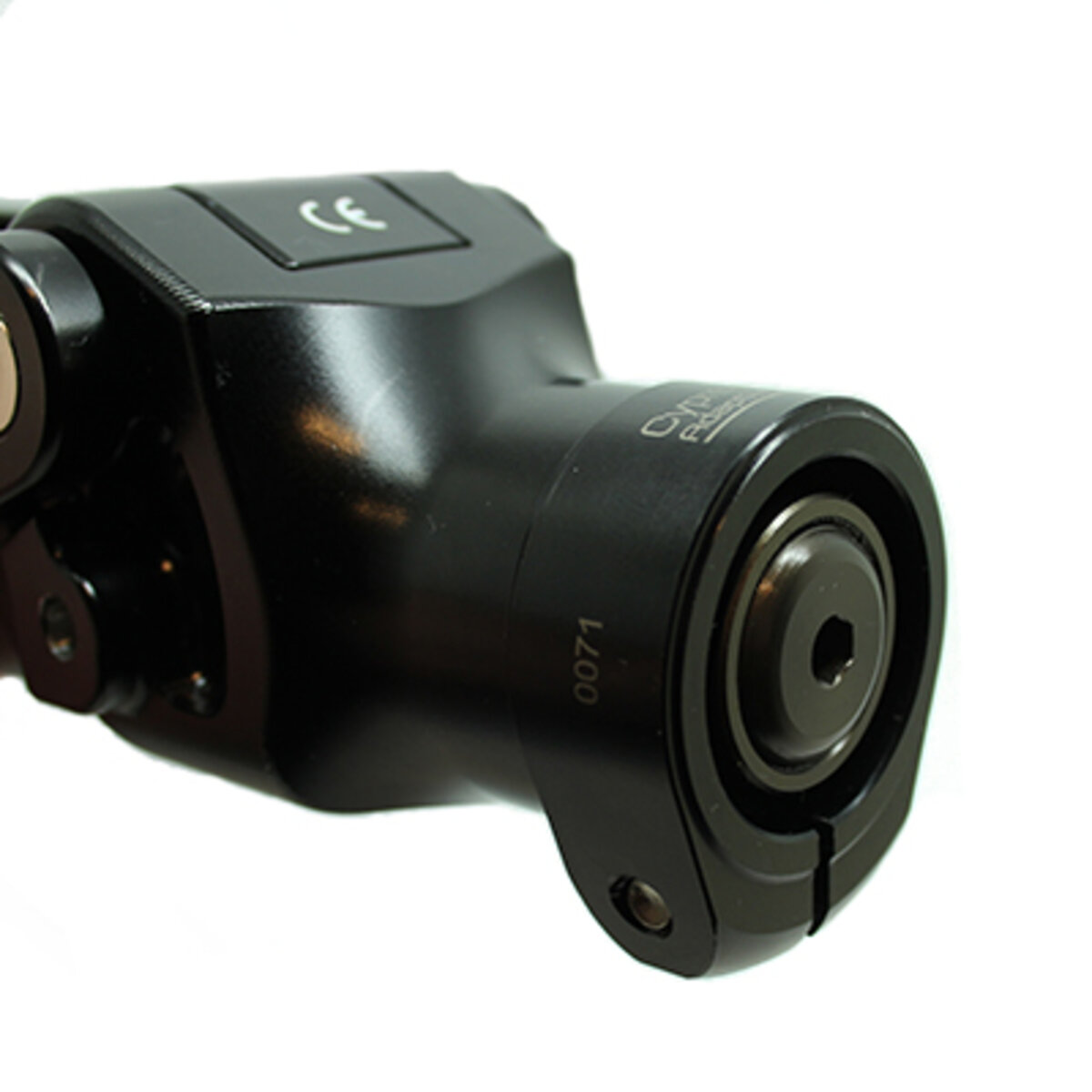

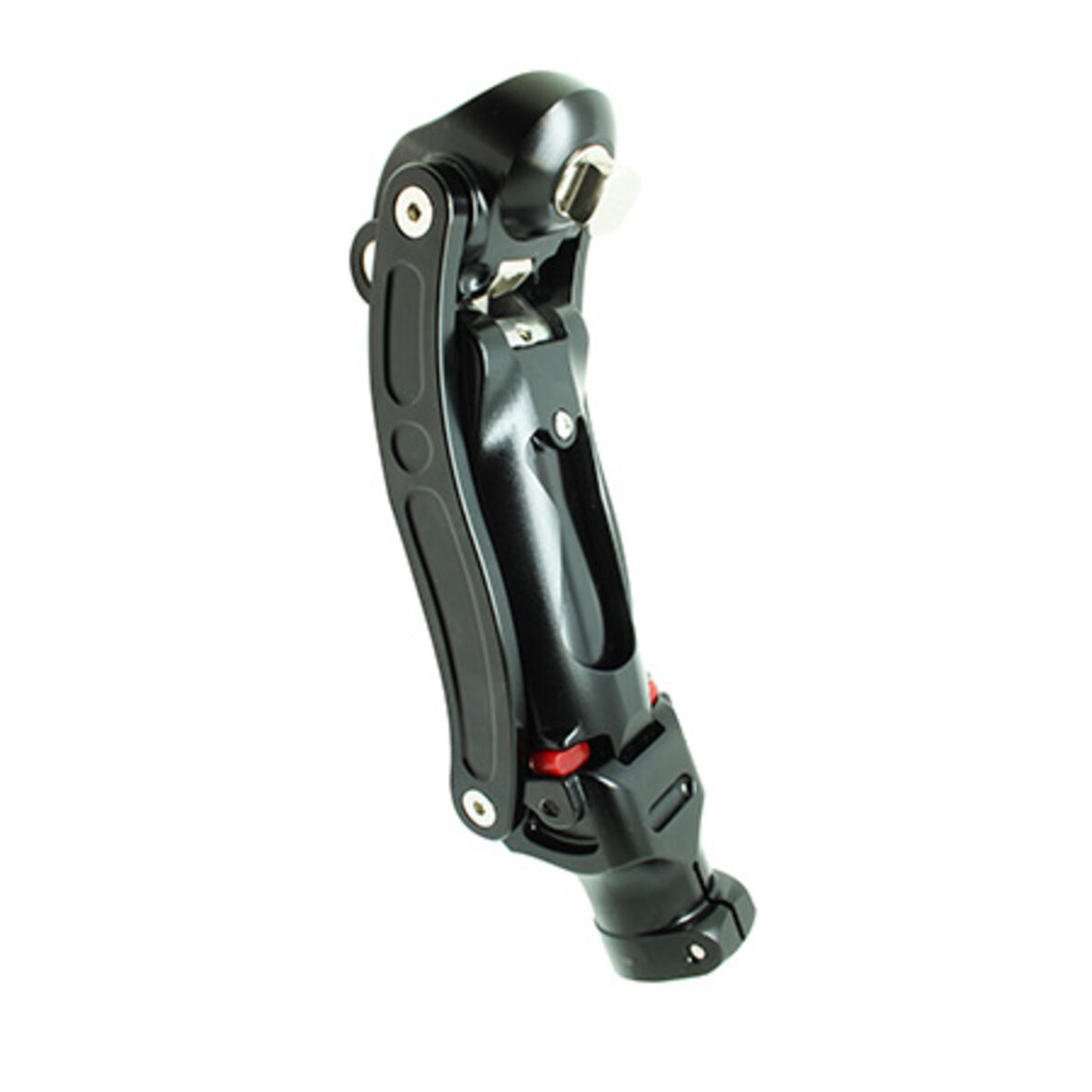

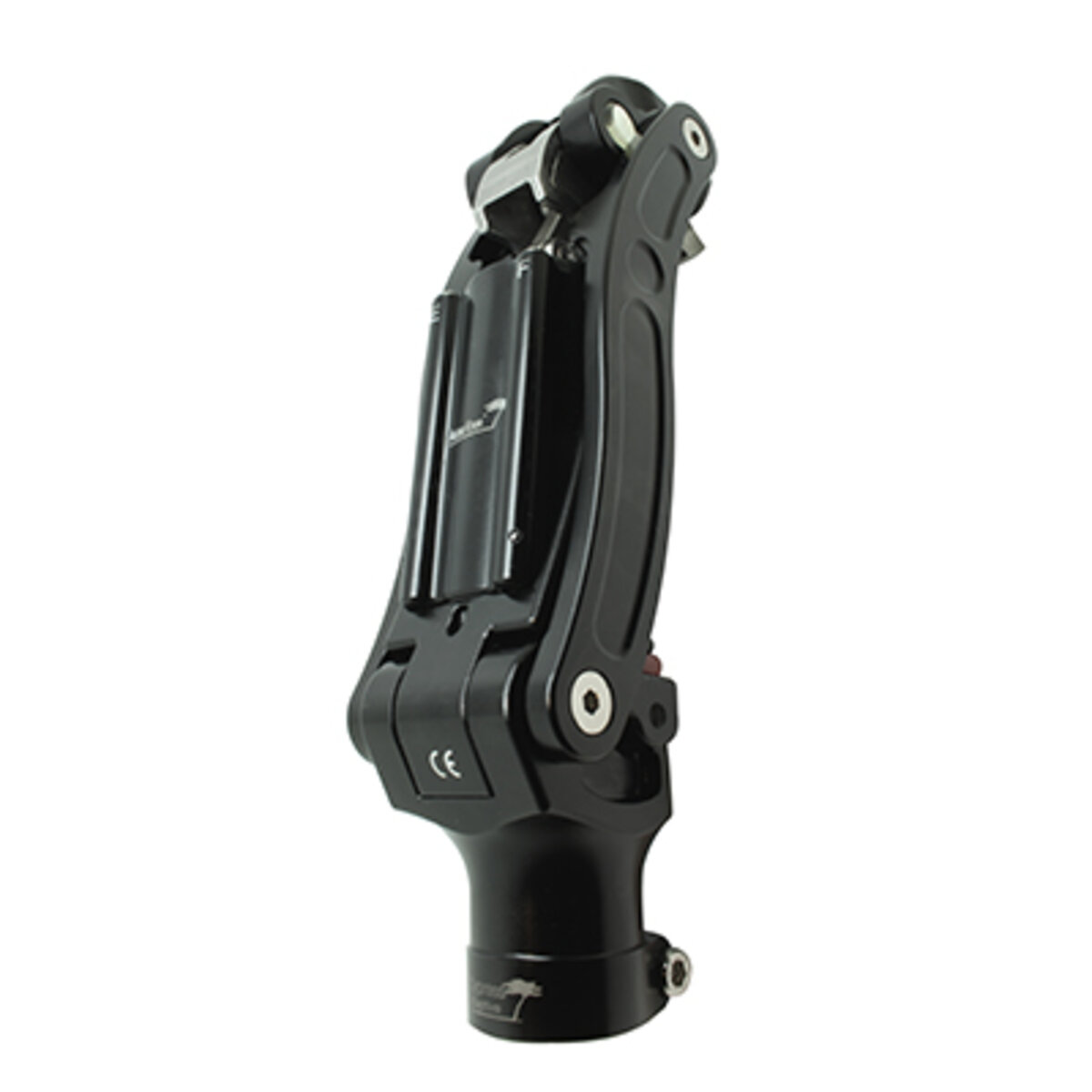

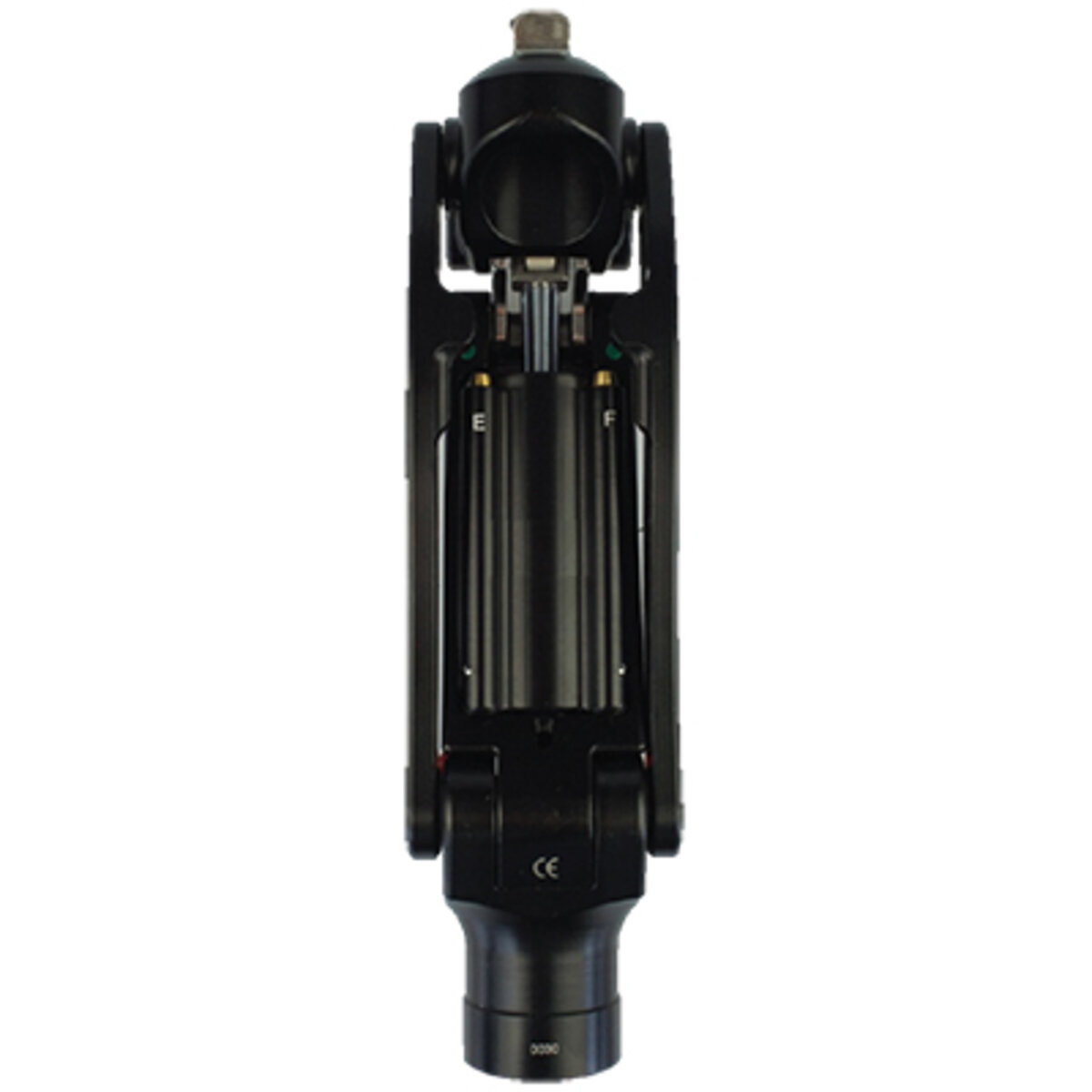

The Actua Knee™ is a polycentric pneumatic knee joint with stance flexion The stance flexion function can be fine-tuned to ensures optimal comfort during loading. The patented horizontal hydraulic cylinder contributes to the knee’s compact size.
- Adjustable swing performance, extension and flexion
- Non-adjustable spring extension assist
- Long steering knuckles ensure high stability
- High degree of knee flexion
Specifications
- Activity Level: K3
- Knee Design Type: Multi-Axial 4-Bar Linkage, Pneumatic Swing Control
- Axis: Polycentric
- Swing Phase: Pneumatic
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 1035
- Maximum User Weight: 300lbs (136kg)
- Maximum Knee Flexion Angle: 147 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Tube Clamp
- Trial Period: 30 days from delivery date
- Warranty: 24 months from delivery date
- Build Height: 181mm
