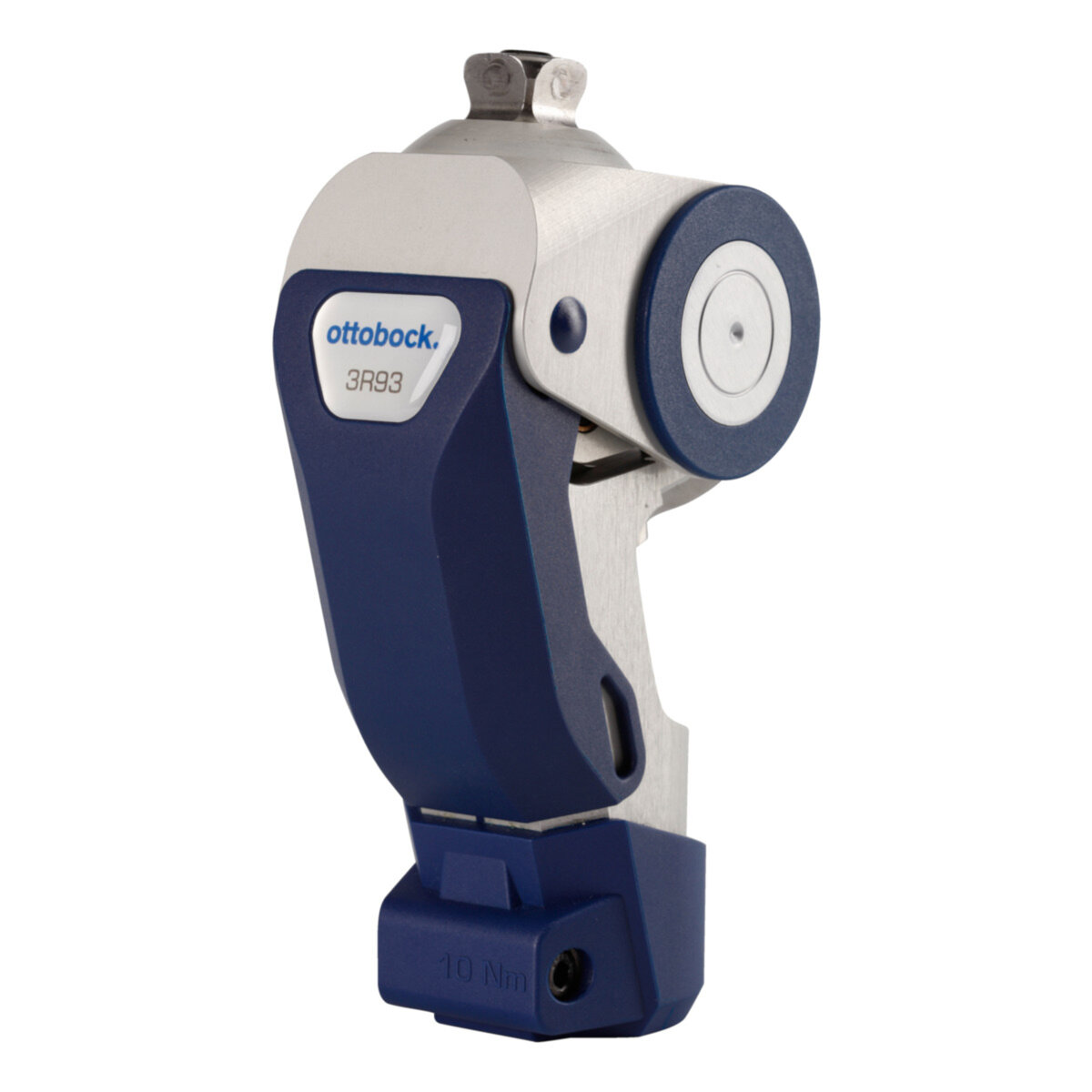

3R93 Modular Brake Knee with Lock
Quick Links
| Part # | Description |
|---|
Product information
The 3R93 Modular Brake Knee features a load-dependent brake mechanism and an optional locking function. It has an integrated, adjustable extension assist springs that control the swing phase.

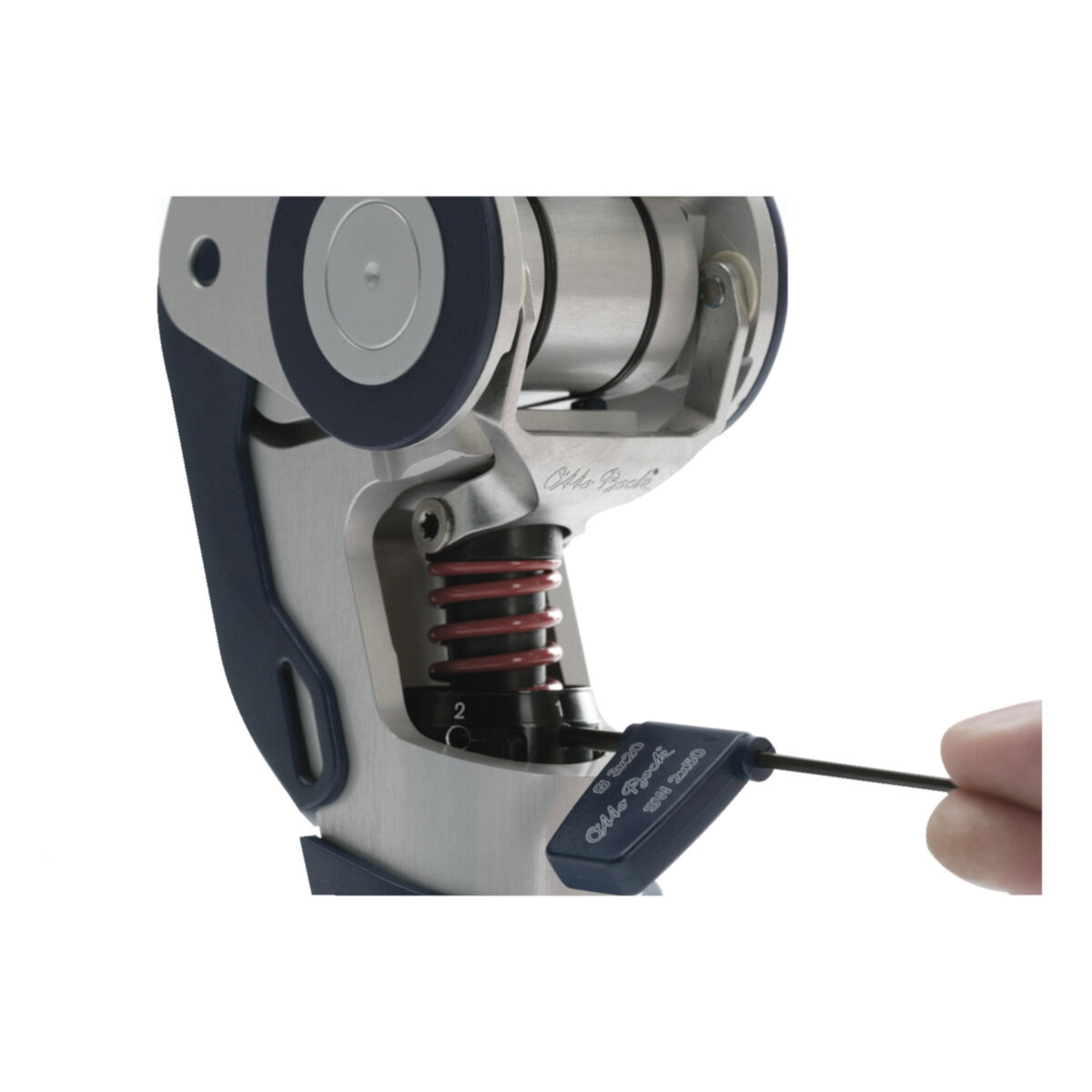

- Braking and stance flexion action can be easily adjusted
- User pulls on a cable to release the joint
- Not suitable for bilateral transfemoral amputees
- Includes 710H10=2X3 Adjustment Wrench and 4F18=N Lock Slide, Complete
Specifications
- Activity Level: K1, K2
- Knee Design Type: Single Axis, Friction Swing and Stance Phase Control
- Axis: Single Axis
- Swing Phase: Friction
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 760
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 130 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
| HCPCS: | L5812, L5845, L5850, L5925 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK) |
| Activity Level: | K1 (Low), K2 (Moderate) |
| Swing Phase: | Friction |
| Stance Phase: | Friction |
| Axis Type: | Single Axis |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Tube Clamp |
| Material: | Aluminum |
Frequently Bought Together
Rotation Adapter with Threaded Top
The rotation adapter allows the lower leg to rotate medially or laterally relative to the socket when the knee is flexed. The rotating mechanism is activated through pressing of the release button and is locked automatically. The rotation adapter is equipped with a proximal thread.

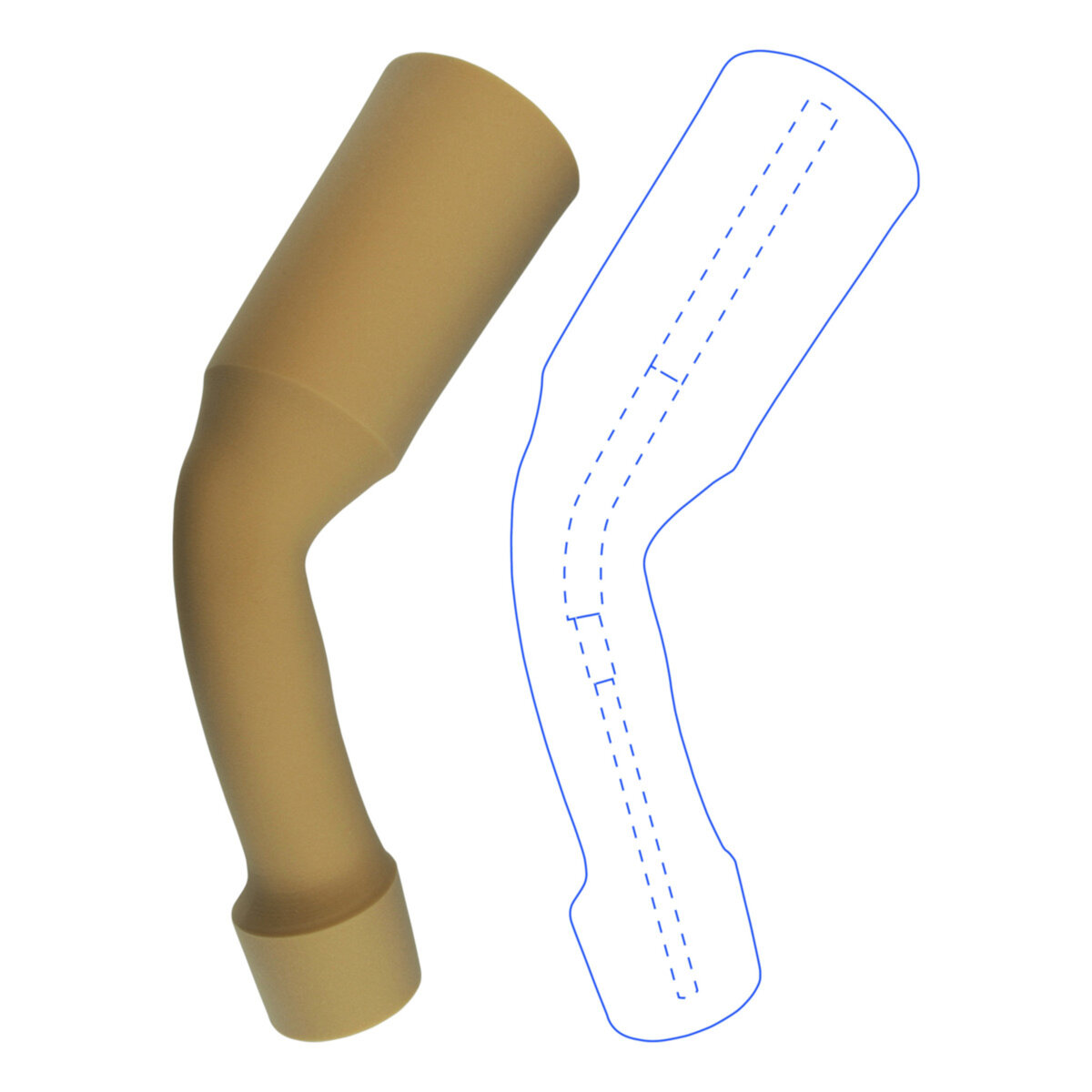

3S107 Foam Cover, Pre-Shaped
Features a pre-shaped design and stepped center hole for modular transfemoral prostheses.For knee joints: 3R106, 3R106=ST, 3R106=HD, 3R60, 3R60=ST, 3R60=HD, 3R60-PRO, 3R60-PRO=ST, 3R60-PRO=HD, 3R72, 3R80, 3R90, 3R92 (also for 3R60=KD, 3R106=KD).
Rotation Adapter with Pyramid
The rotation adapter allows the lower leg to rotate medially or laterally relative to the socket when the knee is flexed. The rotating mechanism is activated through pressing of the release button and is locked automatically. The rotation adapter is equipped with a proximal pyramid adapter.

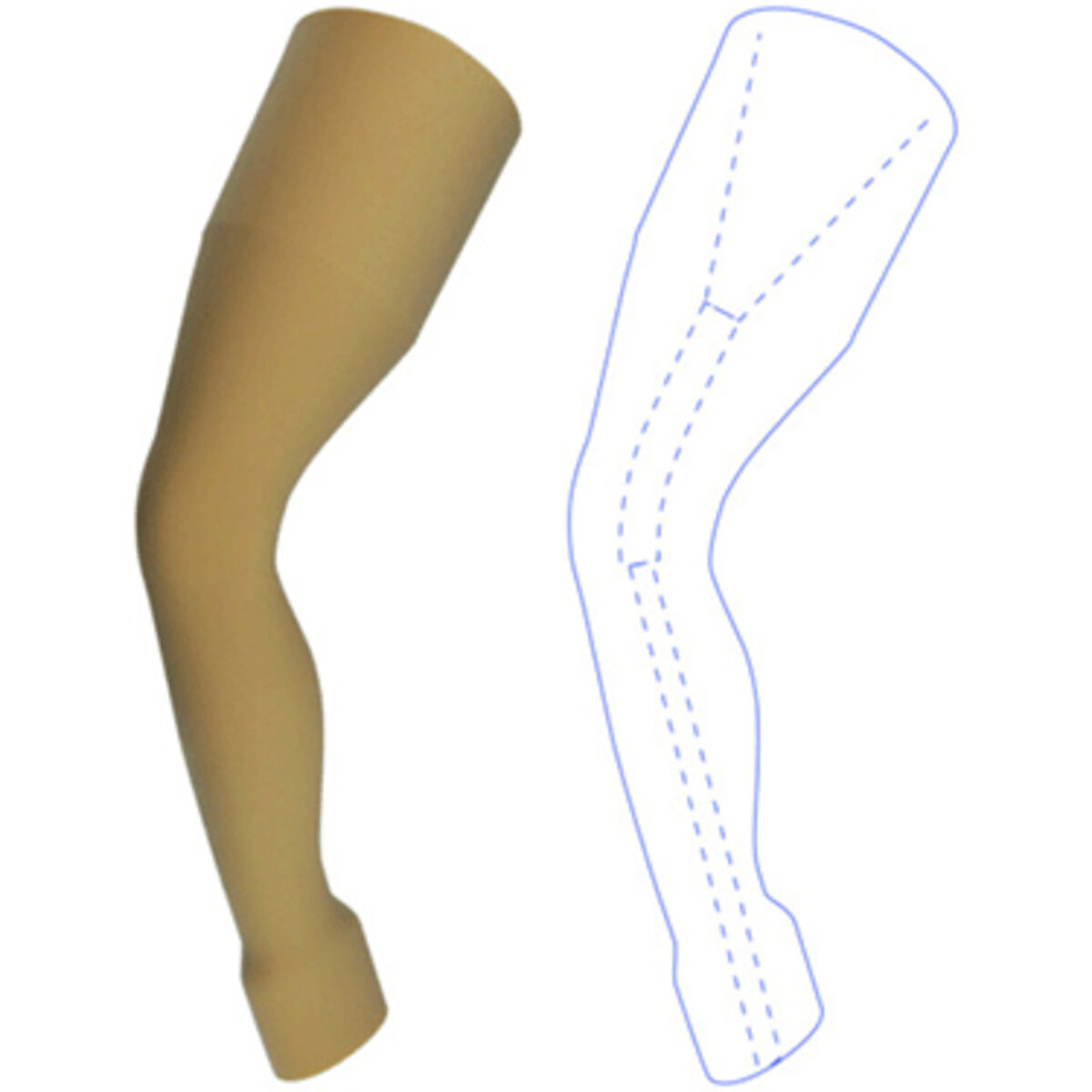

3S106 Pre-Shaped Cored Flexed Above Knee Cover
