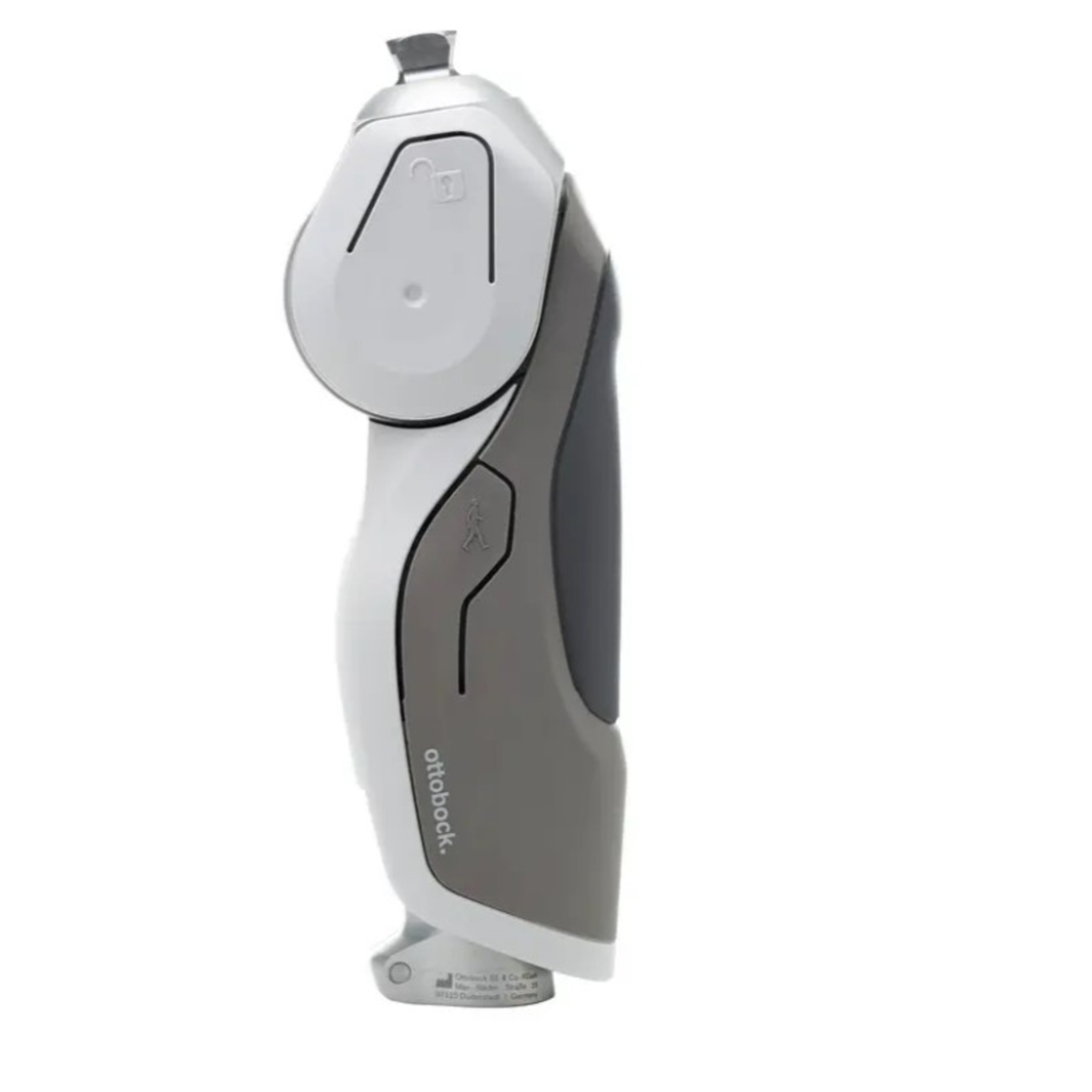

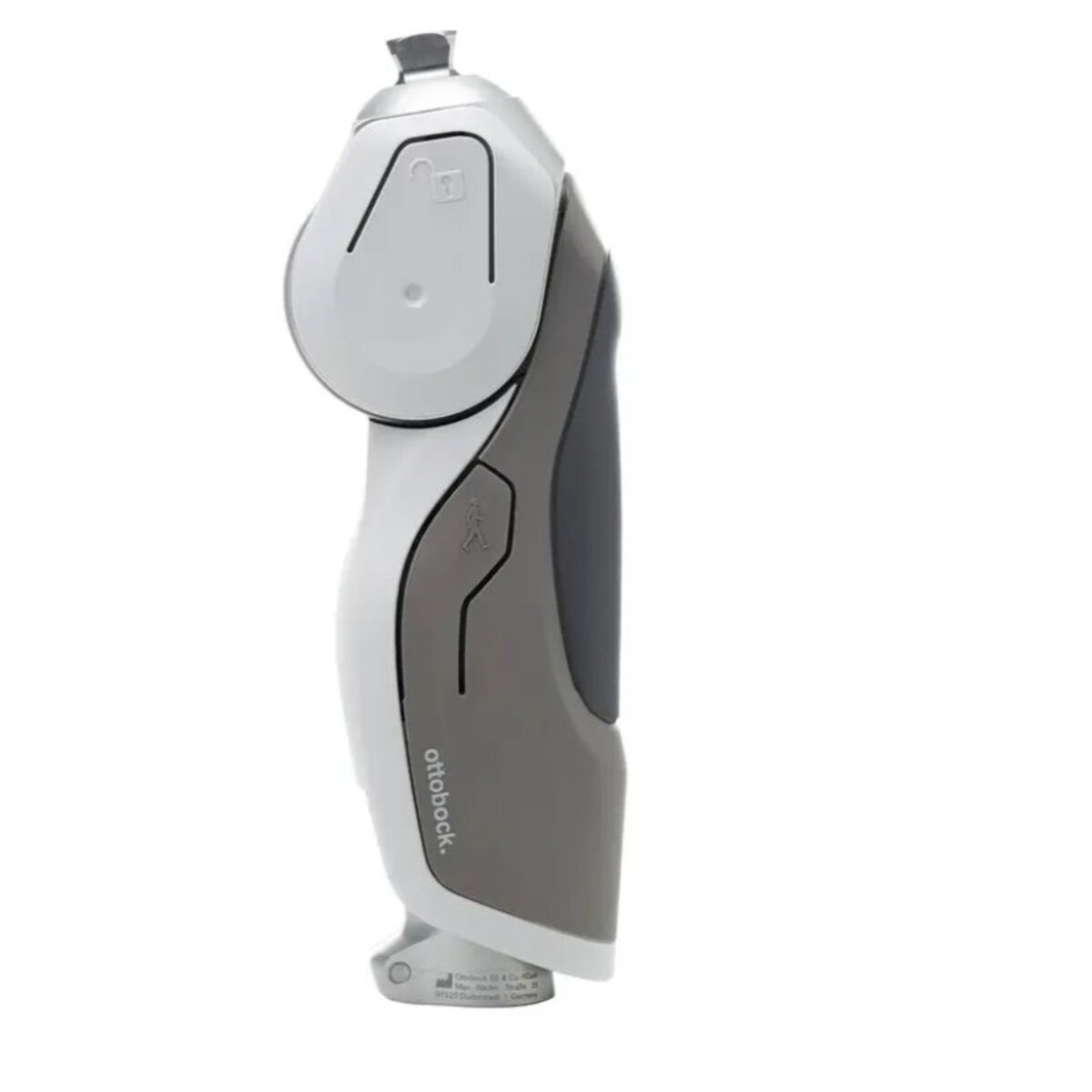

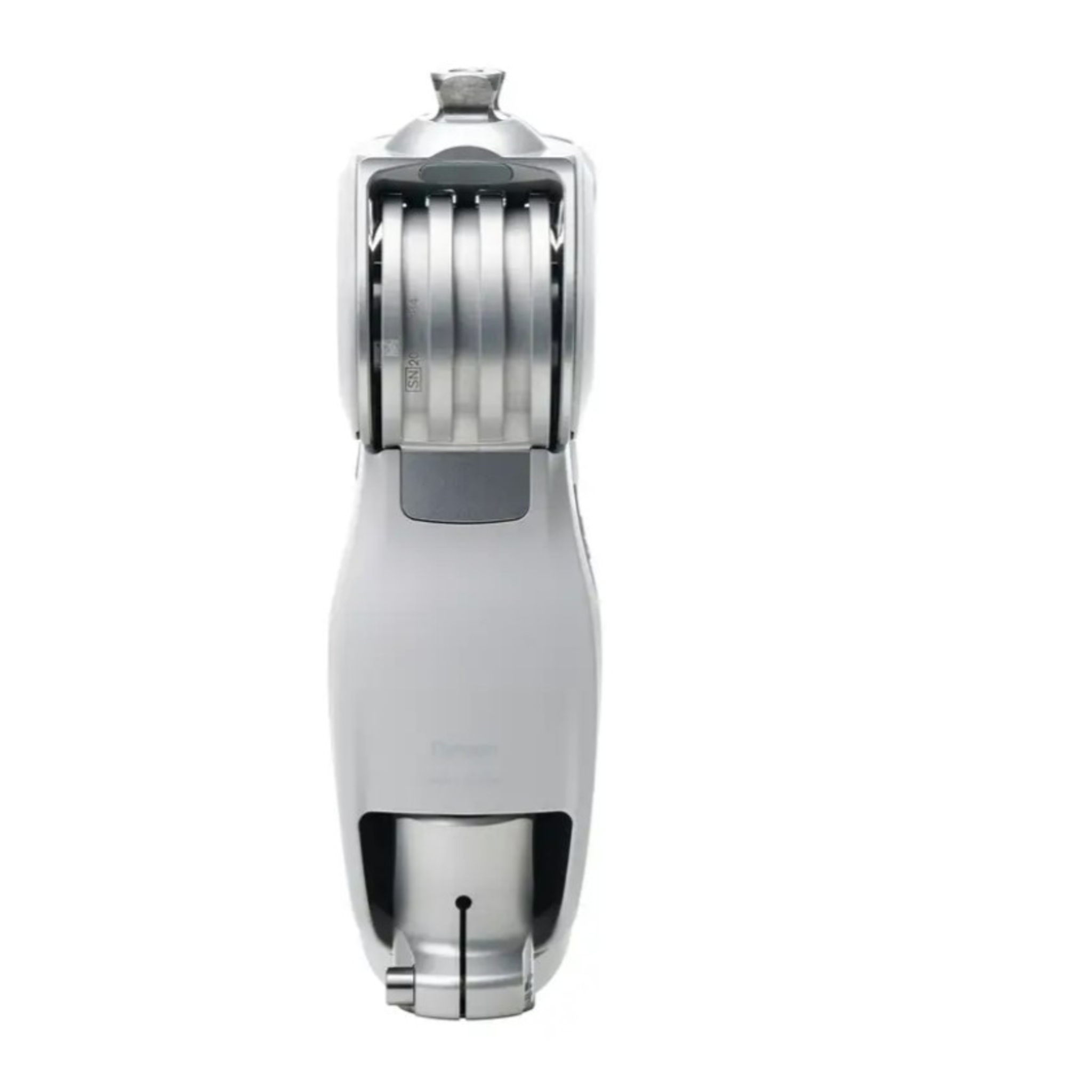

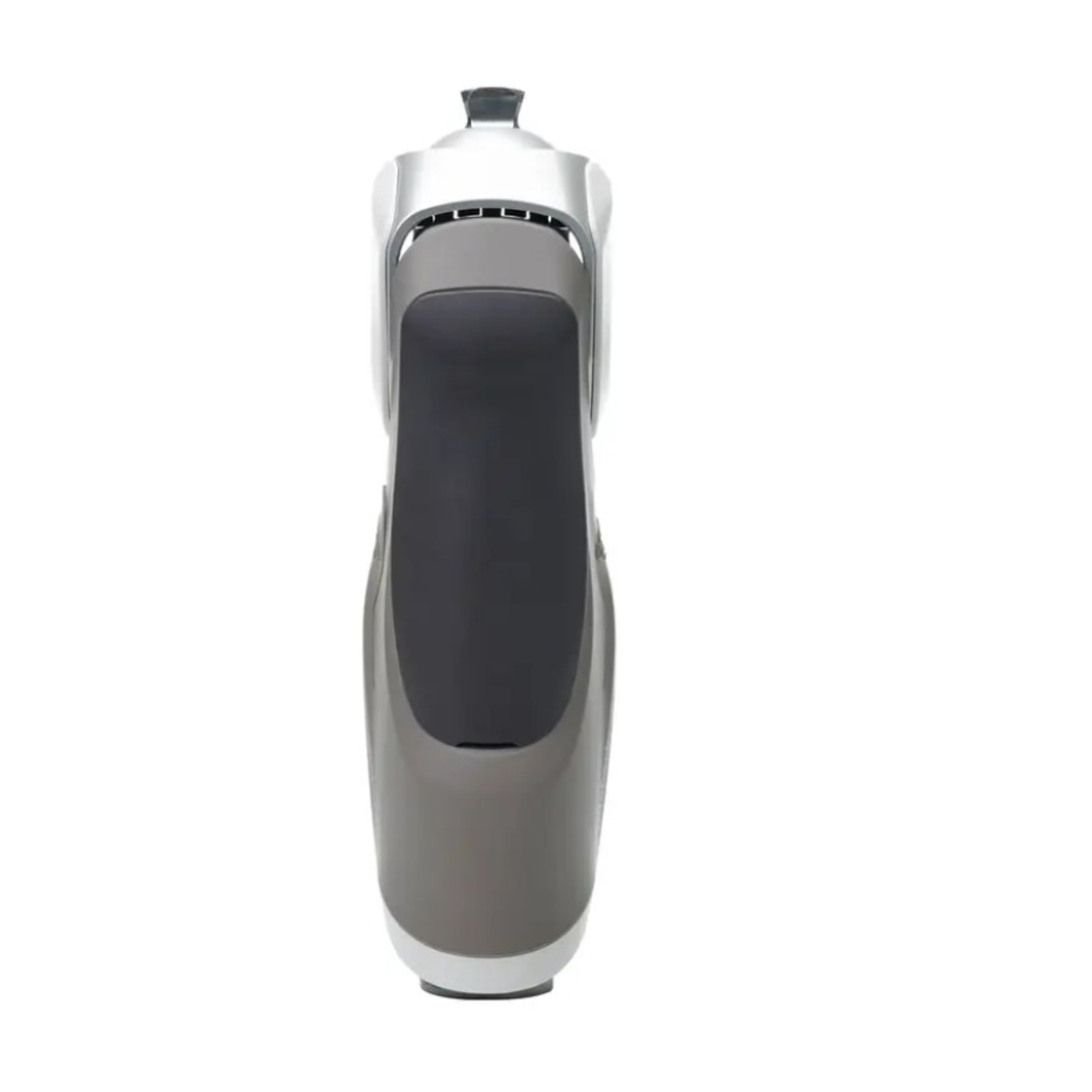

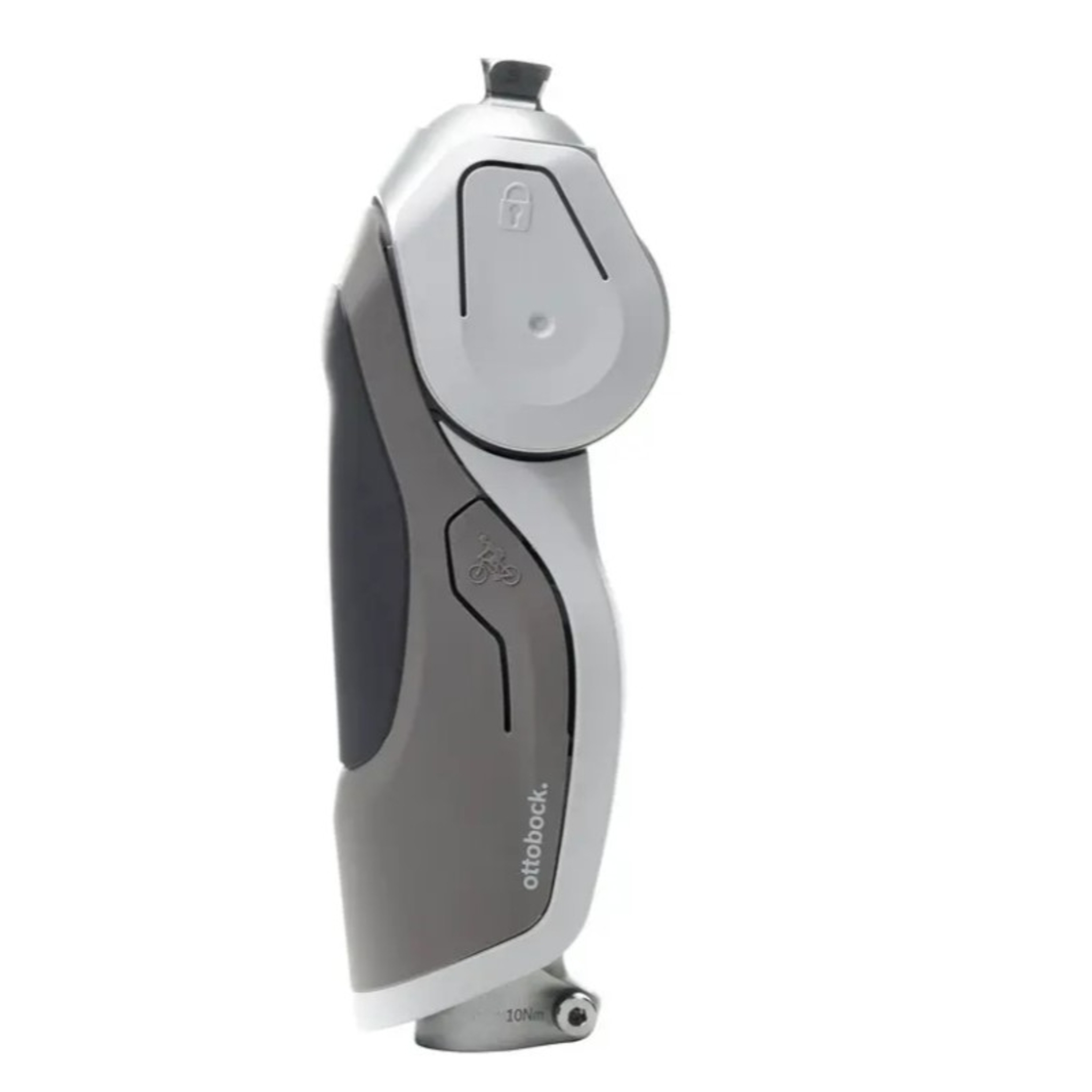

3R85 Dynion Single Axis Knee Joint
By
ottobock
Quick Links
| Part # | Description |
|---|
Product information
The Dynion single axis, hydraulic knee provides dynamic, dependable control throughout the gait cycle. The knee extension assist spring supports variable cadence and a more secure loading condition.
- Waterproof against fresh, salt, and chlorinated water
- Default stance
- Supported ascent
- Stance and swing extension dampening
- Manual lock
- Bicycle mode
- Anterior adjustment panel
Specifications
- Activity Level: K3, K4
- Knee Design Type: Single Axis, Hydraulic Stance and Swing
- Axis: Single Axis
- Swing Phase: Hydraulic
- Stance Phase: Hydraulic
- Control Frame Material: Aluminum
- Product Weight (g): 1240
- Maximum User Weight: 220lbs (100kg)
- Maximum Knee Flexion Angle: 145 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
Non-discount item.
| HCPCS: | L5828, L5845, L5848, L5850, L5925 |
|---|---|
| User: | Adult |
| Activity Level: | K2 (Moderate), K3 (High), K4 (Very High) |
| Swing Phase: | Hydraulic |
| Stance Phase: | Hydraulic |
| Axis Type: | Single Axis |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Tube Clamp |
| Key Features: | Water Resistant, Waterproof |
| Material: | Aluminum |
