3R80 Modular Knee Joint with Rotary Hydraulic
Quick Links
| Part # | Description |
|---|
Product information

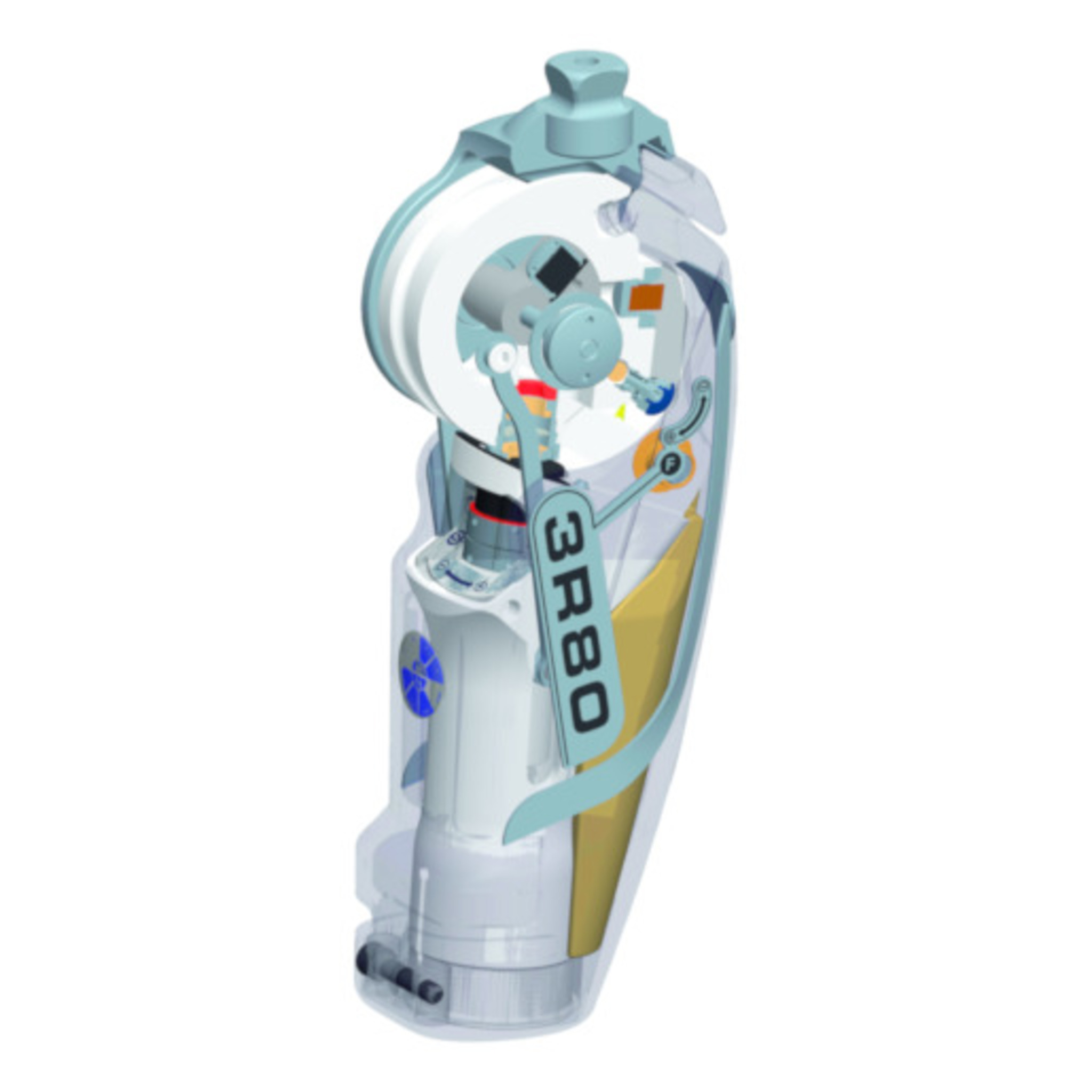

The 3R80 Modular Knee Joint with Rotary Hydraulic features rotary hydraulics that control stance and swing phase to prevent involuntary flexion of the knee joint. The flexion and extension resistance can be adjusted easily and independently.
- Manual lock
- Waterproof
- Durable construction
- Includes a 710H10=2x3 Adjustment wrench and 513D59=1.3x8.8x86 Compression spring
Specifications
- Activity Level: K3, K4
- Knee Design Type: Single Axis, Fluid Swing and Stance Phase Control
- Axis: Single Axis
- Swing Phase: Hydraulic
- Stance Phase: Hydraulic
- Control Frame Material: Aluminum
- Product Weight (g): 1240-1255
- Maximum User Weight: 330lbs (150kg)
- Maximum Knee Flexion Angle: 150 Degrees
- Proximal Connection: Refer to chart below
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
| HCPCS: | L5828, L5845, L5850, L5925 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Hip Disarticulation, Knee Disarticulation |
| Activity Level: | K3 (High), K4 (Very High) |
| Swing Phase: | Hydraulic |
| Stance Phase: | Hydraulic |
| Axis Type: | Single Axis |
| Proximal Connection: | Male Pyramid Adapter, Threaded Adapter |
| Distal Connection: | Tube Clamp |
| Weight Limit: | 100 kg (220 lbs), 125 kg (275 lbs), 136 kg (300 lbs), 150 kg (330 lbs) |
| Material: | Aluminum |
Frequently Bought Together
Rotation Adapter with Threaded Top
The rotation adapter allows the lower leg to rotate medially or laterally relative to the socket when the knee is flexed. The rotating mechanism is activated through pressing of the release button and is locked automatically. The rotation adapter is equipped with a proximal thread.
3S107 Foam Cover, Pre-Shaped
Features a pre-shaped design and stepped center hole for modular transfemoral prostheses.For knee joints: 3R106, 3R106=ST, 3R106=HD, 3R60, 3R60=ST, 3R60=HD, 3R60-PRO, 3R60-PRO=ST, 3R60-PRO=HD, 3R72, 3R80, 3R90, 3R92 (also for 3R60=KD, 3R106=KD).
Rotation Adapter with Pyramid
The rotation adapter allows the lower leg to rotate medially or laterally relative to the socket when the knee is flexed. The rotating mechanism is activated through pressing of the release button and is locked automatically. The rotation adapter is equipped with a proximal pyramid adapter.
Waterproof Rotation Adapter with Pyramid
The Waterproof Rotation Adapter makes everyday activities like driving a car and putting on socks and shoes much easier for your patients.Waterproof - Fresh, Salt, ChlorineEnables rotation of the flexed knee jointOffers increased safety and security while drivingMakes putting on shoes and sitting with crossed legs easier and more comfortableEasy to use rotation mechanism — simply press a button to begin rotationLow rotation resistance makes adapter very user friendlySpace-saving option uses a threaded connection

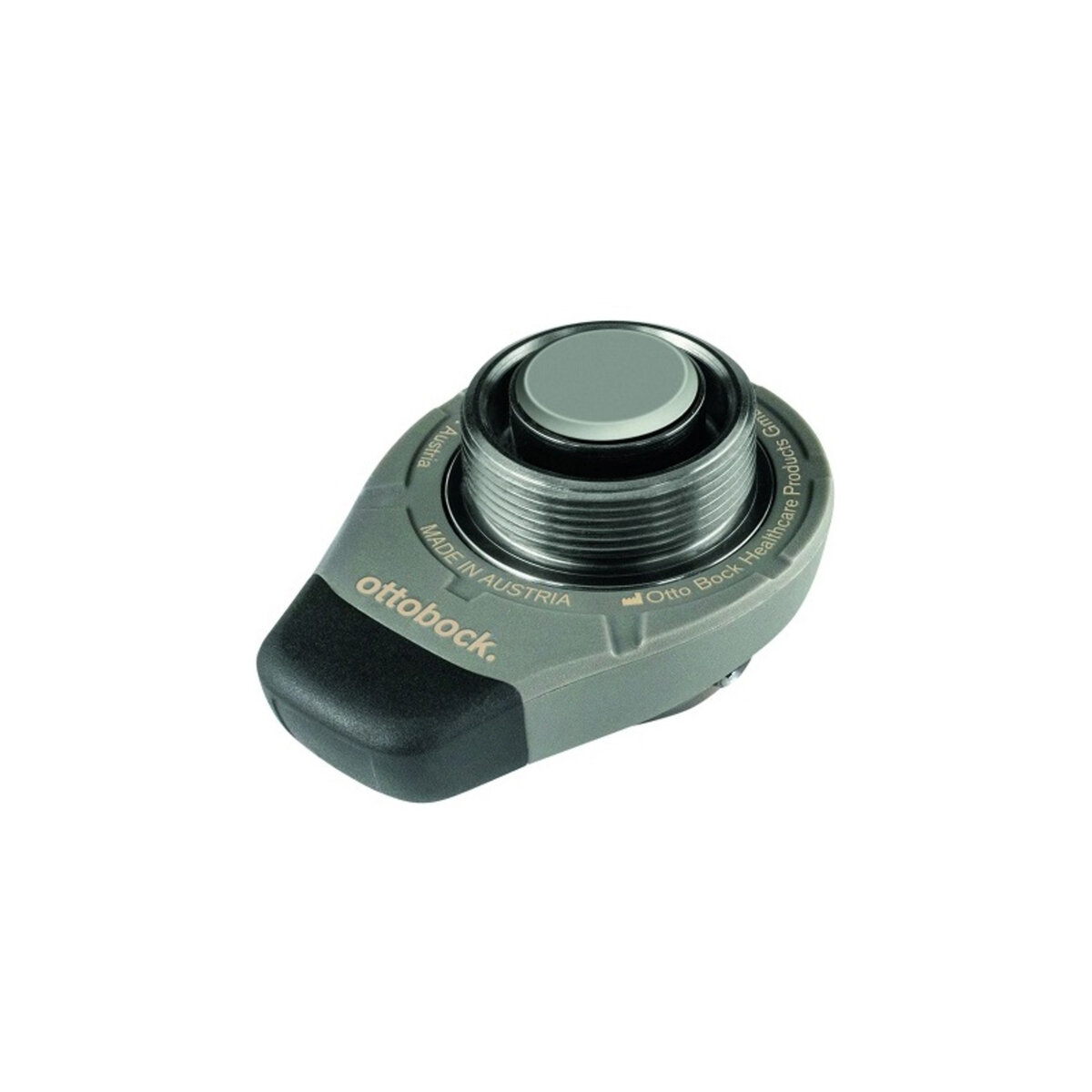

Waterproof Rotation Adapter with Threaded Top
