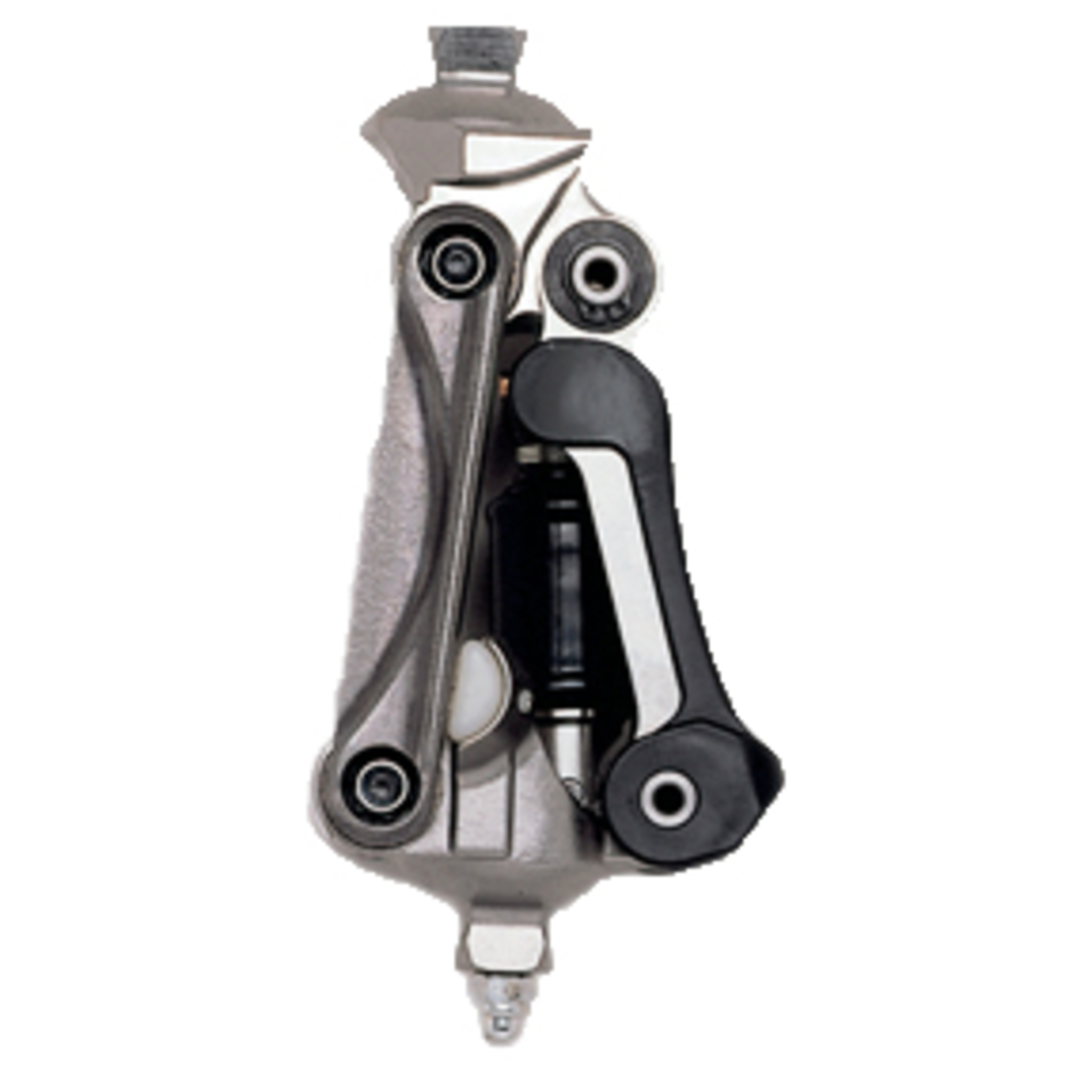

3R55 Polycentric Hydraulic Knee Joint, Titanium
Quick Links
| Part # | Description |
|---|
Product information

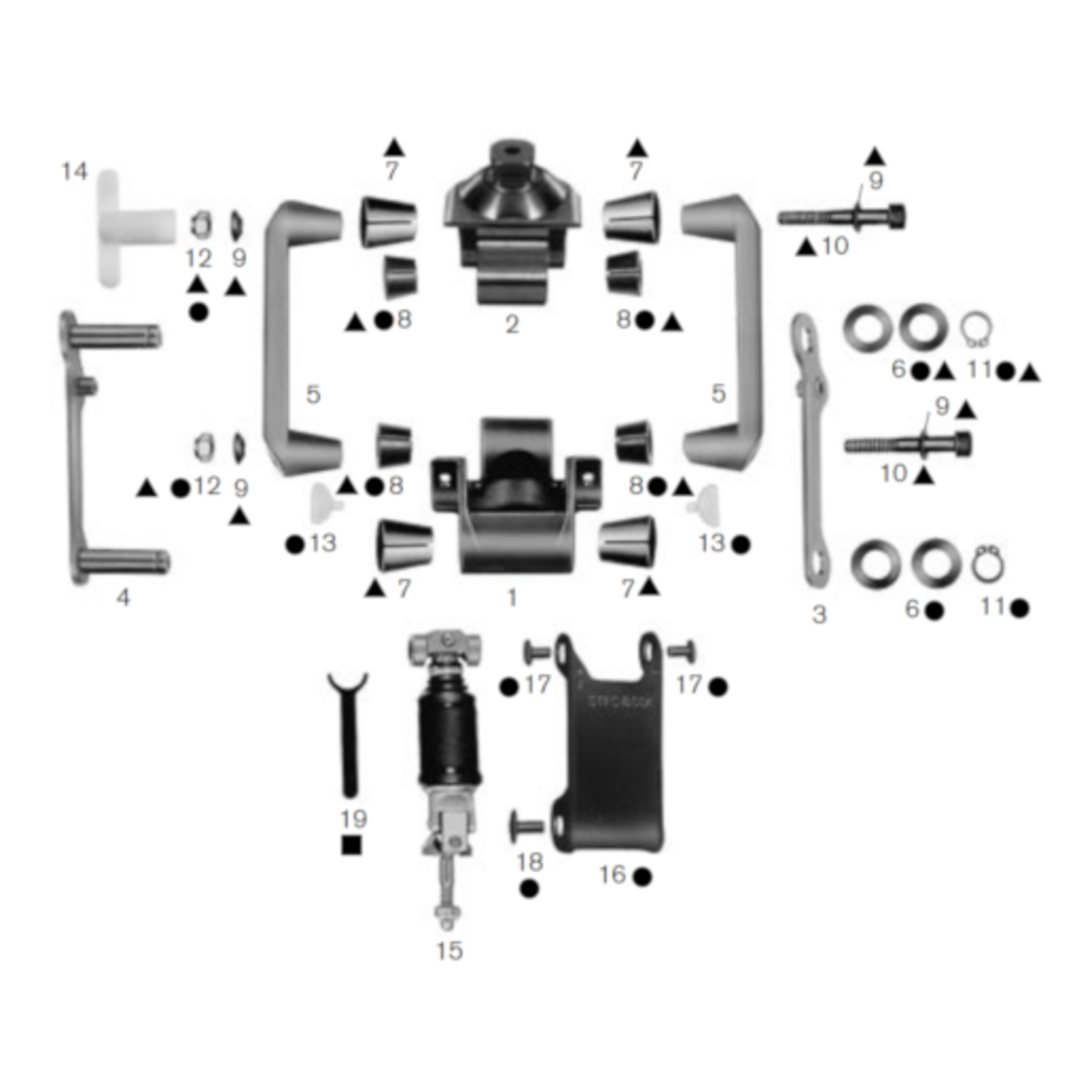

The 3R55 Polycentric Hydraulic Knee Joint, Titanium features an upper and a lower joint section connected to one another by linkage bars. The stance phase stability is achieved through polycentric kinematics.
- Swing phase is controlled by the built-in hydraulic cylinder
- Flexion and extension resistance are independently adjustable
Specifications
- Activity Level: K3, K4
- Knee Design Type: 4-Bar Linkage, Hydraulic Swing Phase Control
- Axis: Polycentric
- Swing Phase: Hydraulic
- Stance Phase: Friction
- Control Frame Material: Titanium
- Product Weight (g): 720
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 110 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Pyramid Adapter
- Trial Period: N/A
- Warranty: 24 months from delivery date
| Swing Phase: | Hydraulic |
|---|---|
| Stance Phase: | Friction |
| Axis Type: | Polycentric |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Male Pyramid Adapter |
