3R49 Single Axis Brake Knee, Titanium
Quick Links
| Part # | Description |
|---|
Product information
The 3R49 features a swing block that is connected to the upper joint section through the swing axis and the lower joint section through the knee axis, acting as a load-dependent brake. The axis friction and the spring force of the extension assist are adjustable.
- Braking and stance flexion action can be easily adjusted
- Not suitable for bilateral transfemoral amputees
Specifications
- Activity Level: K1, K2
- Knee Design Type: Single Axis, Friction Swing and Stance Phase Control
- Axis: Single Axis
- Swing Phase: Friction
- Stance Phase: Friction
- Control Frame Material: Titanium
- Product Weight (g): 360
- Maximum User Weight: 220lbs (100kg)
- Maximum Knee Flexion Angle: 150 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Pyramid Adapter
- Trial Period: N/A
- Warranty: 24 months from delivery date
| Swing Phase: | Friction |
|---|---|
| Stance Phase: | Friction |
| Axis Type: | Single Axis |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Male Pyramid Adapter |
Frequently Bought Together

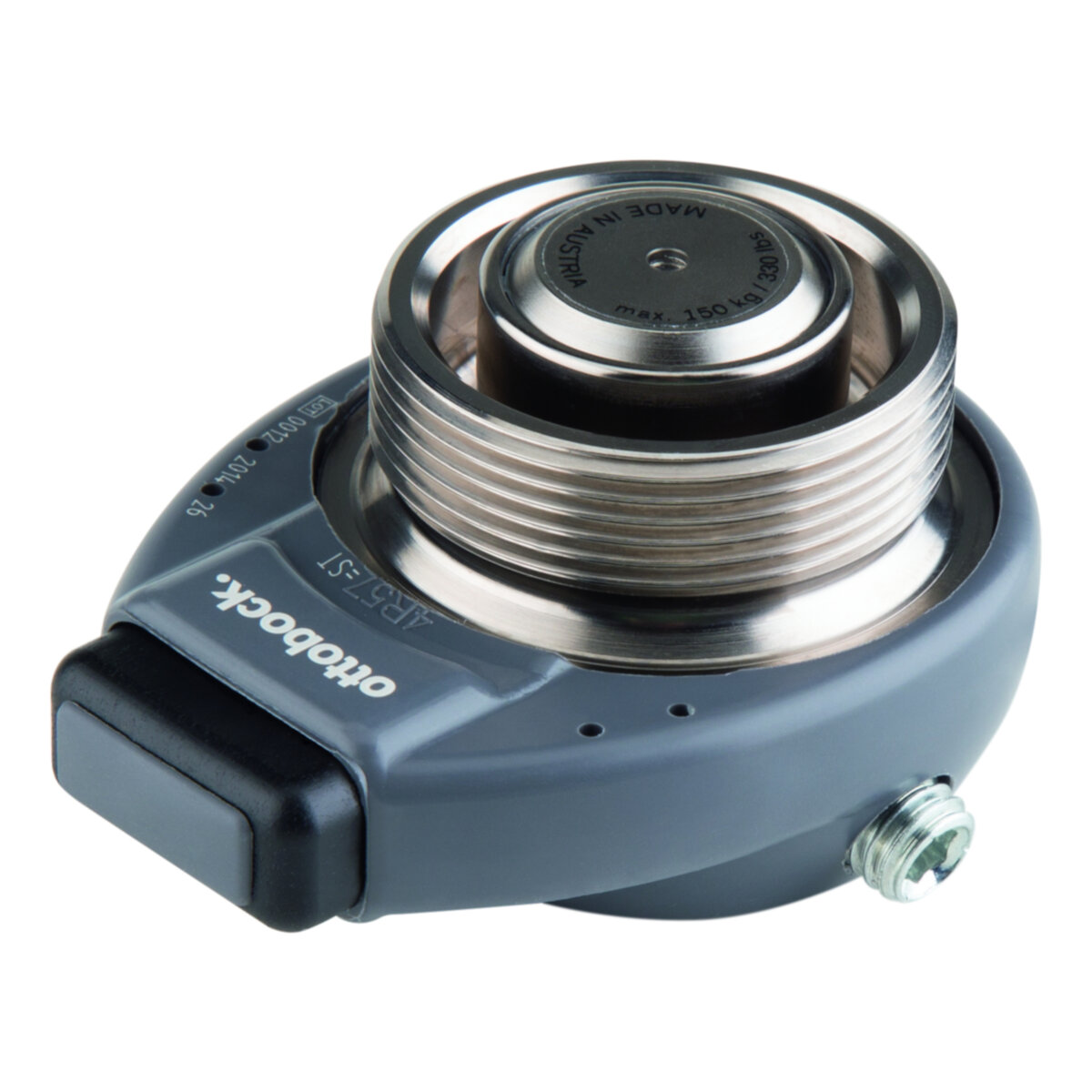

Rotation Adapter with Threaded Top
The rotation adapter allows the lower leg to rotate medially or laterally relative to the socket when the knee is flexed. The rotating mechanism is activated through pressing of the release button and is locked automatically. The rotation adapter is equipped with a proximal thread.

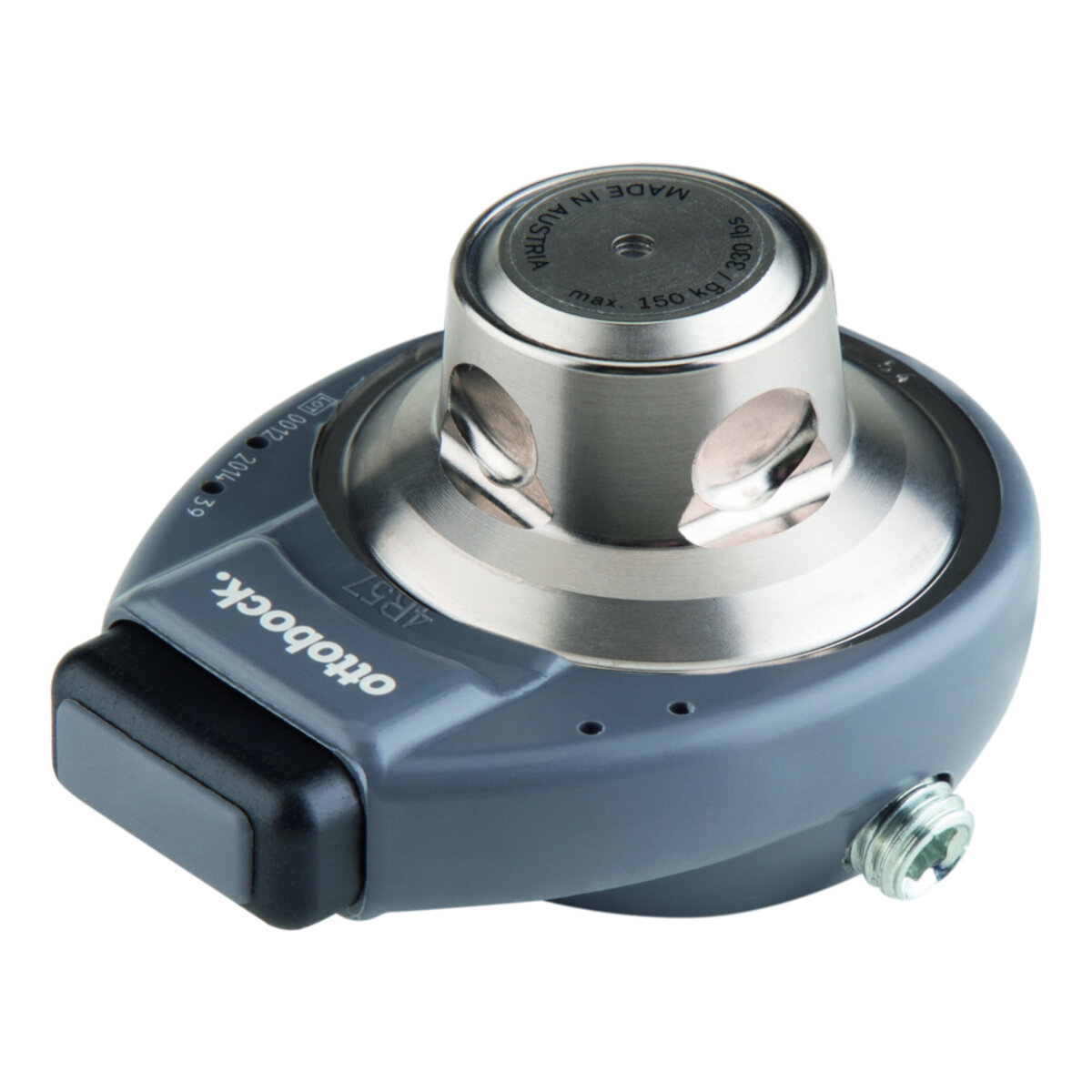

Rotation Adapter with Pyramid
