3R41 Modular Knee Joint
Quick Links
| Part # | Description |
|---|
Product information

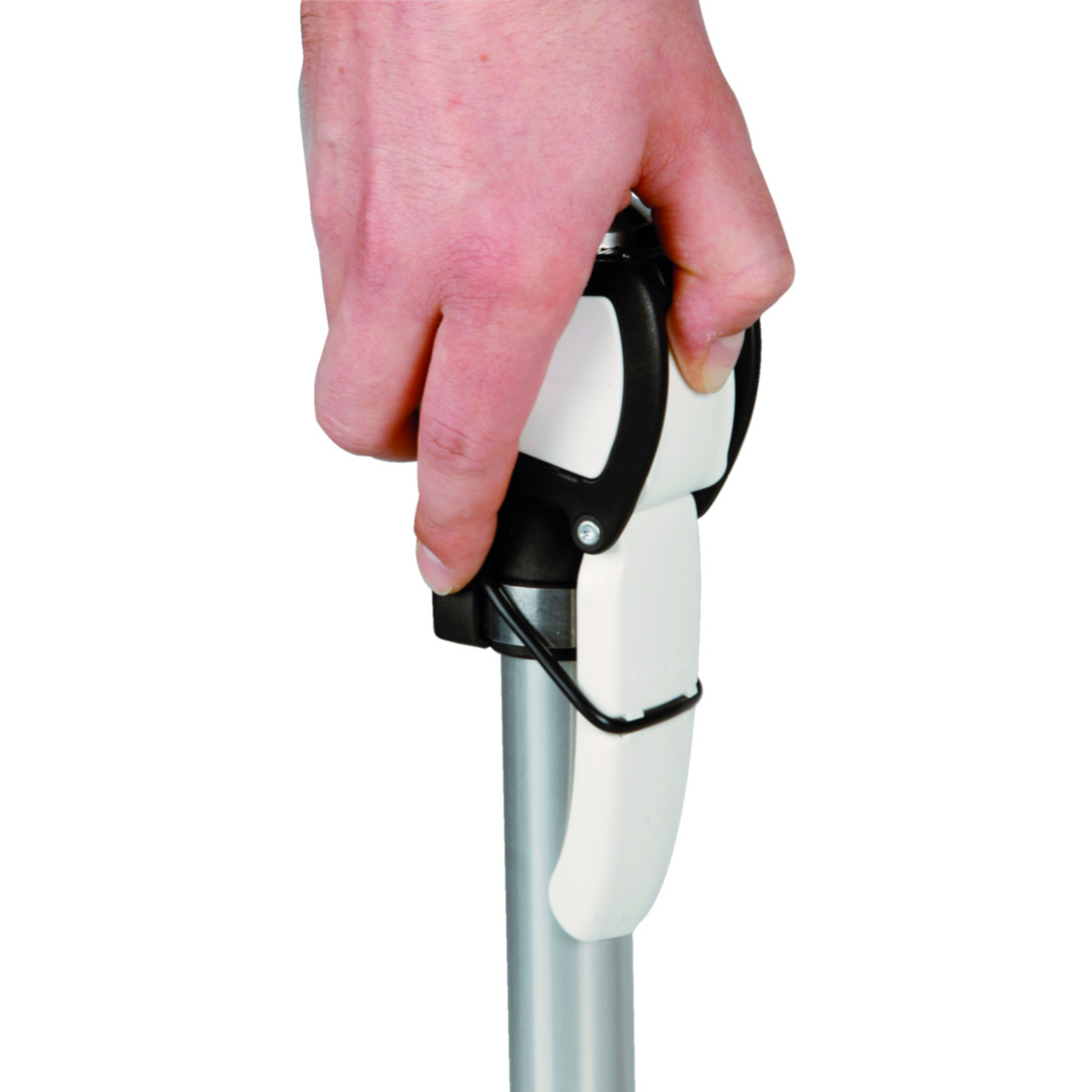

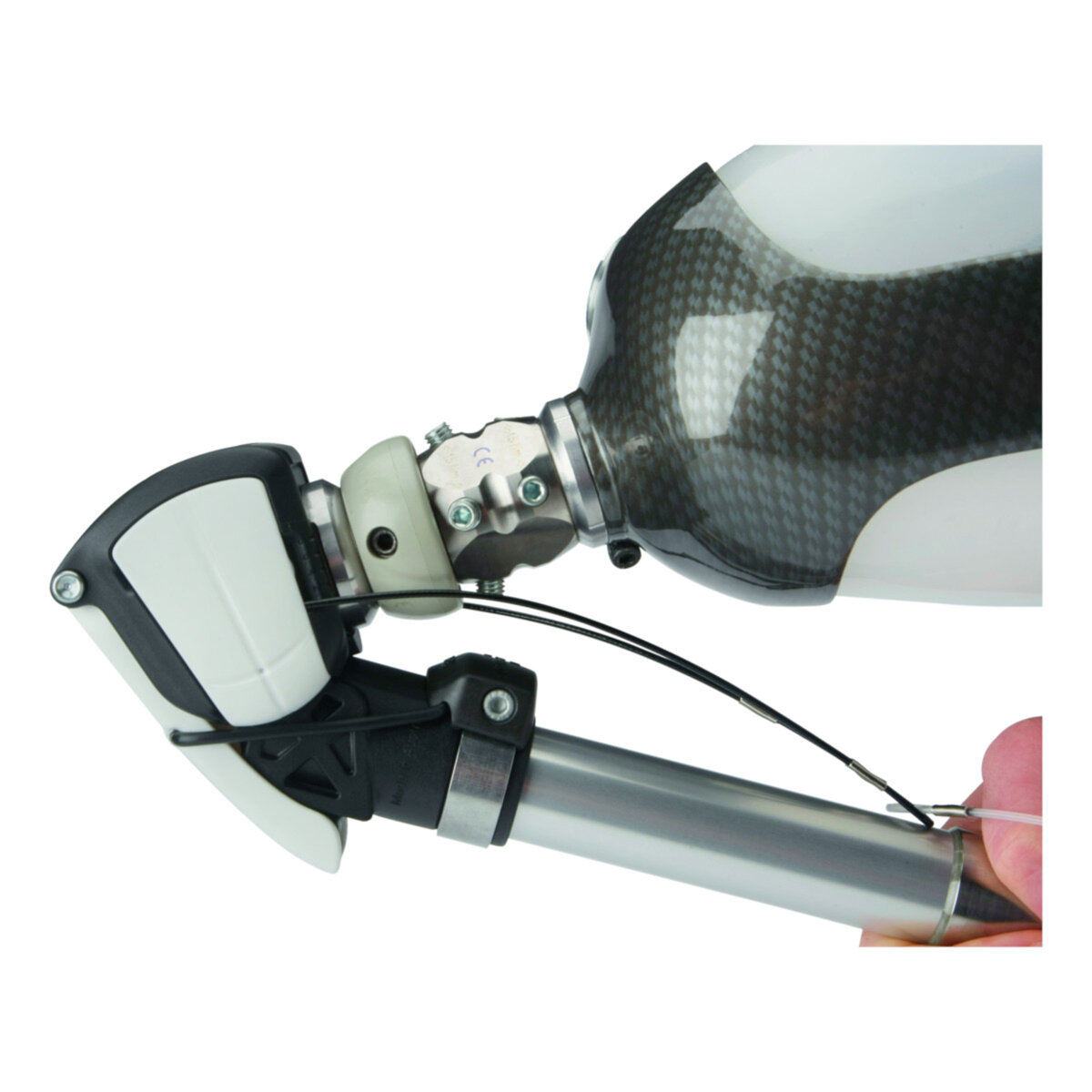

The 3R41 Modular Knee Joint features synthetic technology that secures the joint at full extension and the user can hear and feel the lock latch engage. The joint can be unlocked using the pull cable or by pressing the lock latch.
- Moisture resistant
- Lightweight
- High need for safety
- Front plastic flap prevents pinching the fingers in the joint gap
Specifications
- Activity Level: K1
- Knee Design Type: Single Axis, Manual Lock
- Axis: Single Axis
- Swing Phase: Friction
- Stance Phase: Friction
- Control Frame Material: Fiber-Reinforced Composites
- Product Weight (g): 385
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 150 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
| HCPCS: | L5811 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK) |
| Activity Level: | K1 (Low) |
| Swing Phase: | Friction |
| Stance Phase: | Friction |
| Axis Type: | Single Axis |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Tube Clamp |
| Material: | Fiber-Reinforced Composite |
