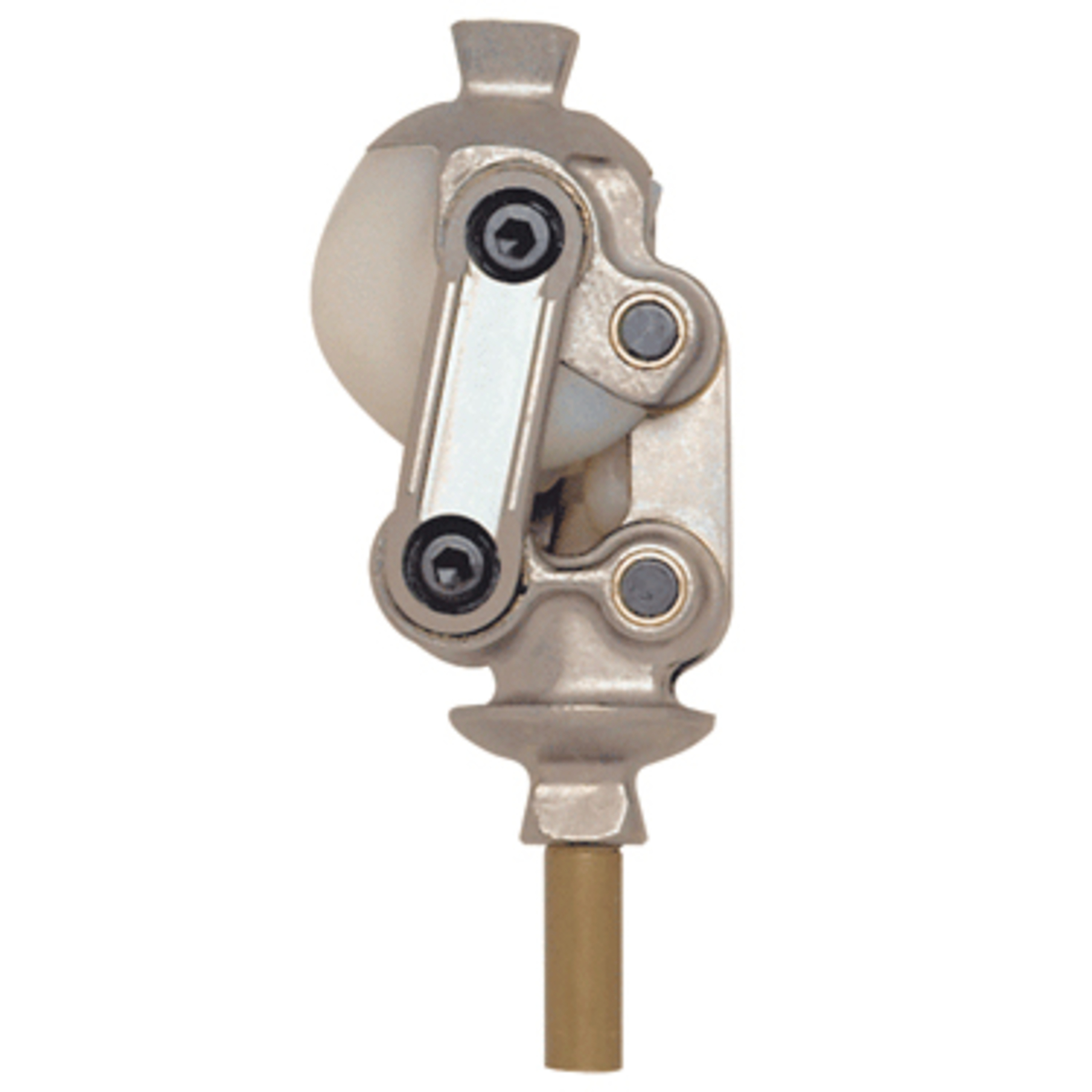

3R36 Polycentric Knee Joint, Titanium
Quick Links
| Part # | Description |
|---|
Product information
The 3R36 Polycentric Knee Joint, Titanium features an extension stop to allow adjustment of the instantaneous center of rotation. Its stance phase stability is achieved through polycentric kinematics.
- Upper and lower joint sections are connected by linkage bars
- Swing phase control is adjustable using axis friction and the extension assist spring
Specifications
- Activity Level: K1, K2
- Knee Design Type: 4-Bar Linkage, Friction Swing Phase Control
- Axis: Polycentric
- Swing Phase: Friction
- Stance Phase: Friction
- Control Frame Material: Titanium
- Product Weight (g): 445
- Maximum User Weight: 220lbs (100kg)
- Maximum Knee Flexion Angle: 110 Degrees
- Proximal Connection: Pyramid Adapter
- Distal Connection: Pyramid Adapter
- Trial Period: N/A
- Warranty: 24 months from delivery date
| Swing Phase: | Friction |
|---|---|
| Stance Phase: | Friction |
| Axis Type: | Polycentric |
| Proximal Connection: | Male Pyramid Adapter |
| Distal Connection: | Male Pyramid Adapter |
