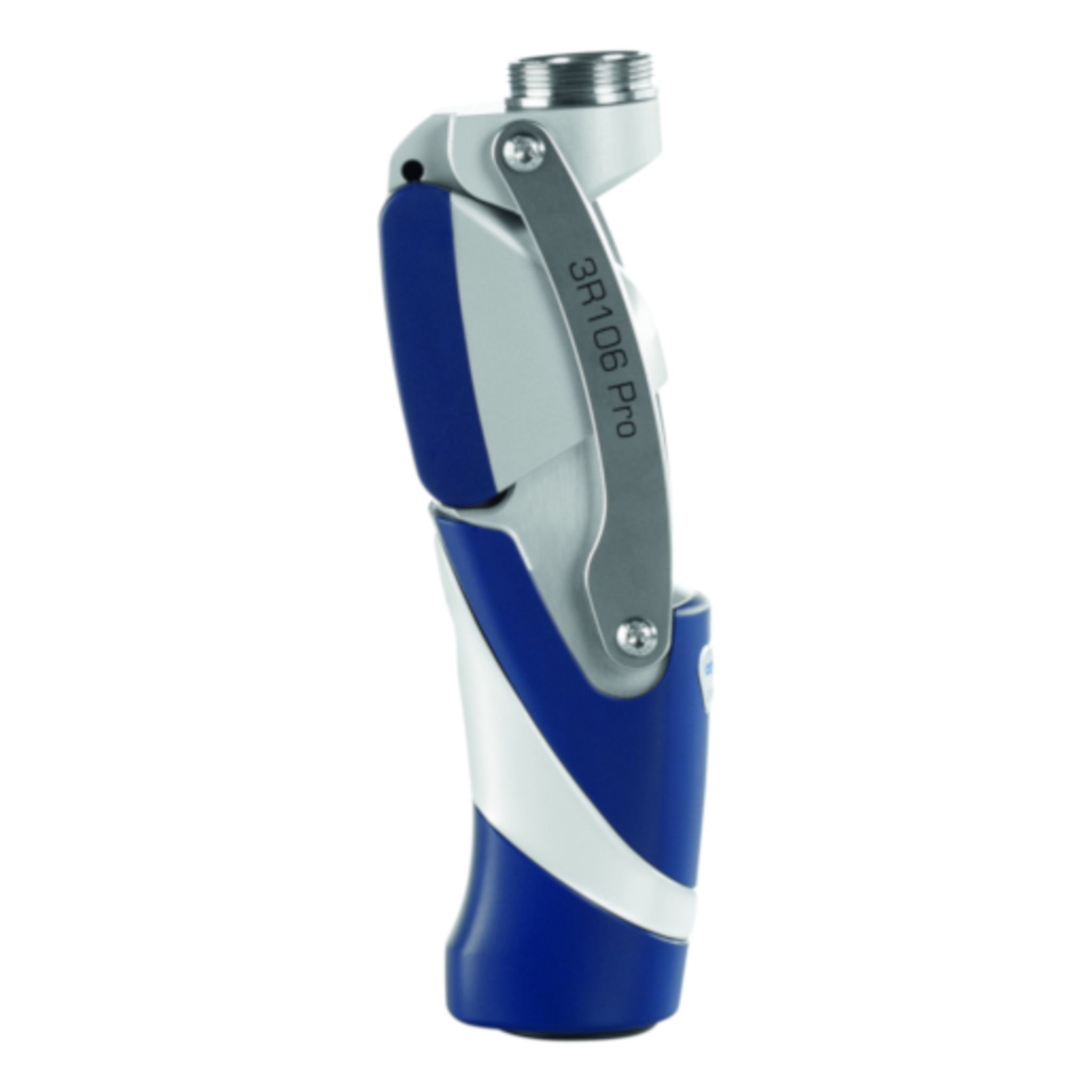

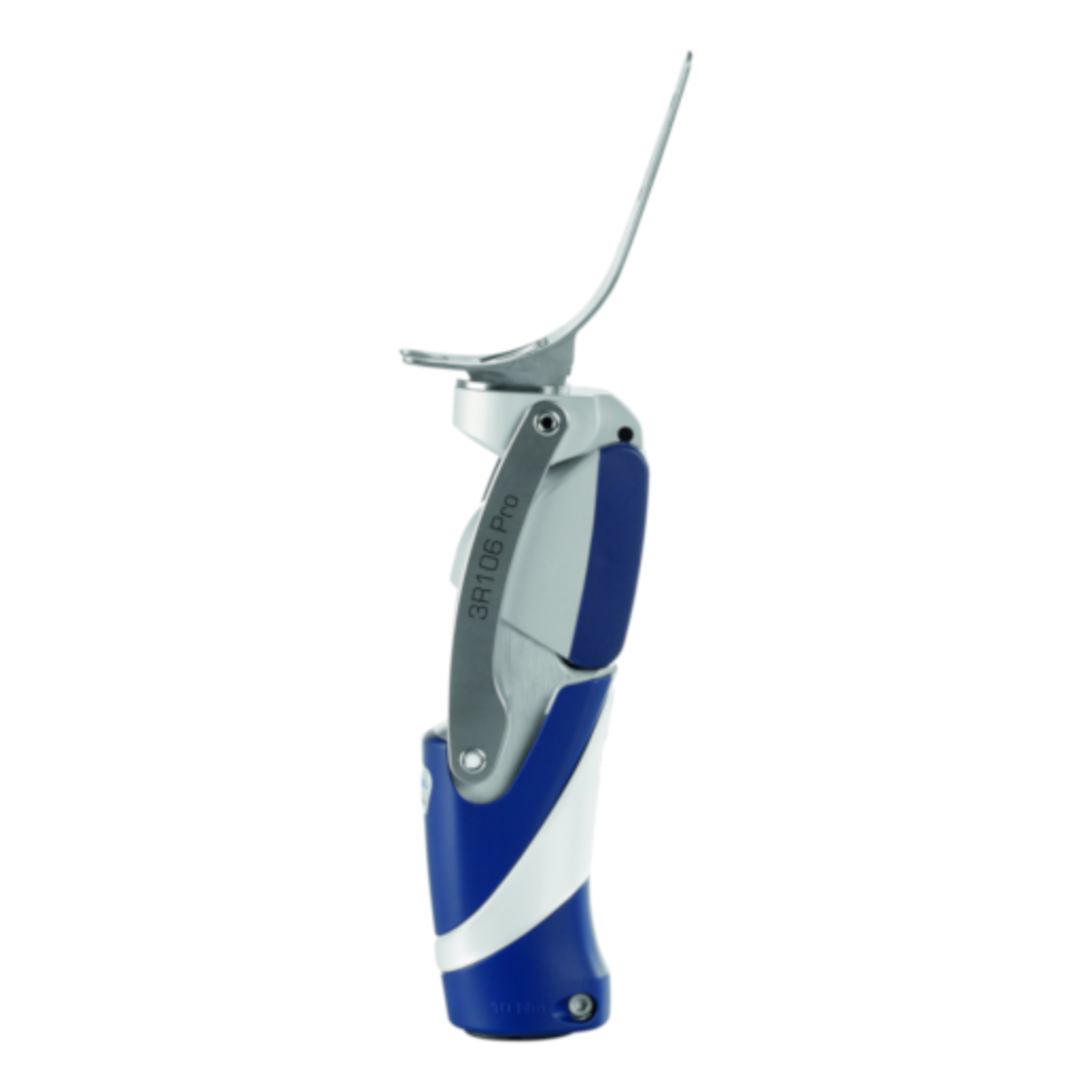

3R106 Modular Knee Joint, Servo-Pneumatic
Quick Links
| Part # | Description |
|---|
Product information
The 3R106 Modular Knee features a dual-chamber pneumatic unit with progressive damping properties has a flexion valve that the prosthetist sets for the user’s normal walking speed. The flexion resistance increases auto-adaptively, preventing too much flexion of the knee joint when walking at faster speeds.
- Pendulum movements in the swing phase
- Accommodates patients with longer residual limbs
- Supports a wide range of walking speeds
- Durable, robust, and smooth-running needle roller bearings technology
- Includes 513D83=1.4X12.6X66 Compression Spring, Heavy duty and 513D83=1.1X12.9X66 Compression Spring, light duty
Specifications
- Activity Level: K2, K3
- Knee Design Type: Multi-Axial 4-Bar Linkage, Pneumatic Swing Control
- Axis: Polycentric
- Swing Phase: Pneumatic
- Stance Phase: Friction
- Control Frame Material: Aluminum
- Product Weight (g): 870-910
- Maximum User Weight: 275lbs (125kg)
- Maximum Knee Flexion Angle: 175 Degrees
- Proximal Connection: Refer to chart below
- Distal Connection: Tube Clamp
- Trial Period: N/A
- Warranty: 24 months from delivery date
| HCPCS: | L5840, L5850 |
|---|---|
| User: | Adult |
| Amputation Level: | Transfemoral (TF/AK), Hemipelvectomy, Hip Disarticulation, Knee Disarticulation |
| Activity Level: | K2 (Moderate), K3 (High) |
| Swing Phase: | Pneumatic |
| Stance Phase: | Friction |
| Axis Type: | Polycentric |
| Proximal Connection: | Lamination Anchor, Male Pyramid Adapter, Threaded Adapter |
| Distal Connection: | Tube Clamp |
| Material: | Aluminum |
Frequently Bought Together

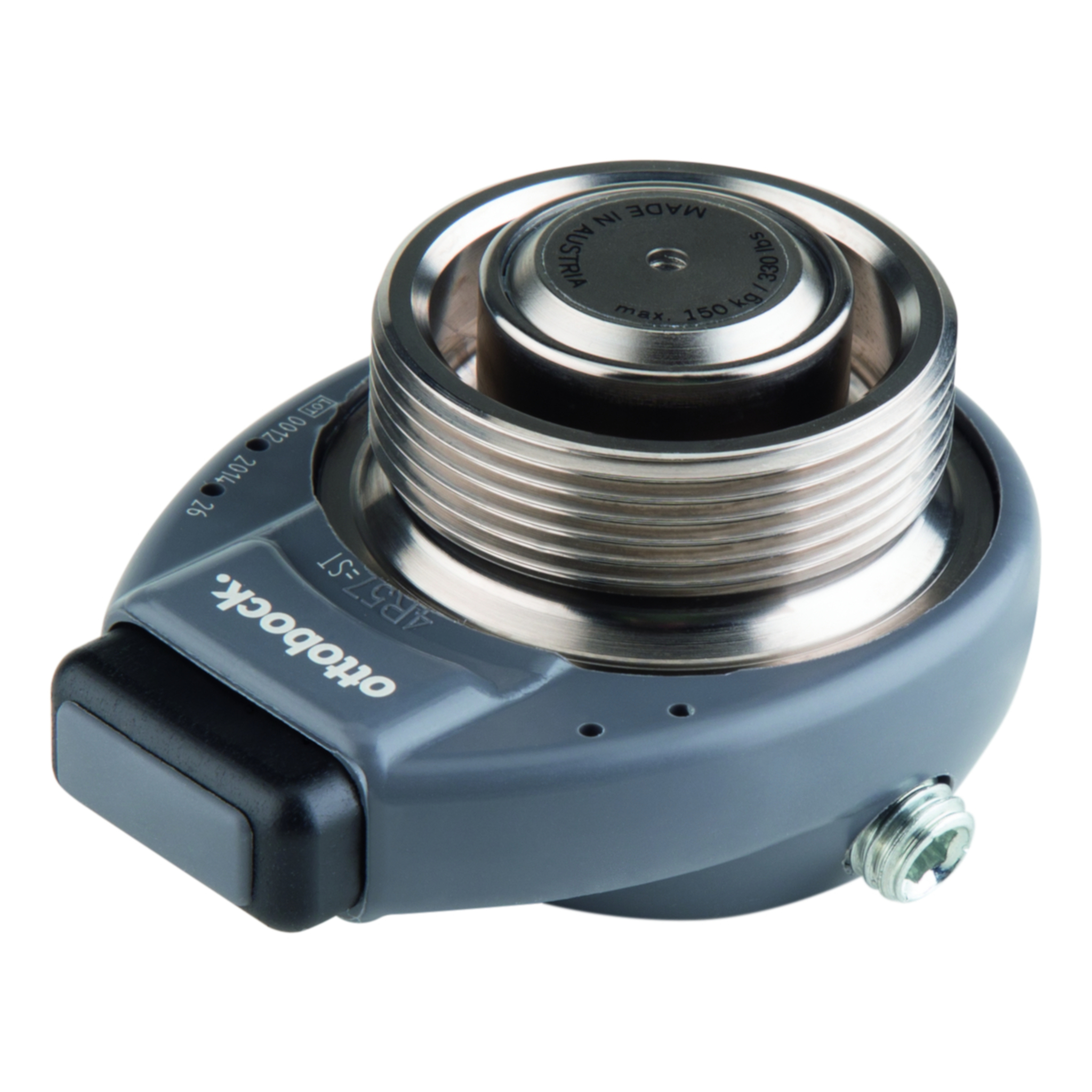

Rotation Adapter with Threaded Top
The rotation adapter allows the lower leg to rotate medially or laterally relative to the socket when the knee is flexed. The rotating mechanism is activated through pressing of the release button and is locked automatically. The rotation adapter is equipped with a proximal thread.

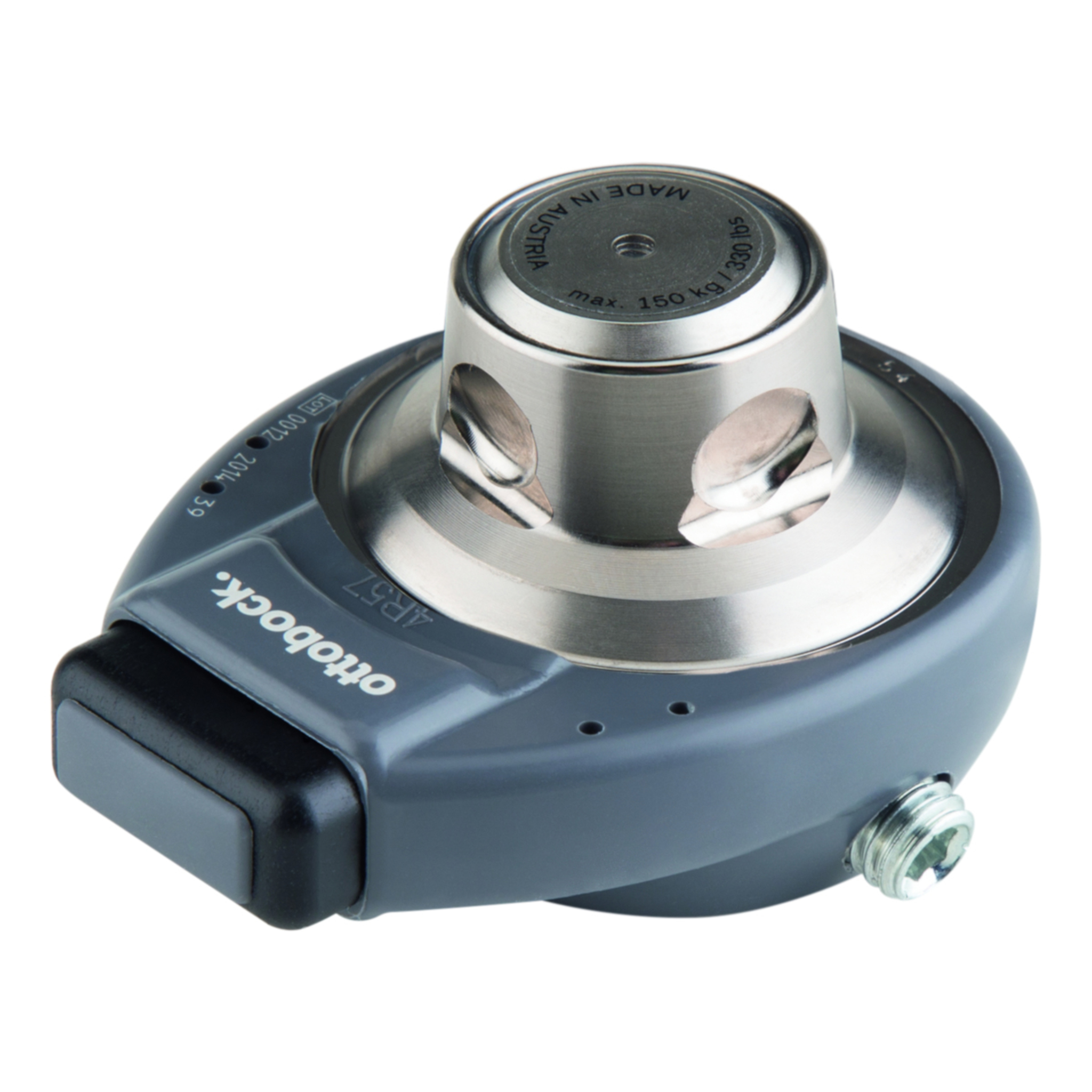

Rotation Adapter with Pyramid
