3Genesis A - Push Lock with Guide Grooves Stainless Steel
3Genesis A - Push Lock with Guide Grooves Stainless Steel
Product number:
3GEN-AG-SS-GSS1.00-M10
Quick Links
| Part # | Description |
|---|
Product Information
This water resistant model exchanges all possible parts to stainless steel. Including push button, plunger pin, spring, and attachment screws. It has a shorter push button and multi-contoured surface for multiple liners.

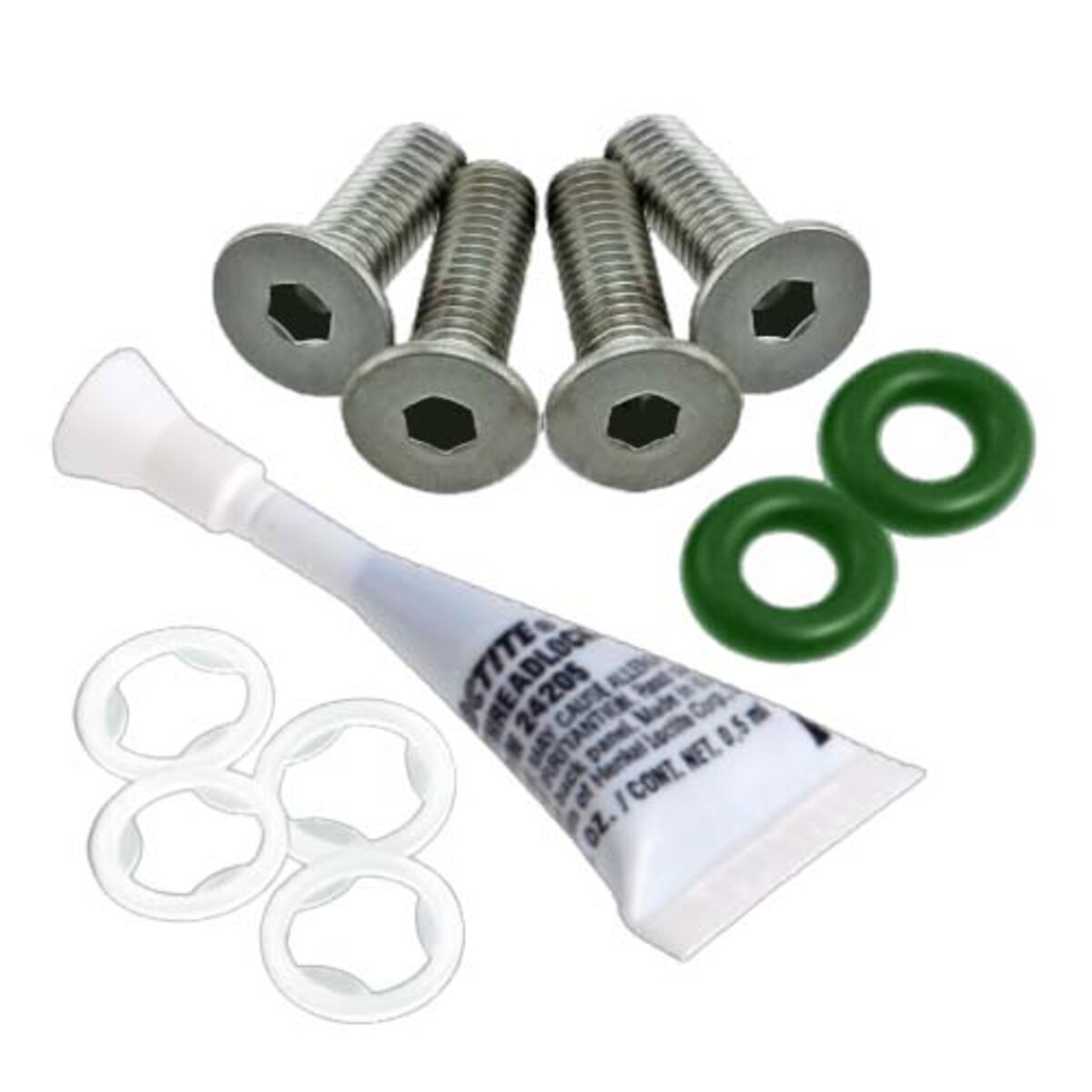

Includes:
- (2) Plunger pins of choice, with o-rings
- (2) 0.5 mm pin adjustment washers
- (2) 1.0 mm pin adjustment washers
- (4) M6x25 flat head cap screws
- (1) 0.017 fl oz. tube of Loctite®
Specifications
- Lock Type: Shuttle
- Fabrication Technique: Lamination, Thermoforming
- Housing Material: N/A
- Amputation Level: Transtibial, Transfemoral
- Activity Level: N/A
- Weight Limit: 350lbs (159kg)
- Product Weight (g): 104
- Build Height (mm): 25
- Distal Attachment: 4-Hole
- Warranty: 6 months from purchase date
Sold each.
This is a non-discount item.
