30mm Tube Clamp Adapter, Movable - Titanium
By
ottobock
Quick Links
| Part # | Description |
|---|
Product information

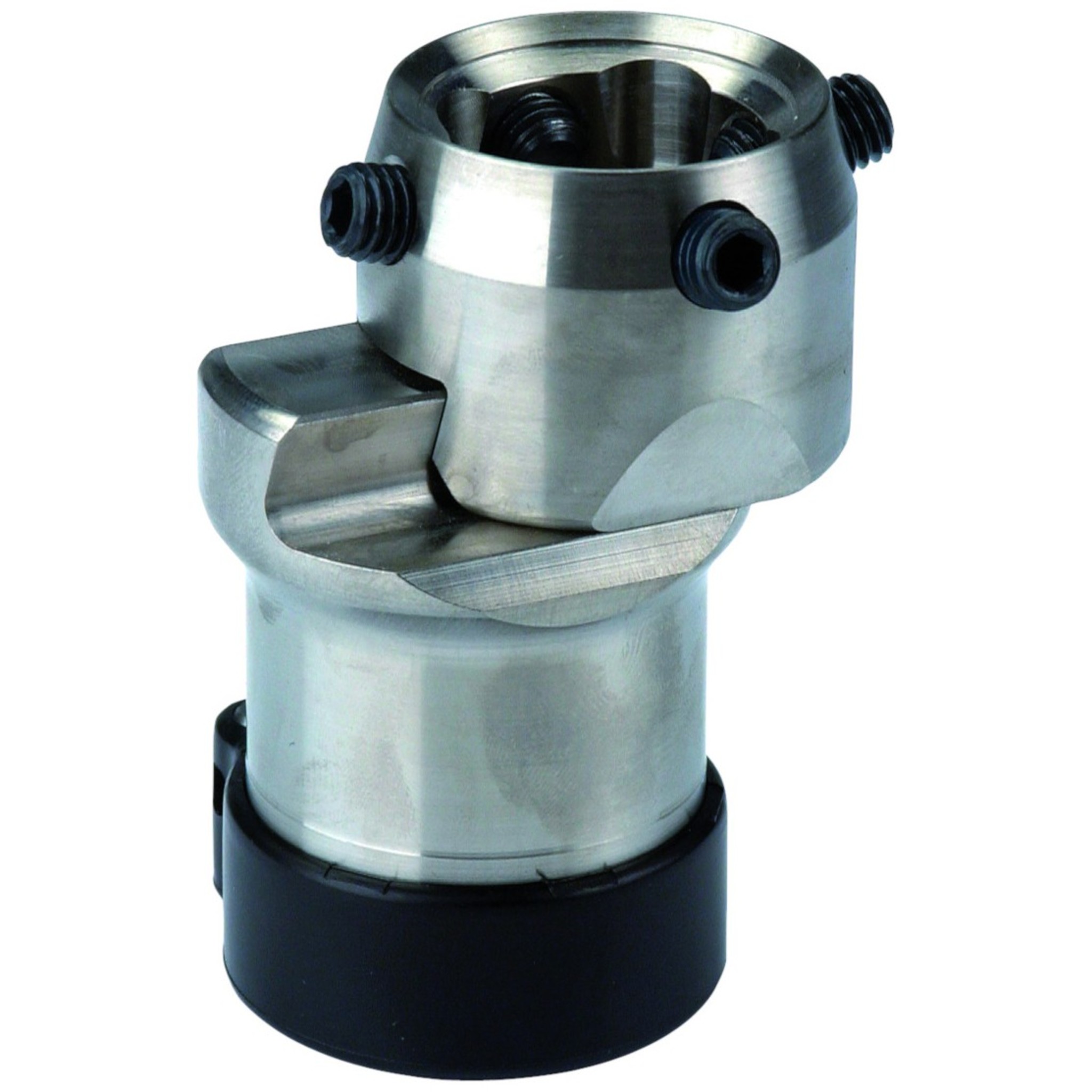

The sliding adapter allows additional sliding adjustments between the prosthetic socket and tube adapter, even while the prosthesis is worn. These fine tunings allow a parallel shifting of the distal portion regardless of the adjustment angle set by the pyramid adapters. The prosthetic foot can be shifted medially or laterally in the frontal plane, or dorsally or ventrally in the sagittal plane.
Specifications
- Material: Titanium
- Weight Limit: 187 lbs (85 kg)
- Build Height (mm): 68
- Assembly Weight (g): 185
- Torque (Nm): 15 (M8 Set Screw, Cap Screw), 5 (M5 Set Screw, M4 Clamp Screw)
- Warranty: 3 years from purchase date
| Endoskeletal Type: | Alignment Adapters, Tube Clamps |
|---|---|
| User: | Adult |
| Weight Limit: | 45 kg (100 lbs) |
| Material: | Titanium |
